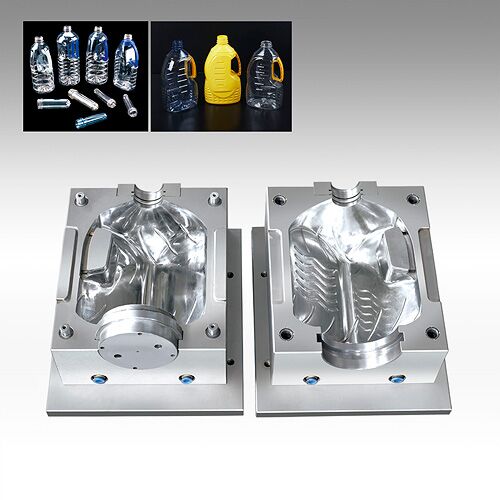

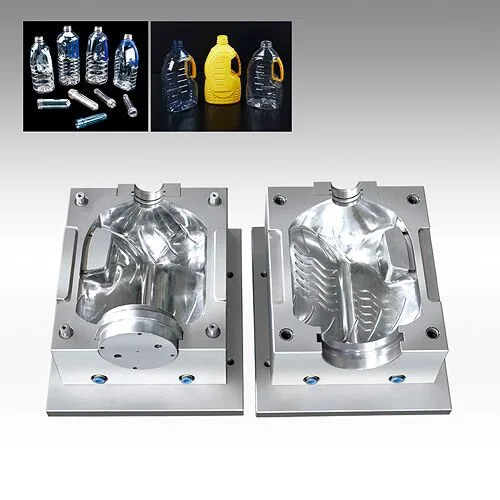

MG-880 Bottle Blowing Machine & Bottle Mold
WENZHOU KINGPAK INTERNATIONAL CO.LTD
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
MG-880 Bottle Blowing Machine & Bottle Mold
WENZHOU KINGPAK INTERNATIONAL CO.LTDThe supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Materials: Iro
- Color: White
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
About this product
- Materials: Iro
- Color: White
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
Product details
| Materials | Iro |
|---|---|
| Color | White |
Product details
| Materials | Iro |
|---|---|
| Color | White |
From the supplier
Main technical specification
Clamping Force
100KN
Max Products Height
360MM
Model Stroke
240MM
Max Product Volume
6L
Space Draw Bar
120-200MM
Working Pressure
0.8Mpa
Max Stretch
380MM
Blowing Pressure
2.0-4.0Mpa
Revolving speed of Sprocket Wheel
2-5Mni/Round
Power
380/220V
Mold Thickness
160-240MM
Weight
800+220KG
Mold Width
380MM
Blowing system Dimension
145×60×214
Diameter Stretching Bar
12MM
Pre-heater Dimension
110×50×116
Max Products Diameter
180MM
Production capacity for 2-cavity
800pcs/hr
Production capacity for 1-cavity
400pcs/hr
Note:
If the neck diameter is 28mm-40mm and bottle volume is below 2liter, the bottle can make 2-cavity mould.
If the neck diameter is 60-120mm, and bottle volume is above 2liter, the bottle can make 1-cavity mould.
From the supplier
Main technical specification
Clamping Force
100KN
Max Products Height
360MM
Model Stroke
240MM
Max Product Volume
6L
Space Draw Bar
120-200MM
Working Pressure
0.8Mpa
Max Stretch
380MM
Blowing Pressure
2.0-4.0Mpa
Revolving speed of Sprocket Wheel
2-5Mni/Round
Power
380/220V
Mold Thickness
160-240MM
Weight
800+220KG
Mold Width
380MM
Blowing system Dimension
145×60×214
Diameter Stretching Bar
12MM
Pre-heater Dimension
110×50×116
Max Products Diameter
180MM
Production capacity for 2-cavity
800pcs/hr
Production capacity for 1-cavity
400pcs/hr
Note:
If the neck diameter is 28mm-40mm and bottle volume is below 2liter, the bottle can make 2-cavity mould.
If the neck diameter is 60-120mm, and bottle volume is above 2liter, the bottle can make 1-cavity mould.
