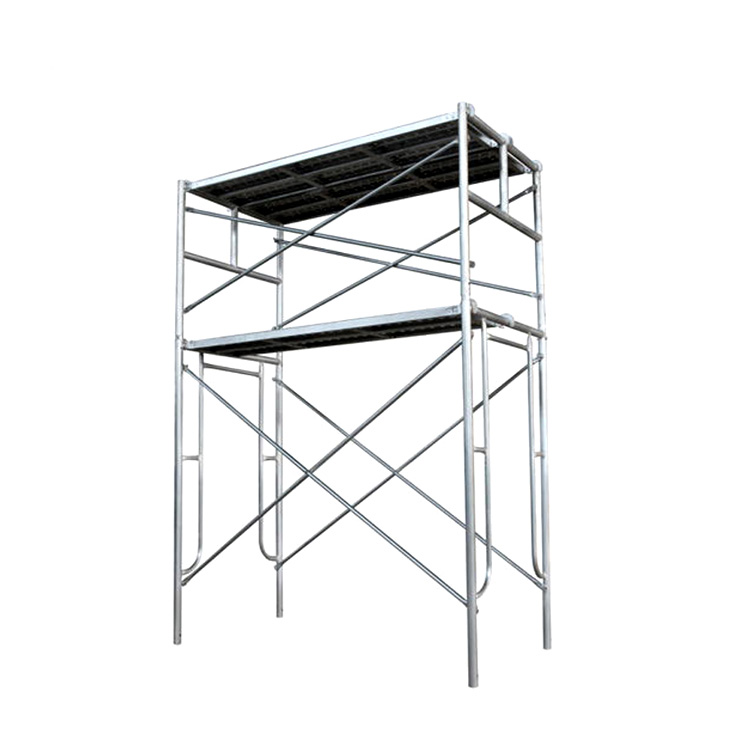

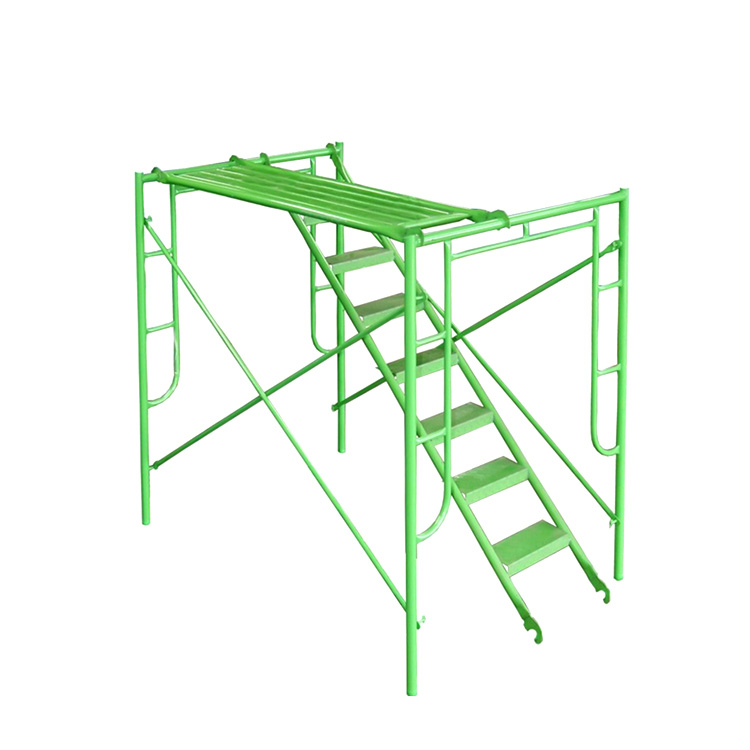

Mason frame scaffolding is one of the most widely used scaffolds in construction. The main frame is in the shape of "door", the scaffold is mainly composed of main frame, transverse frame, cross diagonal brace, scaffold board, adjustable base etc. It has the advantages of simple assembly and disassembly, convenient movement, good bearing capacity, safe and reliable use, good economic benefits and so on.

Specification

Surface treatment: pregalvanized, hot dipped galvanized, painted, epoxy powder

Material: pregalvanized steel pipe, black welded steel pipe

Grade: Q195, Q235

Dimension:

Classification

Size

Standard Weight

Note

Main frame

1219X914MM

6.7KGS

Other weight are available;

Other size can be customized

1219X1524MM

11.2KGS

1219X1700MM

12.3KGS

1219X1930MM

14.6KGS

Cross brace

ø21X1363MM

1.9KGS

ø21X1724MM

2.35KGS

ø21X1928MM

2.67KGS

ø21X2198MM

3.0KGS

Joint pin

ø35X220MM

0.25KGS

Application

1. It is used to support the roof in the formwork of buildings, halls, bridges, viaducts and tunnels, or as the main support frame of flying formwork.

2. It is used as internal and external grid scaffold of high-rise building.

3. Movable working platform for mechanical and electrical installation, hull repair and other decoration projects.

4. The use of frame scaffold with simple roof truss can form temporary site dormitory, warehouse or shed.

5. It is used to set up temporary auditorium and grandstand.
