Set up large scale complete biomass pellet line with cost-effective wood pellet line price

Our complete biomass pellet production line can process many kinds of raw materials such as groundnut shell, sugarcane biogases, caster shells/stalk, sawdust, coffee husk, paddy straw, sunflower stalk, cotton stalks, tobacco waste, mustard stalk, jute waste, bamboo dust, tea waste, wheat straw, palm husk, soybeans husk, coir pitch, etc.

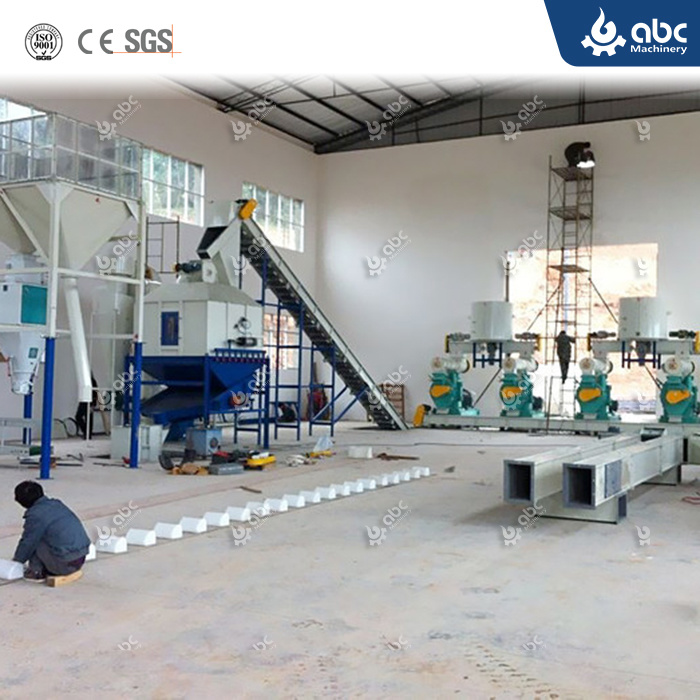

6TPH wood pellet line

Details Of Pellet Line Equipment

Debarker

1. Low initial investment.
2. High production capacity.
3. Best choice for small to medium scale factory.
4. The most advanced technology in debarking the small and medium size logs.
5.


Wood Chipper

The wood chipper is advanced equipment to produce wood chips and ia used in paper plants, pellet plants, particle board plants and fiber-board plants. It cuts logs and small pieces of wood into hight quality chips of even length and uniform chip thickness. It is also suitable for the chipping of branches, twigs and planks.

Our model chipper developed 20years base on Germany technical parameter and structures. Makes our wood chipper mature structure and running stable.

Screener / Sieving Machine

This screener is cylinder type. It is specially designed to sieve out big-sized materials in order to keep them from going into a pellet mill. Thus, the pellet mill can be well protected from being chocked.

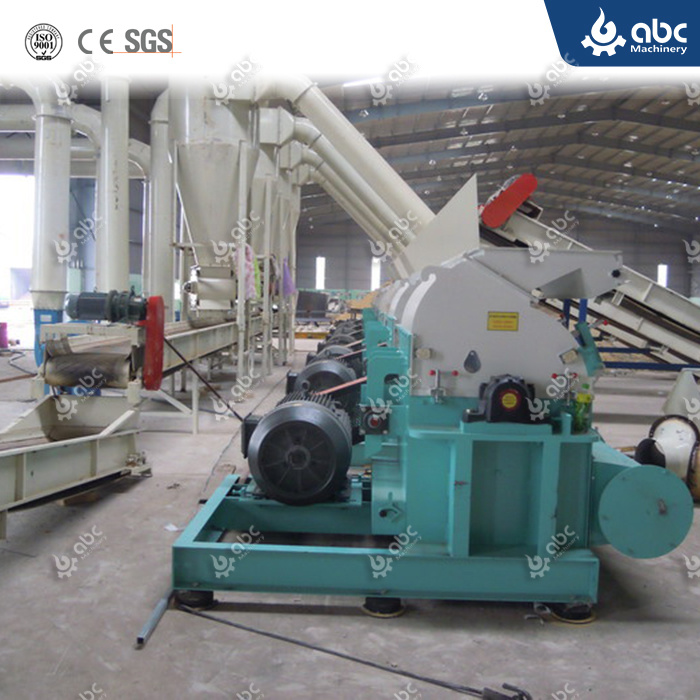

Hammer Mill / Crushing Machine

1. It is specific pulverizer for wood chips, shavings, rough sawdust, etc. The pulverizing room is designed to be wide for wood's crushing.
2. Well balanced rotor makes the running very stable.
3. The special connection of coupling makes it less vibration and easier to be installed.

This type hammer mill is specially designed for fibre and high oil/moisture contained materials.

Wildly usage as an ideal choice for processing wood chips and waste wood blocks.



Single-layer Revolving Cylinder Dryer

1. The rotary dryer is the choice for high throughput capacity applications involving high moisture, friable, fee-flowing materials and by-products.
2. A rotating drum and strategically positioned flights combine to lift and shoer product evenly through the air stream.
3. A thermostatically conrolled discharge air temperature assures precise final moistures and allows sensitivity to varying product conditions.
4. Single-pass or three-pass configurations are available to match product characteristics.
5. Heating options include steam, gas, oil, and themal oil.
6.


Full automatical burning stove by sawdust (Patent)

The automatic sawdust burning furnace is a high-efficiency sawdust furnace independently developed by our company. It is a new type of hot air furnace developed by our company and is a new combustion technology. It is a thermal equipment that utilizes the "polymerized fluidized fixed bed" technology.

When the temperature in the furnace reaches 800 degrees Celsius, the blower in the lower part of the furnace body passes through the air distribution device, so that the fuel in the furnace is suspended and the material can be fully burned. The fluidized material is turned up and down similarly to the boiling of the fluid, so it is also called the boiling layer. The furnace consists of a cold air layer, a preheating layer, a suspension, a combustion layer, a settling zone, and the like to form the entire combustion system.

Pellet Mill (making pellets)

Horizontal ring die pellet mill

1. Adpoting aerodynamics technology and the current round principle, reduces the temperature in pelletizing chamber to around 90℃。 As a result the machine can work well continuously.

Vertical type pellet mill

1. Vertical type pellet mill suit for biofuel pellets making.
2. Specially press light weight materials such as wood small shavings rice husk,tropical soft wood wood shavings etc.
3.


Pellets Cooler

1. Auto control cooling period. It makes the fresh pellets hard & dry. Cool air flows from bottom to top, while the pellets drop from top to bottom, they fully meet and cool completely.
2. The manufacturing steel plates are 3mm thick.
3. The cooling system consits of vessel, wind-in cone, discharge system, feed port, exhaust inlet, level control indicator.
4. This equipment should be used with air lock feeder, cooling wind net.
5.


Pellets Packing Machine

1. Including automatic scale, conveyor, heat sealing devices for wood pellets.
2. This machine is a combination of automatic weighting and filling, together with transportation sewing machine, so that it can automatically weigh, fill and sew.
3. Computer high-speed smapling and processing, as well as the programmable control process ensure that it is universal to different packing.
4. The special aseismic equipmetn can guarantee precise calculation, fast speed and stable work under bad conditions. It can be adjusted outside which is very convenient to maintain.
5. It is widely used in bagging of wood pellets, animal feed pellets and powder materials.



Why Choose ABC Machinery?

No.1 market share in China, more than 170 wood pellet lines built in around the world. Convenient for your on-site investigation.

10 patents innovation technology guarantees the quality of every equipment of pelletizing projects for customers, eg. the smart cooling system, the 3 cylinder dryer, etc.

The capacity can reach up to 150,000T/Year.

PLC intelligent control. Smart and reliable!
