Small scale corn flour making 10 ton per day flour production line use indian corn flour milling machine

The capacity: 10t/24hours. Final products: Maize flour 70mesh (≤242 Micron) passed. flour extraction rate: 70％; maize grits：10% ；Maize bran（germ）:20％. Power supply: about 55kW. Workshop style and dimension: Triangle-framed workshop, with 10m long and 6m wide, and 4.5m under the beam.

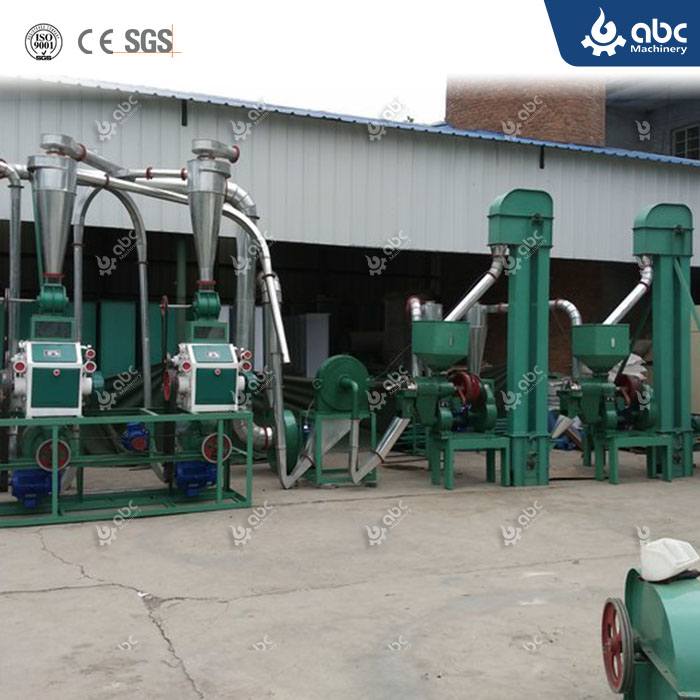

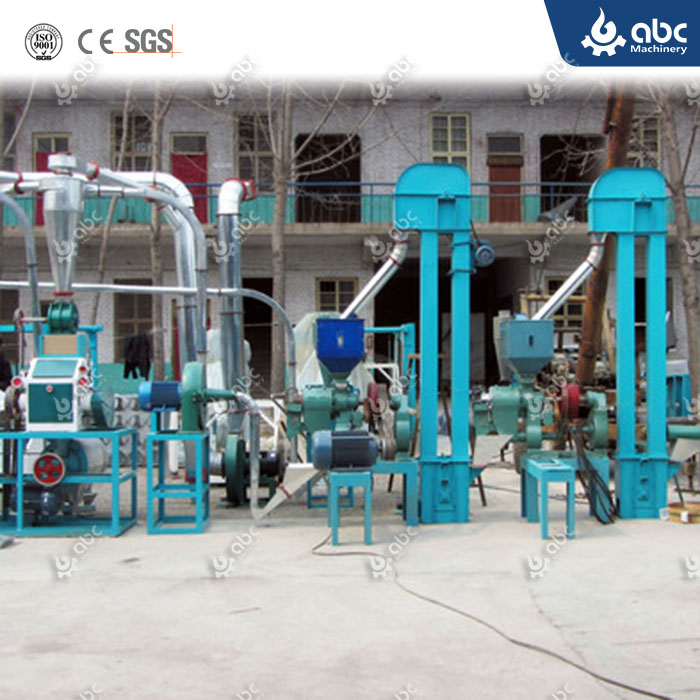

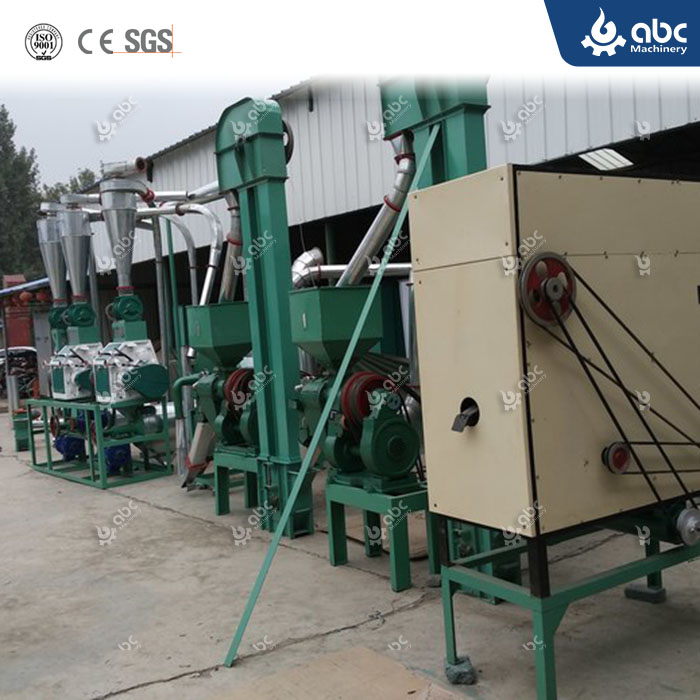

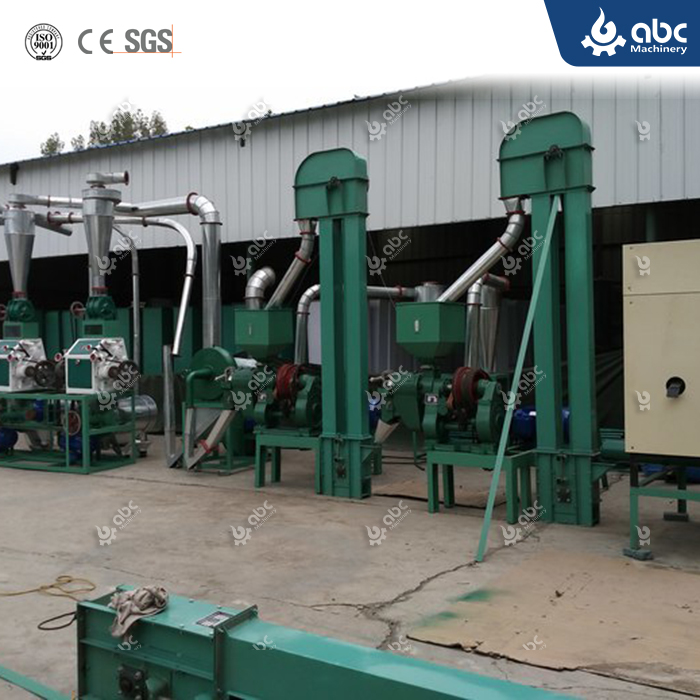

Small scale 10t corn flour milling plant installation

Output(t/d)Power(kw)Processing capacityExtraction flourLXWXH(m)1040500kg/hF1 flour: 70%
F2 flour: 80%8*6*4.5



Introduction of maize process technology:

1. Grain clean: it adopts sieve, destoner, wiping, magnetic separation and air separation etc.

2. Peeling: which uses iron roller grinder and adopts the iron roller grind and wipe to peel and whiten.

3. Fine separation of coarse grind: it adopts paddle mill, and sieve the different maize grits and flour through 2mm screen.

4. Milling: maize milling uses two sets of flour mill, goes through the roller mill grinding and round sieve milling, and then gets defatted coarse maize flour all through the 50-70 mesh screens.

Packing 10t corn flour milling machine

Project case we had build 10-500T/D

We could offer you low price corn flour milling machine

Our customers and partners all over the world
