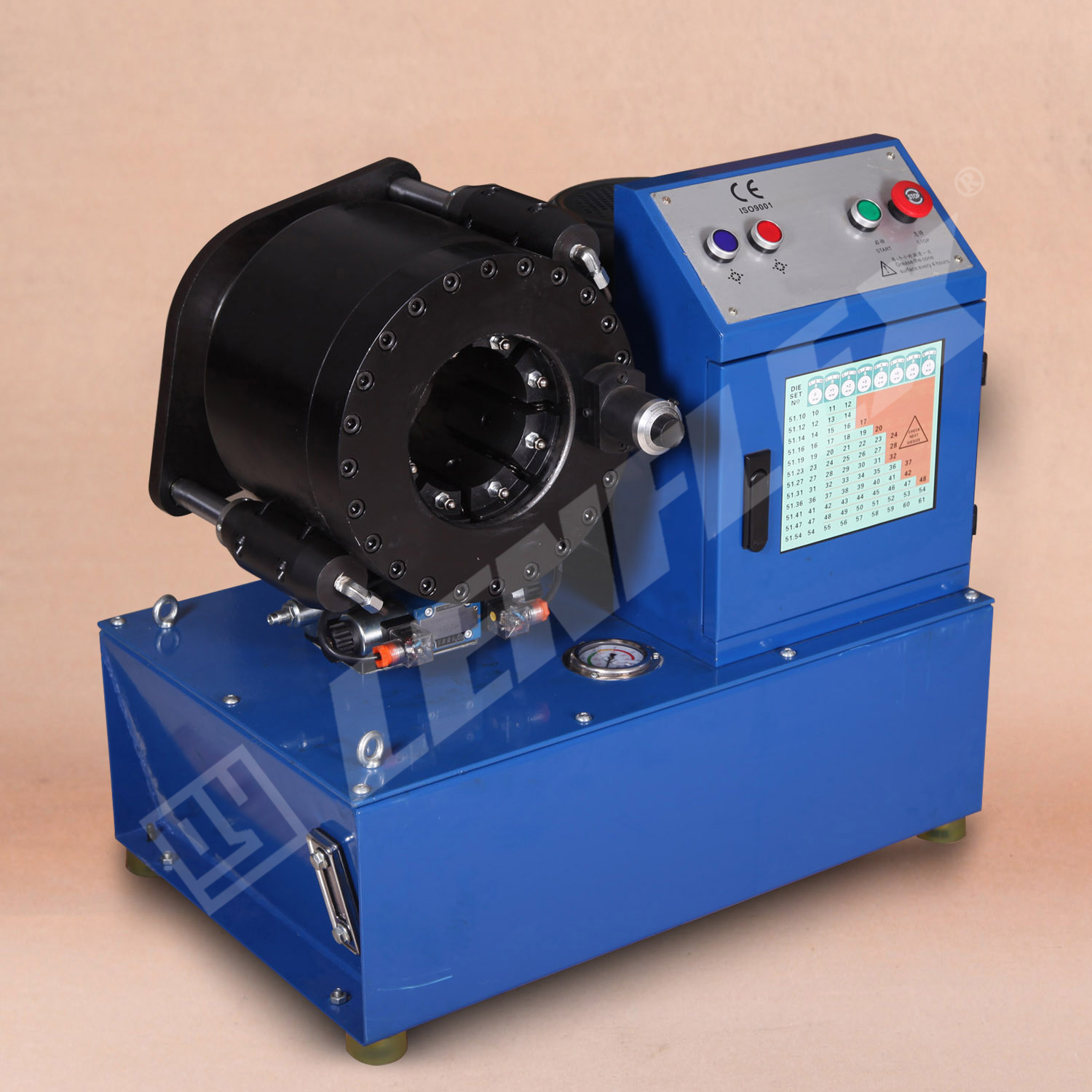

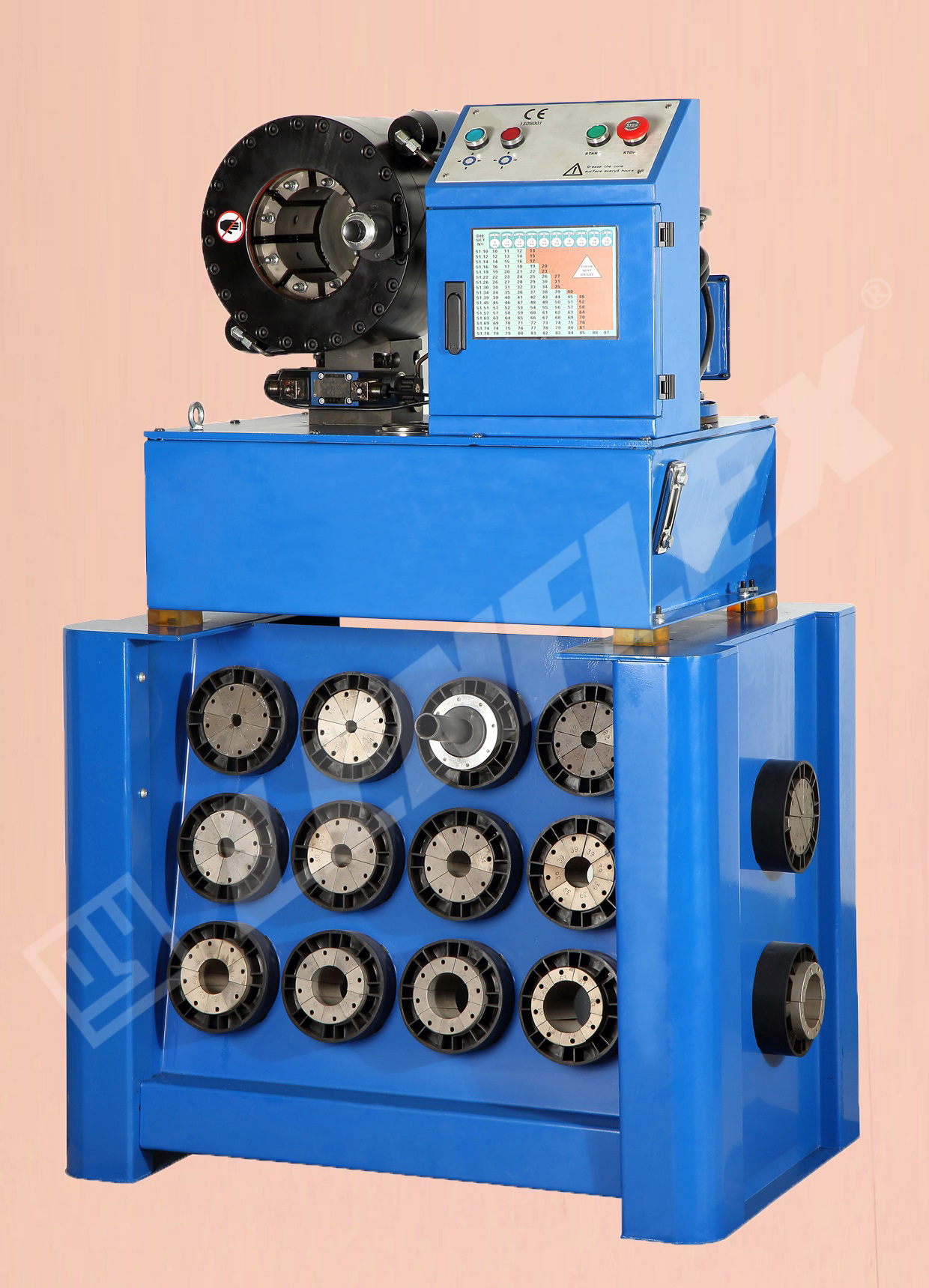

LENFLEX - MACHINE - CRIMPING MACHINE

L-TCR-B32 Technical Parameters：
Max Crimping Dia：1-1/4"(4SPHOSE)
Maximum opening：+25mm
Accuracy：0.1-0.2mm
Oil Pump Perssure：21MPa
Crimping Force (T)：40T
Electromotor Power：3kw
Voltage：220V/380V
Dies supplied：10, 12, 14, 16, 19, 23, 27, 31, 36, 41, 47, 54
Weight：210kg
Dimension：830×650×850mm

L-LCR-B51 Technical Parameters：
Max Crimping Dia：2"(4SPHOSE)
Maximum opening：+25mm
Accuracy：0.1-0.2mm
Oil Pump Perssure：21MPa
Crimping Force (T)：60T
Electromotor Power：3kw
Voltage：220V/380V
Dies supplied：14, 16, 19, 22, 26, 30, 34, 39, 45, 51, 57, 63, 69
Weight：265kg
Dimension：830×660×900mm

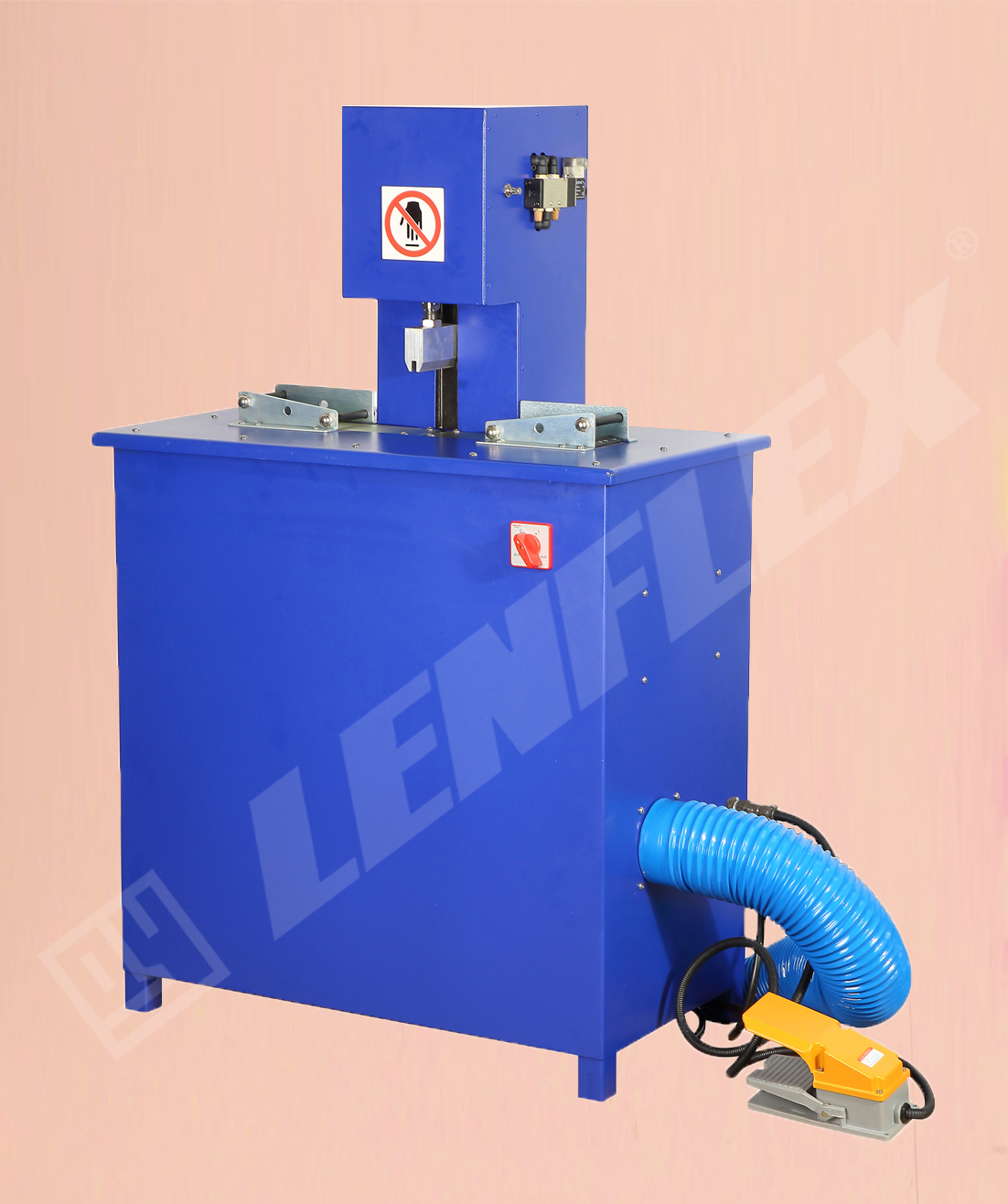

LENFLEX - MACHINE - CUTTING MACHINE

L-LCU-B51 Technical Parameters：
Cutting range：4~70mm
Blade Diameter(mm)：350×3×51
Standard Voltage：380V 220V
Electromotor Power：3KW
Pneumatic Input (Mpa)：0.5-0.8
Weight：190kg
Dimension：1000×570×1600mm
Characteristic：Pneumatic type
APPlication：2 wires, 4 wires, 6 wires

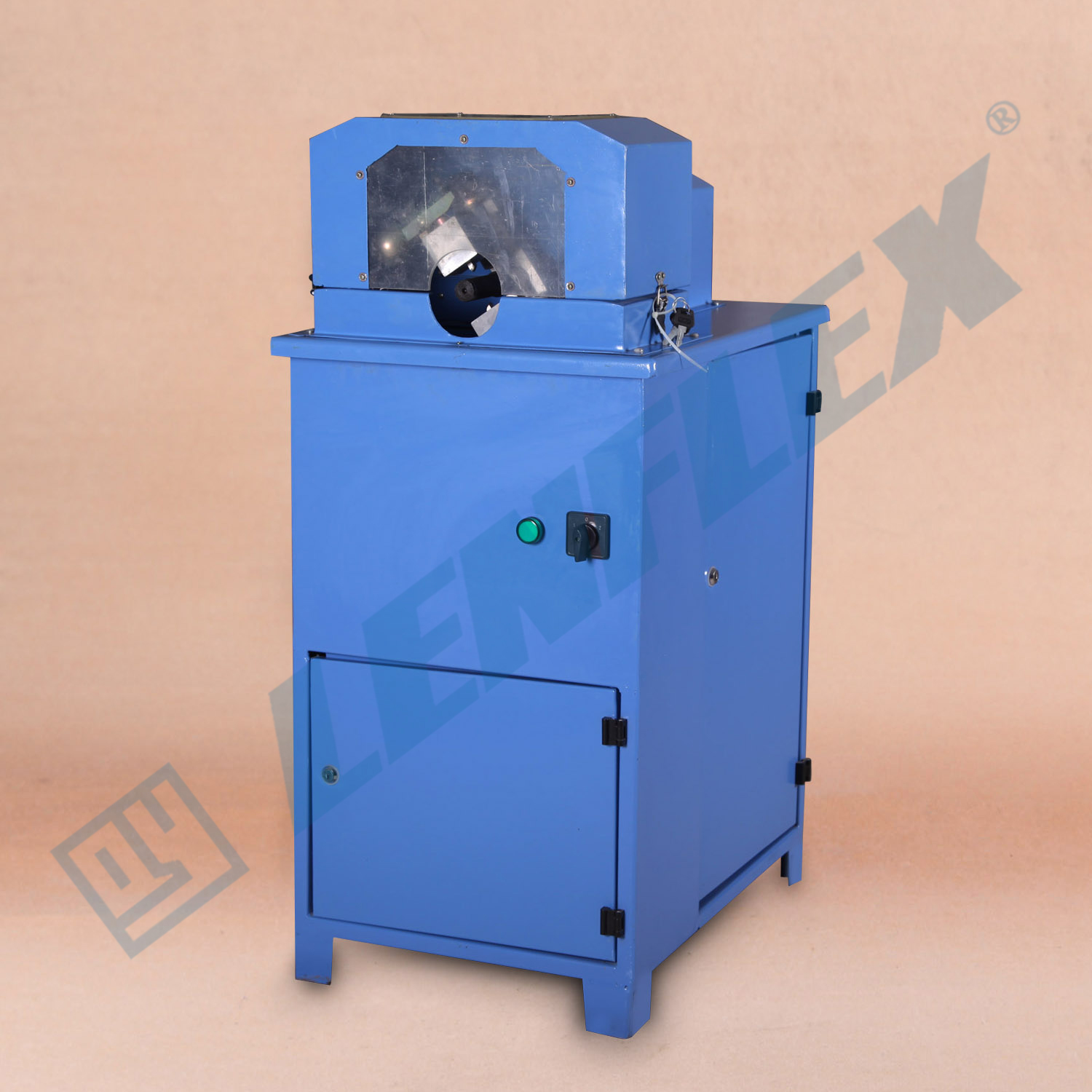

LENFLEX - MACHINE - SKIVING MACHINE

L-LSK-B51 Technical Parameters：
Skiving range：4~70mm
Supporting mandrel：inner 04, 05, 06, 08, 10, 12, 16, 20, 24, 32; outer 12, 16, 20, 24, 32
Standard Voltage：380V 220V
Electromotor Power：3KW
Spindle speeds: 288r/min
Weight：105kg
Dimension：760×570×1230mm
Characteristic：Spindle rotate in skiving inner rubber,
Spindie non-rotation in skiving outer rubber
APPlication：2 wires, 4 wires, 6 wires

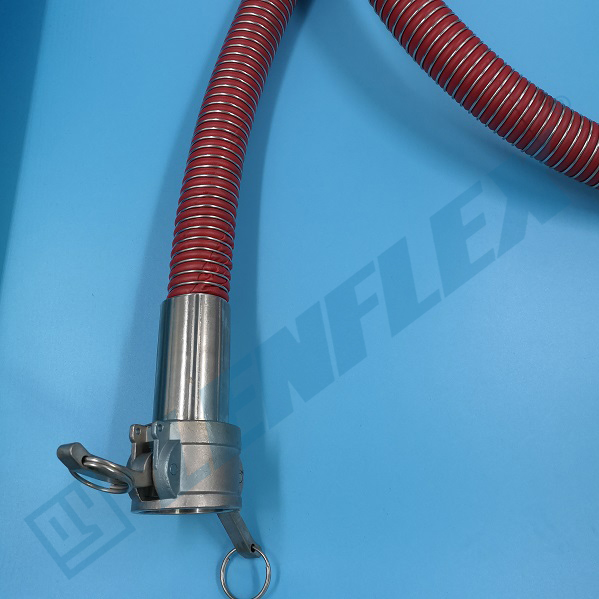

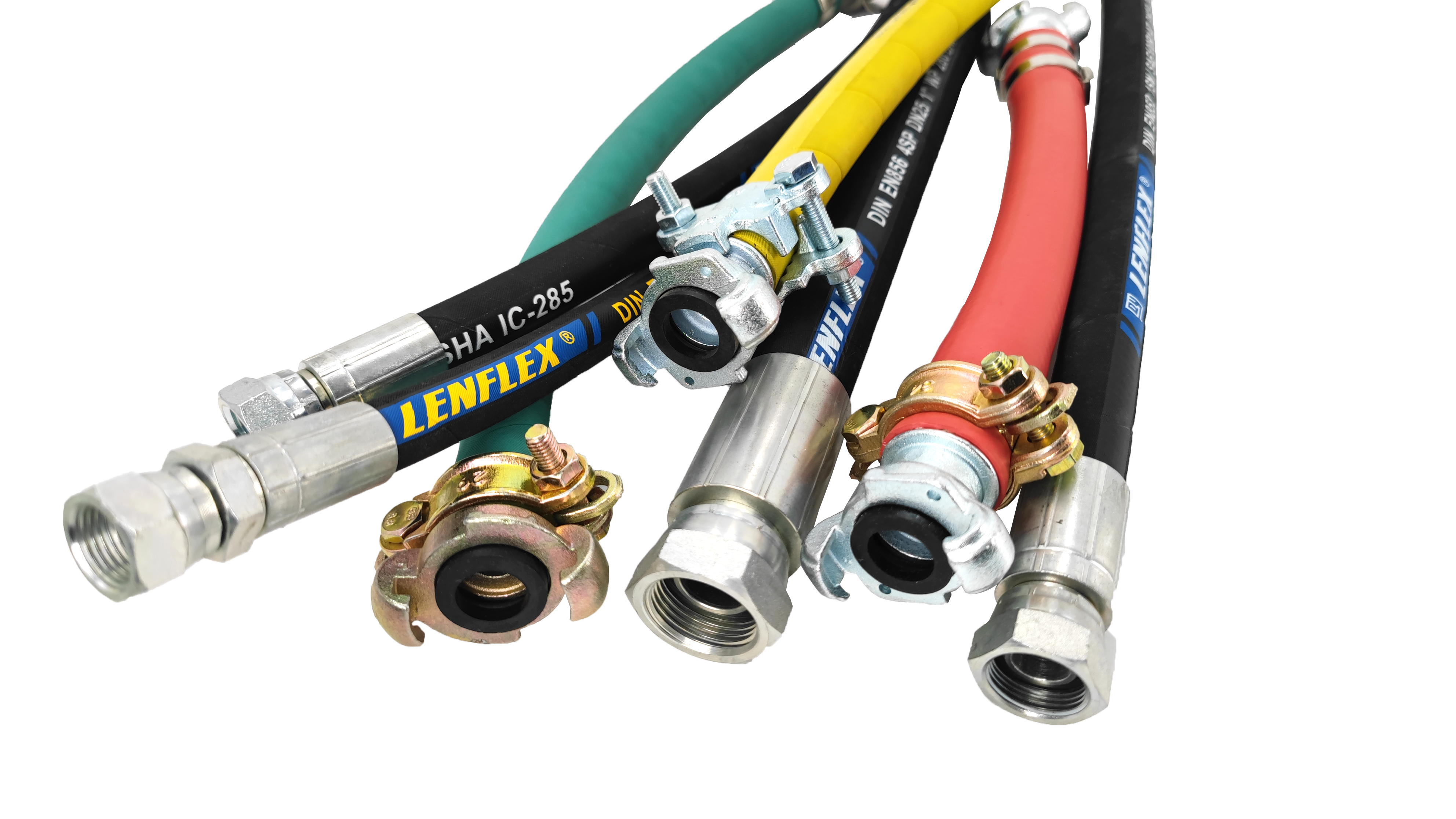

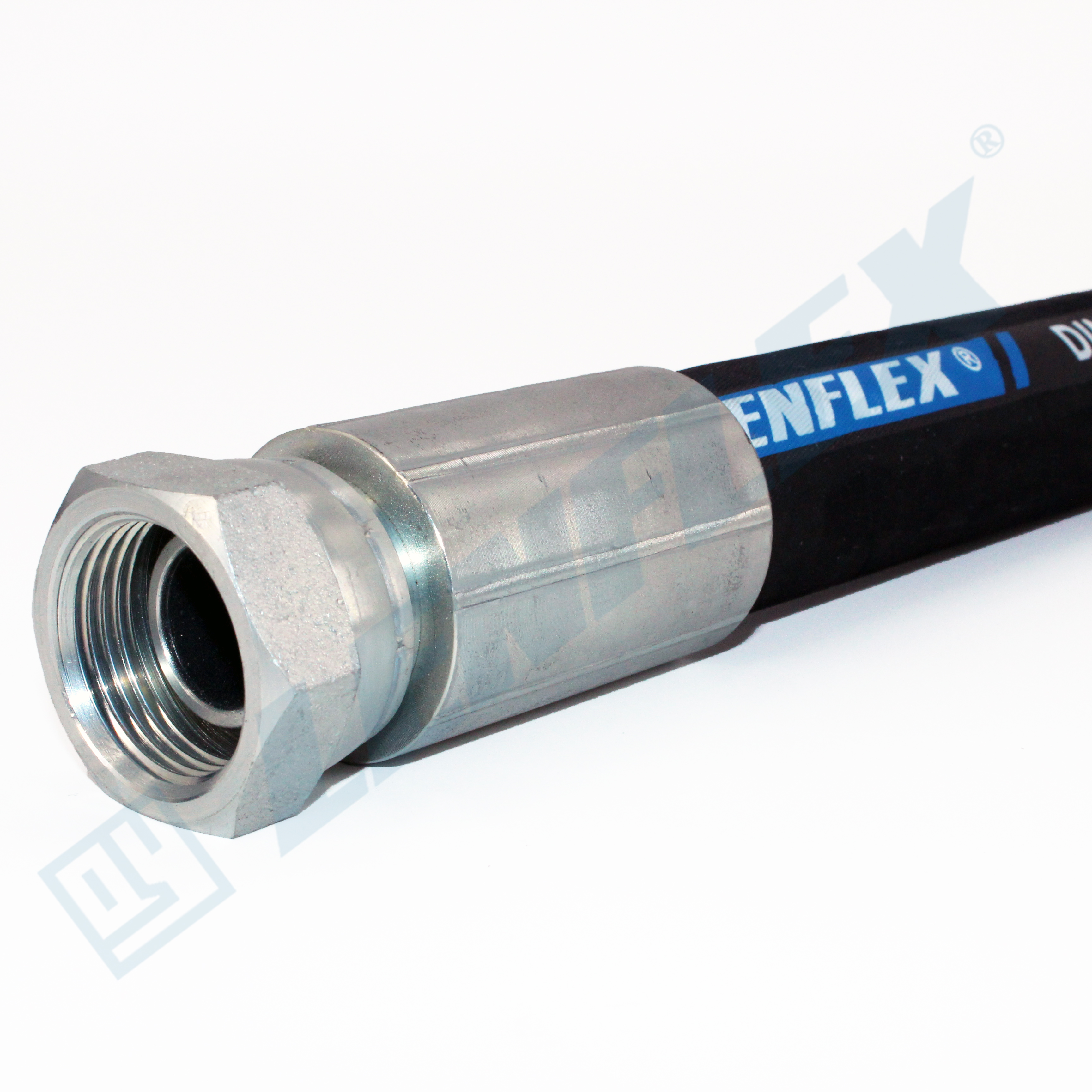

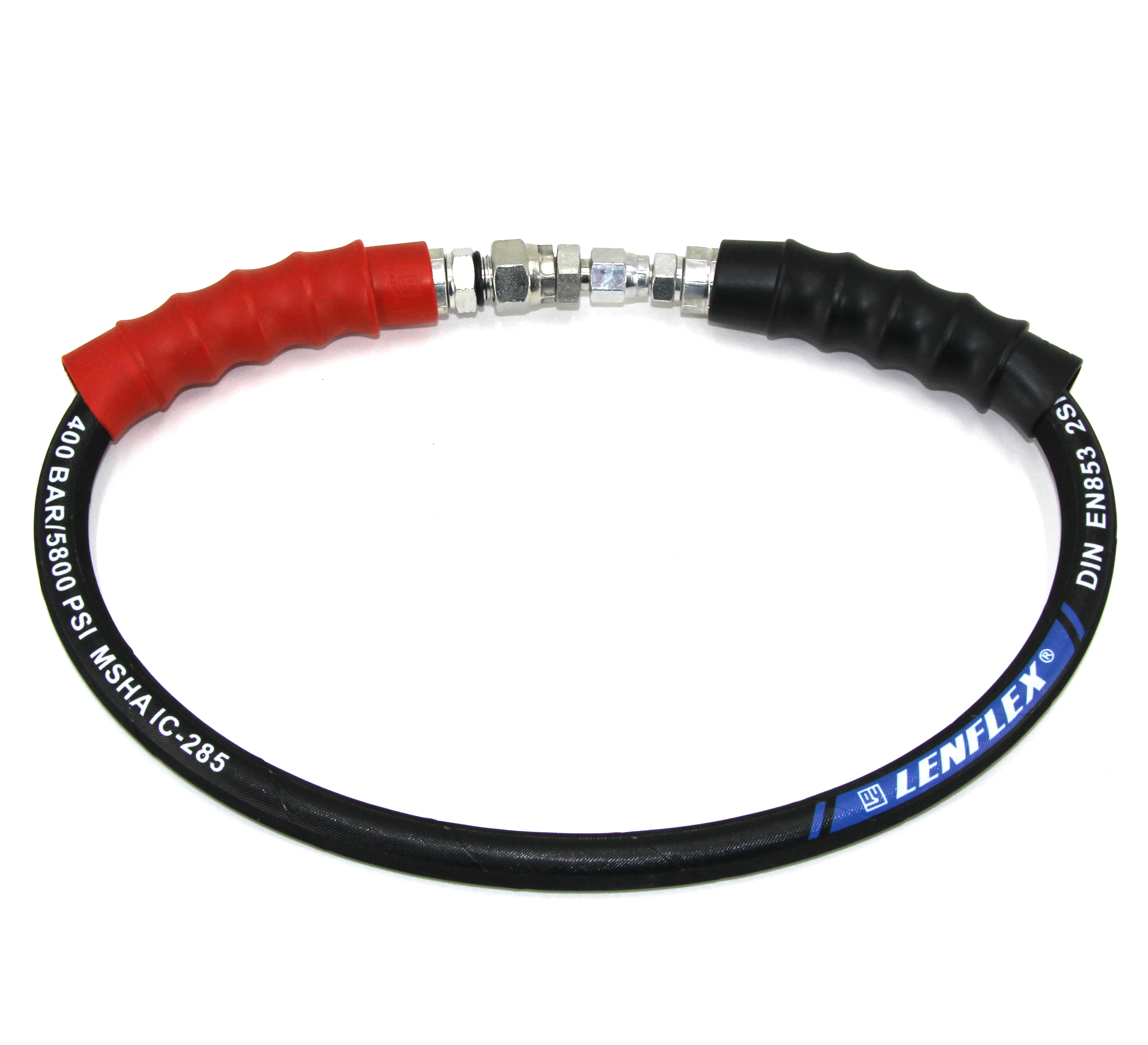

LENFLEX - HOSE ASSEMBLY
ASSEMBLY INSTALLATION,TECHNICAL REQUIREMENTS
Install,the hose in a correct way is very important,it will affect the hose's appearance and cost a lot while it is too long,but if the hose is too short,it cannot flex while being crushed ,Both too long and too short can break down the hose .
SAFETY GUIDE FORHOSE ASSEMBLIES
There are many factors which can affect the usage condifion of hose assembly.use the hose assembly and hose fittings in acorrect way canensure its reliability and anonomical effciency.these factors are as follows;
1,Hose Dimension
The selectlon of hose inside diameter must be correctly made.if the hose inslde diameter is too small it will speed up the medium in the pipe-line,heated the system,lower the efficiency and produce excessive pressure drop which willaffect the whole system's capability.if it fix with hose clamp or cross the steel board,the outside diameter of hose should be pay more attention.
2,Working Pressure
The dynamic working pressure in this catalog refers to the allowable maximum pressure in condition of continuously working.According to the safety modulusof hydraulic hose ruled by international standard,we recommend that the working
pressure is one quarter of the minimum blast Pressures.
3,Impact Pressure &Fatigue Life-span
After determining the maximum system pressure for a hydraulic system,hose selection can be made .For the hydaulic system's pressure always be dynamic, there often appears an impact pressure, the maximum impact pressure is much higher than the maximum system pressure.To be luckily , there is an over fallvalve in every hydraulic system,so high impact pressure cannot affect the fatigue life-span seriously.As for hydaulic system whose impact pressure appears very frequently. we advise you choose the special hydraulic hose which is able to endure the high impact Ptessure.
4,Temperature Range
User must ensure that the temperatuer is in an allowabie range of hose, ifexceeding this range, thelife-span of hose will be shorten, and the capacity to endure pressure will get down. if the working condition temperature keep too high or too low in a long time,we advice you use the hose spring guard.
5,Chemical Compatibility
lf use special hydraulic medium,user should ensure the material of hose inner side and cover , the hose fittings and O-ring can compatible with the special hydraulic mendium.
6,Bending Radius
Pay more attention to its minimum bending radius when install the hose assembly, if the bending radius is smallr than the minimum one, the capacity of enduring pressure will get down and life-span of hose will be shortened.
7,Friction
We advised you use a spring guard if the hose assembly is always in the condition of touching and making friction with hard object ,Any technical question about Stronger Hydraulic hose assembly,welcome to inquire!

ASSEMBLY INSTALLATION,TECHNICAL REQUIREMENTS

Install,the hose in a correct way is very important,it will affect the hose's appearance and cost alot while it is too long,but if the hose is too short,it cannot flex while being crushed ,Both too longand too short can break down the hose .So pay more attention to the following guide before youinstall the assembly:

Hose should not be twisted.Hose is weakened when installed intwiated position Also pressure in twisted hose tends to loosenfitting connecttions. Design so that machine motion producesbending rather that twisting.

Since hose may change in length from +2% to -4% under thesurge of high pressure, provide suffeient slack for expansion andcontraction.
