From the supplier

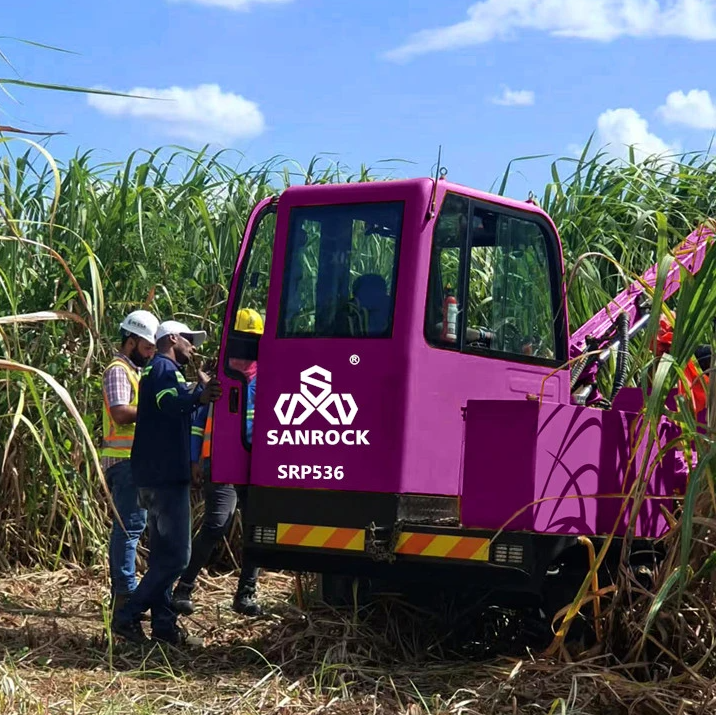

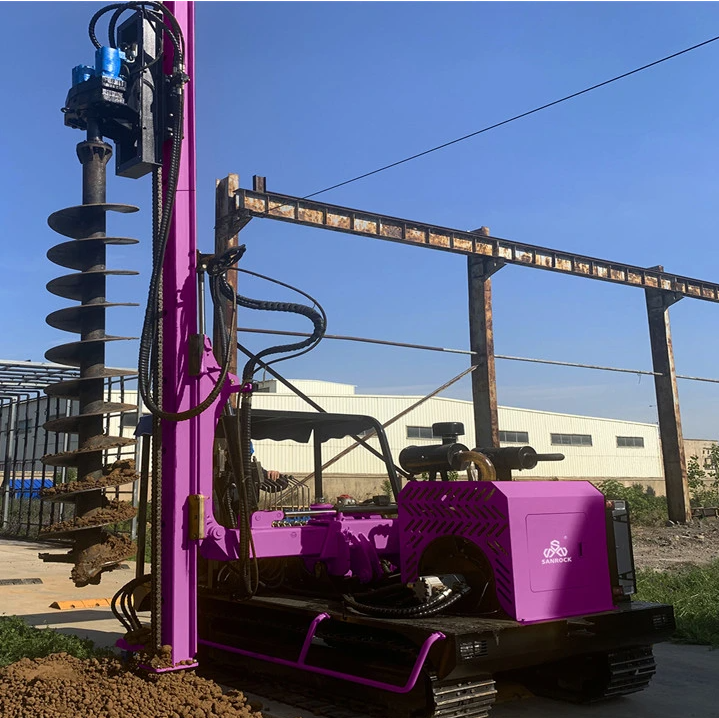

SRP536 Pile Driver used for all kinds of PV post install, it is the choice for solar power station construction.
The piling machine has water and oil integration of pure aluminum radiator, which has good heat dissipation, it also has small size and good looking apperance.
Model :SRP536 Working dimension(L*W*H):3250*2350*5000mm Transportation dimension(L*W*H):5000*2350*2300mm Net weight:4500KG Diesel engine power:53KW Walking motor torgue(max) :5700Nm Rotary motor torque ground screw piling):4000Nm Rotary motor torque(auger drilling): 4000Nm Post length(max):5000(standard 3500)mm Ground screw length(max):5000(standard 3500)mm Drilling depth:3500mm Ground screw piling depth :3500mm Drilling diameter (auger drilling):0-300mm Drilling angel(left/right) :30/10° Driling angel (forwards/backwards):75/15° Hydraulic system pressure:16-20Mpa Total hydraulic system flow:100l/min Rotary motor flow:60-100l/min Walking speed(km/h):0-1600mm Chassis spec(L*W*H):2002*1800*520mm Width of steel chassis Track:400mm Track height above the ground:230mm Grade abilly:<30 °
Track tum rale:1:21.4
Feature:
The lifting motor has connecting bracket, which rotates and lifts independently to reduce impact and axial force for motor output shaft. It protects the motor from wearing and reduces the failure rate.
Reinforced lifting guide rail is made of whole C channel, not welded one, it has inlaid nylon material which makes it with smooth move, adjustable gap and increased lifetime.
From the supplier
SRP536 Pile Driver used for all kinds of PV post install, it is the choice for solar power station construction.
The piling machine has water and oil integration of pure aluminum radiator, which has good heat dissipation, it also has small size and good looking apperance.
Model :SRP536 Working dimension(L*W*H):3250*2350*5000mm Transportation dimension(L*W*H):5000*2350*2300mm Net weight:4500KG Diesel engine power:53KW Walking motor torgue(max) :5700Nm Rotary motor torque ground screw piling):4000Nm Rotary motor torque(auger drilling): 4000Nm Post length(max):5000(standard 3500)mm Ground screw length(max):5000(standard 3500)mm Drilling depth:3500mm Ground screw piling depth :3500mm Drilling diameter (auger drilling):0-300mm Drilling angel(left/right) :30/10° Driling angel (forwards/backwards):75/15° Hydraulic system pressure:16-20Mpa Total hydraulic system flow:100l/min Rotary motor flow:60-100l/min Walking speed(km/h):0-1600mm Chassis spec(L*W*H):2002*1800*520mm Width of steel chassis Track:400mm Track height above the ground:230mm Grade abilly:<30 °
Track tum rale:1:21.4
Feature:
The lifting motor has connecting bracket, which rotates and lifts independently to reduce impact and axial force for motor output shaft. It protects the motor from wearing and reduces the failure rate.
Reinforced lifting guide rail is made of whole C channel, not welded one, it has inlaid nylon material which makes it with smooth move, adjustable gap and increased lifetime.
