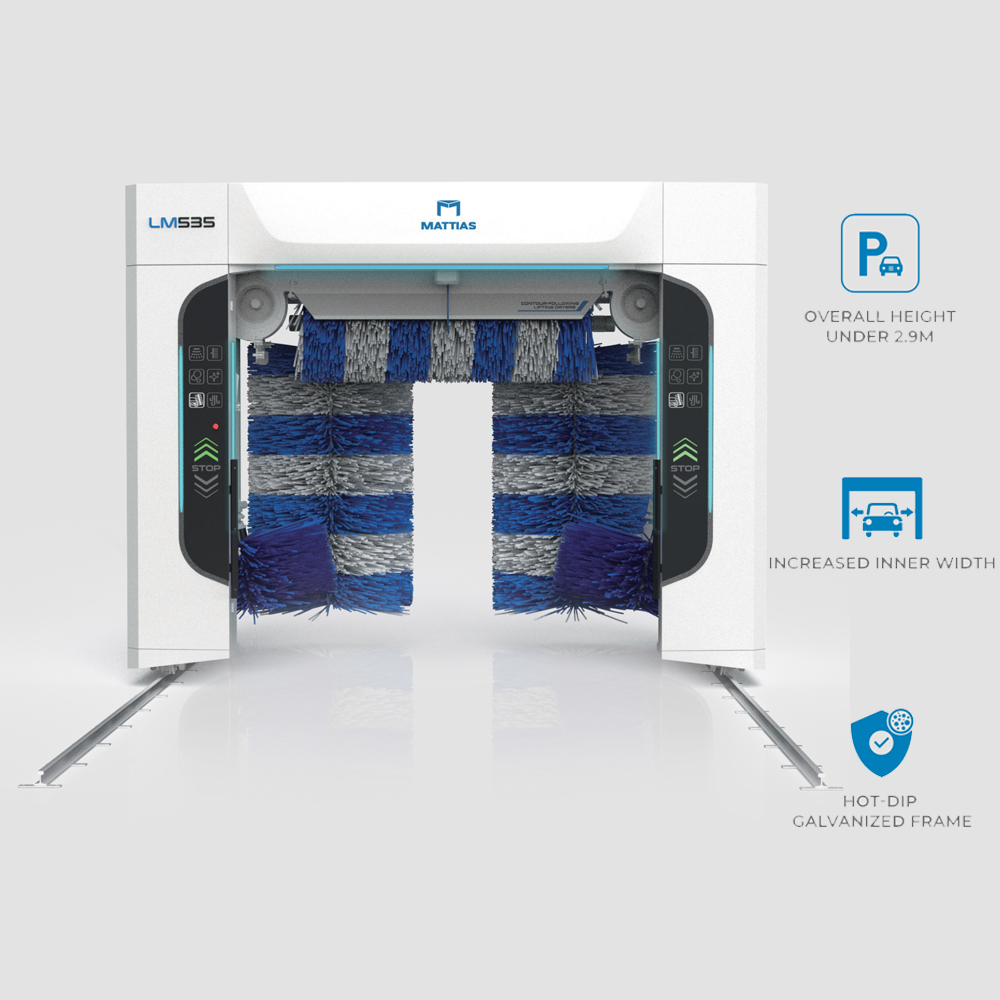

M-LM535 Professional Fully Automatic Rollover Car Wash Machine — Contour-Following Brushes, Centerline Crossing, Angled Side Brushes & Rocker Panel Clean for Cars, SUVs & Vans

Smarter brushes. Safer operation. A deeper clean. The M-LM535 Professional Fully Automatic Rollover Car Wash Machine doesn't just wash a car — it adapts to it. With a contour-following top brush, angled side arms, centerline-crossing coverage, dedicated rocker panel brushes, and an intelligent safety system that stops on contact, the M-LM535 delivers a professional-grade brush clean with the kind of built-in intelligence that protects vehicles, operators, and your business.

Description

The M-LM535 is a top-tier fully automatic rollover car wash system designed for operators who demand the highest standard of cleaning performance, the widest vehicle coverage, and the most comprehensive safety protection available in a brush-based system. Compatible with passenger cars, SUVs, vans, and commercial vehicles under 7 seats, it brings together more brush innovations, more safety features, and more intelligent automation than any comparable system in its class.

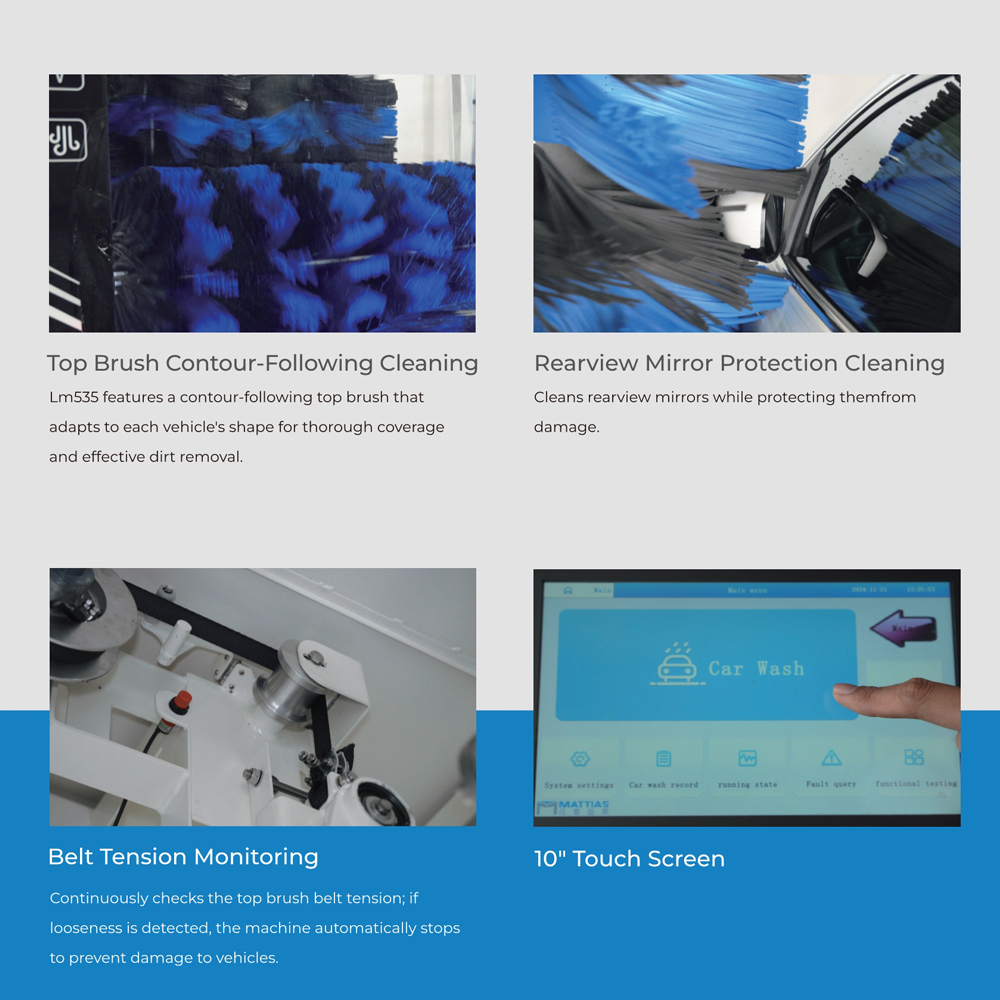

A Brush System That Reads Every Vehicle The M-LM535's contour-following top brush doesn't operate at a fixed height — it continuously adapts to the shape of each vehicle as it moves through the wash cycle, maintaining consistent pressure and contact across every curve, slope, and surface transition from the front hood to the rear trunk. The result is uniform dirt removal across the entire top surface, regardless of vehicle height or profile variation.

Centerline-Crossing Side Brushes — Complete Front-to-Rear Coverage The front and rear ends of a vehicle are the most challenging areas to clean thoroughly — and the most obvious when they're not. The M-LM535's side brushes are specifically engineered to cross the vehicle centerline, extending cleaning reach deep into the front fascia and rear bumper sections that standard side brushes fall short of. Every wash cycle covers the full length of the vehicle, end to end, without exception.

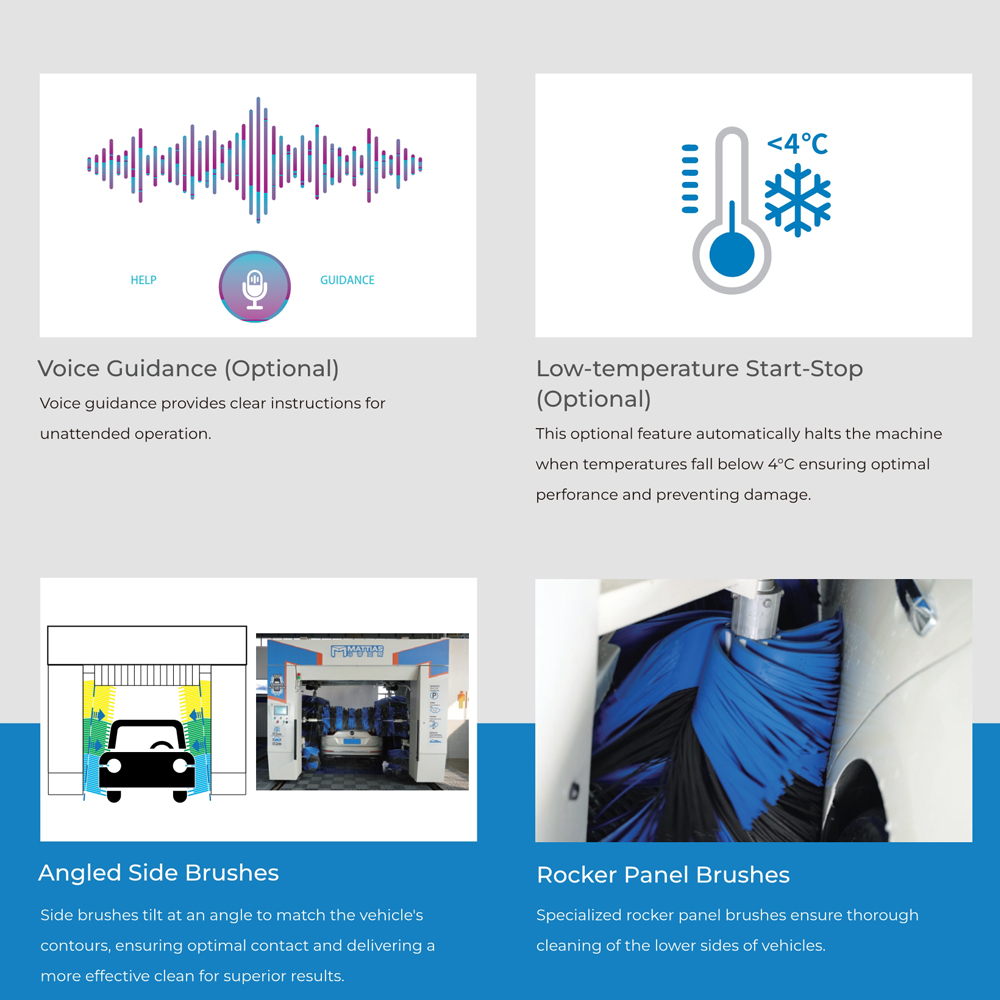

Angled Side Brushes That Match the Vehicle's Shape Flat brushes against curved body panels leave gaps. The M-LM535's side brushes tilt at an angle to mirror the contours of each vehicle's side profile, maintaining optimal brush-to-surface contact across doors, fenders, and lower body sections. More contact area means more effective agitation, better dirt removal, and a visibly superior clean compared to fixed-angle brush systems.

Rocker Panel Brushes — The Detail Most Systems Skip The rocker panels — the lower side sections between the wheel arches — are among the dirtiest parts of any vehicle and among the most neglected in standard wash systems. The M-LM535 includes dedicated rocker panel brushes purpose-built to clean this low, recessed area thoroughly, removing road grime, salt residue, and built-up debris that side brushes at standard height simply can't reach.

Mirror-Safe Cleaning — Thorough Without the Risk Rearview mirrors are a vulnerable point in any brush wash cycle. The M-LM535 is specifically engineered to clean mirror housings thoroughly while actively protecting them from damage — delivering the clean customers expect without the replacement costs operators dread.

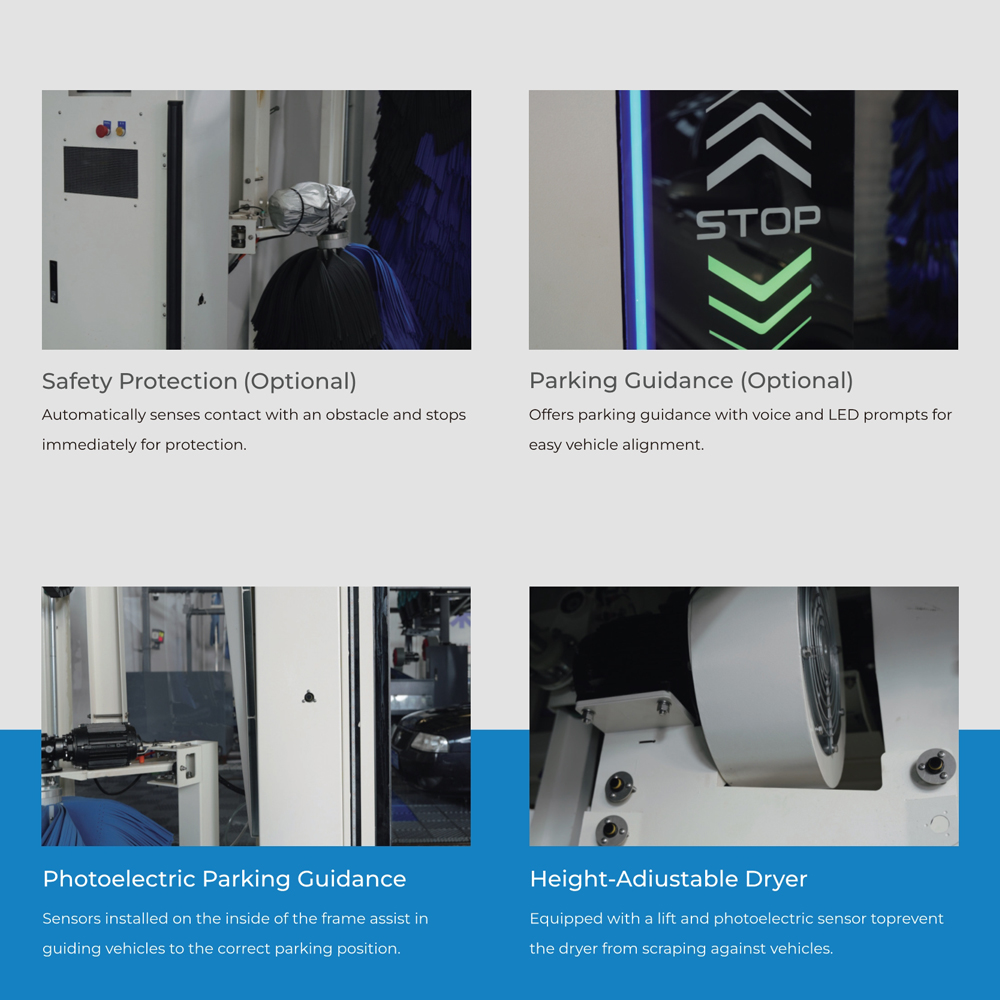

Intelligent Safety That Stops Before Damage Happens The optional automatic obstacle detection system senses contact with any unexpected object and stops the machine immediately — protecting vehicles, equipment, and operators without requiring manual intervention. Paired with photoelectric parking guidance sensors mounted inside the frame, the system guides every driver into the correct wash position before the cycle even begins, reducing misalignment incidents and the risk of contact damage from the start.

Belt Tension Monitoring — Proactive, Not Reactive Most wash systems wait for something to break before flagging an issue. The M-LM535 continuously monitors top brush belt tension throughout every cycle — automatically stopping the machine the moment looseness is detected, before it can cause vehicle damage or component failure. It's the kind of proactive protection that keeps your operation running and your customers' cars safe.

Height-Adjustable Dryer With Photoelectric Protection The M-LM535's dryer system features a motorized lift combined with a photoelectric sensor that actively prevents the dryer unit from descending too far and scraping vehicle surfaces. The dryer adjusts to the correct height for each vehicle automatically, delivering powerful, targeted airflow for a spot-free dry without any risk of contact damage.

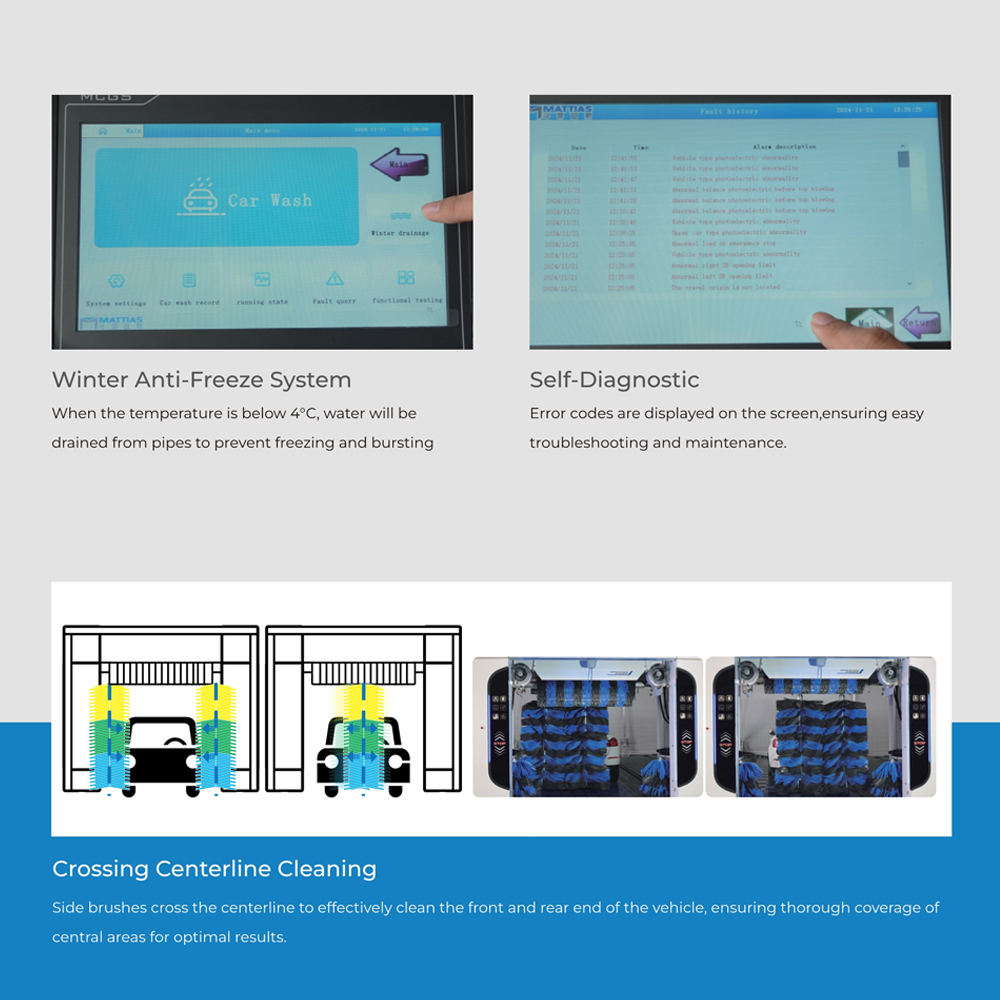

Self-Diagnosing With 10" Touchscreen Control The M-LM535 monitors its own health and tells you exactly when and where attention is needed. Error codes appear instantly on the large 10" touchscreen, guiding operators through troubleshooting quickly and clearly — minimizing downtime and eliminating the guesswork that costs time and money. Optional voice guidance extends this intelligence to fully unattended operation, providing clear audio instructions for drivers navigating the wash bay without staff present.

All-Season Reliability Built In The winter anti-freeze system automatically drains all water lines when temperatures fall below 4°C, protecting every pipe, pump, and internal component from cold-weather damage without manual intervention. The optional low-temperature start-stop feature takes this further by automatically halting machine operation below 4°C — ensuring the M-LM535 only runs within safe thermal conditions, season after season.

Specifications

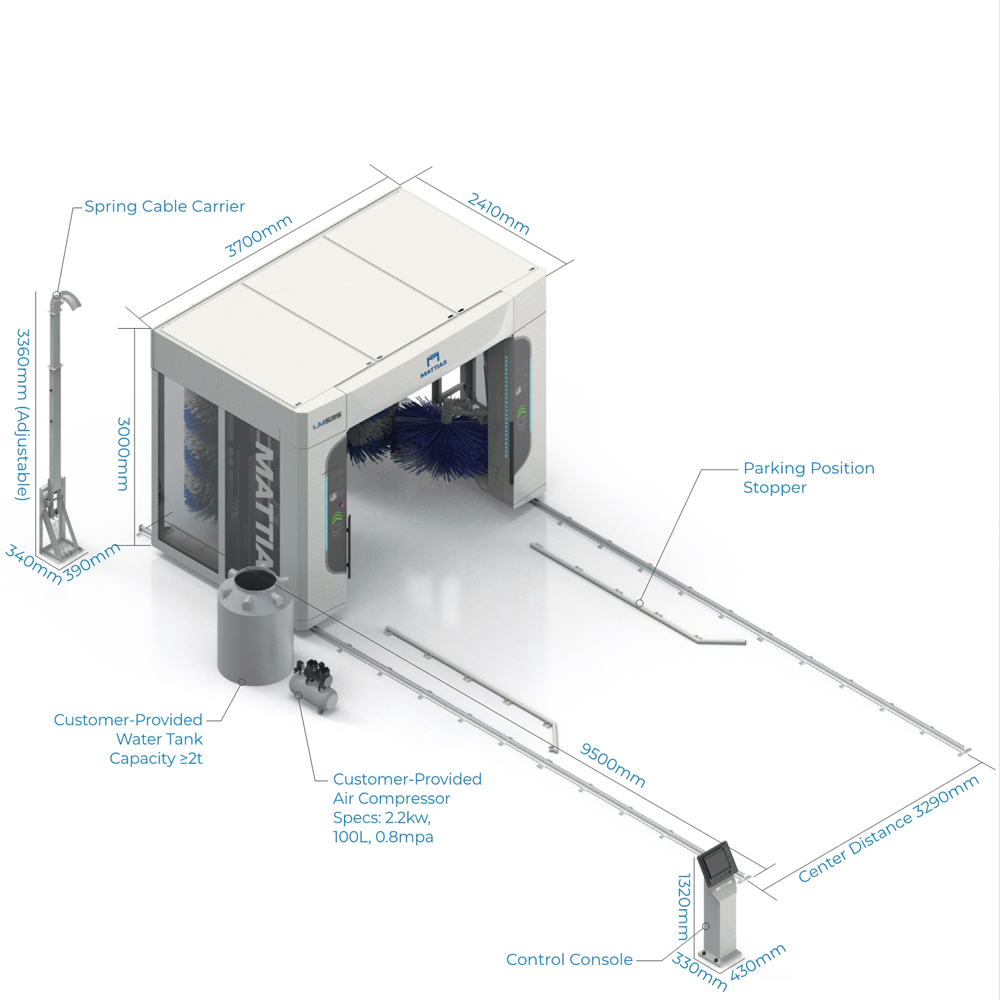

• Machine Dimensions (L×W×H): 2.45m × 3.7m × 2.9m
• Installation Space Required (L×W×H): 10m × 4m × >3.5m
• Rail Dimensions (L×W): 9.5m × 3.29m

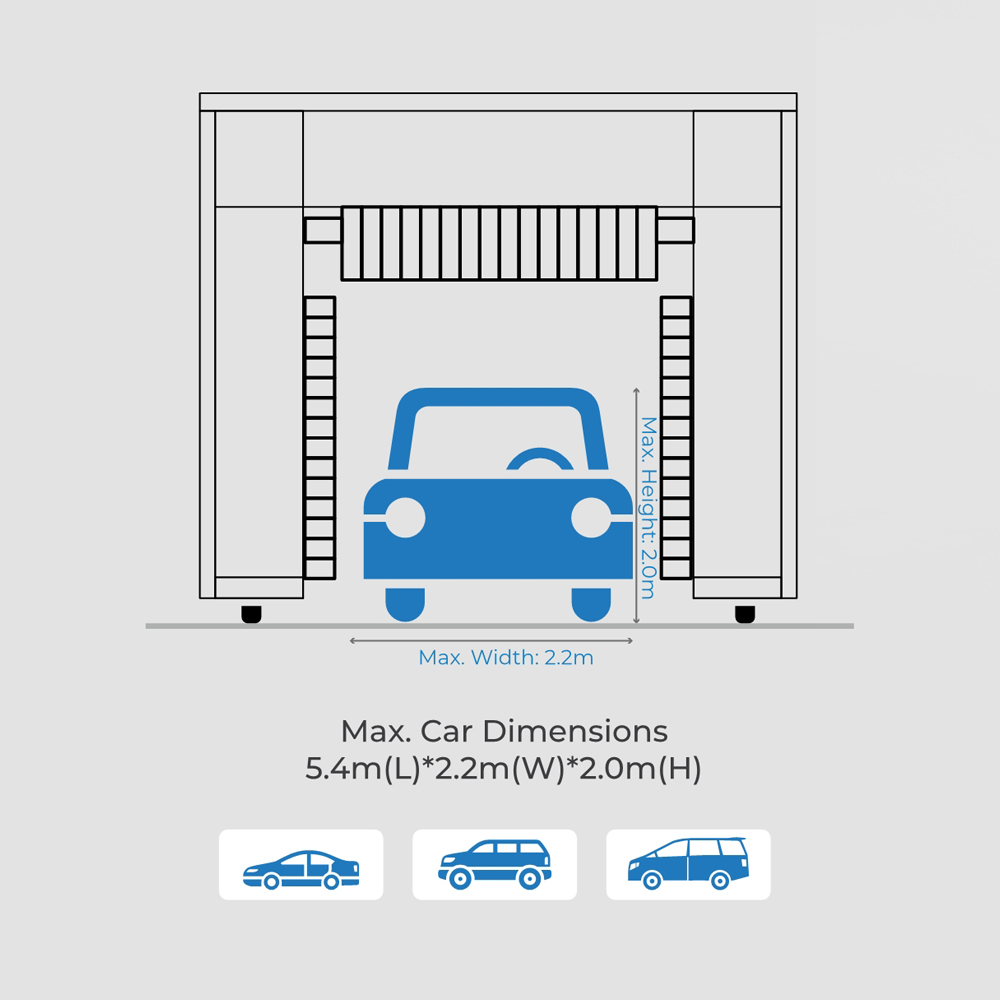

• Compatible Vehicles: Passenger cars, SUVs, vans, commercial vehicles (under 7 seats)
