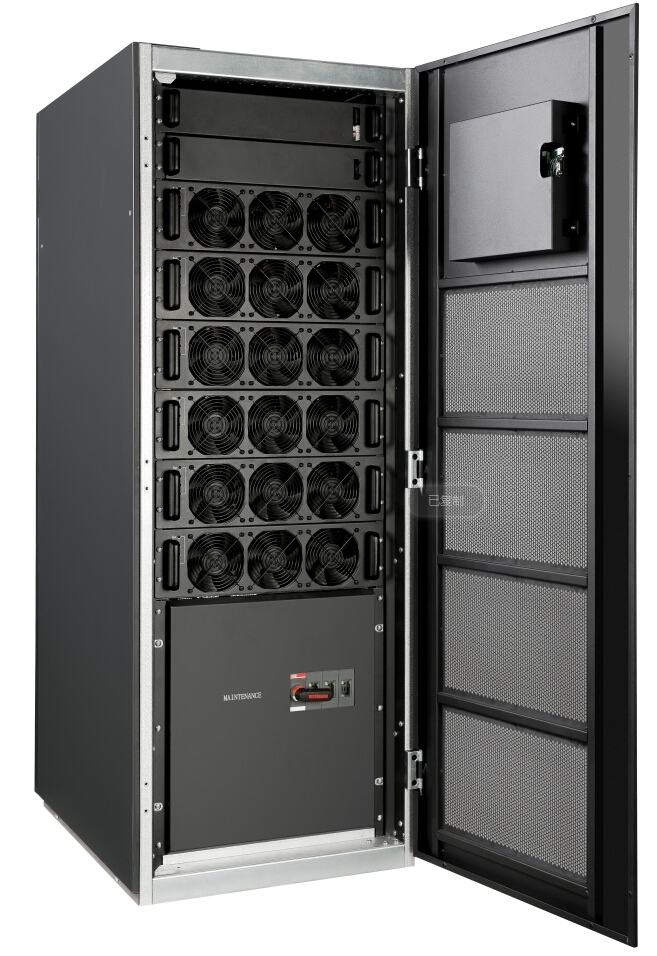

System Introduction

System is for modular structure, consist of static switch module, monitoring module and N power module in parallel, module N + X redundancy, can proceed online expansion according to user requirements;

Monitor module, static switch module and power module can be online hot plug; system can be setted to 1/1, 1/3, 3/1 or 3/3 come into and out going line way as requirements;

Adopt master-slave parallel, multi-stage distributed control technology, no operation bottleneck, reliable performance;

All power module share battery pack ,has perfect battery management function ：battery has self-discharge function, automatic floating conversion function, temperature compensation, automatic flow function ；

Any power module has the balance of input, output, and charging power distribution function;

AC input adopt continuous current mode (CCM) to operate, reduce power interference (RFI/EMI);

Shape structure meet the requirements of the industry standard, equipment is small volume, light weight, can meet the ordinary building bearing requirements;

Optional input and output isolation transformer K values

Maintenance manual switch, C grade lightning protection module.

UPS can be used in parallel ,the maximum 4 pcs parallel to reach the expand demand.

Key Feature

·Module structure, UPS capacity can be changed based on loads

·N+X redundancy

·Efficiency of UPS is more than 96%, environmental protection

·Friendly interface design of LCD

·Microprocessor control, self-check, battery check by itself

·Online static bypass, strong protection for overload and UPS fault

·RS232 & SNMP for optional, provide remote control management

·Intelligent temperature controlled fan, long life and low noise

·MTBF is more than 200,000 hours，and MTTR is 20 minutes

Specification

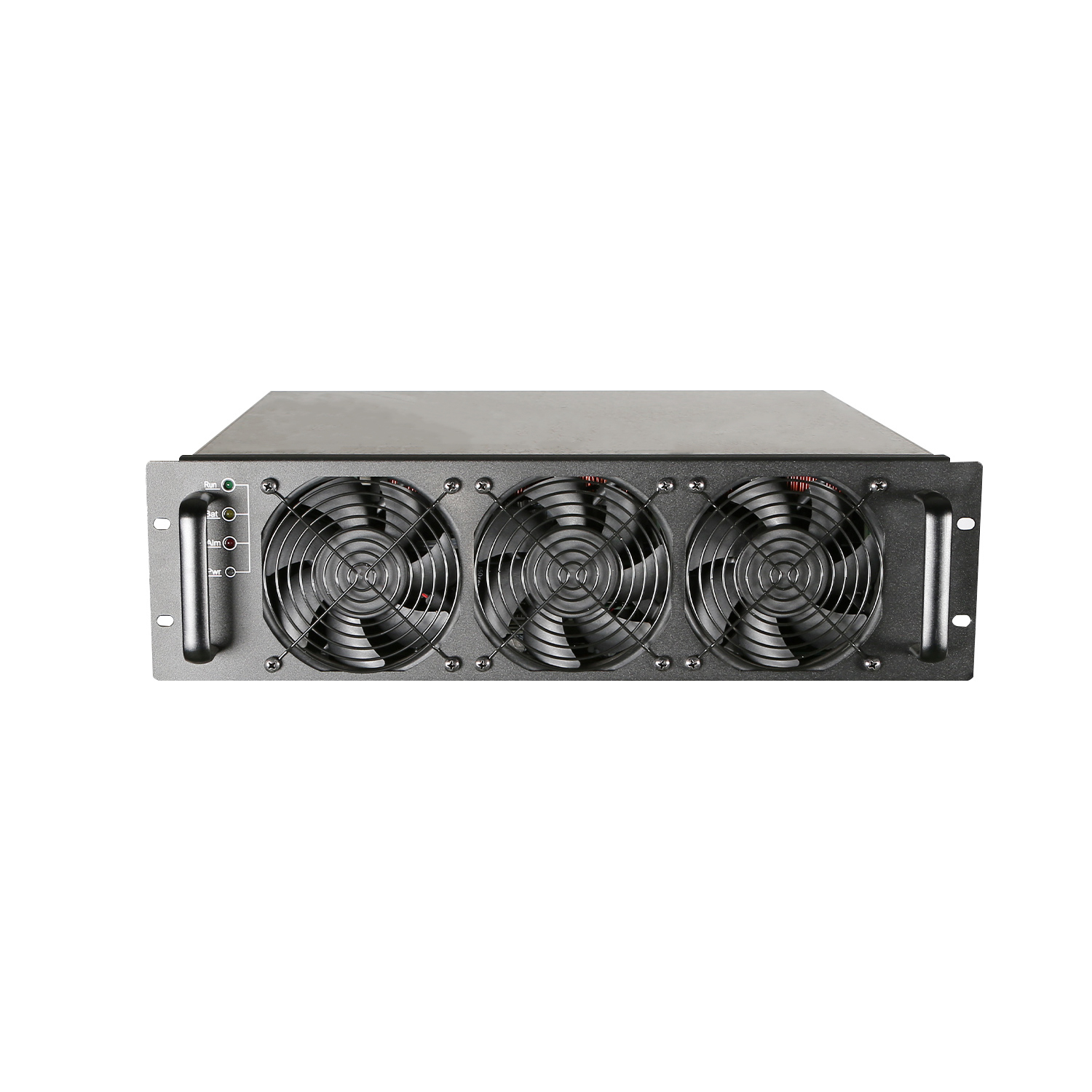

Module Model

GM30

Module Capacity

30KVA

Input/Output Way

Three phase in three phase out

Module Dimension（W*D*H）mm

440*590*130

Weight（kg）

32 kg

Input PF

≥0.99

Input Total Harmonic Distortion THDI（%）

≤3%

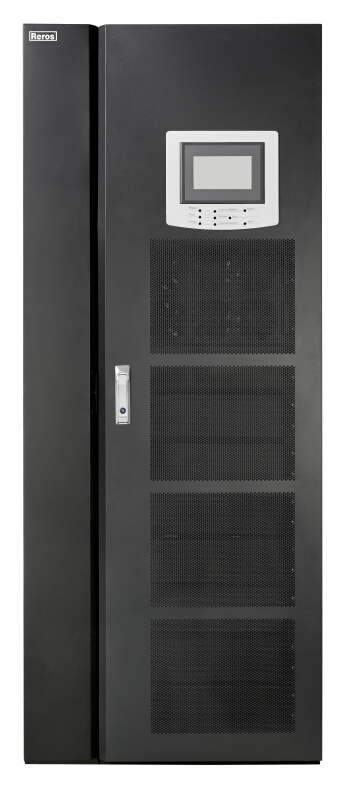

Model

3RWG90KM30

3RWG150KM30

3RWG180KM30

3RWG240KM30

3RWG270KM30

Capacity

90KVA

150KVA

180KVA

240KVA

270KVA

Type of power module

GM30

Input mode

3 Phase 4 Wires+ Ground

Input voltage(Vac)

380V/220V±20%、400V/230V±20%、415V/240V±20%

Input Frequency(HZ)

50Hz±10%、60Hz±10%

Input PF

≥0.99

Battery voltage(Vdc)

±240

Charge Time

10hs (2hs backup battery capacity)

Battery quantity(Pcs)

32-44 can be adjusted

UPS Power Factor

1.0

Output Voltage(Vac)

380/220V、400/230V、415/240V

Output Frequency(HZ)

50Hz±4%；Mains overrun or battery mode output is 50Hz±0.2%

60Hz±4%；Mains overrun or battery mode output is 60Hz±0.2%

Output voltage Stability

±1%（Static）；±2%（Load change from 0 ~ 100% ）

Efficiency (AC mode @ full loads)

≥94%

Output voltage recovery time

＜20ms（Load change from 0 - 100% ）

Overload

Rated load 125% ，runs 10mins

Communication function

RS232/RS485/422/ dry contact/TCP/IP Expansion cards

SMMP(optional)

Can be network monitored by SNMP adapter

Parallel function

Yes(for optional)

Alarm

Battery low-voltage, mains abnormal, overload, UPS fault, over temperature protection

Working Environment Temperature

-5℃～40℃

IP Class

IP31

Cooling

Speed controlled air cooling

Noise(dB)

≤55dB(Within 1 meter)

Structure

19 inches Standard

Monitor Management System

UP Supervisor

Display

Touchable screen LCD/LED

Dimension（W*D*H）

600×800×1200

600×800×1600

600×800×1600

600×800×2000

600×800×2000

Weight (Kg)

120KG

140KG

160KG

200KG

250KG

Module Model

M50

M75

Module Capacity

50KVA

75KVA

Input/Output Way

Three phase in three phase out、three phase in single phase out、single phase in three phase out、single phase in single phase out

Input PF

≥0.99

Input Total Harmonic Distortion THDI（%）

≤3%

Module Dimension（W*D*H）mm

482*700*176

682*700*176

Weight（kg）

40 kg

50 kg

Model

3RW200KM50

3RW300KM50

3RW400KM50

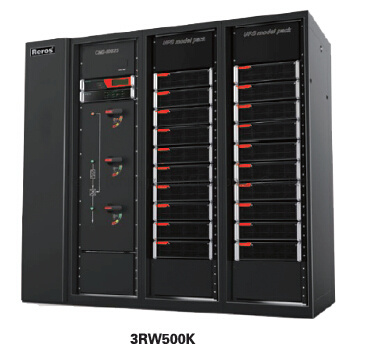

3RW500KM50

3RW600K

M50

3RW450KM75

3RW600KM75

3RW900KM75

3RW1200KM75

Capacity

200KVA

300KVA

400KVA

500KVA

600KVA

450KVA

600KVA

900KVA

1200

Type of power module

M50

M75

Input mode

3Ph+N+PE

Input voltage(Vac)

380V/220V±20%、400V/230V±20%、415V/240V±20%

Input Frequency(HZ)

50Hz±10%、60Hz±10%

Input PF

≥0.99

Battery voltage(Vdc)

±240

Charge Time

10hs (2hs backup battery capacity)

Battery quantity(Pcs)

32-44 can be adjusted

UPS Power Factor

1.0

Output Voltage(Vac)

380/220V、400/230V、415/240V

Output Frequency(HZ)

50Hz±4%；Mains overrun or battery mode output is 50Hz±0.2%

60Hz±4%；Mains overrun or battery mode output is 60Hz±0.2%

Output voltage Stability

±1%（Static）；±2%（Load change from 0 ~ 100% ）

Efficiency (AC mode @ full loads)

≥94%

Output voltage recovery time

＜20ms（Load change from 0 - 100% ）

Overload

Rated Load 125% ，runs 10mins

Communication function

RS232/RS485/422/ dry contact/TCP/IP Expansion cards

SMMP(optional)

Can be network monitored by SNMP adapter

Parallel function

Yes(for optional)

Alarm

Battery low-voltage, mains abnormal, overload, UPS fault, over temperature protection

Working Environment Temperature

-5℃～40℃

IP Class

IP31

Cooling

Speed controlled air cooling

Noise(dB)

≤55dB(Within 1 meter)

Structure

19 inches Standard

Monitor Management System

UP Supervisor

Display

Touchable screen LCD/LED

Dimension（W*D*H）

600×1000×2000

800×850×2000/ 900×1000×2000

900×1000×2000

1400×850×2000/ 1200×1000×2200

1200×1000×2000

900×1000×2000

1200×1000×2000

1800×1000×2000

2000×1000×2200

Weight (Kg)

200

250

320

400

500

400

540

600

1420
