Linvisual,High Precision Handheld Scanner,Machinery Auto
SUMEC INTERNATIONAL TECHNOLOGY CO.,LTD
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
Linvisual,High Precision Handheld Scanner,Machinery Auto
SUMEC INTERNATIONAL TECHNOLOGY CO.,LTDThe supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
About this product
- Materials: See figure
- Size: See Image
- Color: See figure
- Max width: Other
- Optical resolution: Other
- Usage: Barcode ScannerOther
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
About this product
- Materials: See figure
- Size: See Image
- Color: See figure
- Max width: Other
- Optical resolution: Other
- Usage: Barcode ScannerOther
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
Product details
| Materials | See figure |
|---|---|
| Size | See Image |
| Color | See figure |
| Max width | Other |
| Optical resolution | Other |
| Usage | Barcode ScannerOther |
| Network scanning | Other |
| Application | Professional ImageOther |
| Scanning light source | LEDOther |
| Scanning element | Other |
| Kind | Flatbed ScannerDrum ScannerPen ScannerOther |
| Interface type | Other |
Product details
| Materials | See figure |
|---|---|
| Size | See Image |
| Color | See figure |
| Max width | Other |
| Optical resolution | Other |
| Usage | Barcode ScannerOther |
| Network scanning | Other |
| Application | Professional ImageOther |
| Scanning light source | LEDOther |
| Scanning element | Other |
| Kind | Flatbed ScannerDrum ScannerPen ScannerOther |
| Interface type | Other |
From the supplier
Features
Powerful reading performance
High Precision Handheld Scanner is equipped with a customized million global exposure industrial grade image sensor and a new generation decoding algorithm, which meets the requirements of device timeliness, stability, and reliability in harsh environments.
New generation optical design
The polarized light solution solves the problem of difficult to read issues such as overexposure and ghosting caused by strong reflective materials such as metal and glass.
Ergonomic Design
Ergonomic handle design enhances the user experience in high-intensity usage scenarios and reduces fatigue.
Usage

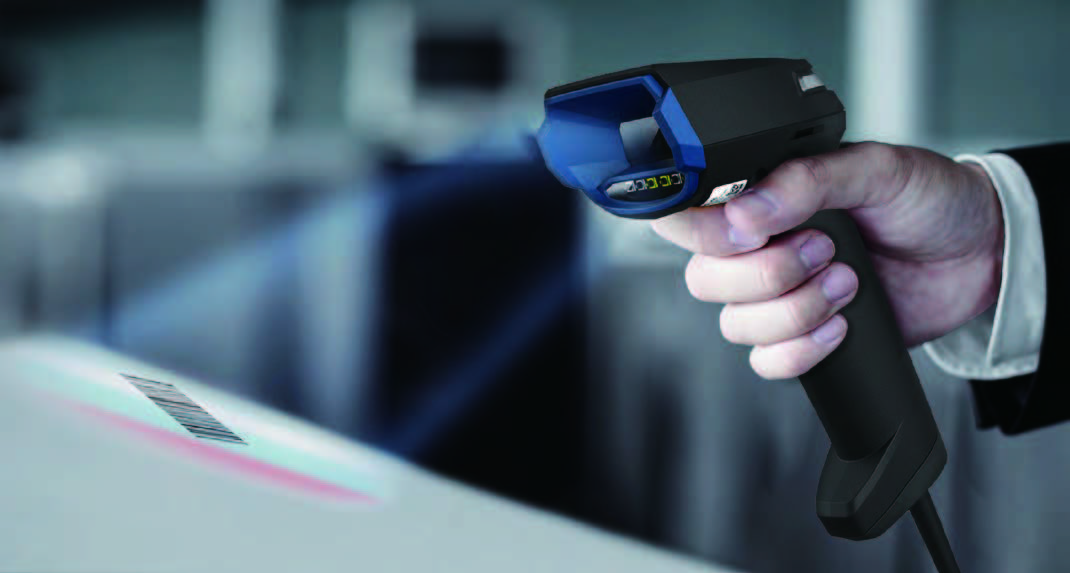

High Precision Handheld Scanner is used for scenarios where devices need to be wired to a computer for scanning.
Technical Features
Model and Parameters
LVS-R50
Performance Parameter
Image Sensor
1280*800 pixels
Light Source
White, red, blue
Physical Parameter
Size(H*W*D)
174.82*85.3*64.48mm
Weight
153g
Working Voltage
4.5V~5.5V(DC)
Currency
175mA(Typical values), 460mA(MAX)
Interface
USB-HID, USB-CDC, UART
Pilot Lamp
Buzzer prompt/LED prompt
Shell Material
PC+ABS
Scanning Performance
Reading Accuracy
>=3.33MIL
Scan Angle
Pitch: ±60°,skew: ±45°,tilt: 360°
Field of View Angle
Horizontal:44.3°, vertical:28.4°, diagonal:51°
Motion Tolerance
13mil UPC 2m/s(79.74 inch/s)
Minimum Recognition Contrast
20%
Scan Configuration
Storage Capacity
32MB
Scan Accessories
Standard Accessories
T21X bracket
Optional Accessories
Data cable *1, user manual *1
Code Recognition System
1D Code
Codabar,Code11, Code128, Code32, Code39, Code93, EAN-13, EAN-8, UPCA, UPCE, IATA 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, Straight 2 of 5, MSI/Plessey, GS1,DataBar, etc
2D Code
Aztec, Data Matrix, Micro PDF 417, PDF417, QR, Micro QR, etc
Environmental Parameters
Working Temperature
0℃~+50℃
Storage Temperature
-20℃~+70℃
Working Humidity
5%~95%RH（No condensation）
Drop Specification
Multiple falls from a 1.8meter cement floor
Ambient Lighting
0Lux~100000 Lux
Electrostatic Protection
±15KV(air discharge), ±8KV(contact discharge)
Related Regulations
Electrical Safety
IEC 60950
Environmental Parameters
RoHS directive 2011/65/EU, GB/T 26572
LED Safety
IEC 62471:2006
EMI/RFI
FCC Part 15 Class B, EN 55032:2015, EN 55035:2017
From the supplier
Features
Powerful reading performance
High Precision Handheld Scanner is equipped with a customized million global exposure industrial grade image sensor and a new generation decoding algorithm, which meets the requirements of device timeliness, stability, and reliability in harsh environments.
New generation optical design
The polarized light solution solves the problem of difficult to read issues such as overexposure and ghosting caused by strong reflective materials such as metal and glass.
Ergonomic Design
Ergonomic handle design enhances the user experience in high-intensity usage scenarios and reduces fatigue.
Usage
High Precision Handheld Scanner is used for scenarios where devices need to be wired to a computer for scanning.
Technical Features
Model and Parameters
LVS-R50
Performance Parameter
Image Sensor
1280*800 pixels
Light Source
White, red, blue
Physical Parameter
Size(H*W*D)
174.82*85.3*64.48mm
Weight
153g
Working Voltage
4.5V~5.5V(DC)
Currency
175mA(Typical values), 460mA(MAX)
Interface
USB-HID, USB-CDC, UART
Pilot Lamp
Buzzer prompt/LED prompt
Shell Material
PC+ABS
Scanning Performance
Reading Accuracy
>=3.33MIL
Scan Angle
Pitch: ±60°,skew: ±45°,tilt: 360°
Field of View Angle
Horizontal:44.3°, vertical:28.4°, diagonal:51°
Motion Tolerance
13mil UPC 2m/s(79.74 inch/s)
Minimum Recognition Contrast
20%
Scan Configuration
Storage Capacity
32MB
Scan Accessories
Standard Accessories
T21X bracket
Optional Accessories
Data cable *1, user manual *1
Code Recognition System
1D Code
Codabar,Code11, Code128, Code32, Code39, Code93, EAN-13, EAN-8, UPCA, UPCE, IATA 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, Straight 2 of 5, MSI/Plessey, GS1,DataBar, etc
2D Code
Aztec, Data Matrix, Micro PDF 417, PDF417, QR, Micro QR, etc
Environmental Parameters
Working Temperature
0℃~+50℃
Storage Temperature
-20℃~+70℃
Working Humidity
5%~95%RH（No condensation）
Drop Specification
Multiple falls from a 1.8meter cement floor
Ambient Lighting
0Lux~100000 Lux
Electrostatic Protection
±15KV(air discharge), ±8KV(contact discharge)
Related Regulations
Electrical Safety
IEC 60950
Environmental Parameters
RoHS directive 2011/65/EU, GB/T 26572
LED Safety
IEC 62471:2006
EMI/RFI
FCC Part 15 Class B, EN 55032:2015, EN 55035:2017
