Visit the ZHEJIANG LEFOO CONTROLS CO., LTD. store

LFM108 Differential Pressure Transmitter for central air conditioning air

10/10 fairsManufacturerModel LFM108

$2778–$3889/ unit FOB · ≈ converted from CNY

The supplier did not say what one unit is (piece, set, box). We confirm this when we get the quote.

MOQ 1 unit

Estimated landed cost

$51 / unit

range $44–$59 · total ≈ $5,140

Quantity

FOB goods (100): $3,333
Ocean freight + handling (1.0 CBM): $820
US duty (3.5%): $117
Section 301 tariff (25.0%): $833
Customs fees (MPF/HMF): $37

Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.

Get a quote from this supplier See all sourcing services

Service: From $29 per supplier (Verify)
You get: Phone and video verification, a quote sheet and a written report
Turnaround: 3 business days
Contact details: Sent to you once your request is confirmed

If we can't reach the supplier within 3 business days, we refund the fee.

Visit the ZHEJIANG LEFOO CONTROLS CO., LTD. store

LFM108 Differential Pressure Transmitter for central air conditioning air

10/10 fairsManufacturerModel LFM108

$2778–$3889/ unit FOB · ≈ converted from CNY

The supplier did not say what one unit is (piece, set, box). We confirm this when we get the quote.

MOQ 1 unit

Estimated landed cost

$51 / unit

range $44–$59 · total ≈ $5,140

Quantity

FOB goods (100): $3,333
Ocean freight + handling (1.0 CBM): $820
US duty (3.5%): $117
Section 301 tariff (25.0%): $833
Customs fees (MPF/HMF): $37

Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.

Get a quote from this supplier See all sourcing services

Service: From $29 per supplier (Verify)
You get: Phone and video verification, a quote sheet and a written report
Turnaround: 3 business days
Contact details: Sent to you once your request is confirmed

If we can't reach the supplier within 3 business days, we refund the fee.

About this product

Materials: plastic,alloy,core,Electronic components
Size: 97*87*35.5
Color: White
Theory: Other
Material: Other
Operation form: PassiveMode
Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
Made in: Zhejiang, China

$2778–$3889/ unit FOB · ≈ converted from CNY

The supplier did not say what one unit is (piece, set, box). We confirm this when we get the quote.

MOQ 1 unit

Estimated landed cost

$51 / unit

range $44–$59 · total ≈ $5,140

Quantity

FOB goods (100): $3,333
Ocean freight + handling (1.0 CBM): $820
US duty (3.5%): $117
Section 301 tariff (25.0%): $833
Customs fees (MPF/HMF): $37

Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.

Get a quote from this supplier See all sourcing services

Service: From $29 per supplier (Verify)
You get: Phone and video verification, a quote sheet and a written report
Turnaround: 3 business days
Contact details: Sent to you once your request is confirmed

If we can't reach the supplier within 3 business days, we refund the fee.

About this product

Materials: plastic,alloy,core,Electronic components
Size: 97*87*35.5
Color: White
Theory: Other
Material: Other
Operation form: PassiveMode
Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
Made in: Zhejiang, China

Product details

Materials	plastic,alloy,core,Electronic components
Size	978735.5
Color	White
Theory	Other
Material	Other
Operation form	PassiveMode
Usage	PressureSensitiveSensor
Brand	Other
Production process	Other
Measured substance	Other
Composition	Other
Output	Other

From the supplier

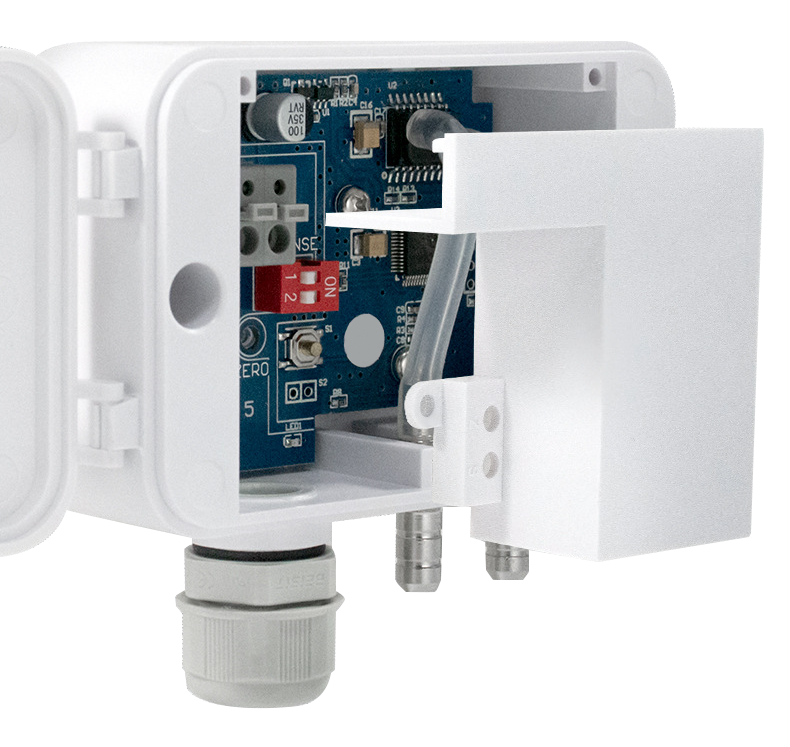

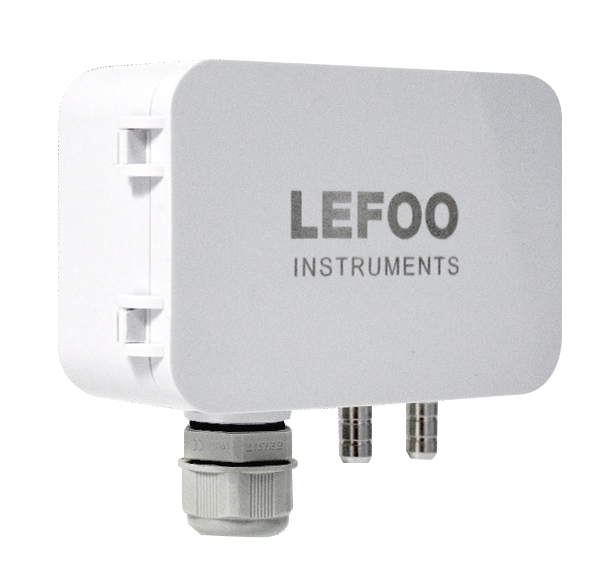

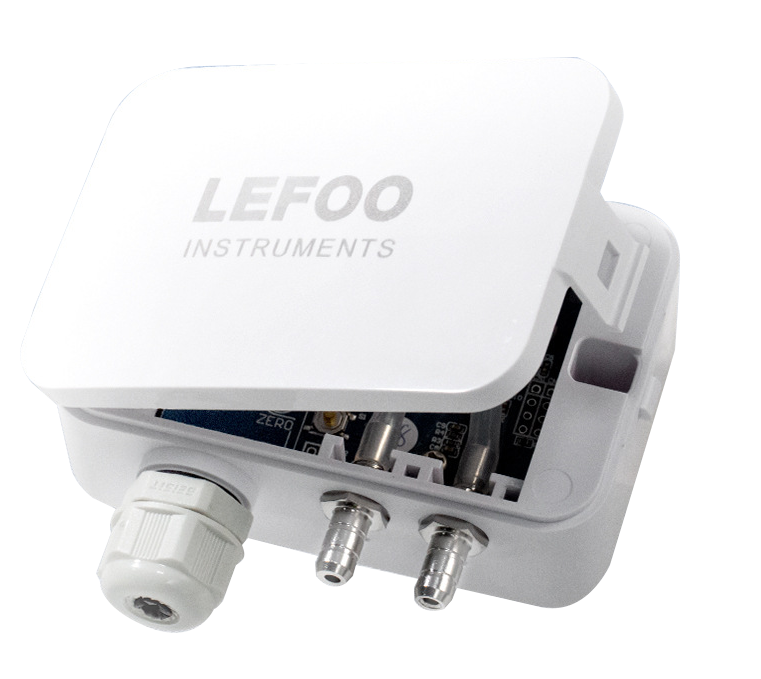

LFM108 differential pressure transmitter detect differential pressure or gauge pressure then convert this pressure difference to a proportional analogue output signal. Two output version are offered: Voltage output of 0~10VDC, and a current output 4-20mA. LFM108 differential pressure transmitter ranges from 0 - ±50Pa to 0 - ±10000Pa.

Application:

Heating, Ventilation and Air Conditioning (HVAC)

Energy Management System

Static Duct Pressure

Clean Room Pressure

Over Pressurization and Furnace Draft Control

Media: Air and neutral gases

Pressure range table

Unidirectional pressure

Bidirectional pressure

0 - 100Pa

0 - ±50Pa

0 - 250Pa

0 - ±100Pa

0 - 500Pa

0- ±250Pa

0 - 1000Pa

0 - ±500Pa

0 - 2500Pa

0 - ±1000Pa

0 - 5000Pa

0 - ±2500Pa

0 - 10,000Pa

0 -?±5000Pa

0 - ±10,000Pa

Other pressure range are selectable

Specification

Accuracy

±1.0%FS

Compensated temperatures

-10°C +60°C

Zero/Full range deviation %FS/?

±0.01

Over pressure capacity

×15

Output signal

0?5/10VDC3-wire

4?20mA2-wire

Supply voltage

0 - 5/10VDC12 - 30VDC

4 - 20mA10 - 30VDC

External connective load

0 - 5/10VDC≥50KΩ

4 - 20mA≤250Ω

Ambient temperature

-10°C - 60°C

Storage temperature

-40°C - 85°C

Housing

Industrial plastic, fire resistance level per UL94-V0

Pressure connection

Ribbed Ø6.2mm

Cable gland

Cables Ø8mm maximum

Weight

140g
