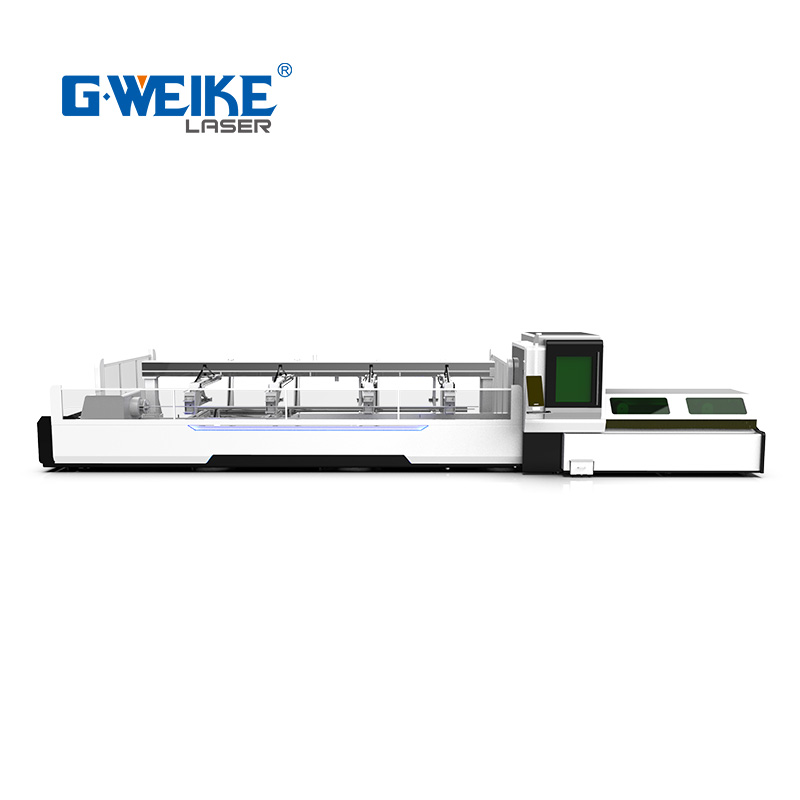

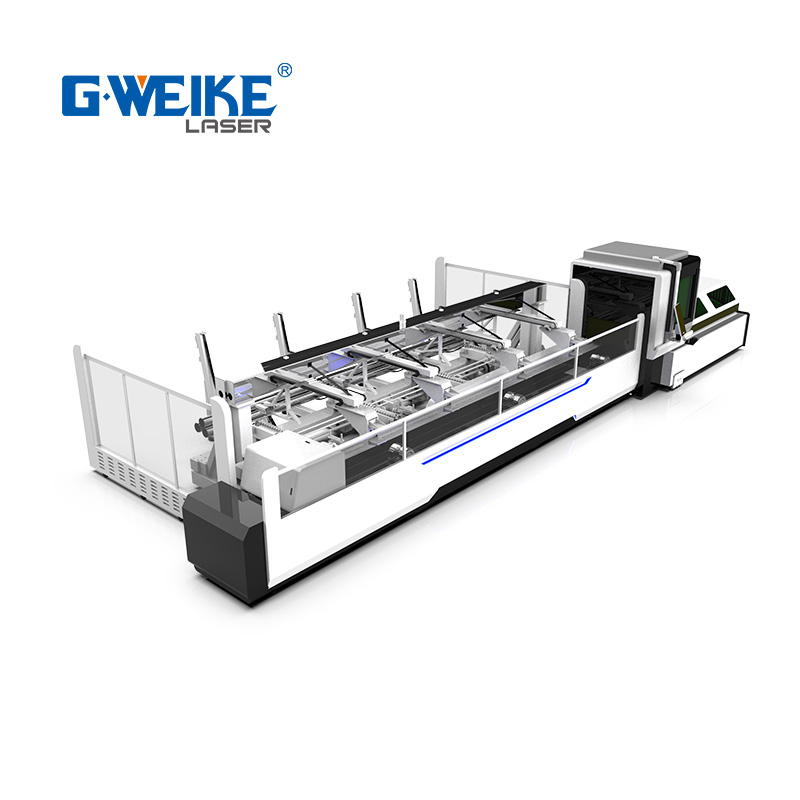

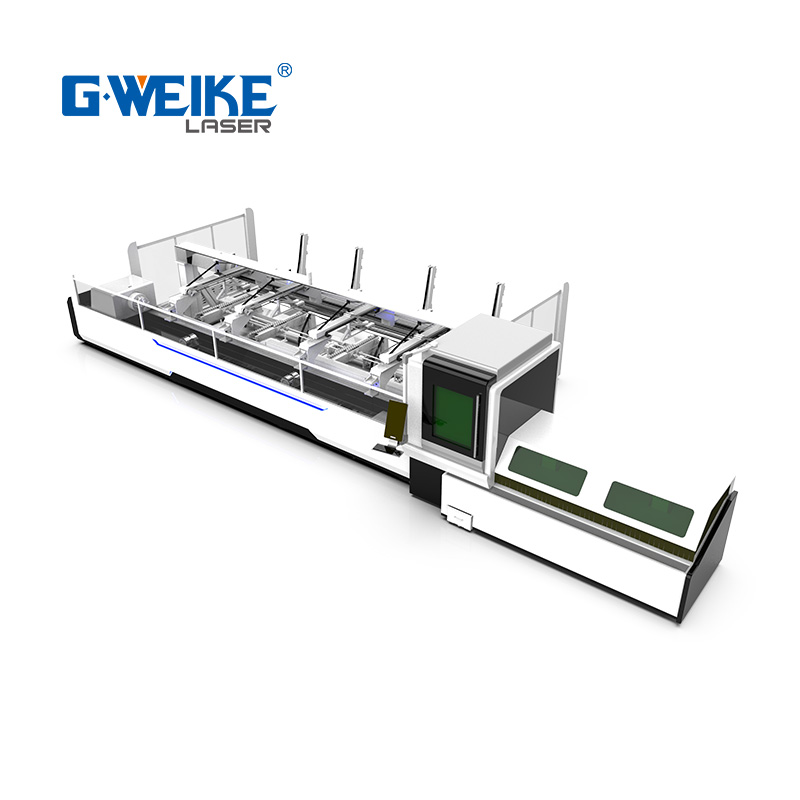

LF60MA Auto Feeding Professional Tube Laser Cutting Machine
Gweike Tech Co.,Ltd
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
LF60MA Auto Feeding Professional Tube Laser Cutting Machine
Gweike Tech Co.,LtdThe supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
About this product
- Materials: metal tube
- Color: white black
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Shandong, China
About this product
- Materials: metal tube
- Color: white black
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Shandong, China
Product details
| Materials | metal tube |
|---|---|
| Color | white black |
Product details
| Materials | metal tube |
|---|---|
| Color | white black |
From the supplier
WhatsAPP/Wechat/Mobile:+86 17860543384Technical ParametersMachine ModelLF60MAlaser power1000W 2000W 3000W 4000W 6000W (Optional)Dimensions12694*5345*2638mmworking areaHold diameter: Φ20mm-Φ300mmRepeat positioning accuracy±0.02mm/mMax speed1.5GMax acceleration±0.02mm/mVoltage and frequency380V/50Hz/60HzAutofocus Laser Cutting Head
Without Manual Focusing
The software automatically adjusts the focusing lens to realize automatic perforating and cutting plates of different thickness. The speed of automatically adjusting focus lens is ten times of the manual adjusting.
Bigger Adjustment Range
Adjustment range -10 mm~ +10mm, precision 0.01mm, suitable for 0 ~ 20mm different types of plates.
Long Service Life
Collimator lens and focus lens both have water-cooling heat sink which reduces the temperature of the cutting head to improve the life of the cutting head.
Clamp Design
It adopts an pneumatic clamp design on both sides and it can modulate the center automatically. The diagonal adjustable range is 20-300mm.
Fractional Automatic Support Installation
It employs intelligent tube support design, which can solve the deformationproblems in the process of long tube cutting.

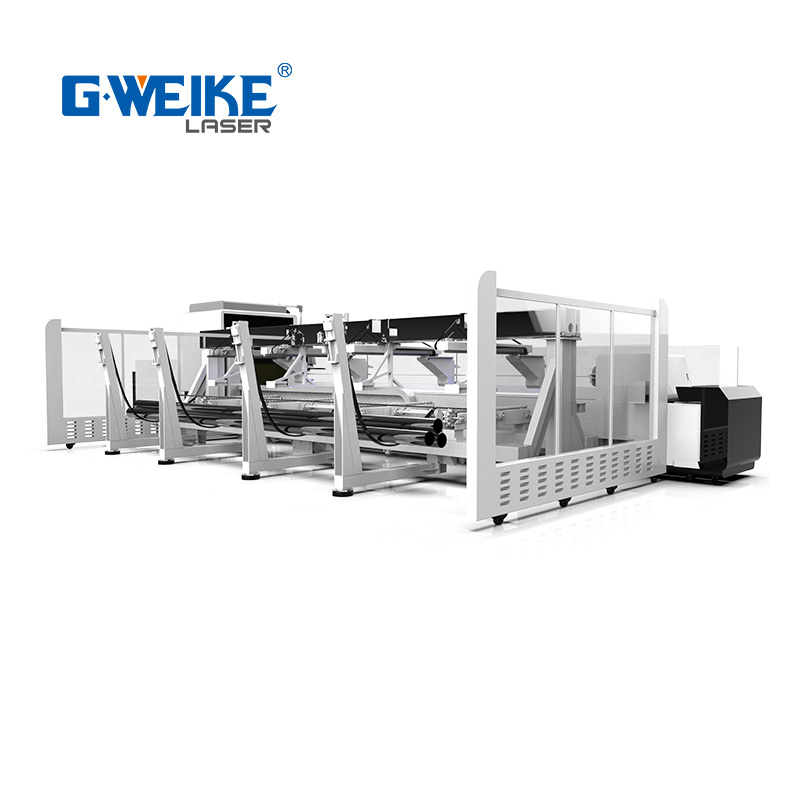

Full-automatic feeding and unloading material device
Automatic Feeding
Realize the intelligent material separation, feeding and seamless docking with the fiber laser cutting machine after the whole bundles of tubes are placed in the feeding device, and ensure that only one tube is delivered to the conveying arm each time.
Automatic Unloading
The finished product is automatically dropped to the storage bin, double support-bearing auxiliary support overlong tubes.
Industry Applications
Take the oil industry for example, the main route of oil transport is the pipeline, and because of the characteristics of the oil itself, leading to the high quality requirements of the pipeline. While fiber laser cutting machine can achieve the pipes multi-angle precision processing to fulfil the oil transportation requirement. Professional tube fiber laser cutting machine—LF60M is used for cutting square tube, rectangular tube, oval tube, waist type tube, hexagonal tube; square tube □ 20 * 20- □150 *150mm, round tube Φ20-Φ 210mm wall thickness of 0.5-10mm carbon steel tube, 0.5-10mm stainless steel tube.
From the supplier
WhatsAPP/Wechat/Mobile:+86 17860543384Technical ParametersMachine ModelLF60MAlaser power1000W 2000W 3000W 4000W 6000W (Optional)Dimensions12694*5345*2638mmworking areaHold diameter: Φ20mm-Φ300mmRepeat positioning accuracy±0.02mm/mMax speed1.5GMax acceleration±0.02mm/mVoltage and frequency380V/50Hz/60HzAutofocus Laser Cutting Head
Without Manual Focusing
The software automatically adjusts the focusing lens to realize automatic perforating and cutting plates of different thickness. The speed of automatically adjusting focus lens is ten times of the manual adjusting.
Bigger Adjustment Range
Adjustment range -10 mm~ +10mm, precision 0.01mm, suitable for 0 ~ 20mm different types of plates.
Long Service Life
Collimator lens and focus lens both have water-cooling heat sink which reduces the temperature of the cutting head to improve the life of the cutting head.
Clamp Design
It adopts an pneumatic clamp design on both sides and it can modulate the center automatically. The diagonal adjustable range is 20-300mm.
Fractional Automatic Support Installation
It employs intelligent tube support design, which can solve the deformationproblems in the process of long tube cutting.
Full-automatic feeding and unloading material device
Automatic Feeding
Realize the intelligent material separation, feeding and seamless docking with the fiber laser cutting machine after the whole bundles of tubes are placed in the feeding device, and ensure that only one tube is delivered to the conveying arm each time.
Automatic Unloading
The finished product is automatically dropped to the storage bin, double support-bearing auxiliary support overlong tubes.
Industry Applications
Take the oil industry for example, the main route of oil transport is the pipeline, and because of the characteristics of the oil itself, leading to the high quality requirements of the pipeline. While fiber laser cutting machine can achieve the pipes multi-angle precision processing to fulfil the oil transportation requirement. Professional tube fiber laser cutting machine—LF60M is used for cutting square tube, rectangular tube, oval tube, waist type tube, hexagonal tube; square tube □ 20 * 20- □150 *150mm, round tube Φ20-Φ 210mm wall thickness of 0.5-10mm carbon steel tube, 0.5-10mm stainless steel tube.
