LEFOO intelligent turbine flowmeter Liquid alcohol, diesel oil, waste natural gas, methane coal
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
LEFOO intelligent turbine flowmeter Liquid alcohol, diesel oil, waste natural gas, methane coal
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
About this product
- Size: 600*104
- Color: white
- Output: Other
- Brand: Other
- Usage: Other
- Theory: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
About this product
- Size: 600*104
- Color: white
- Output: Other
- Brand: Other
- Usage: Other
- Theory: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
Product details
| Size | 600*104 |
|---|---|
| Color | white |
| Output | Other |
| Brand | Other |
| Usage | Other |
| Theory | Other |
| Measured substance | Other |
| Operation form | PassiveMode |
| Composition | Other |
| Production process | Other |
| Material | Other |
Product details
| Size | 600*104 |
|---|---|
| Color | white |
| Output | Other |
| Brand | Other |
| Usage | Other |
| Theory | Other |
| Measured substance | Other |
| Operation form | PassiveMode |
| Composition | Other |
| Production process | Other |
| Material | Other |
From the supplier

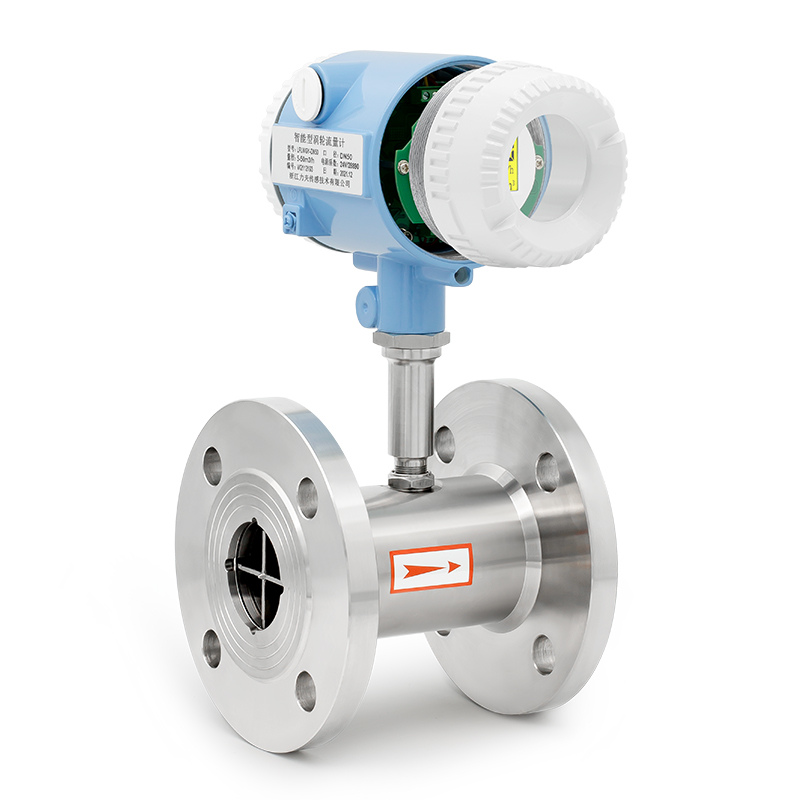

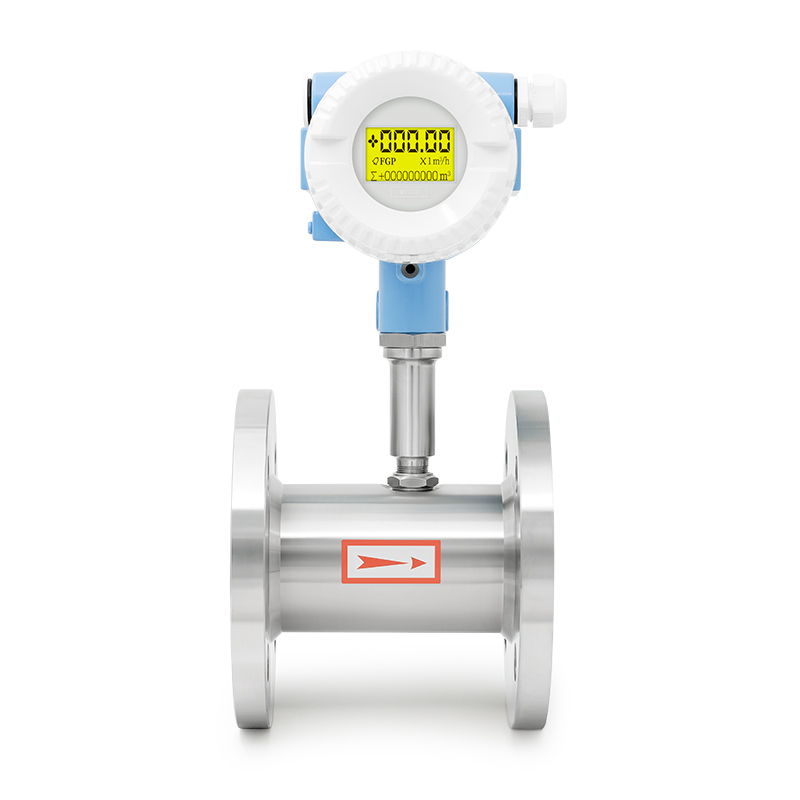

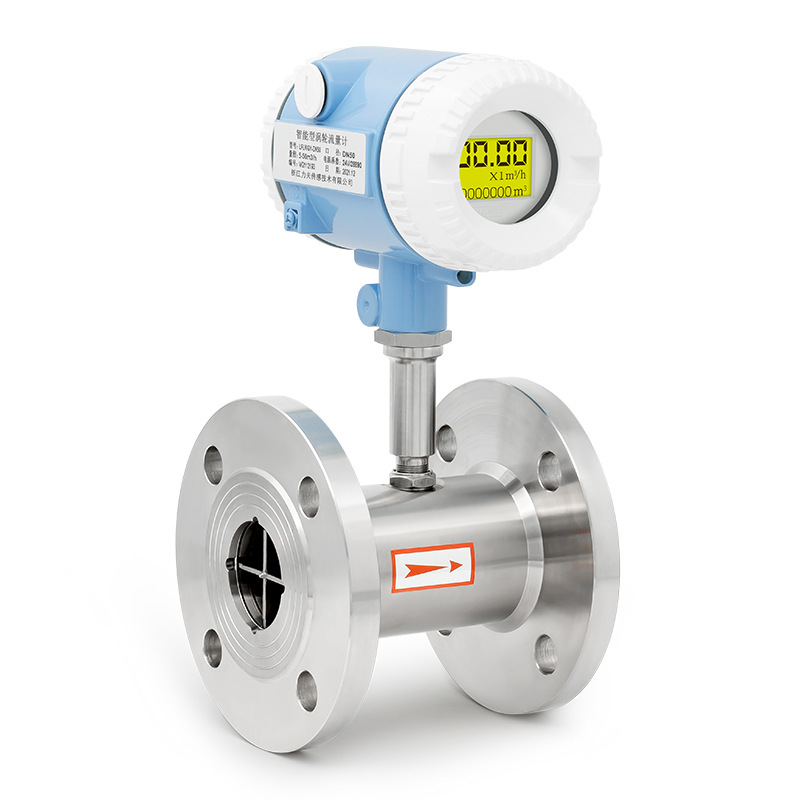

The intelligent turbine flowmeter is a new type of intelligent instrument that integrates the turbine flow sensor and the display totalizer, which is developed by using advanced ultra-low power consumption single-chip microcomputer technology. High, free from external power supply interference, anti-lightning, low cost and other obvious advantages.
Features
Pulse output, linear characteristic
High accuracy and responsiveness
Wide measurement flow range
Simple structure, easy installation, use and maintenance
Advantages
1. Small pressure loss.
2. It has high anti-electromagnetic interference and anti-vibration ability, reliable performance and long working life.
3. Using advanced ultra-low power consumption single-chip microcomputer technology, the whole machine has strong functions, low power consumption and superior performance. Smart flow display with nonlinear accuracy compensation. The accuracy of the correction formula is better than ±0.02%.
4. The instrument coefficient can be set online by the button, and can be displayed on the LCD screen. The LCD screen is intuitive and clear, and has high reliability.
5. Using EEPROM to protect the accumulated flow and meter coefficient from power failure. The protection period is greater than 10 years.
Specification
Latus rectum
10-500mm
Maximum velocity of flow
10m/s
Output signal
4-20mA, HART, RS485
Electrical connection
Connection Terminals
Comprehensive accuracy class
1
Fluid Electrical Conductivity
≥5μs/cm
Power supply
220VAC, 24VDC
Power consumption
<20W
Nominal pressure
10MPa / 6.3MPa / 2.5MPa / 1.6MPa
Ambient temperature
-25°C ~ 60°C
Connection flange material
Stainless steel (304, 316, 316L)
Protection grade
IP67
Explosion-proof category
Exdib mb IIB T6 Gb
Certification
CE, ROHS
From the supplier
The intelligent turbine flowmeter is a new type of intelligent instrument that integrates the turbine flow sensor and the display totalizer, which is developed by using advanced ultra-low power consumption single-chip microcomputer technology. High, free from external power supply interference, anti-lightning, low cost and other obvious advantages.
Features
Pulse output, linear characteristic
High accuracy and responsiveness
Wide measurement flow range
Simple structure, easy installation, use and maintenance
Advantages
1. Small pressure loss.
2. It has high anti-electromagnetic interference and anti-vibration ability, reliable performance and long working life.
3. Using advanced ultra-low power consumption single-chip microcomputer technology, the whole machine has strong functions, low power consumption and superior performance. Smart flow display with nonlinear accuracy compensation. The accuracy of the correction formula is better than ±0.02%.
4. The instrument coefficient can be set online by the button, and can be displayed on the LCD screen. The LCD screen is intuitive and clear, and has high reliability.
5. Using EEPROM to protect the accumulated flow and meter coefficient from power failure. The protection period is greater than 10 years.
Specification
Latus rectum
10-500mm
Maximum velocity of flow
10m/s
Output signal
4-20mA, HART, RS485
Electrical connection
Connection Terminals
Comprehensive accuracy class
1
Fluid Electrical Conductivity
≥5μs/cm
Power supply
220VAC, 24VDC
Power consumption
<20W
Nominal pressure
10MPa / 6.3MPa / 2.5MPa / 1.6MPa
Ambient temperature
-25°C ~ 60°C
Connection flange material
Stainless steel (304, 316, 316L)
Protection grade
IP67
Explosion-proof category
Exdib mb IIB T6 Gb
Certification
CE, ROHS
