Large pannel medical UV phototherapy
KERNEL MEDICAL EQUIPMENT CO., LTD
See what’s includedHide breakdown
- FOB goods (100)
- $214,500
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $7,508
- Section 301 tariff (25.0%)
- $53,625
- Customs fees (MPF/HMF)
- $903
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- FOB goods (100)
- $214,500
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $7,508
- Section 301 tariff (25.0%)
- $53,625
- Customs fees (MPF/HMF)
- $903
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
Large pannel medical UV phototherapy
KERNEL MEDICAL EQUIPMENT CO., LTDSee what’s includedHide breakdown
- FOB goods (100)
- $214,500
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $7,508
- Section 301 tariff (25.0%)
- $53,625
- Customs fees (MPF/HMF)
- $903
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- FOB goods (100)
- $214,500
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $7,508
- Section 301 tariff (25.0%)
- $53,625
- Customs fees (MPF/HMF)
- $903
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Materials: Philips medical UV lamp
- Size: 614mmx458mmx85mm
- Color: Gray-White
- Certification: Other
- Salt rejection rate: Other
- Capacity: Other
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Jiangsu, China
About this product
- Materials: Philips medical UV lamp
- Size: 614mmx458mmx85mm
- Color: Gray-White
- Certification: Other
- Salt rejection rate: Other
- Capacity: Other
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Jiangsu, China
Product details
| Materials | Philips medical UV lamp |
|---|---|
| Size | 614mmx458mmx85mm |
| Color | Gray-White |
| Certification | Other |
| Salt rejection rate | Other |
| Capacity | Other |
| Application | Other |
Product details
| Materials | Philips medical UV lamp |
|---|---|
| Size | 614mmx458mmx85mm |
| Color | Gray-White |
| Certification | Other |
| Salt rejection rate | Other |
| Capacity | Other |
| Application | Other |
From the supplier
Effective Radiant area
partial:1216 cm2
Bulb brand and quantity
MEDICAL-USE Philips lamp , 4 pcs of 36 W
Bulb technical data
UVA
Rate of work :36W
Voltage :106V
current:0.43A
type:CLEO PL-L 36W
wave length:320-400nm peak value : 368nm
UVB
Rate of work :36W
voltage:106V
Current :0.43A
Type :PL-L 36W /01
wave length:311-313nm, peak value :311nm, intensity:12
Features:
1.311 nm Philips UV phototherapy lamp for psoriasis ,vitiligo and other skin disorder and skin condition.
2. 4 pcs of 36w narrow band UVB lamp for hand ,foot, back, chest and other body part.

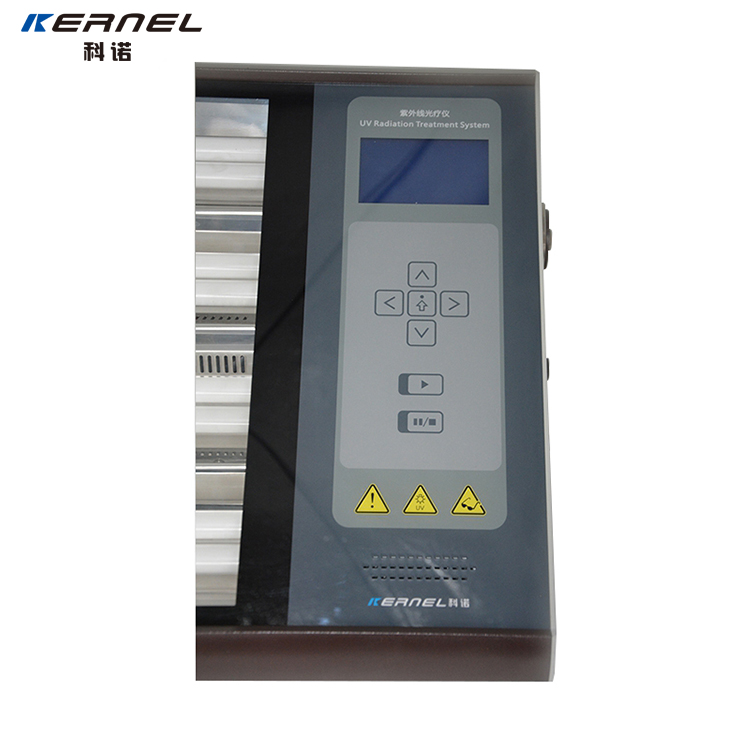

3. unique smart timer design , make the operation easy and convenience.
4. the timer automatically control the light on or off , avoid the dangous of overexposure.
5. With voice prompt function to guide you to exposure correctly
Indications:
Psoriasis, Vitiligo, Eczema, Chronic eczema, Neurodermatitis, Atopic dermatitis and other skin diseases.
Narrow Band UVB phototherapy is considered a first-line treatment for many conditions such as psoriasis, vitiligo and eczema, is safe enough for pregnant
women and children to use, and has none of the serious side effects .
UV lights slow abnormal growth of skin cells and can help create repigmentation.
Usage:
1. Before treatment:
the first step, conditional patients with psoriasis before irradiation, please takes a bath for 15 to 20 minutes to remove skin surface scales; The second step, patients need to determine the MED. According to the skin type, in the arms, take the six hole irradiation method measuring the minimum amount of erythema on hip and other parts,, MED dose is the initial dose, through the conversion or look-up table, can get initial irradiation time. The specific method of measurement as shown in the user’s manual. Note: 1.Intensity of KN - 4003 - B/BL is 10 mW/cm 2. MED calculation method for: irradiation time S = dose (J/cm2) * 1000/10 (mW/cm2)
2. Treatment:
Psoriasis: Every week 3 ~ 4 times, 15 ~ 20 times/a period of treatment. If improved after the treatments can increase one period of treatment.
Vitiligo: 2 ~ 3 times a week, need to 30 ~ 50 times even more times treatment.
Pityriasis rosea: UVA/NB - UVB 5 ~ 6 times.
Deputy psoriasis: PUVA, UVA/UVB, NB - UVB, 4 times / week, to Improve histology
Comparison of before and after treatment effect
From the supplier
Effective Radiant area
partial:1216 cm2
Bulb brand and quantity
MEDICAL-USE Philips lamp , 4 pcs of 36 W
Bulb technical data
UVA
Rate of work :36W
Voltage :106V
current:0.43A
type:CLEO PL-L 36W
wave length:320-400nm peak value : 368nm
UVB
Rate of work :36W
voltage:106V
Current :0.43A
Type :PL-L 36W /01
wave length:311-313nm, peak value :311nm, intensity:12
Features:
1.311 nm Philips UV phototherapy lamp for psoriasis ,vitiligo and other skin disorder and skin condition.
2. 4 pcs of 36w narrow band UVB lamp for hand ,foot, back, chest and other body part.
3. unique smart timer design , make the operation easy and convenience.
4. the timer automatically control the light on or off , avoid the dangous of overexposure.
5. With voice prompt function to guide you to exposure correctly
Indications:
Psoriasis, Vitiligo, Eczema, Chronic eczema, Neurodermatitis, Atopic dermatitis and other skin diseases.
Narrow Band UVB phototherapy is considered a first-line treatment for many conditions such as psoriasis, vitiligo and eczema, is safe enough for pregnant
women and children to use, and has none of the serious side effects .
UV lights slow abnormal growth of skin cells and can help create repigmentation.
Usage:
1. Before treatment:
the first step, conditional patients with psoriasis before irradiation, please takes a bath for 15 to 20 minutes to remove skin surface scales; The second step, patients need to determine the MED. According to the skin type, in the arms, take the six hole irradiation method measuring the minimum amount of erythema on hip and other parts,, MED dose is the initial dose, through the conversion or look-up table, can get initial irradiation time. The specific method of measurement as shown in the user’s manual. Note: 1.Intensity of KN - 4003 - B/BL is 10 mW/cm 2. MED calculation method for: irradiation time S = dose (J/cm2) * 1000/10 (mW/cm2)
2. Treatment:
Psoriasis: Every week 3 ~ 4 times, 15 ~ 20 times/a period of treatment. If improved after the treatments can increase one period of treatment.
Vitiligo: 2 ~ 3 times a week, need to 30 ~ 50 times even more times treatment.
Pityriasis rosea: UVA/NB - UVB 5 ~ 6 times.
Deputy psoriasis: PUVA, UVA/UVB, NB - UVB, 4 times / week, to Improve histology
Comparison of before and after treatment effect
About the supplier
- ✓Exhibited at 10 of the last 10 Canton Fairs
- ✓Manufacturer
- ✓Founded 1997
- ✓Canton Fair Premium Supplier
- ✓National high-tech enterprise
Health & Recreation exhibitors show in Phase 3 of the Canton Fair, 31 October to 4 November 2026.
- Exhibited at 10 of the last 10 Canton Fairs
- Manufacturer
- Founded 1997
- Canton Fair Premium Supplier
