1. Product Definition

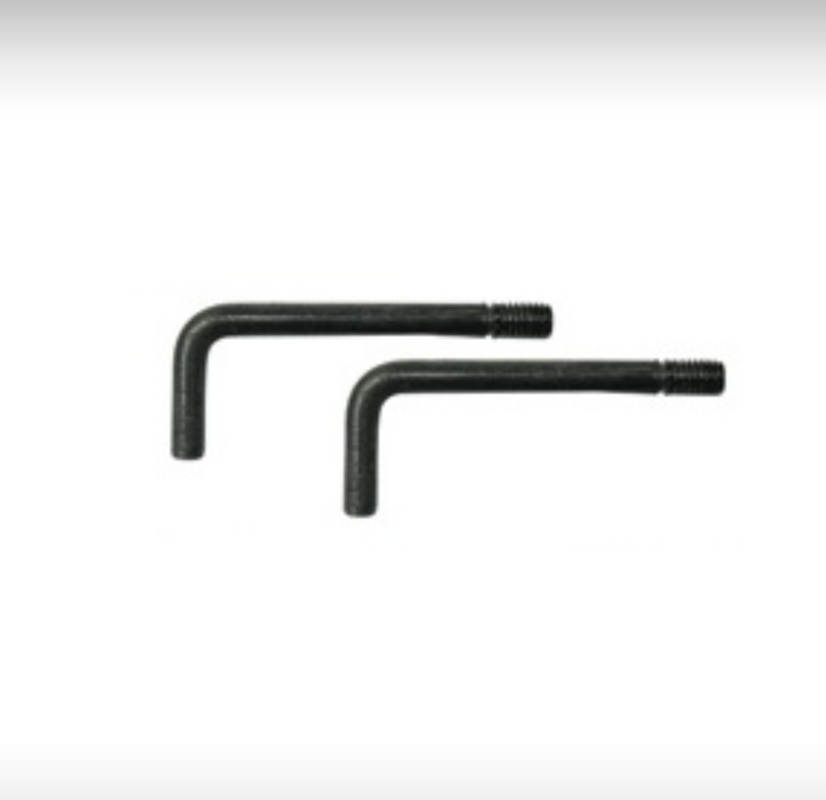

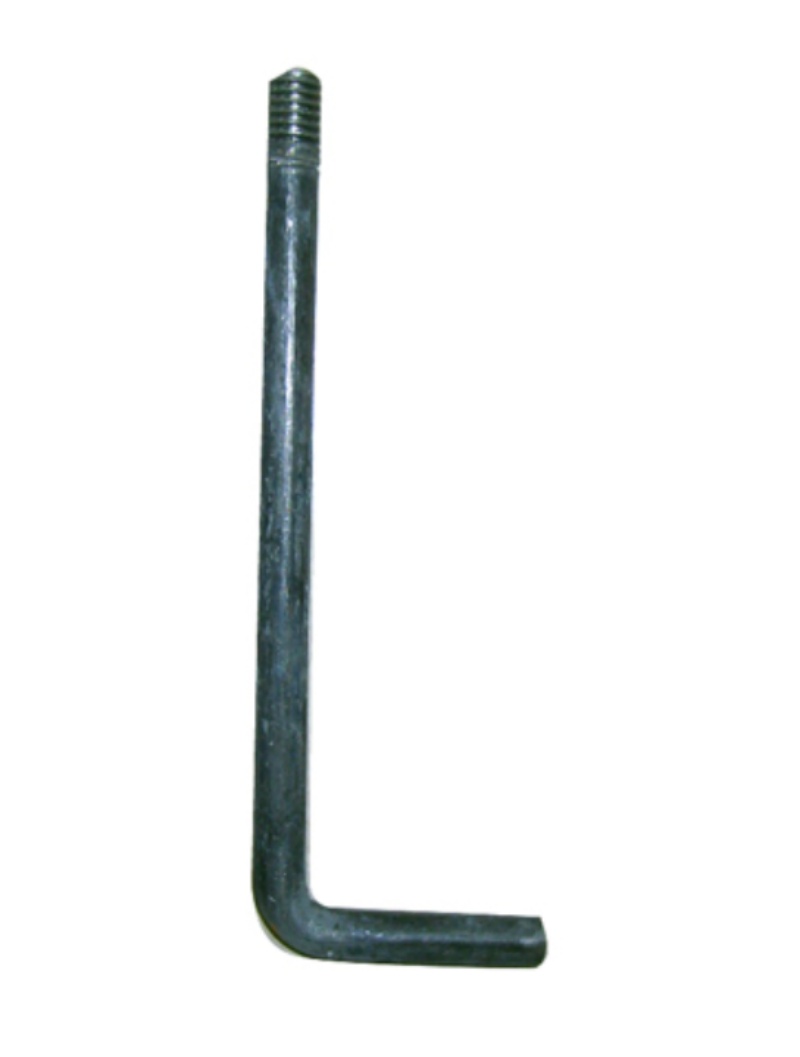

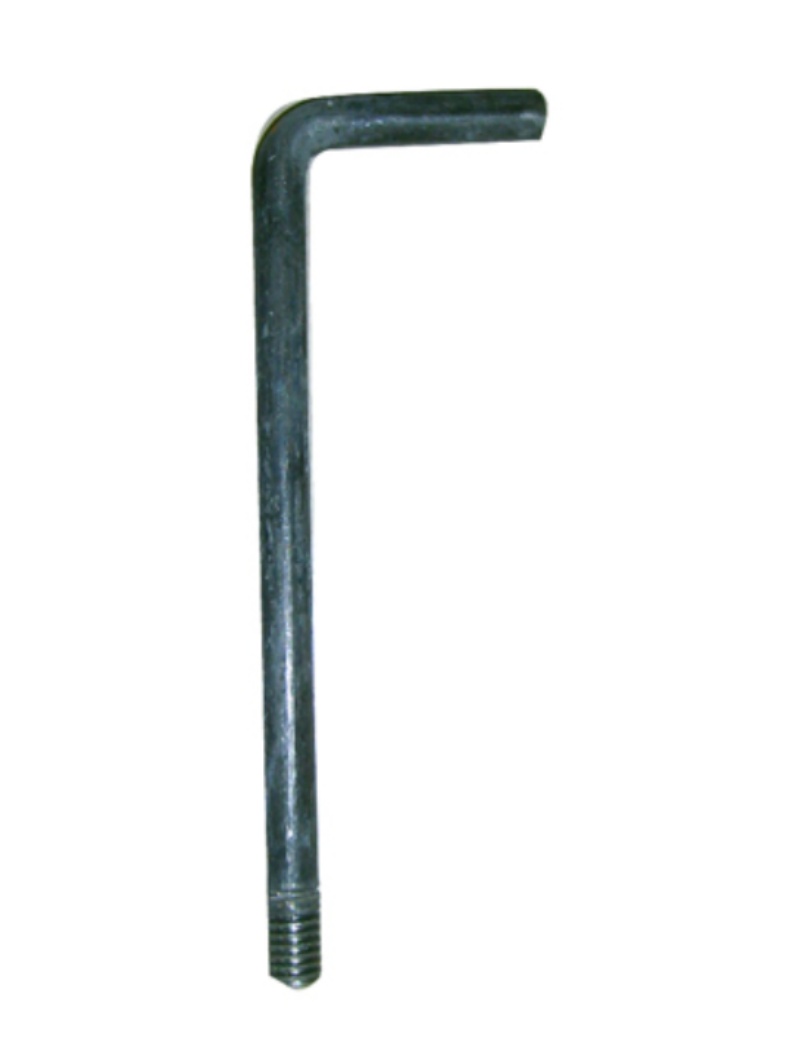

An L-Bolt (also called L-shaped anchor bolt or L-type foundation bolt) is a critical structural fastener formed by a 90° bend in a steel rod. It consists of an embedded horizontal leg that anchors into concrete and a protruding vertical threaded leg that secures machinery, steel columns, or base plates. Named for its resemblance to the letter "L", it is a core component in concrete foundation anchoring systems.

2. Core Structural Features

• L-Shaped Design: The 90° bent leg creates a mechanical lock inside cured concrete, effectively resisting pull-out and uplift forces.
• Threaded Shank: The exposed vertical section is fully threaded to accept nuts and washers, enabling secure attachment to structural components.
• High Strength Construction: Manufactured from carbon steel, stainless steel, or alloy steel with grades like ASTM F1554 Grade 36/55/105 for heavy-duty applications.
• Superior Grip: The bent horizontal leg prevents rotational movement during tightening, ensuring stable positioning without spinning.
• Customizable Finishes: Available in hot-dip galvanized (corrosion-resistant), electroplated, black oxide, or stainless steel finishes for diverse environments.

3. Main Applications

• Steel Structure Engineering: Anchoring steel columns, beams, and trusses to concrete foundations for high-rise buildings and industrial plants.
• Heavy Machinery Installation: Securing large equipment (CNC machines, generators, wind turbines) to concrete bases, resisting vibration and dynamic loads.
• Infrastructure Projects: Fixing street lamps, power pylons, highway guardrails, and bridge components to concrete supports.
• Precast Concrete: Embedded in precast walls, retaining walls, and modular building systems for precise alignment.
• Agricultural & Industrial Structures: Supporting greenhouse frames, storage tanks, and silo foundations.

5. Advantages Over Other Anchors

• Cost-Effective: Simpler geometry reduces material usage and fabrication costs compared to headed anchor assemblies.
• Easy Installation: Precisely positioned during concrete pouring using templates, ensuring accurate alignment.
• High Load Resistance: Optimized for lateral shear loads and moderate tensile forces, ideal for general structural anchoring.
• Versatility: Suitable for both interior and exterior applications with proper coating selection.
