Ks12-9 MINI EXCAVATOR · Canton Fair Sourcing

From the supplier

1.Machine weight：1080KG

2.Engine：Kubota D902 three cylinder engine,11.8kw.

3.Operation：Joystick control

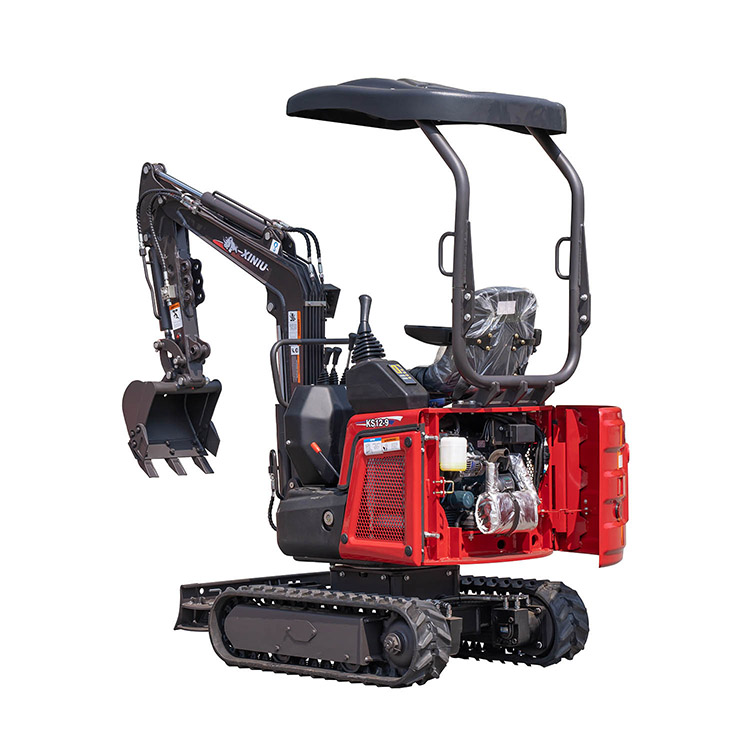

4.Feature:Rear door design, Counterweight after hiding, Convenient for inspection and maintenance

Main Specification:

SPECIFICATION Operating weight 1080kg Standard bucket capacity 0.02m3 Working device type Backhoe Engine Brand Kubota D902 Displacement 0.898L Rated power/rpm 11.8Kw/2300r/min Max.torque 51.3N.m/1800r/min Speed Max. travel speed 1.5km/h Swing speed 11rpm Max.Gradeability 30° Tracks Ground pressure 30.37KPa Material Rubber or steel Type of tensioner Screw adjustmen Hydraulic system
Capacity Pump type Gear pump Working pressure 16MPa Flow rate 18.4L/min Hydraulic oil tank 16L Fuel tank 11L Main dimensions schematic diagram OPERATING RANGE A Max. digging radius on ground mm 3040 B Max. digging radius mm 3135 C Max. digging depth mm 1580 D Max. digging height mm 2620 E Max. unloading height mm 2000 F Max. vertical digging depth mm 1340 G Min. turning radius mm 1510 H Max. lifting height dozer blade mm 140 I Max.depth dozer blade mm 200 MAIN DIMENSION a Wheel base mm 910 b Track length mm 1235 c Upper chassis ground clearance mm 460 d Counterweight turning radius mm 660 e Chass is width mm 800/950 f Track width mm 180 g Track height mm 320 h Transportation length mm 2170/2850 i height of seat to ground mm 1520 j Total height mm 2295 m Boom swing - left 50° n Boom swing - right 55°

Our factory mainly produce wheel excavators, crawler excavators, backhoe loaders and dump trucks since 1995, which have passed CE,ISO9001 certification. Our products have been exported to more than 50 countries and regions. We have agents in whole European countries, Australia, New Zealand, South Asia etc.

Below are our products list:
1) Wheel excavators: 5t - 12t; 2) Crawler excavator 0.8t -24t;
3) Backhoe loader: 6t, 7t. 4) Truck-mounted concrete pumps: 26m 33m

5) Electrical kids excavator with our Rhinoceros patents design.

All of our products have CE/ ISO Certificate

SPECIFICATION Model XN12-9 Brand RHINOCEROS Machine Weight 1130kg Bucket capacity 0.025cbm Bucket width 380mm Engine KUBOTA Rated power 11.8 kw/2400r/min Swing speed 11rpm Max. Grade ability 30° Pump type Gear pump Pressure 16MPa Flow rate 18.4L/min MAIN DEMENSIONS Overall dimension( LxWxH) 2850x954/800x2270 mm Wheelbase 914 mm Total length of track 1234mm Upper chassis ground clearance 453mm Counterweight turning radius 660 mm Track width 180 mm Track height 320 mm Height of seat to ground 1525mm Boom swing - left 363mm Boom swing - right 325mm OPERATING RANGE Max. Digging depth 1568 mm Max. Vertical digging depth 1377mm Max. Digging height 2646 mm Max. Dumping height 1876mm Max. Digging radius on ground 3039mm Min. Rotation radius 1510mm Max. Lifting height of dozer blade 141 mm Max. Digging depth of bulldozer blade 200mm
