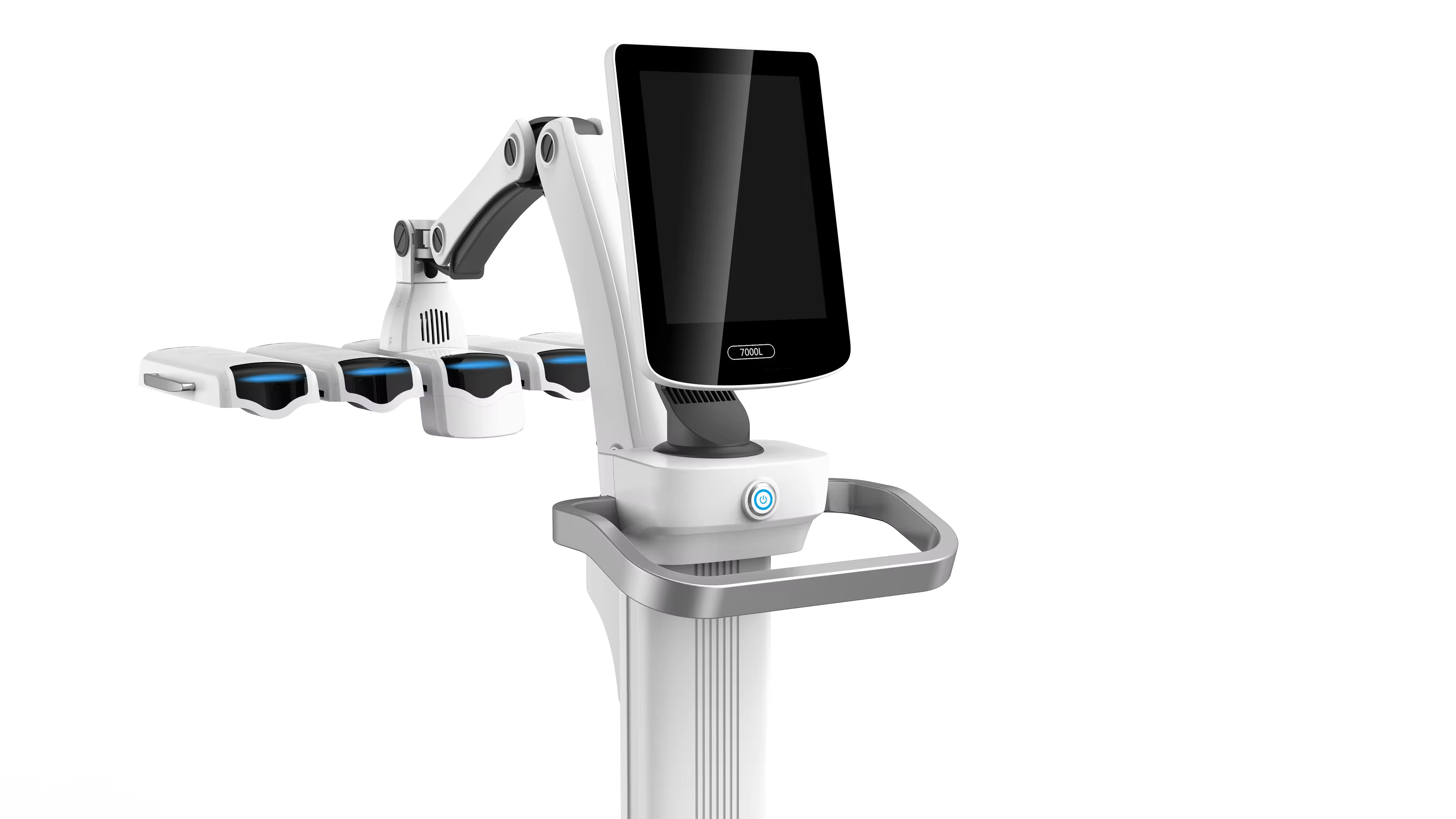

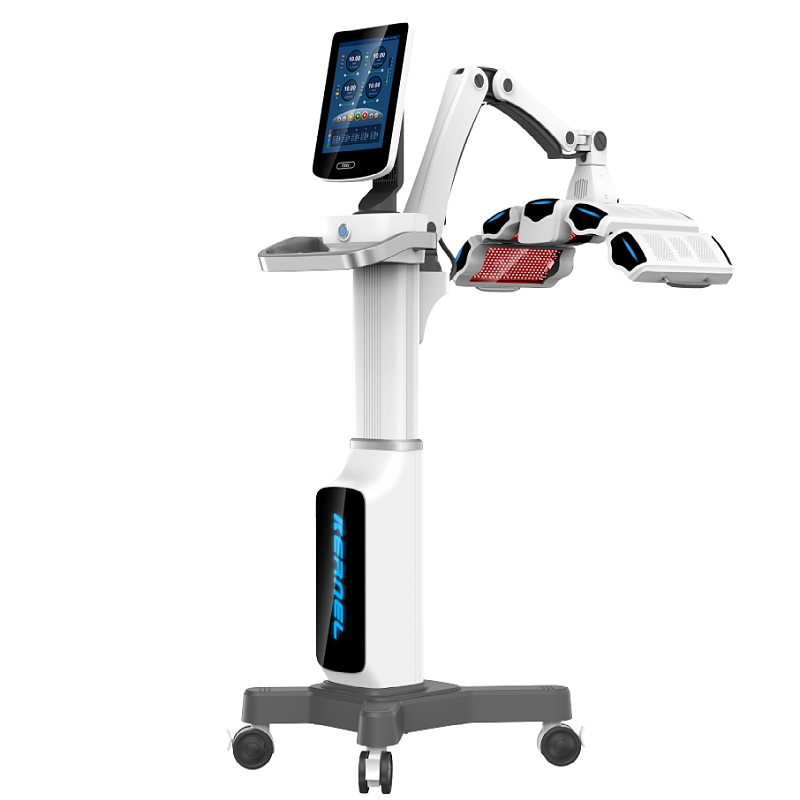

KN-7000L Four-Color LED PDT Light Therapy System for Acne Care and Skin Recovery
KERNEL MEDICAL EQUIPMENT CO., LTD
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
KN-7000L Four-Color LED PDT Light Therapy System for Acne Care and Skin Recovery
KERNEL MEDICAL EQUIPMENT CO., LTDThe supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Size: 490mm×470mm×1370mm
- Color: Red light 633nm blue light 417nmyellow light 590nm
- Capacity: Other
- Application: Other
- Certification: Other
- Salt rejection rate: Other
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Jiangsu, China
About this product
- Size: 490mm×470mm×1370mm
- Color: Red light 633nm blue light 417nmyellow light 590nm
- Capacity: Other
- Application: Other
- Certification: Other
- Salt rejection rate: Other
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Jiangsu, China
Product details
| Size | 490mm×470mm×1370mm |
|---|---|
| Color | Red light 633nm blue light 417nmyellow light 590nm |
| Capacity | Other |
| Application | Other |
| Certification | Other |
| Salt rejection rate | Other |
Product details
| Size | 490mm×470mm×1370mm |
|---|---|
| Color | Red light 633nm blue light 417nmyellow light 590nm |
| Capacity | Other |
| Application | Other |
| Certification | Other |
| Salt rejection rate | Other |
From the supplier
Expected use
Suitable for inflammatory acne treatment, eliminate inflammation and promote skin wound healing.
Applicable place
The skin and beauty department of all kinds of hospitals
product mix

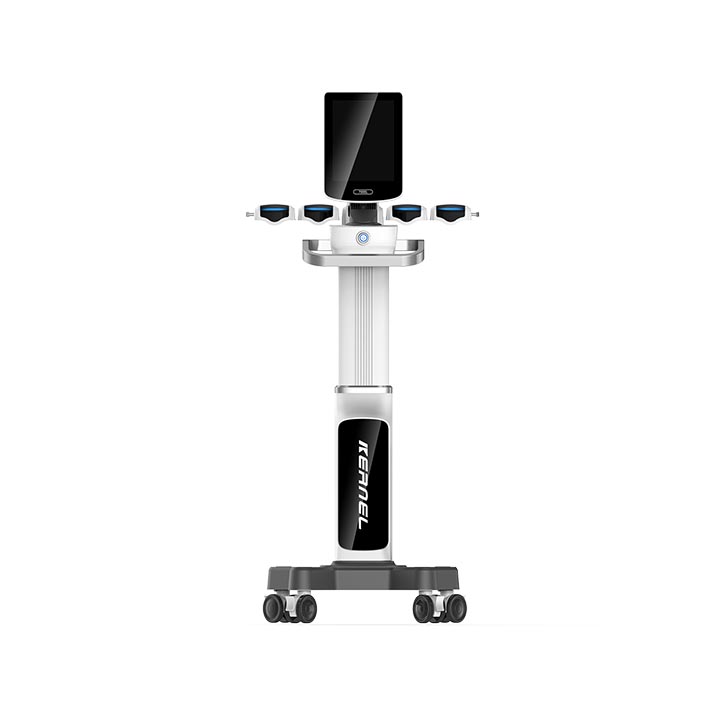

The cart type
outline dimension
(Long, width and height)
490mm×470mm×1370mm

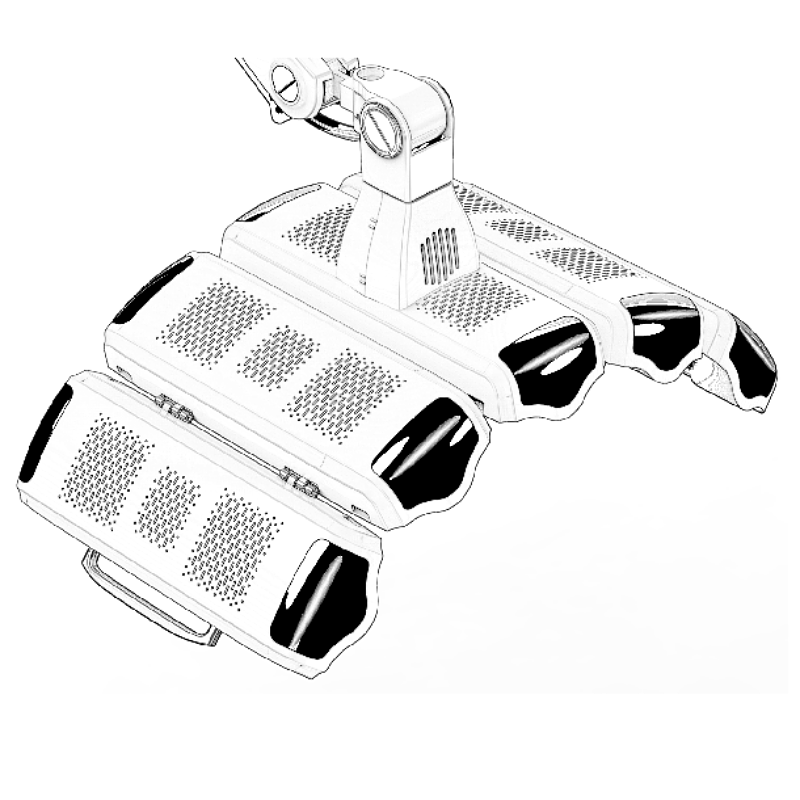

(Therapy head: 630mm 320mm 140mm)
The cantilever distance: 80cm-125cm; cantilever length: 70cm; (calculated from connector)
effective area of irradiation
900cm2±10%
Irradiation distance
6cm±1cm
Output wavelength range
Red light 633nm ± 10nm; blue light 417nm ± 10nm; yellow light 590nm ± 10nm;
Infrared light is 850nm ± 10nm; green light is 535nm ± 10nm
effective irradiance
Nominal value: error of ± 25%
Light source type
Irradiation intensity (mW / cm2)
Three light source
glow
45
yellow light
20
blue ligh
50
Green Flash
24
infrared
42
Four light source
glow
40
yellow light
15
blue ligh
40
Green Flash
20
infrared
35
LED quantity
1400
Set the function
Ø The device has a timer, and the timing error is not greater than ± 2% of the set value;
Ø The equipment has the function of manually stopping the radiation output;
Ø The instrument has the light source flashing function;
Ø The instrument has the preset function of the treatment plan;
Ø The instrument has the calibration function;
Ø The instrument has a time mode;
Ø The instrument has a dose mode.
Light source type
Red, blue, yellow, infrared, green light
product features

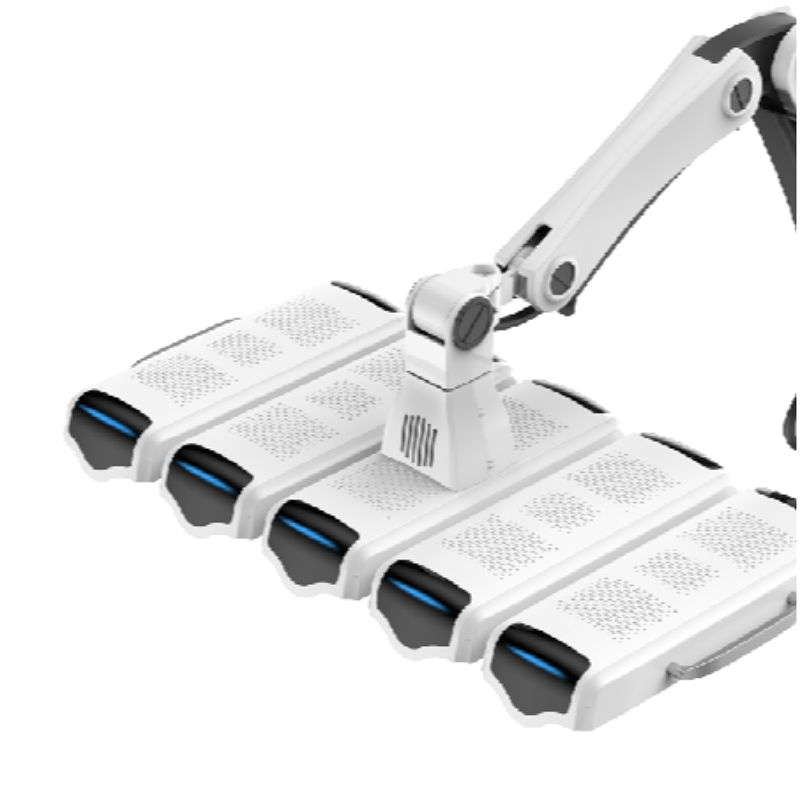

l Using high-power SMD matrix light source, high arrangement density, make the irradiation intensity is higher, more uniform light spot;
l Based on the aerodynamic system design, supplemented by super thermal conductivity materials, to ensure the safe, reliable and stable use in a harsh environment;
l Set a single light source, two light sources, three light sources and four light sources in the same treatment platform, to meet the needs of the clinical diversification scheme;

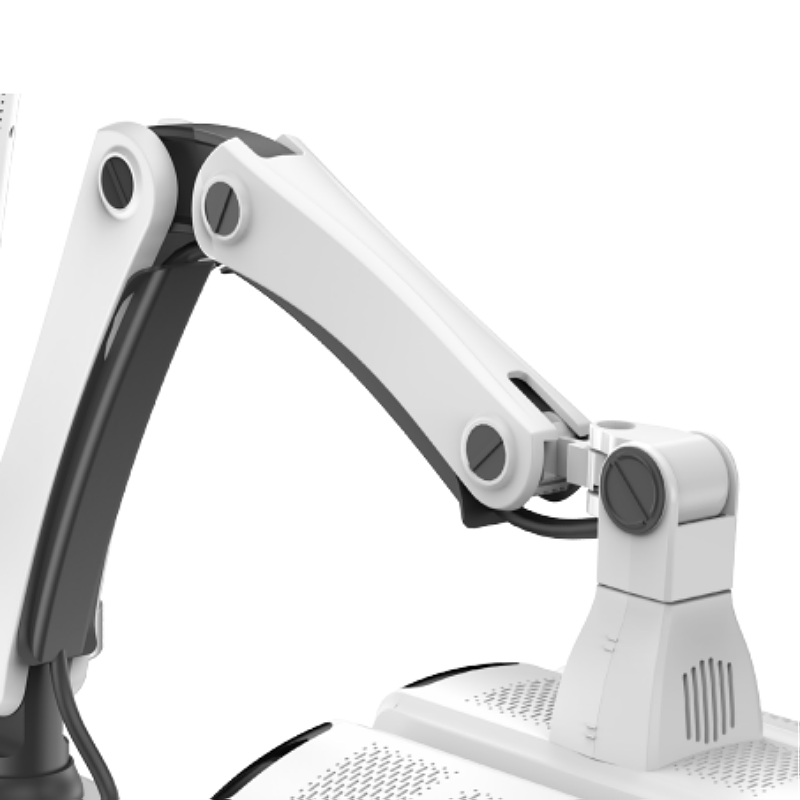

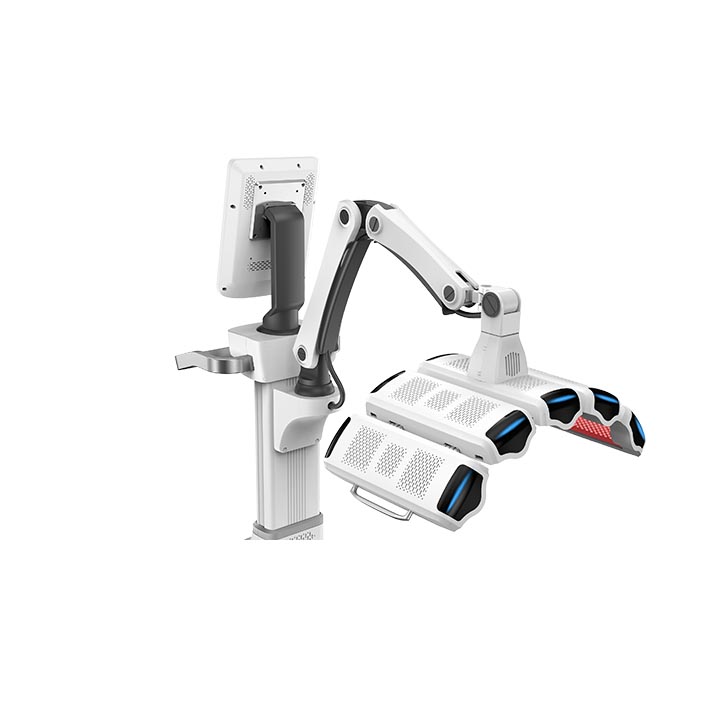

l Using the free telescopic cantilever system design, fully considering the ergonomic requirements, convenient operation, to maximize the clinical treatment environment;

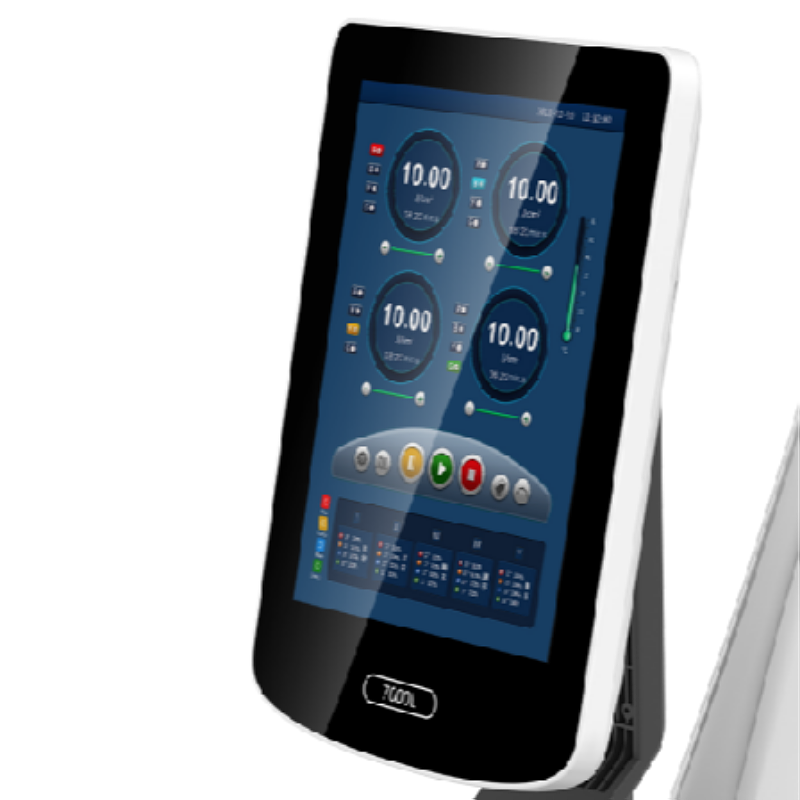

l Using 10.4 " full touch screen supplemented by humanized GUI design, make the operation more concise and smooth;
l Adopt time / dose working mode and irradiation intensity calibration system to ensure more accurate treatment dose;
l Pre-saving treatment plan, one-key selection, make the operation more convenient;
l It has two working modes of continuous irradiation or pulse irradiation to meet different clinical needs;
l Warm voice reminder, to bring a relaxed and comfortable treatment experience for patients;
l Boot-on password protection, the treatment process is safe and assured;
l Using high purity light source, no invasive operation, no side effects, no special treatment after treatment;
l It has the function of temperature measurement, real-time monitoring of the temperature of the irradiated part, and the overtemperature of the irradiated part to ensure the safety and reliability of the irradiation process;
l With the function, the distance before treatment for doctors and patients to adjust, to ensure the curative effect;
l The equipment has the function of temperature protection. If the equipment fault causes the overtemperature, the light source at the overtemperature part will stop working to ensure the safety of the equipment.
