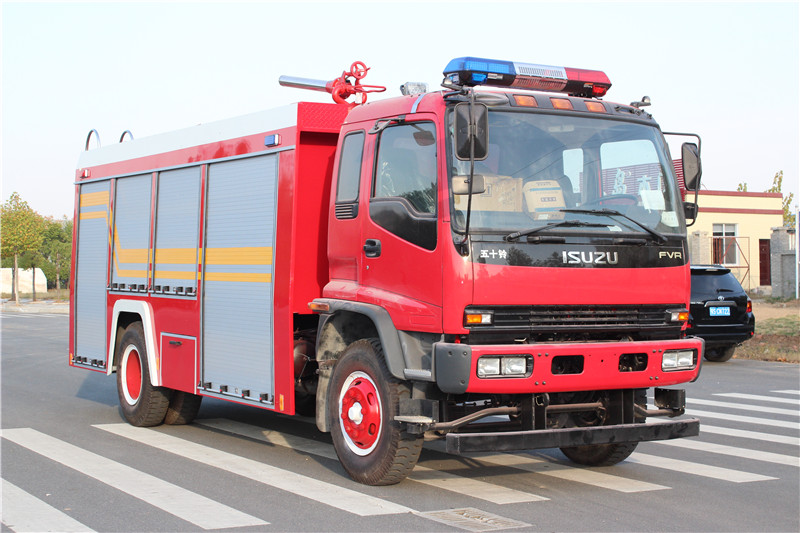

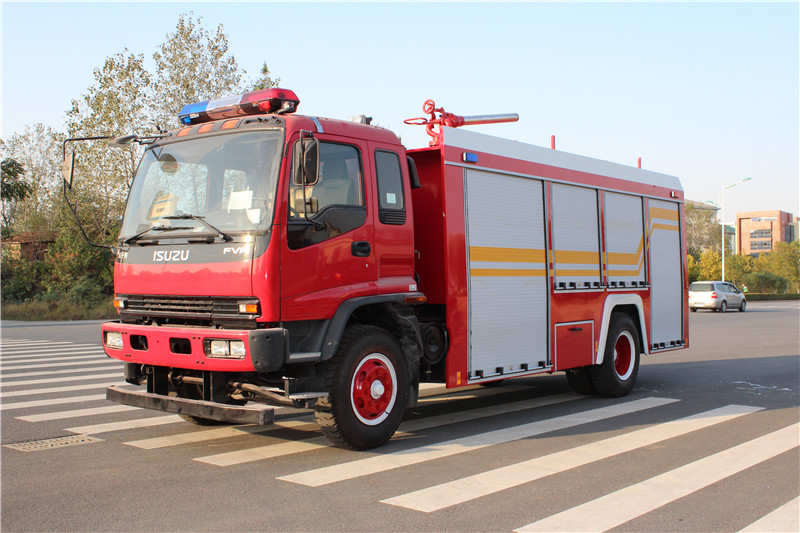

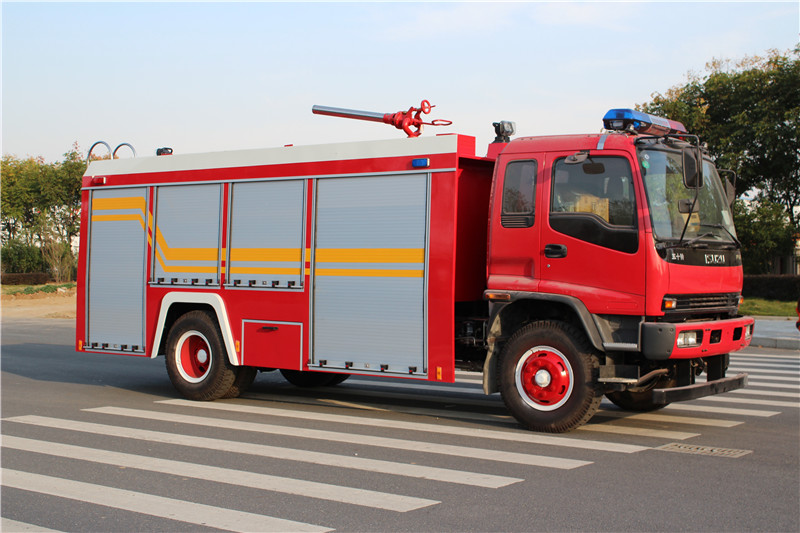

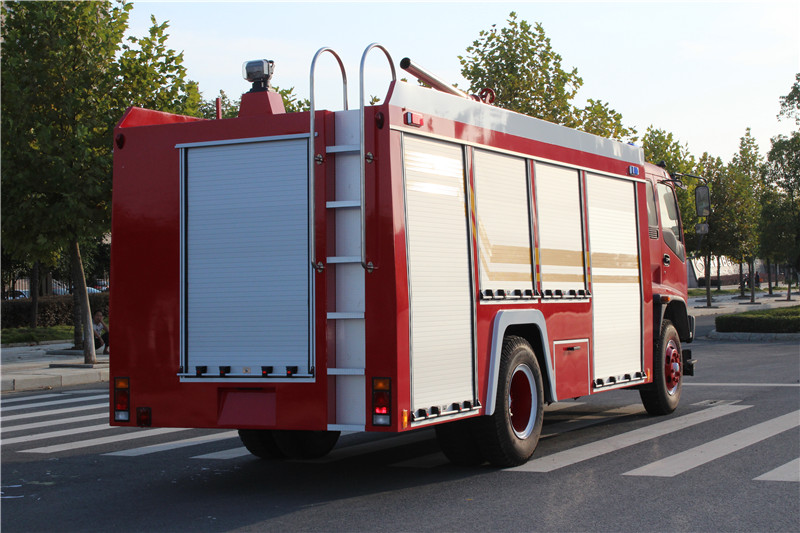

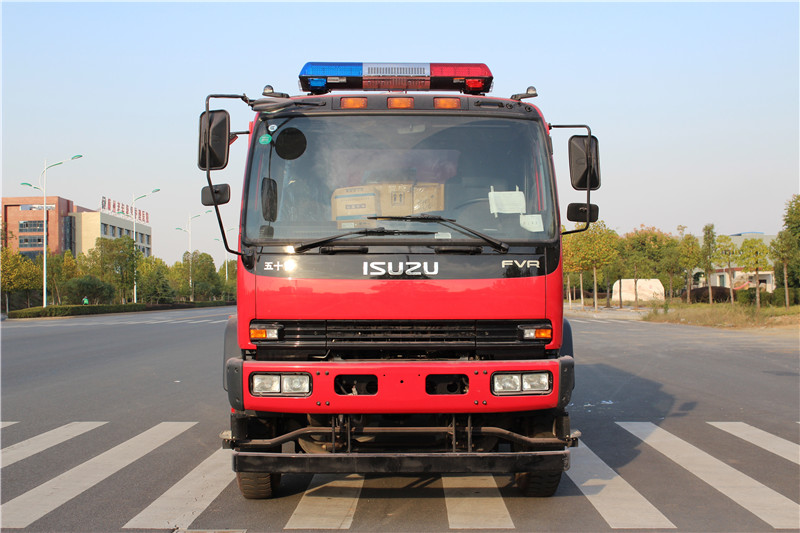

ISUZU Fire Truck

Vehicle Data

Make

ISUZU

The make of the vehicle you are offering for sale

Model

FVR

The model of the vehicle

Year of manufacture

2018

The year the vehicle was built

Dimensions L x W x H

8200*2500*3550 mm

Insert the length, width and height of the vehicle

Weight

9000 kg

What is the unladen weight of the vehicle?

Fuel type - Diesel Only

Diesel

Do not offer gasoline

Transmission

ISUZU MLD manual gearbox

The type of transmission (manual/automatic).

Number of gears

6-forward & 1-reverse

The number of gears the transmission has

Colour

Red

The colour of the vehicle, preference will be given to red but other colours will be considered

Painting and decal options

Upon requirements of customers

Provide details of custom paint or decal options

Cabin size

Double

Double/single

Crew capacity

3+3

Provide details of crew capacity

Number of seats

6

This should include driver and crew

Steering RHD/LHD

LHD

Specify the side of the vehicle that the steering wheel is fitted to.

Other details and

Specification

Provide further details relating to the pump here. Links, pictures and other data can be included in serials 28 - 32

Engine Details

Make

ISUZU

The make of the engine

Model

6HK1

The model of the engine

Type

6-cylinder in line, Turbo-charge and inter-cooler

i.e. Turbo charged intercooler, 4 cylinder

Euro rating

EURO IV

As per European emission standards

Specification

Power: 240 hp

Max Torque: 706 N.m

Engine capacity: 7800 cc

Water Tank

Water tank size

5000 liters

The water tank must be > 5000 litres, however slight

variations will be considered

Foam tank size

1000 liters

Foam tank should be > 500 litres

Pump make and model

SICHUAN/CB10/60

Provide details of the pump

Flow rate litres per minute

60 L/S at 1.0 MPa

30 L/S at 2.0 MPa

The flow rate of the pump

Storage

Water range> 60 m

Foam range> 50 m

Provide details of side and internal storage options

Other details

Provide any other pertinent details relating to the pump here. Links, pictures and other data can be included in

serials 28 - 32

2. COMPANY INTRODUCTION

SINOTRUK HUAWIN is key branch factory of SINOTRUK Group. SINOTRUK HOWO and A7 are sold well in China domestic market and overseas market. SINOTRUK HQ manufactures truck chassis and HUAWIN manufactures truck body and trailer.

3. Q & A

1) Q: How do you ensure quality of your products?

    A: 1. Main parts of truck(engine, transmission and axle) are made by SINOTRUK itself even transmission shaft.

         2. Automobile delivery test will be carried out before the vehicle leaves the factory, such as cab test, rain test, road test

2) Q: What's your price advantage?

    A: 1. As key branch factory of SINOTRUK group, we get the best chassis cost price from our HQ.

        2. We are factory and truck body is provided at cost price.

        So whether you want truck or trailer, we can provide you the factory-direct price. Of course, customization is acceptable.

3) Q: What after-sale service you can provide?

    A: With branches in over 40 countries, over 160 distributors, over 330 service centers and over 310 parts offices in overseas market, our team can solve your problems within 3 working days or 5 working days.

4) Q: What's your warranty?

    A: 1. One year/100,000km quality guarantee for three key parts engine, transmission and engine, whichever comes the first.
        2. Other spare part could be supplied by OEM at cost prices.
        3. Regularly callback to know the vehicle's working status

5) Q: What's the payment term?

    A: T/T and L/C. Usually 30% deposit and 70% balance payment before shipment , all by T/T, or 30% deposit by T/T and 70% balance payment by L/C. Welcome to negotiate.

6) Q: How long is the production time?

    A: 30-35 days for truck chassis and tractor. 45-50 days for for dump trucks, mixer trucks, cargo trucks. 55-60 days for very special truck, such as crane truck, man lift truck.

7) Q: How can I inspect my finished trucks?

    A: After truck is finished, we will send you the pictures and videos of the finished trucks. Of course, welcome you or your friend to our factory to inspect the trucks.

8) Q: What shipment can I choose?

    A: It depends to shipping lines to destination port. Here're popular shipments for your reference: RO RO, Bulk cargo vessel, Container, 40FR, Busdeck.
