Visit the Hebei Goodfix Industrial Co.,Ltd store
Internal Thread Concrete Screw
10/10 fairsManufacturer
$001–$010/ unit FOB
The supplier did not say what one unit is (piece, set, box). We confirm this when we get the quote.
MOQ 1,000 unit · T/T, L/C, D/P, PayPal, Western Union
Estimated landed cost
$1.16 / unit
range $1.11–$1.22 · total ≈ $1,163
- FOB goods (1,000)
- $55
- Ocean freight + handling (3.0 CBM)
- $1,060
- US duty (3.0%)
- $1.65
- Section 301 tariff (25.0%)
- $14
- Customs fees (MPF/HMF)
- $33
Estimate in USD to a US port using category averages (HTS 7318/8302/8301), rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
Visit the Hebei Goodfix Industrial Co.,Ltd store
Internal Thread Concrete Screw
10/10 fairsManufacturer
$001–$010/ unit FOB
The supplier did not say what one unit is (piece, set, box). We confirm this when we get the quote.
MOQ 1,000 unit · T/T, L/C, D/P, PayPal, Western Union
Estimated landed cost
$1.16 / unit
range $1.11–$1.22 · total ≈ $1,163
- FOB goods (1,000)
- $55
- Ocean freight + handling (3.0 CBM)
- $1,060
- US duty (3.0%)
- $1.65
- Section 301 tariff (25.0%)
- $14
- Customs fees (MPF/HMF)
- $33
Estimate in USD to a US port using category averages (HTS 7318/8302/8301), rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
About this product
- Materials: Q235 / 35K / 45K / 40Cr / B7 / 20MnTiB / A2 / A4 carbon steel & stainless steel
- Size: M8 / M10 / M12 / M14
- Color: Q235 / 35K / 45K / 40Cr / B7 / 20MnTiB / A2 / A4
- Certification: ISO
- Application: MachinePartsOther
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
About this product
- Materials: Q235 / 35K / 45K / 40Cr / B7 / 20MnTiB / A2 / A4 carbon steel & stainless steel
- Size: M8 / M10 / M12 / M14
- Color: Q235 / 35K / 45K / 40Cr / B7 / 20MnTiB / A2 / A4
- Certification: ISO
- Application: MachinePartsOther
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
Product details
| Materials | Q235 / 35K / 45K / 40Cr / B7 / 20MnTiB / A2 / A4 carbon steel & stainless steel |
|---|---|
| Size | M8 / M10 / M12 / M14 |
| Color | Q235 / 35K / 45K / 40Cr / B7 / 20MnTiB / A2 / A4 |
| Certification | ISO |
| Application | MachinePartsOther |
From the supplier

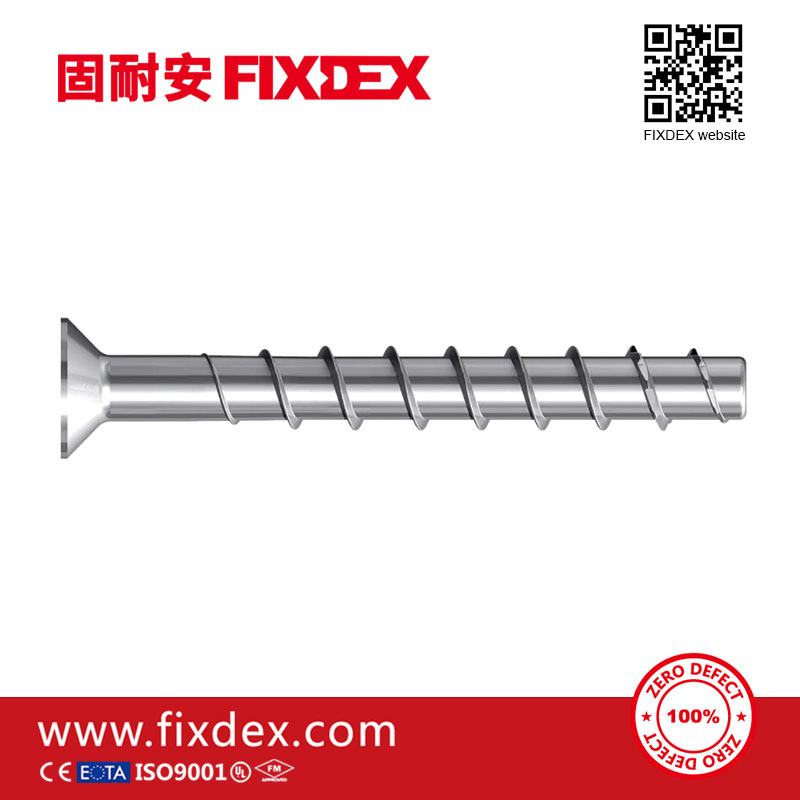

Internal Thread Concrete Screw

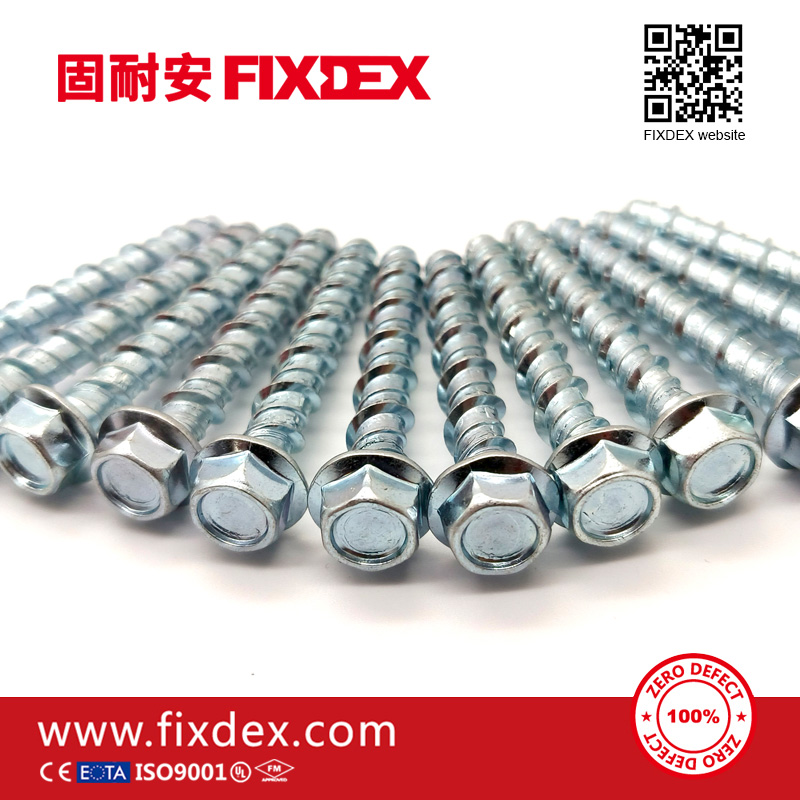

Concrete Screws Hex Flange Head Installation parameters
Product specifications
Product length
Drill Diameter do (mm)
Drill deepth h (mm)
Depth of burial hnom (mm)
Anchor Thickness thx (mm)
Anchor Aperture d (mm)
M8
70-130
8
80-140
65
5-65
12
M10
70
10
80
65
5
14
M10
90-260
10
100-270
85
5-175
14
M12
90
12
100-270
85
5
16
M12
110-150
12
120-160
100
10-50
16
M14
110
14
120
100
10
18
M14
135-160
14
170
125
10-35
18
Product specifications M8 M10 M12 M14 Depth of burial hnom (mm ) 65 65 85 85 100 100 125 Min substrate thickness hmin (mm) 120 120 160 130 160 160 210 Tinst max (Nm) ≤20 ≤40 ≤60 ≤80 Non-cracking concrete Tension(KN) 14.88 11.86 19.17 14.28 19.96 19.17 29.82 Shearing Force(KN) 8.93 13.95 21.97 31.08 Min margin Cmin (mm) 65 80 100 115 Min spacing Smin (mm) 50 60 75 85 0.3 mm cracked concrete Tension(KN) 8.81 8.33 13.48 10.04 14.03 13.48 20.96 Shearing Force(KN) 8.93 13.95 21.97 31.08 Min margin Cmin (mm) 65 80 100 115 Min spacing Smin (mm) 50 60 75 85
About the supplier
Hebei Goodfix Industrial Co.,Ltd
Main products: Bolts,Thread bars,Standard parts,Nut,Washer,Drilling Screw,Prestressing anchorage,Rivet,Expansion screw,Thimble,Connecting Clamp Bolt,Other Fasteners
- ✓Exhibited at 10 of the last 10 Canton Fairs
- ✓Manufacturer
- ✓Founded 2013
- ✓Canton Fair Premium Supplier
- ✓Brand exhibitor
- ✓National high-tech enterprise
- ✓1 certificate on file
95
trust
- Exhibited at 10 of the last 10 Canton Fairs
- Manufacturer
- Founded 2013
- Canton Fair Premium Supplier
Canton Fair booth: 9.1E33-34，9.1F13-14 · Hardware (140th session)
