About this product
- Materials: ABS+PCB
- Size: 180mm×75mm×30mm
- Color: gray+yellow+black
- Exports to: Southeast Asia, South Asia, Russia, EU, Other European Countries, Japan and South Korea, Others
- Made in: Jiangsu, China
About this product
- Materials: ABS+PCB
- Size: 180mm×75mm×30mm
- Color: gray+yellow+black
- Exports to: Southeast Asia, South Asia, Russia, EU, Other European Countries, Japan and South Korea, Others
- Made in: Jiangsu, China
Product details
| Materials | ABS+PCB |
|---|---|
| Size | 180mm×75mm×30mm |
| Color | gray+yellow+black |
Product details
| Materials | ABS+PCB |
|---|---|
| Size | 180mm×75mm×30mm |
| Color | gray+yellow+black |
From the supplier

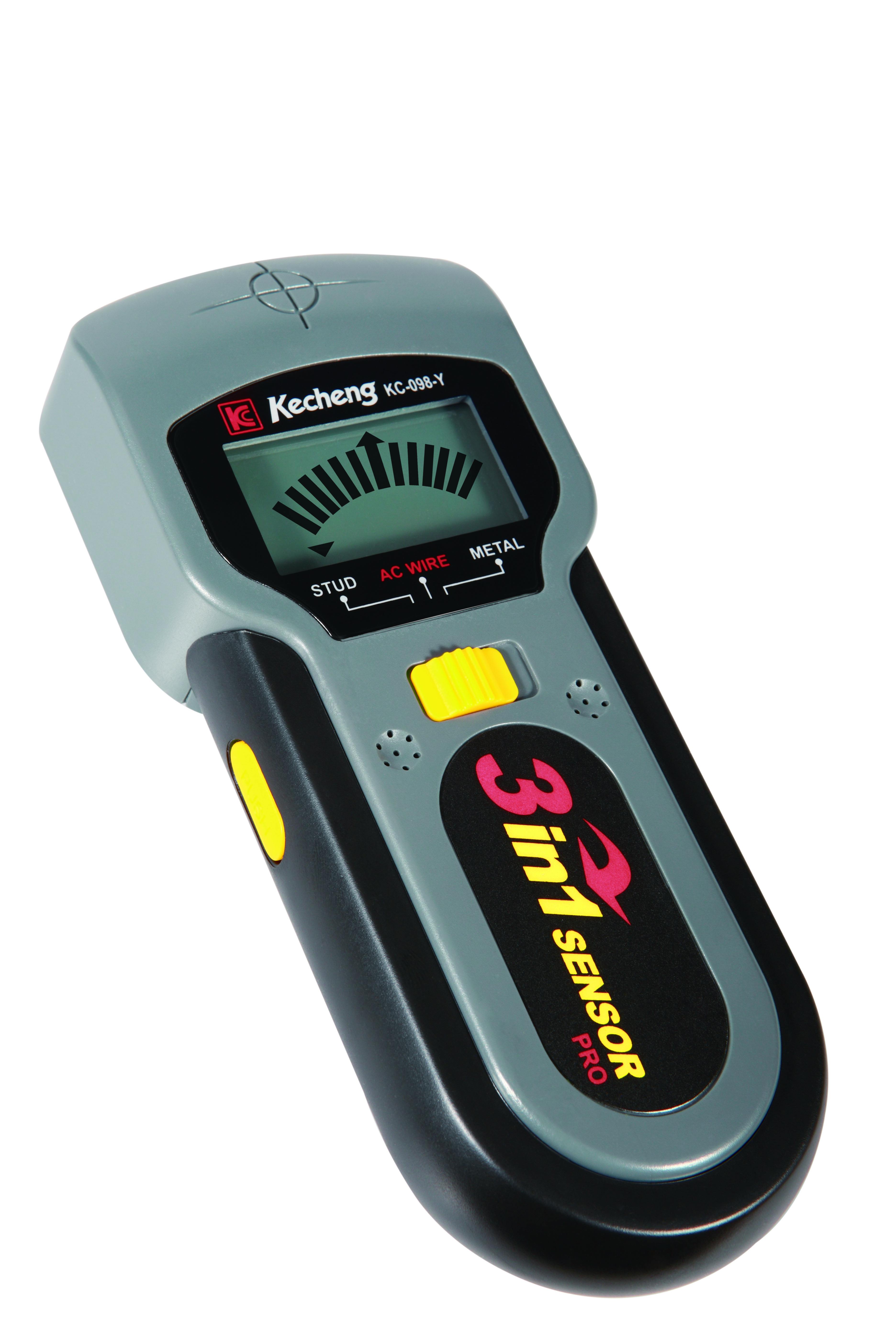

KC-098-Y Intelligent Stud Scanner can detect joists, AC live wires or metals behind walls through electronic signals. It mainly applies for wires and pipelines distribution on upholstery, installation of electrical equipments (air conditioner and oil smoke extractor) and detection for frame of wood furniture, etc.
KC-098-Y Intelligent Stud Scanner can be automatically calibrated with sensitive induction after starting up. Select mode for joists, AC live wires or metal detection through the function selection switcher. Once the edges of joists, AC live wires or metals are detected, the scanner will send out sound indication and you can easily mark the central position of the target on the measured surface through the marker slot on top of the tool with pencil.
KC-098-Y Intelligent Stud Scanner has the function of alarm for AC live wires, when it detects the AC live wires out, the live wires caution symbol at the left top of the tool will illumine, meanwhile this will not affect detection for joists or metals, disregard that the function switcher is set in the mode of joists or metals.
Name
Intelligent Stud Scanner
Type
KC-098-Y
Object of detection
Joists, AC live wires and Metals
Detection capability
Joists
Thickness of wall is 19mm(3/4 inches).
AC live wires
50mm(2 inches) deep away from the wall
Metals
38mm(1 1/2 inches )deep away from the wall
Power supply
A 9 volt block battery
Operation current
Operation temperature
+5℃～+40℃
Operation humidity
30%～70%
Storage environment
-20℃～+60℃,≤85%（battery not included）
Dimensions
180mm×75mm×30mm
Weight
About 170g（battery not included）
From the supplier
KC-098-Y Intelligent Stud Scanner can detect joists, AC live wires or metals behind walls through electronic signals. It mainly applies for wires and pipelines distribution on upholstery, installation of electrical equipments (air conditioner and oil smoke extractor) and detection for frame of wood furniture, etc.
KC-098-Y Intelligent Stud Scanner can be automatically calibrated with sensitive induction after starting up. Select mode for joists, AC live wires or metal detection through the function selection switcher. Once the edges of joists, AC live wires or metals are detected, the scanner will send out sound indication and you can easily mark the central position of the target on the measured surface through the marker slot on top of the tool with pencil.
KC-098-Y Intelligent Stud Scanner has the function of alarm for AC live wires, when it detects the AC live wires out, the live wires caution symbol at the left top of the tool will illumine, meanwhile this will not affect detection for joists or metals, disregard that the function switcher is set in the mode of joists or metals.
Name
Intelligent Stud Scanner
Type
KC-098-Y
Object of detection
Joists, AC live wires and Metals
Detection capability
Joists
Thickness of wall is 19mm(3/4 inches).
AC live wires
50mm(2 inches) deep away from the wall
Metals
38mm(1 1/2 inches )deep away from the wall
Power supply
A 9 volt block battery
Operation current
Operation temperature
+5℃～+40℃
Operation humidity
30%～70%
Storage environment
-20℃～+60℃,≤85%（battery not included）
Dimensions
180mm×75mm×30mm
Weight
About 170g（battery not included）
