About this product
- Materials: Steel, Brass, Stainless steel
- Color: WHITE
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
About this product
- Materials: Steel, Brass, Stainless steel
- Color: WHITE
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
Product details
| Materials | Steel, Brass, Stainless steel |
|---|---|
| Color | WHITE |
Product details
| Materials | Steel, Brass, Stainless steel |
|---|---|
| Color | WHITE |
From the supplier
Application: This apparatus is used to test resisting shear strength of soil specimen. It usually adopts four specimens under the different vertical pressure exerted on the specimens to obtain shear stress when the specimen is destroyed.
Specification:
1. Area of soil sample: 30 cm2
2. Lever ratio:1:12
3. Vertical Loading: 50,100,200,300,400 (KPa)
4. Max. horizontal loading: 1.2 kN
5. Shear rate: 0.01～25 mm/min
6. 4 specimens in the same test
7. Working voltage: AC220V±10%
8. Measurement: 1160x900x1160mm (main frame),
500x500x1020mm (controller), weight: 240kg

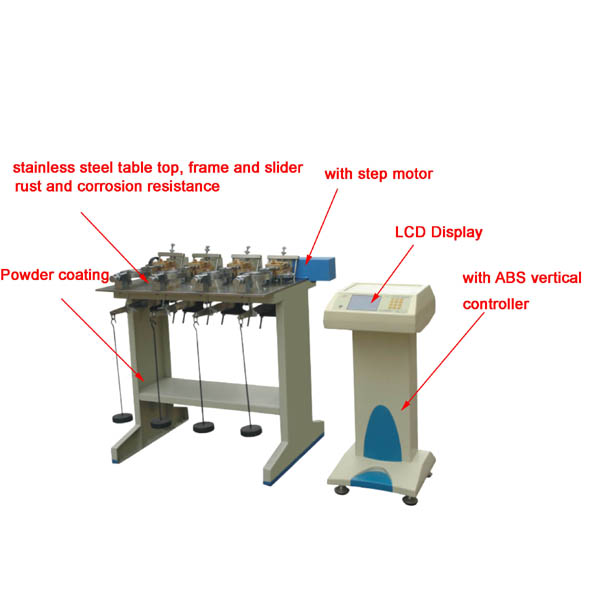

Features: Stainless steel working table, stepping motor as pushing mechanism, high precision, low noise, MCU control, variable speed displayed by the controller, easy to operate, ABS vertical type controller, LCD display.
From the supplier
Application: This apparatus is used to test resisting shear strength of soil specimen. It usually adopts four specimens under the different vertical pressure exerted on the specimens to obtain shear stress when the specimen is destroyed.
Specification:
1. Area of soil sample: 30 cm2
2. Lever ratio:1:12
3. Vertical Loading: 50,100,200,300,400 (KPa)
4. Max. horizontal loading: 1.2 kN
5. Shear rate: 0.01～25 mm/min
6. 4 specimens in the same test
7. Working voltage: AC220V±10%
8. Measurement: 1160x900x1160mm (main frame),
500x500x1020mm (controller), weight: 240kg
Features: Stainless steel working table, stepping motor as pushing mechanism, high precision, low noise, MCU control, variable speed displayed by the controller, easy to operate, ABS vertical type controller, LCD display.
