About this product
- Size: 1/4+3/8,1/4+1/2,1/4+5/8,3/8+5/8...
- Color: white/ black
- Application: HomeCommercialIndustrial
- Certification: RoHS
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
About this product
- Size: 1/4+3/8,1/4+1/2,1/4+5/8,3/8+5/8...
- Color: white/ black
- Application: HomeCommercialIndustrial
- Certification: RoHS
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
Product details
| Size | 1/4+3/8,1/4+1/2,1/4+5/8,3/8+5/8... |
|---|---|
| Color | white/ black |
| Application | HomeCommercialIndustrial |
| Certification | RoHS |
From the supplier

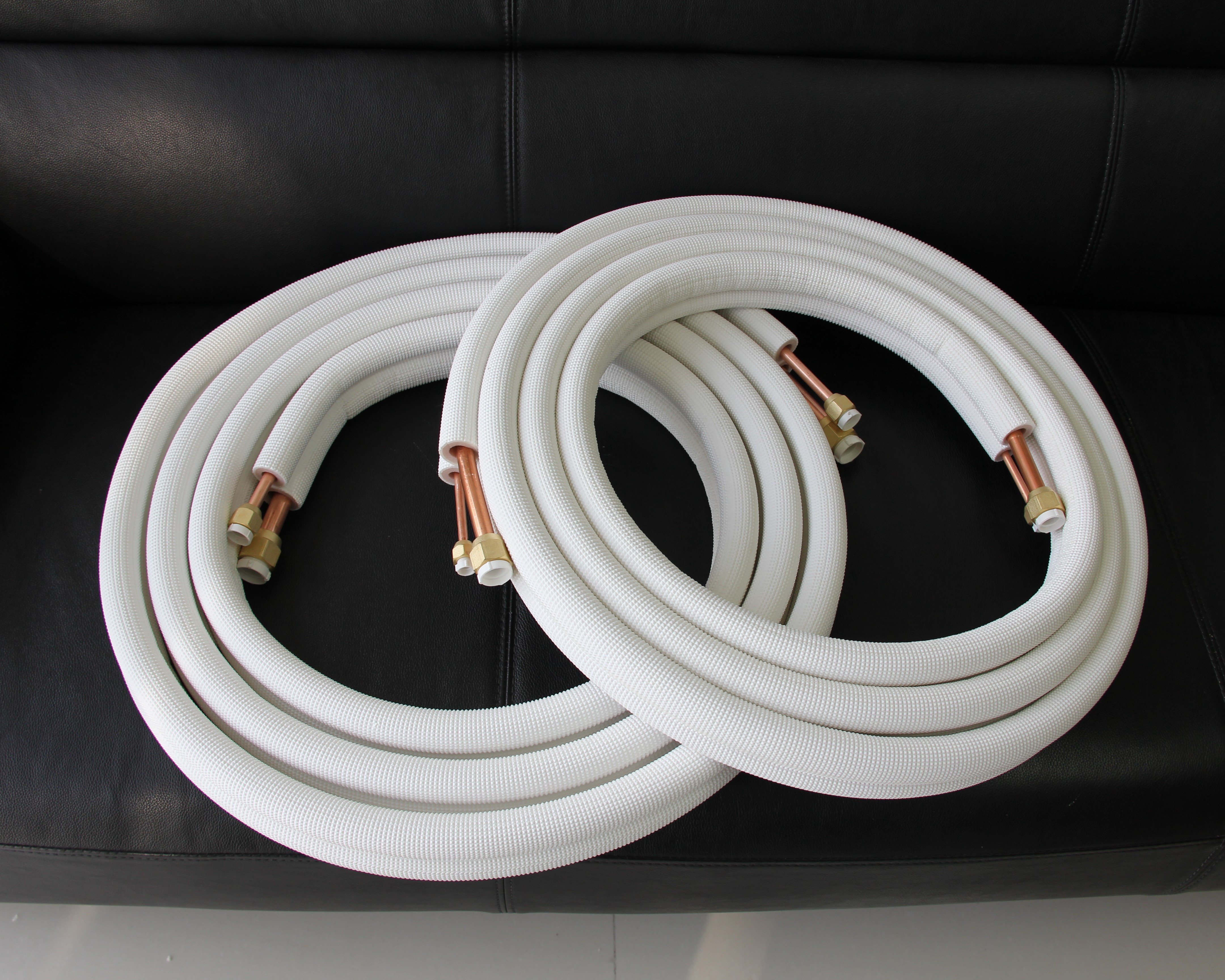

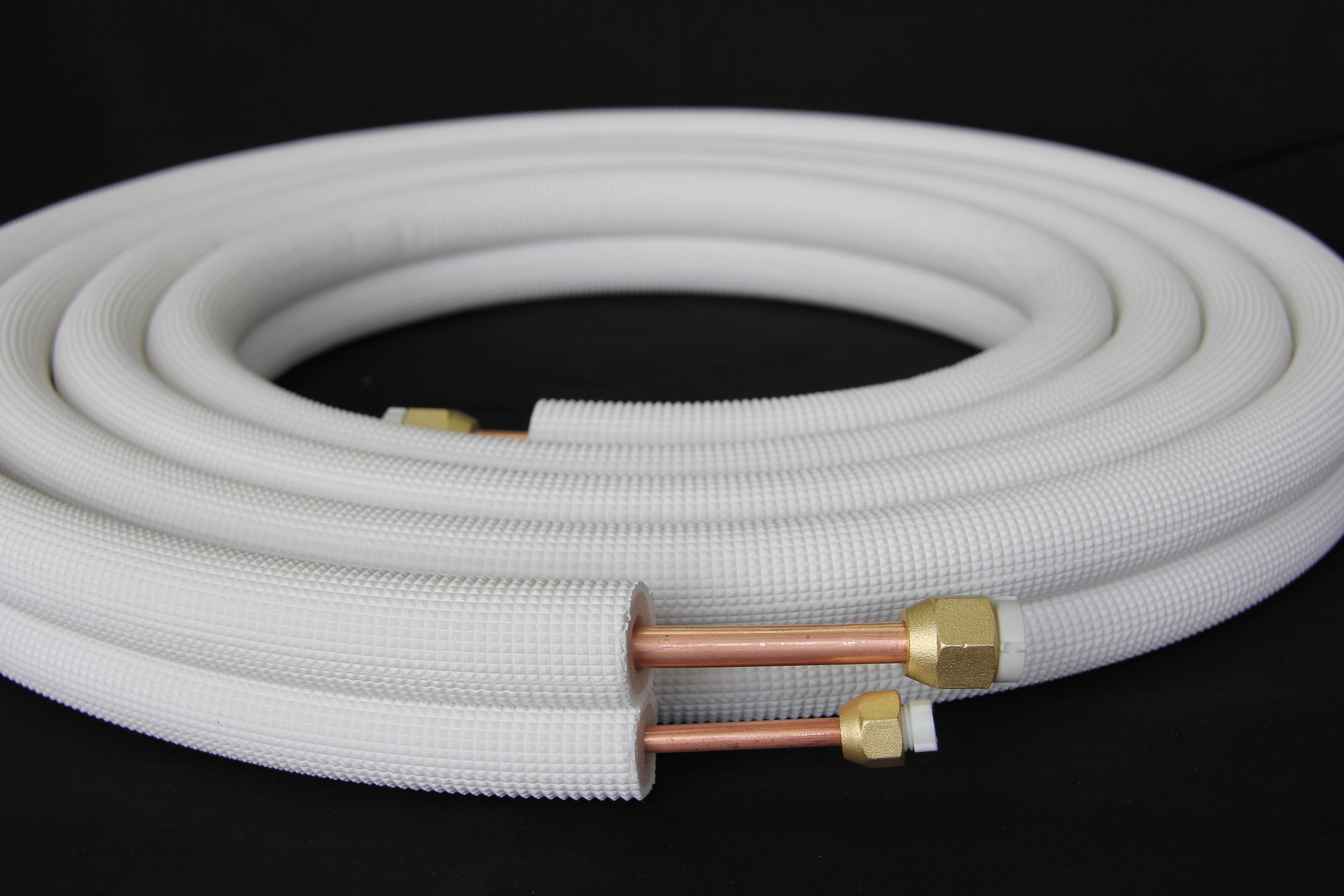

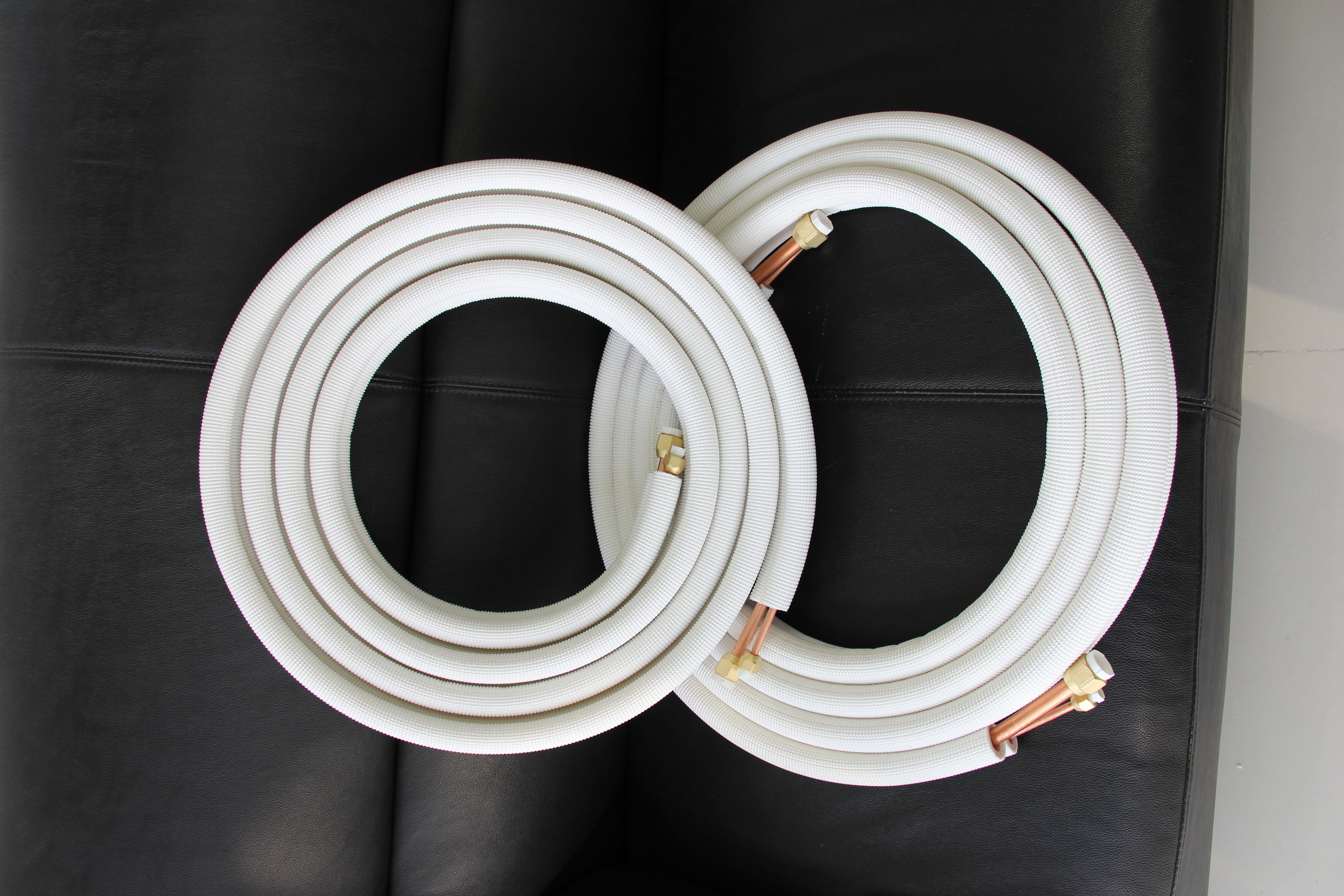

(1), Insulated copper tube
Air-conditioner copper connecting tubing used for connecting the indoor and outdoor of air conditioners, it is made of higher quality copper tube, Insulation tube and brass nuts, the length and wall thickness can follow client’s specifications.
Serial No.
Model / Specification
Type of
Air conditioners
Copper Pipe Specification
Copper tube size
Insulation Pipe Specification
Size of
Insulation tube
3M Length
Lenghth 3M
4M Length
Lenghth 4M
5M Length
Lenghth 5M
Length 1m–30m
Lenghth 1-30M
1
1 HP
Ф6.35＋Ф9.52
Ф9＋Ф12
1HP×3M
1HP×4M
1HP×5M
1HP×1M～30M
2
1.5 HP
Ф6.35＋Ф12.7
Ф9＋Ф15
1.5HP×3M
1.5HP×5M
1.5HP×5M
1.5HP×1M～30M
3
3 HP
Ф9.52＋Ф15.88
Ф12＋Ф19
3HP×3M
3HP×4M
3HP×5M
3HP×1M～30M
4
4 HP
Ф9.52＋Ф19.05
Ф12＋Ф22
4HP×3M
4HP×4M
4HP×5M
4HP×1M～30M
5
5 HP
Ф12.7＋Ф19.05
Ф15＋Ф22
5HP×3M
5HP×4M
5HP×5M
5HP×1M～30M
(2), Copper aluminum tube
With years of research and development, we use the new welding technology to produce copper-aluminum connecting pipe with reliable quality, economical cost, and offer all sizes and length of the Cu-Al connecting pipes. The products are suitable for air conditioning and refrigeration equipment pipe system.
Technical Specifications for Insulated Copper Aluminum Connecting Pipe
Size
Cu Pipe Size (mm)
Al Pipe Size (mm)
Insulation Size (mm)
Length (m)
Out Diameter
Thickness
Length
Out Diameter
Thickness
Out Diameter
Thickness
1/4”
Ф6.35
0.7
80-150
Ф6.35
1.0
Ф8
8-20
3-15
3/8”
Ф9.52
0.7
80-150
Ф9.52
1.0
Ф12
8-20
3-15
1/2”
Ф12.7
0.8
80-150
Ф12.7
1.2
Ф15
8-20
3-15
5/8”
Ф15.88
1.0
80-150
Ф15.88
1.3
Ф18
8-20
3-15
3/4”
Ф19.05
1.0
80-150
Ф19.05
1.5
Ф22
8-20
3-15
Insulation: PE Foam or Rubber
Normal length: 3 / 4 / 5 / 7 / 10 / 15 Meters
Option: Wrap, Adhesive Tape, Wall Bushing, Tube Clamp, Screws, Putty, Drainage Tube
