About this product
- Materials: ABS+PCB
- Size: 152mm×118mm×32mm
- Color: 425C+109C+Black
- Exports to: South Asia, Central Asia, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Others
About this product
- Materials: ABS+PCB
- Size: 152mm×118mm×32mm
- Color: 425C+109C+Black
- Exports to: South Asia, Central Asia, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Others
Product details
| Materials | ABS+PCB |
|---|---|
| Size | 152mm×118mm×32mm |
| Color | 425C+109C+Black |
Product details
| Materials | ABS+PCB |
|---|---|
| Size | 152mm×118mm×32mm |
| Color | 425C+109C+Black |
From the supplier
Infrared Thermometer
Overview

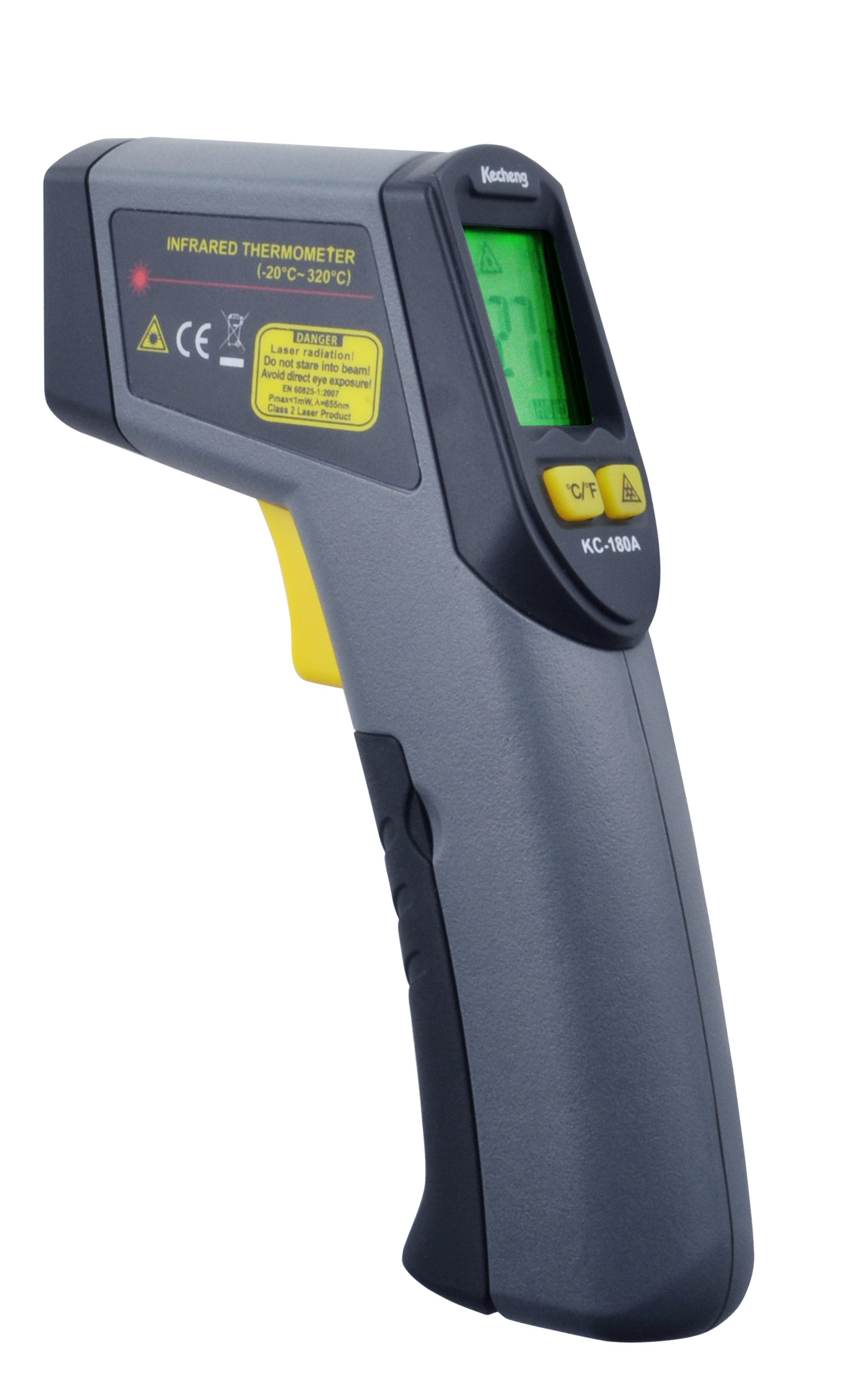

KC-180A Infrared thermometer is a non-contact temperature measuring instrument using infrared technology and laser pointer.The instrument features a low consumption design. It has a LCD with backlight, a laser pointer for accurate aiming and capable of auto holding the readings. It has the advantages of rapid measuring, easy operation and portability.You could use this product to measure the surface temperature, which is not suitable for traditional measuring ( such as moving objects, charged objects, toxic objects or hard-to-reach objects).
KC-180A Infrared thermometer is Class II laser product and in compliance with EN60825-1.
Technical Specifications
Name
Infrared Thermometer
Model
KC-180A
Measuring range
-20℃～320℃(-4℉～608℉)
Response wavelength
5～14μm
Measuring precision
±2℃(±3.6℉) or ±2% of reading（when T>0℃）
±3℃(±5.4℉) or ±2% of reading, whichever is greater（when T ≤0℃）
Repetition
1% of reading or 1℃
Response time
500mSec，95% response
Optical ratio（D：S）
8：1
Emissivity
0.95
Display resolution
±0.1℃
Laser wavelength
630～660nm
Power of laser
Laser class
Class II
Backlight shut off
No action in 7s
Auto turn off for tool
No action in 7s
Power supply
One 9V battery (6F22/6LR61)
Continuous working time
>16 hours
Max. power
Operating temperature
0℃～40℃(32℉～104℉)
Operating humidity
RH 0～75% non-condensing
Storage temperature
-20℃～60℃，≤85%（w/o battery）
Product dimension
152mm x 118mm x 32mm
Product weight
About 125g (without battery)
From the supplier
Infrared Thermometer
Overview
KC-180A Infrared thermometer is a non-contact temperature measuring instrument using infrared technology and laser pointer.The instrument features a low consumption design. It has a LCD with backlight, a laser pointer for accurate aiming and capable of auto holding the readings. It has the advantages of rapid measuring, easy operation and portability.You could use this product to measure the surface temperature, which is not suitable for traditional measuring ( such as moving objects, charged objects, toxic objects or hard-to-reach objects).
KC-180A Infrared thermometer is Class II laser product and in compliance with EN60825-1.
Technical Specifications
Name
Infrared Thermometer
Model
KC-180A
Measuring range
-20℃～320℃(-4℉～608℉)
Response wavelength
5～14μm
Measuring precision
±2℃(±3.6℉) or ±2% of reading（when T>0℃）
±3℃(±5.4℉) or ±2% of reading, whichever is greater（when T ≤0℃）
Repetition
1% of reading or 1℃
Response time
500mSec，95% response
Optical ratio（D：S）
8：1
Emissivity
0.95
Display resolution
±0.1℃
Laser wavelength
630～660nm
Power of laser
Laser class
Class II
Backlight shut off
No action in 7s
Auto turn off for tool
No action in 7s
Power supply
One 9V battery (6F22/6LR61)
Continuous working time
>16 hours
Max. power
Operating temperature
0℃～40℃(32℉～104℉)
Operating humidity
RH 0～75% non-condensing
Storage temperature
-20℃～60℃，≤85%（w/o battery）
Product dimension
152mm x 118mm x 32mm
Product weight
About 125g (without battery)
