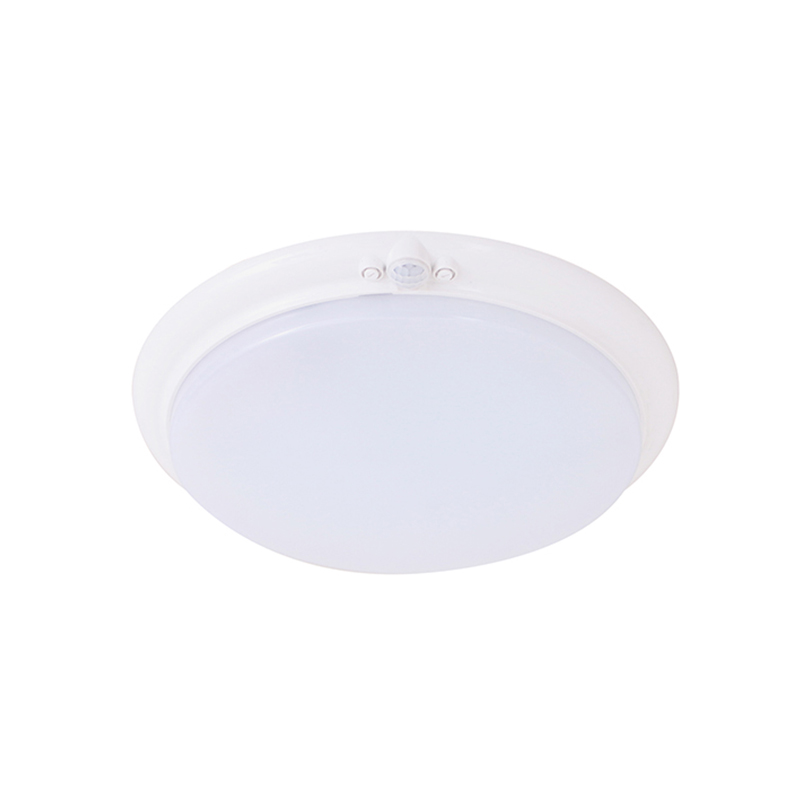

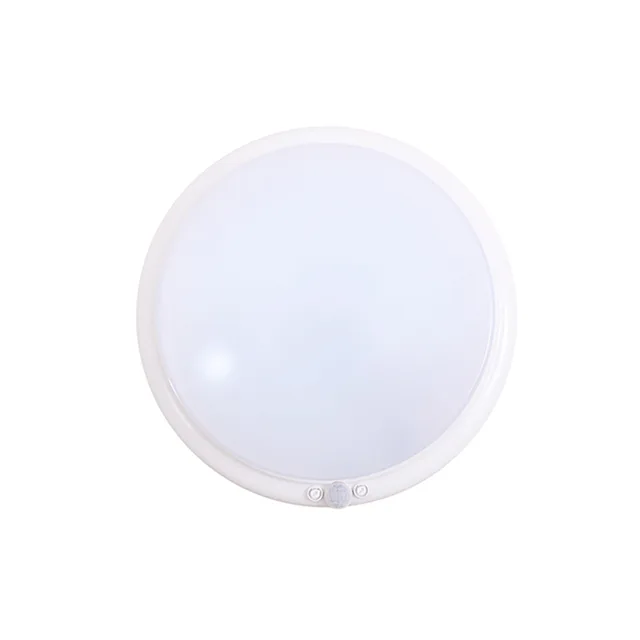

As a modern illuminant, LED has become a development trend in the lighting industry due to the characteristics of high efficiency, long life expectancy and relatively low energy consumption. How to use it reasonably and efficiency is the key issue in the lighting industry. LX-PR-260LED is an infrared sensor switches controlled LED lights,the infrared sensor was built into the light ,it has 86pcs high brightness LEDs inside ,with total power of 12 watts. The reasonable LED layout makes a homogeneous heat flow and achieves the most optimized luminous efficiency.The luminance is higher than 60W incandescent lamp when it works, and the life time is much longer than the common halogen lamp.When one enters the detection filed and trigger the sensor to work ,the light turns on; when one leaves the detection filed and the setting time reaches, the light will turn off.It can detect the ambient light illumination automatically and set and adjust the value according to the fact need. Such as, the light will turn on and works when the ambient light illumination is under setting value. once it exceeds the setting value, the light will stop working.The light will be on until the time-delay comes when the sensor is triggered. Once detected the constant signal, the time will be overlaid and the light will be on constantly.It can be installed in indoor, corridor and public-building. It’s a very ideal substitute as an energy-saving illuminant.

Specifications

Power source: 220-240VAC                                                                               Power frequency: 50Hz

Rated load: 12W Max.                                                                                       Time setting: min: 12±3sec max: 5±1min(adjustable)

Light-control: 10-2000LUX(adjustable)                                                              Luminous flux: 1100lm

Material: Boden:PC Lampshade:PC                                                                    Standby power:

LED Quanlity: 86PCS （T2835 ）                                                                         Detection motion speed: 0.6~1.5m/s

Working temperature: –10°C ~ +40°C                                                               Working humidity:

Installation height: 1.5-3m (Ceiling installation) 2.5-3.5m (Wall installation)

Detection range(22°C): 7m Max(Wall installation) 5-9m Max (dia.)(Ceiling installation)
