ICF series INDUSTRIAL CEILING FAN SELLING POINT

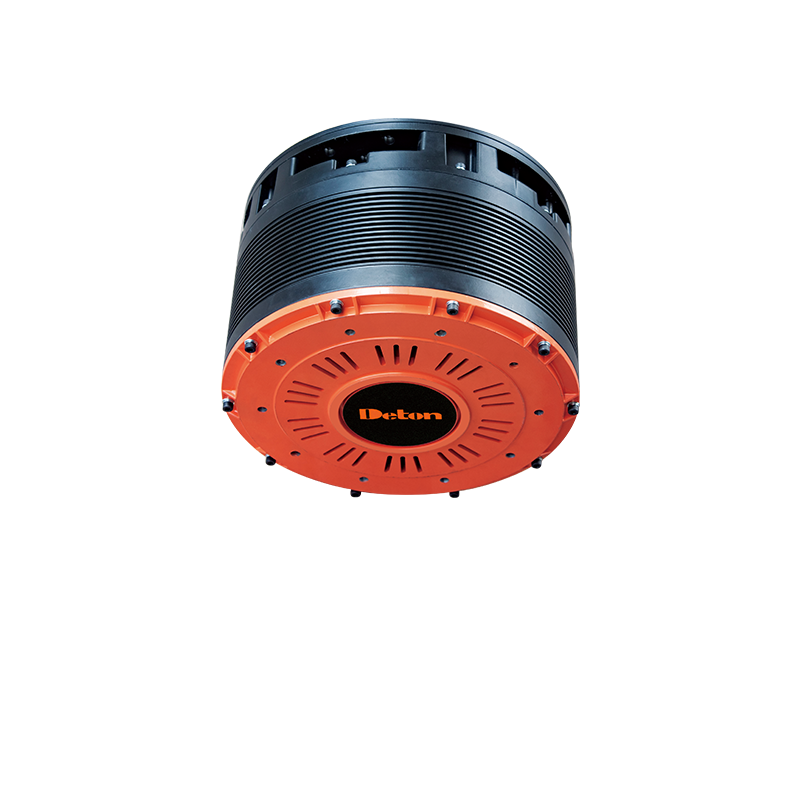

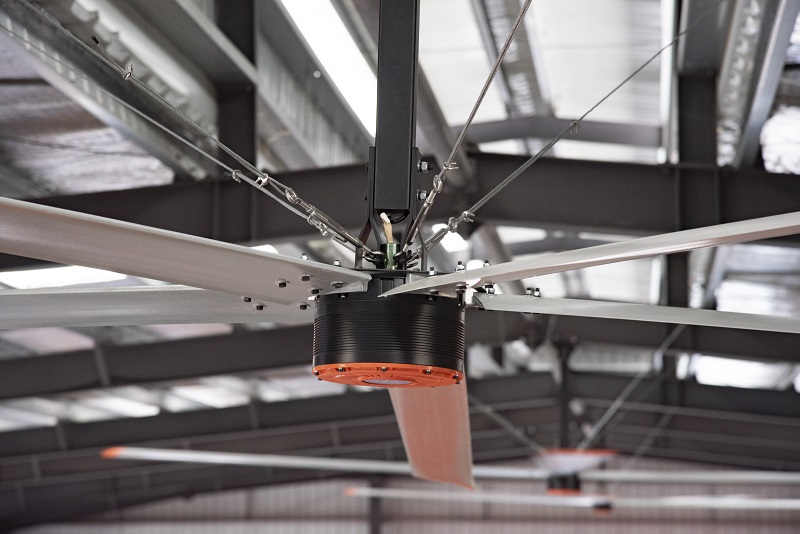

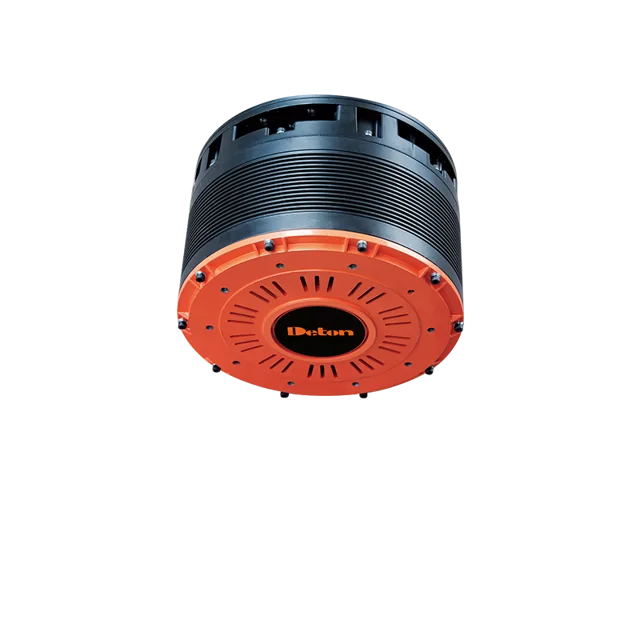

• l Permanent magnet DC external rotor motor.

High efficiency and energy saving, small volume and light weight.

Labyrinth type dust-proof structure to prevent dust from entering motor core part.

Motor core heat dissipation system, low temperature rise, long service life.

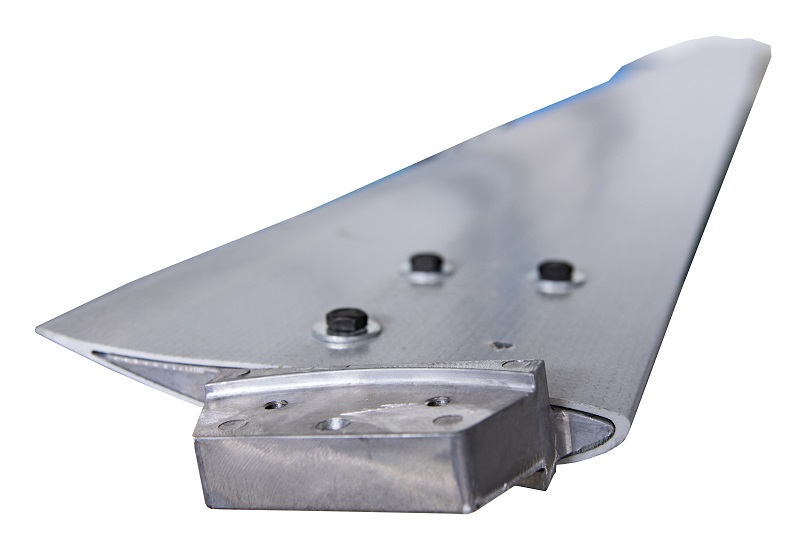

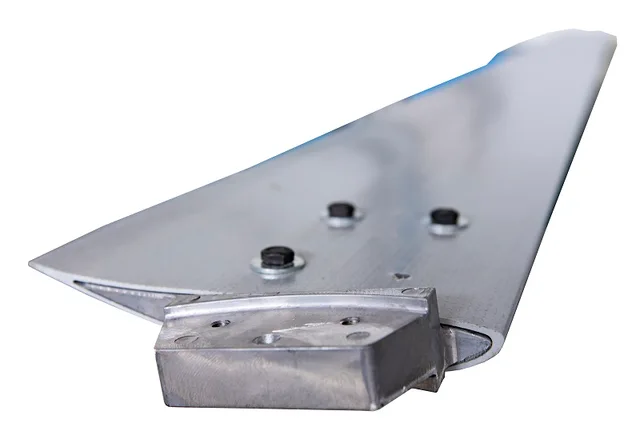

• l Blade material.

Aviation polymer composite material (helicopter wing material) with high strength, light weight, impact resistance,anti-aging and long service life.

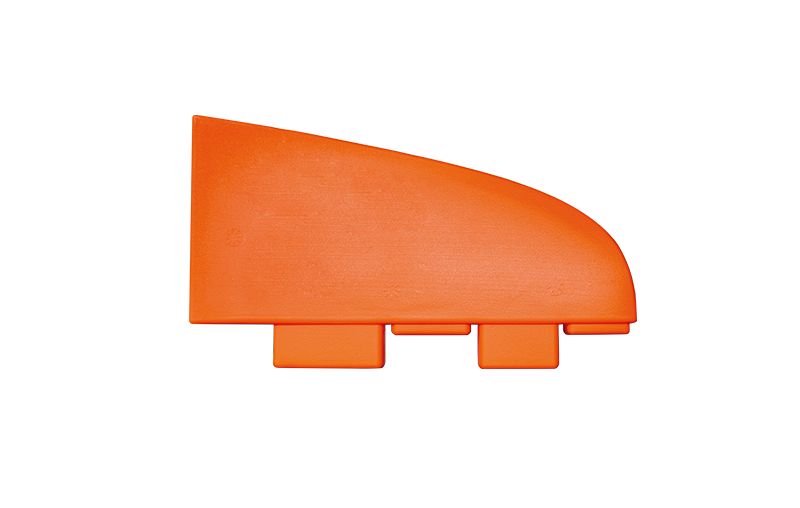

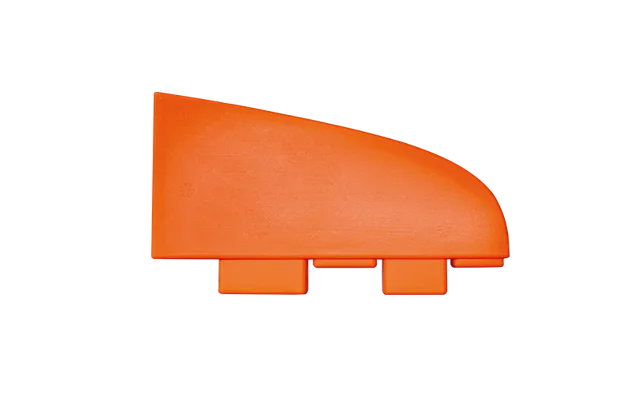

Designed with wing tip guide plate to reduce vortex and effectively reduce noise.



• l Product performance

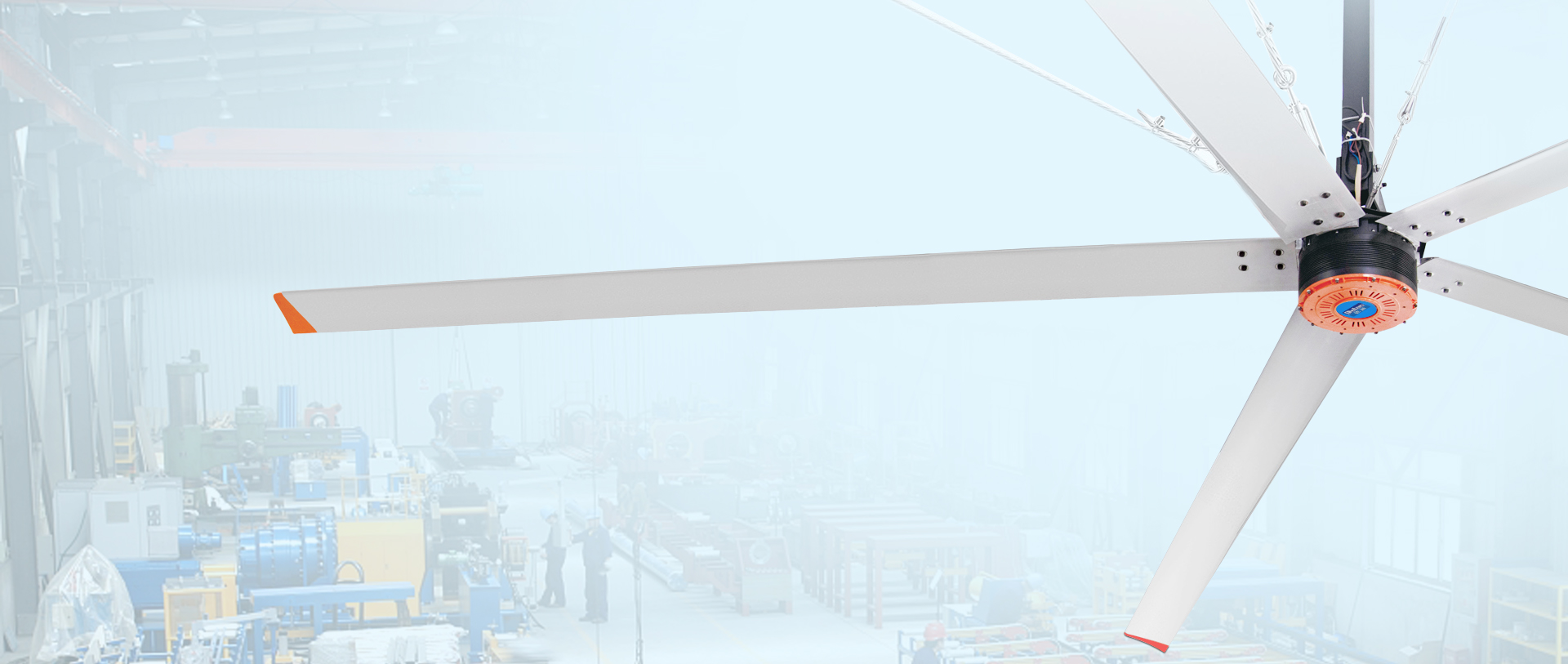

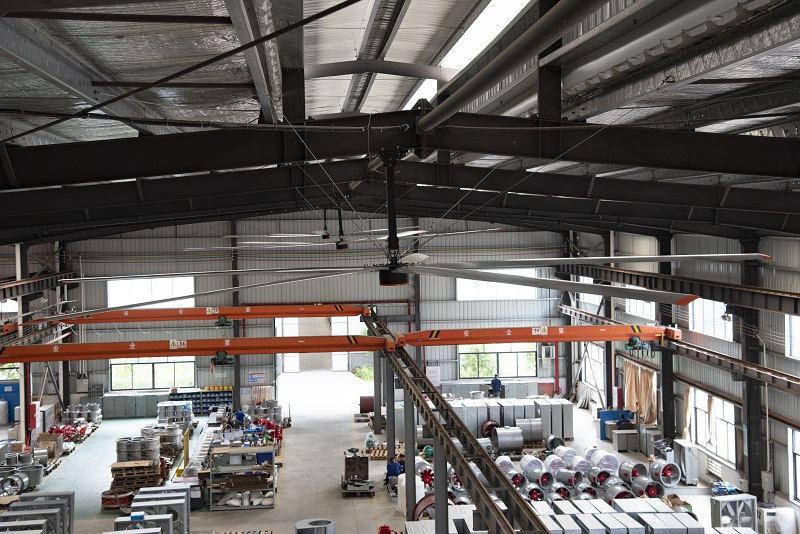

 Omnidirectional natural wind covers super large area.

Soft, comfortable and cool wind makes people feel temperature drop scale from 4℃ ~ to 8 ℃.

Suit matching in central air-conditioner, energy-efficient.

High efficiency and energy saving are achieved.



Model Number

Current

A

Power

W

Air Volume

m3/min

Noise

dB

Speed

r/min

Air Covering Area

m2

ICF-73

5A

1250

18000

39

60

800

ICF-65

 4.2A

 1150

16000

39

67

620

ICF-55

2.9A

 850

12000

39

80

450

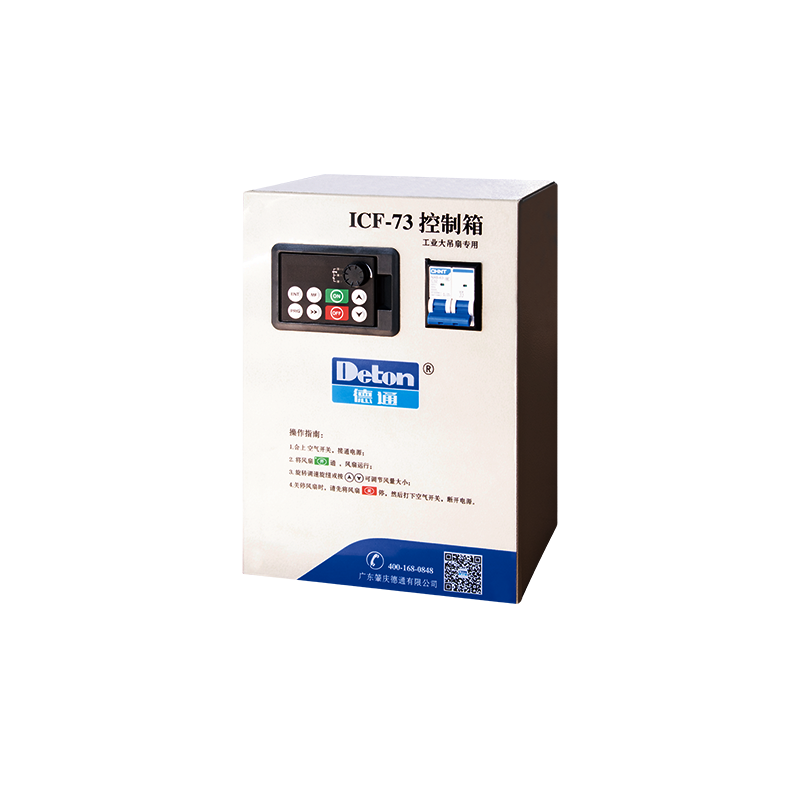

• l Customized special frequency converter

Developed in cooperation with professional manufacturer of frequency converter, with over-current protection, over-voltage / under-voltage protection, overload protection, and effective matching with fans. Start, accelerate, decelerate, stop softly without impact, it can effectively reduce vibration and noise.

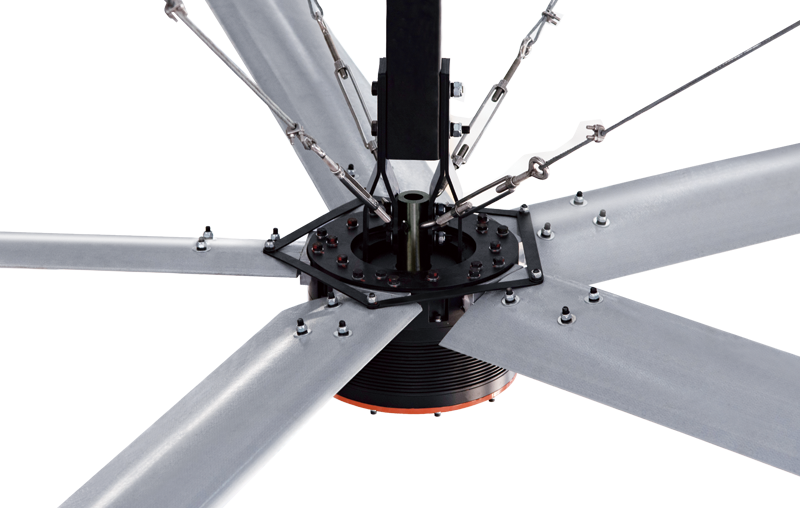

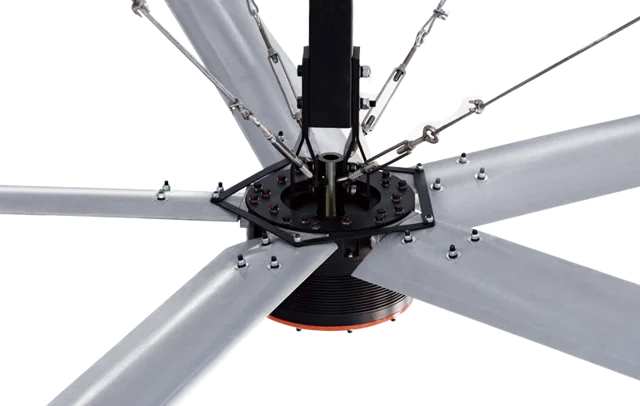

• l Twelve major safety protection designs.

1. Steel beam locking safety structure protection.2. Hanger safety steel cable protection.3. Motor shaft safety bracket protection.4. Anti-drop safety structure protection in the motor end cover .5. Step lock safety design inside the motor.6. Permanent magnet self-locking safety protection.7. The blade is made of non-metal polymer composite material, which is impact resistant and not easy to break.8. Reinforced blade mounting bracket.9. Blade safety link mechanism protection.10. Control system overload protection.11. Grade 12.9 high strength fasteners.12. Anti-loosening washer and thread anti-loosening glue achieve at double protection.
