Place of OriginCN;HEBModel Numberhydraulic hose businessBrand NameHiteckW.P.69 MPaB.P.276 MPaCoverBlack, oil-resistant synthetic(Nitrile).ReinforcementFour or six alternating layers of spiraled, high-tensile steel wire.TubeBlack, oil-resident synthetic rubber (Nitrile).ApplicationExtremely high pressure, high imPUlse hydraulic applications.Size3/8Temperature-40℉ to +250℉ (-40℃ to +121℃)SampleAvailableFeatureoil, abrasion and weather resistant

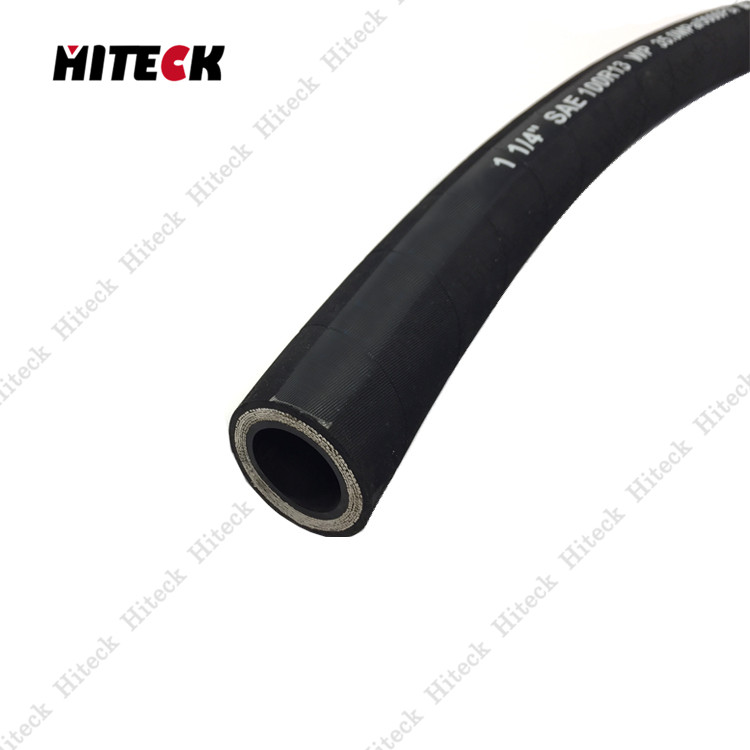

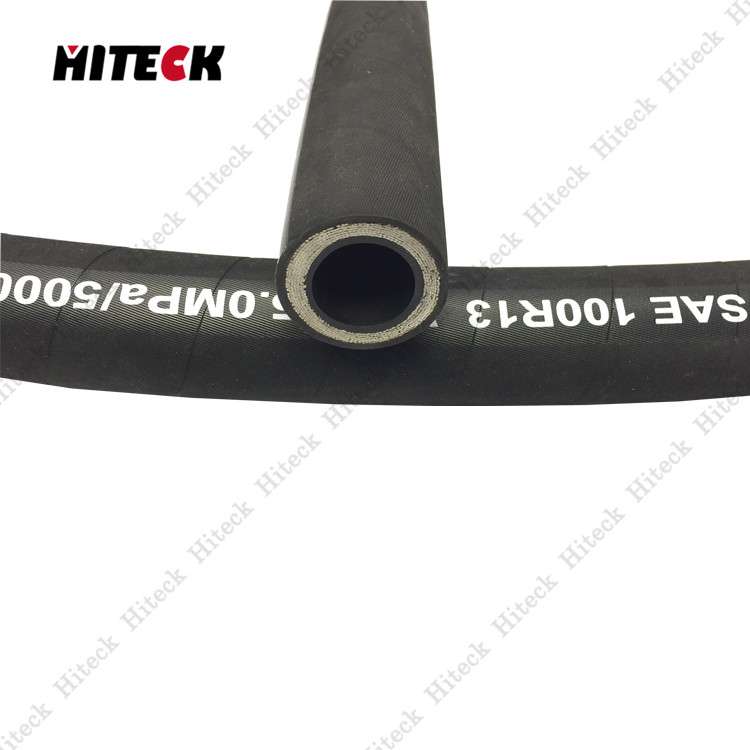

SAE100R13

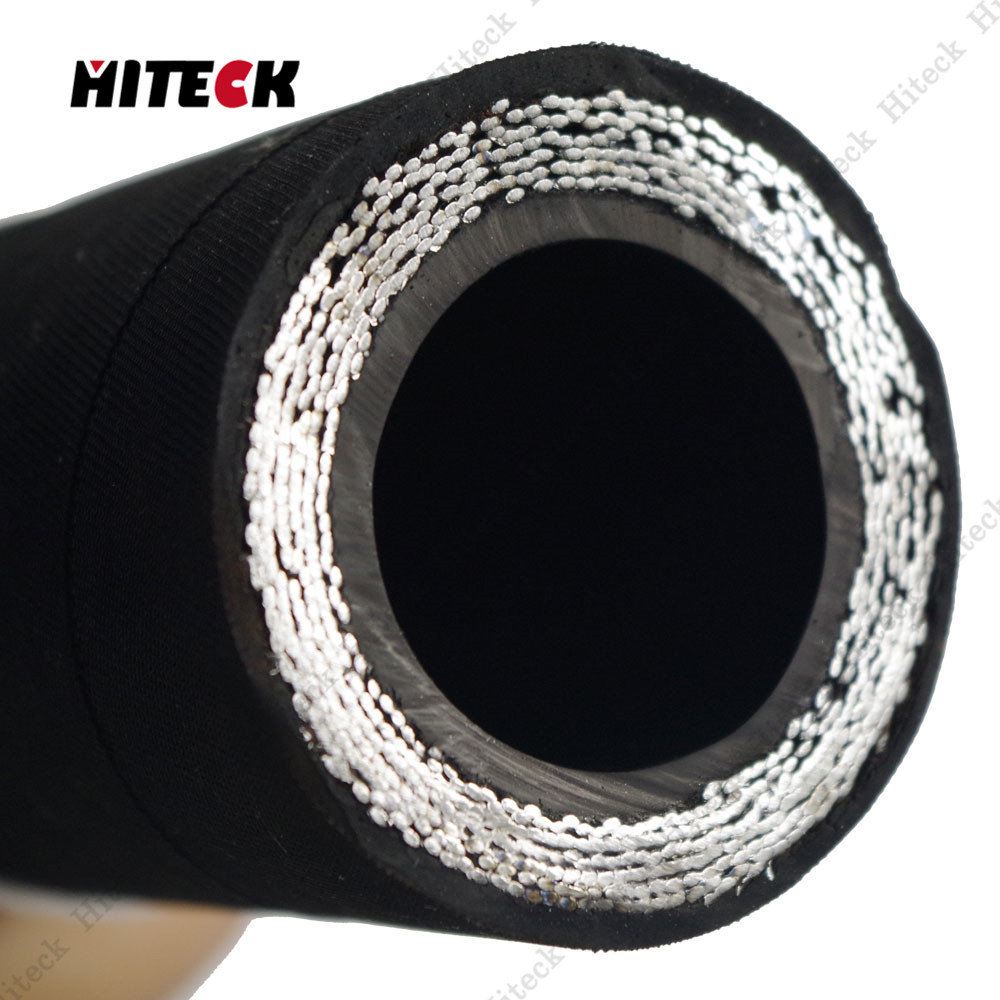

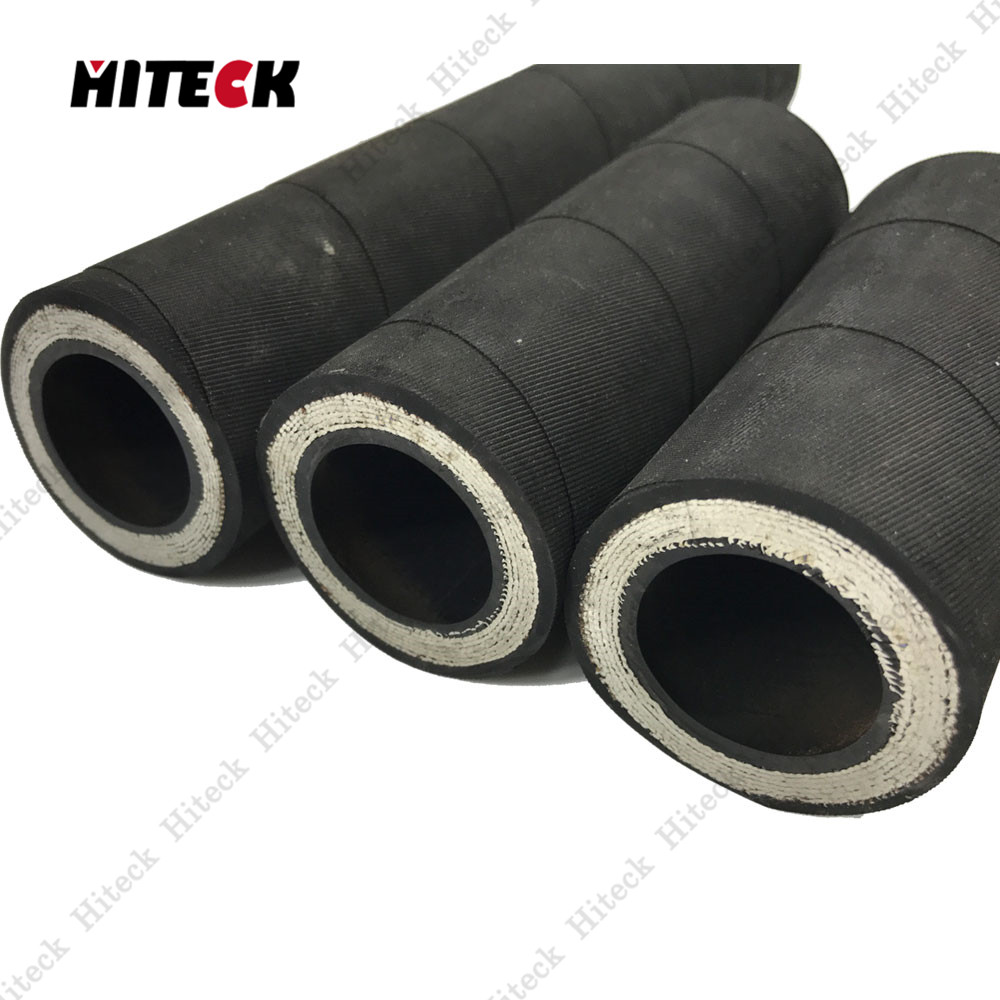

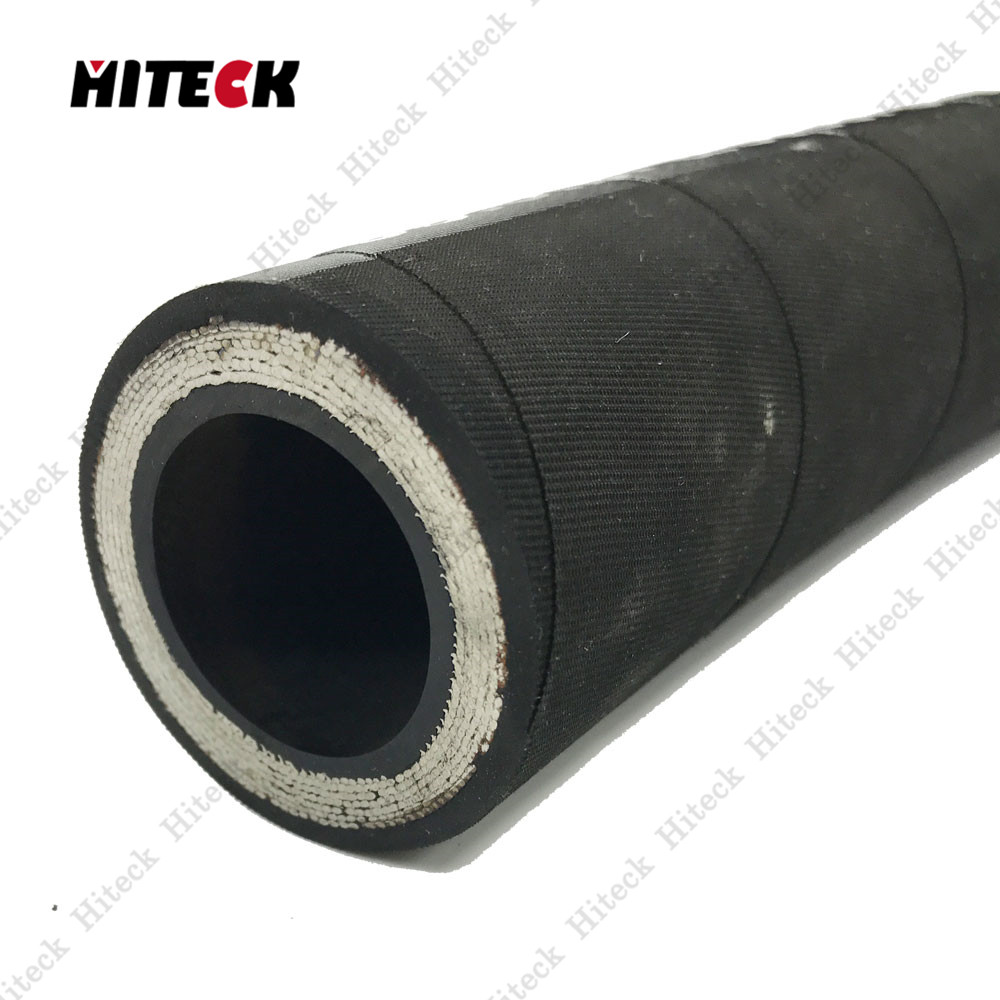

MULTIPLE LAYERS SPIRAL STEEL WIRE REINFORCED, HYDRAUIC HOSE



INNER TUBE:oil resistant synthetic nitrile rubber

REINFORCEMENT: 4 layer(3/4,1"),6 layer(1 1/4,1 1/2, 2") steel wire spiral

COVER:oil and weather resistant synthetic rubber

APPLICATION:petroleum base and water base hydraulic fluids

SURFACE: wrapped surface

TEMPERATURE RANGE:-40℃ (-104 ℉ ) to +121℃(+250 ℉





SAE100R15

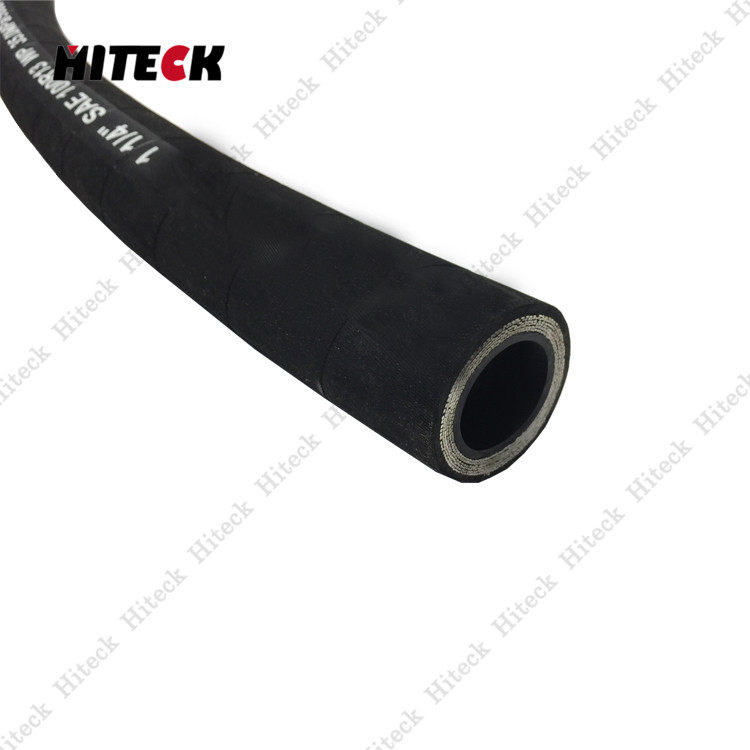

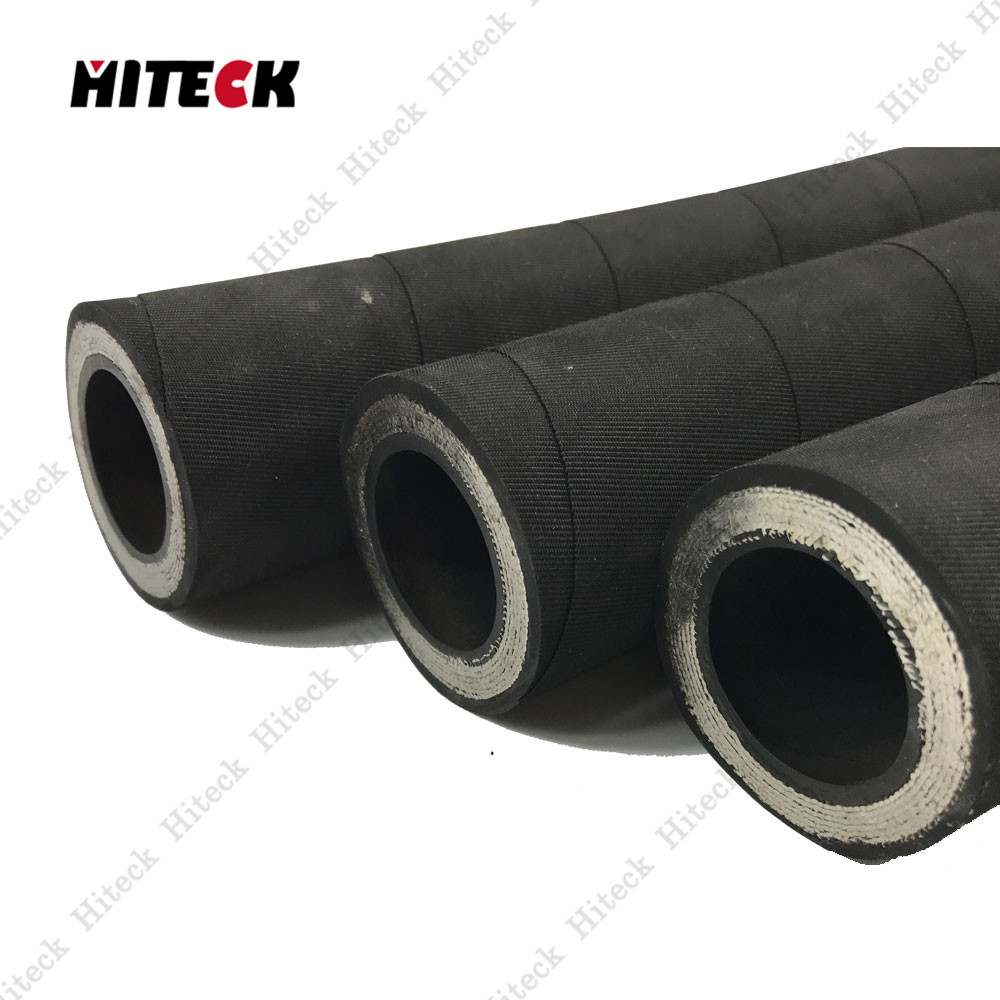

MULTIPLE LAYERS SPIRAL STEEL WIRE REINFORCED, HYDRAULIC HOSE



INNER TUBE:oil resistant synthetic nitrile rubber

REINFORCEMENT: 4 layer(3/8-1"),6 layer(1 1/4,1 1/2) steel wire spiral

COVER:oil and weather resistant synthetic rubber

APPLICATION: petroleum base and water base hydraulic fluids

SURFACE:wrapped surface

TEMPERATURE RANGE: -40℃ (-104 ℉ ) to +100℃(+212 ℉)

Rubber-MaterialMaterial-MixingInner-TubeSteel-BraidingOuter-Tube-ExtrusionVulcanizationImpression-Cloth-OffRoll-CoilingStandard Packing: We have plastic film and woven bag for hydraulic hose, pallet is available, more customerized package is supported.Factory History: Established in 2010
Business Type: Manufacturer and exporter
Main Products: Small machinery such as hydraulic hose crimping machine, industrial hose, hydraulic hose, PVC hose and hose coupling.
Technical team: 120 experienced worker,10 experienced engineers.
Sales Team: 12 sales and service employees,8 years experiences in foreign trade.
Facilities:20 automatic high speed braiding machines,4 steel wire spiral machines,2 Italy VP equipment for industrial hose,30 production lines for pvc hose.
Quality control: strict material inspection before production,Strict control during production,100%inspection before shipment.
Market:more than 85 countries,1266 clients all over the world.Q1: Can you produce the hose with my own brand ?A1: Yes, we have been offering OEM service for 10 years.Q1: Could we pay a visit to your factory ?A1: Yes, you are always welcome to visit our factory.Q1: Can we get the goods without your company name to export ?A1: Yes, we can. We are allowed to use your designated agent's name if you have one.Q1: Can you send us a sample to test quality before ordering ?A1: Yes, we can provide sample by free but the freight and other charges is payed by the customers.Q1: Can you help us do the custom clearance ?A1: Yes, we can. We can help you find a professional custom clearance company to do it.Q1: Can you produce goods with special specification ?A1: First of all, we need to know the specification in details, and then we need to check with our technology department.
