Production description

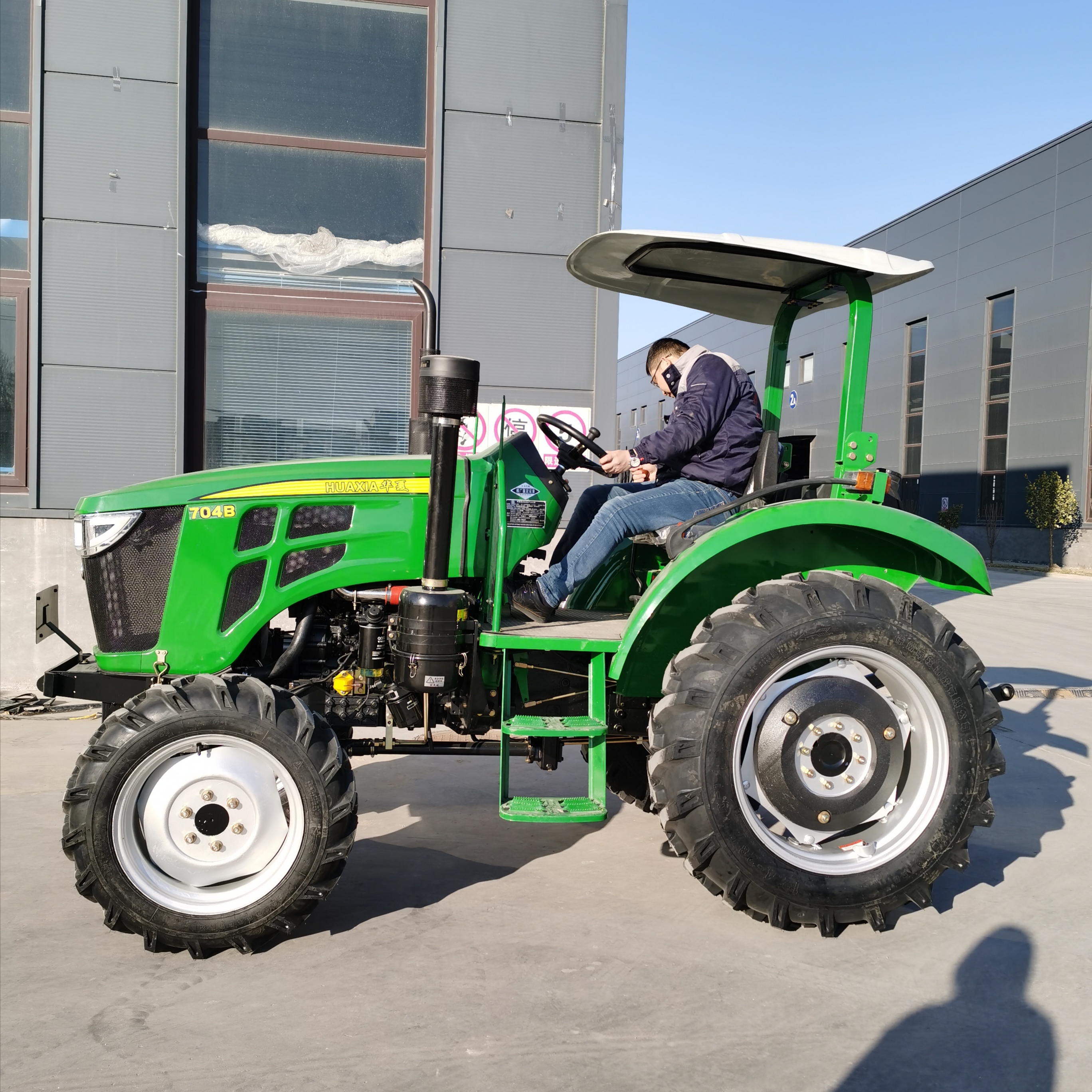

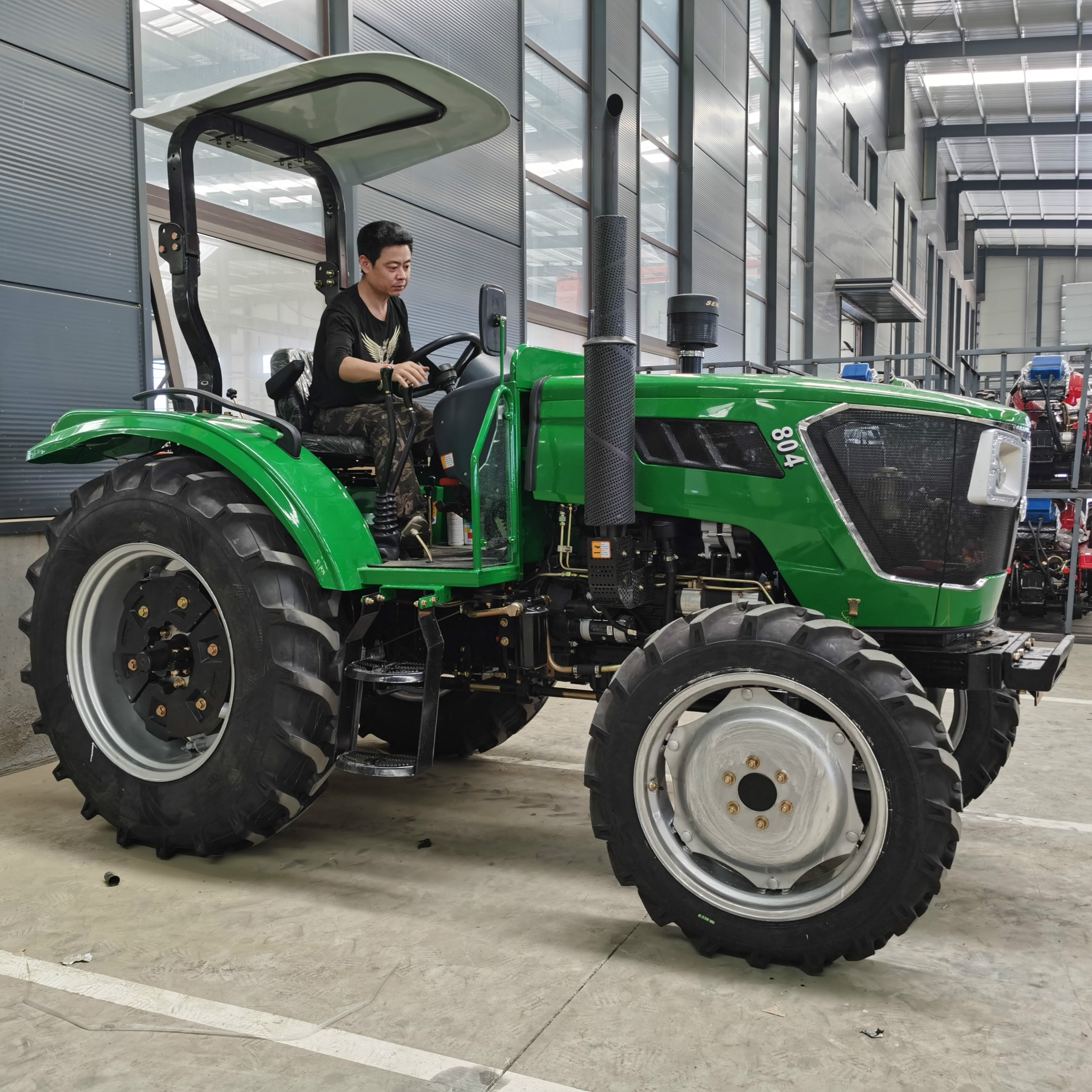

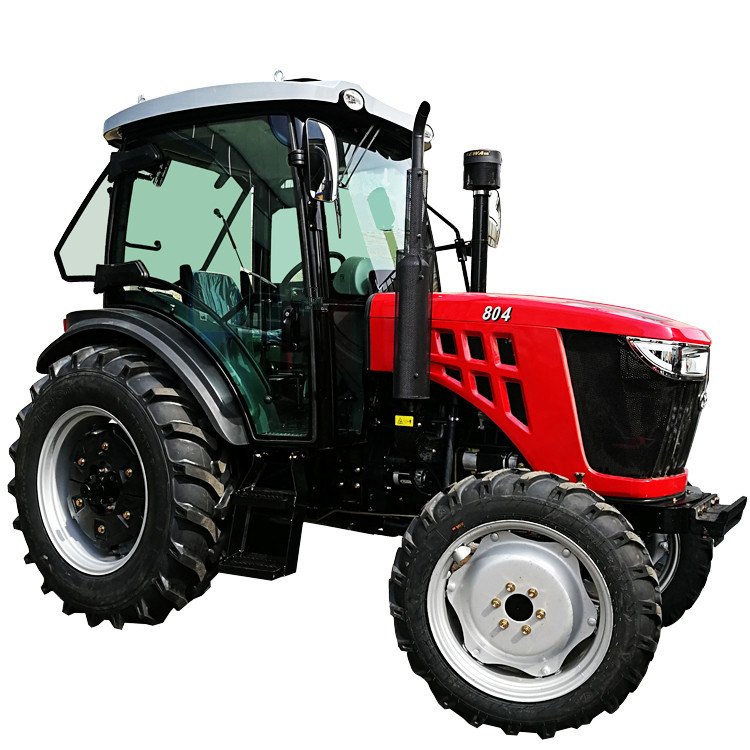

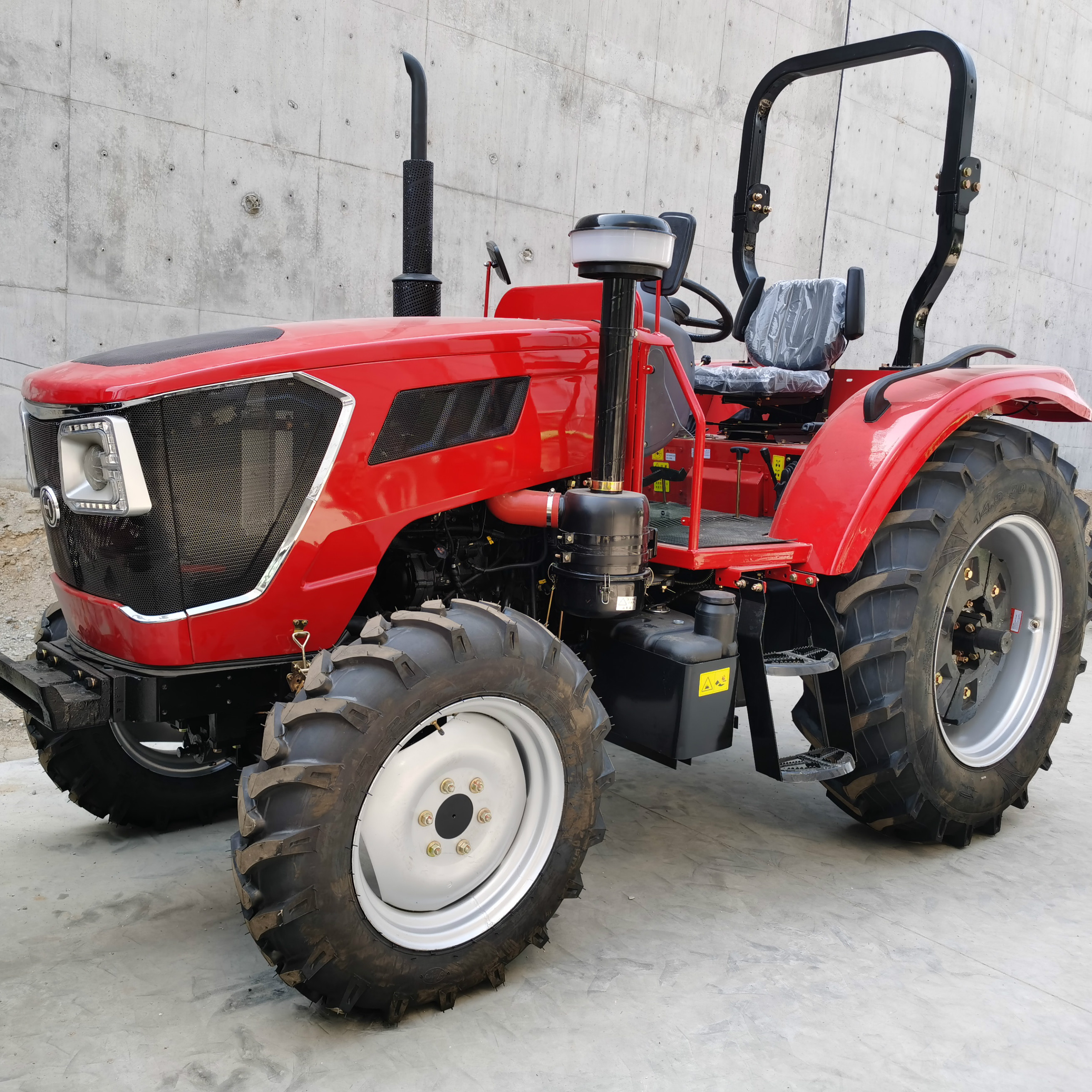

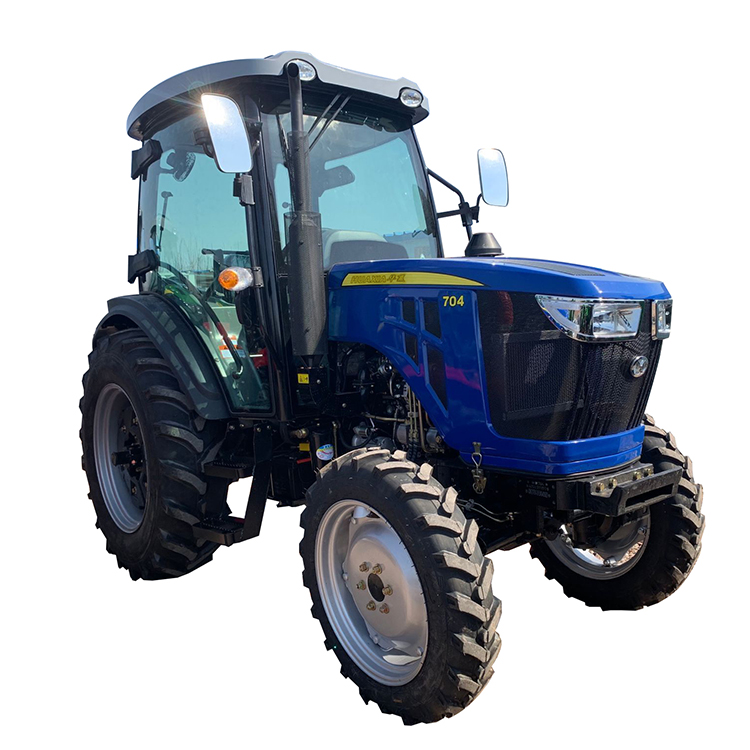

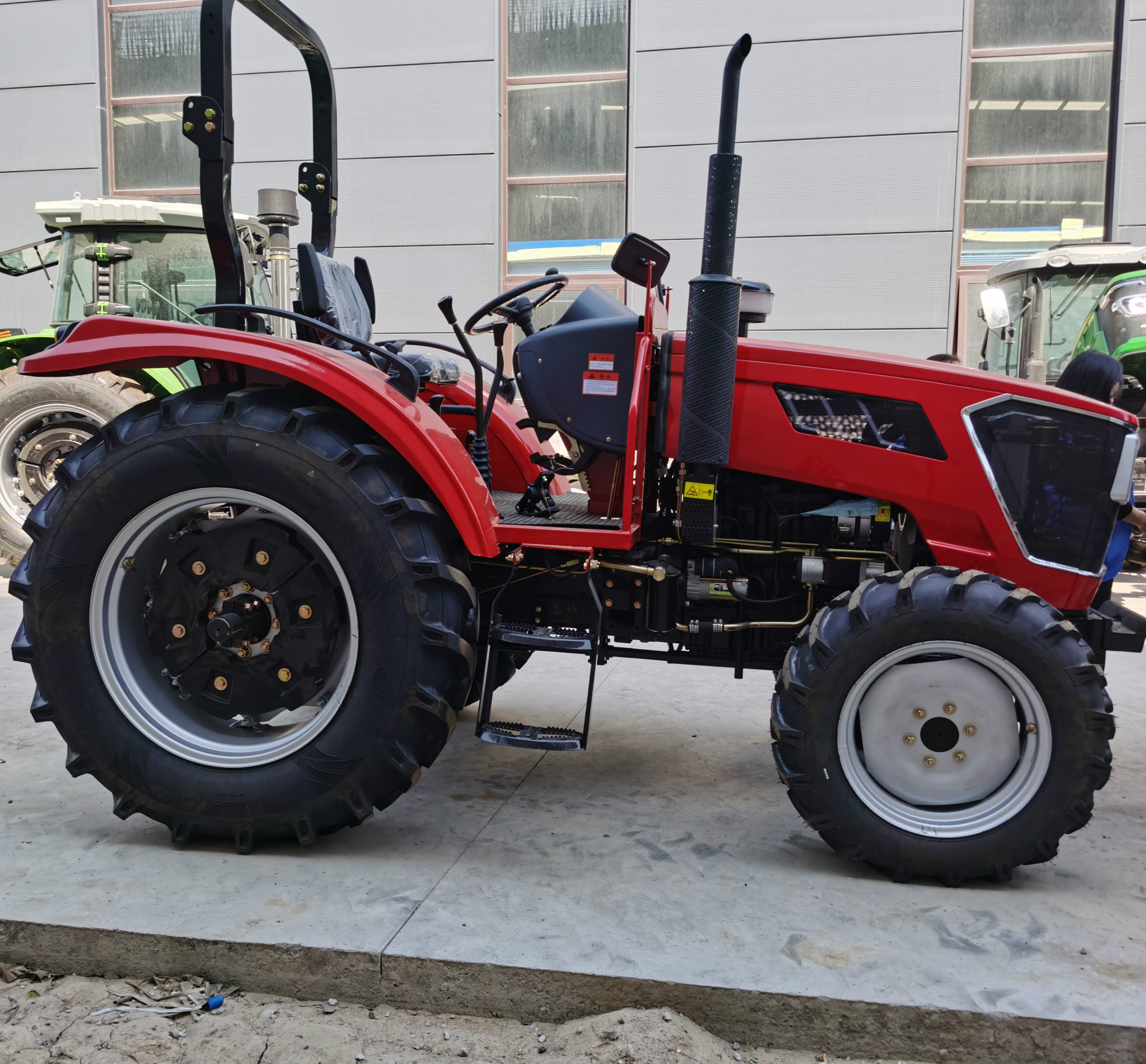

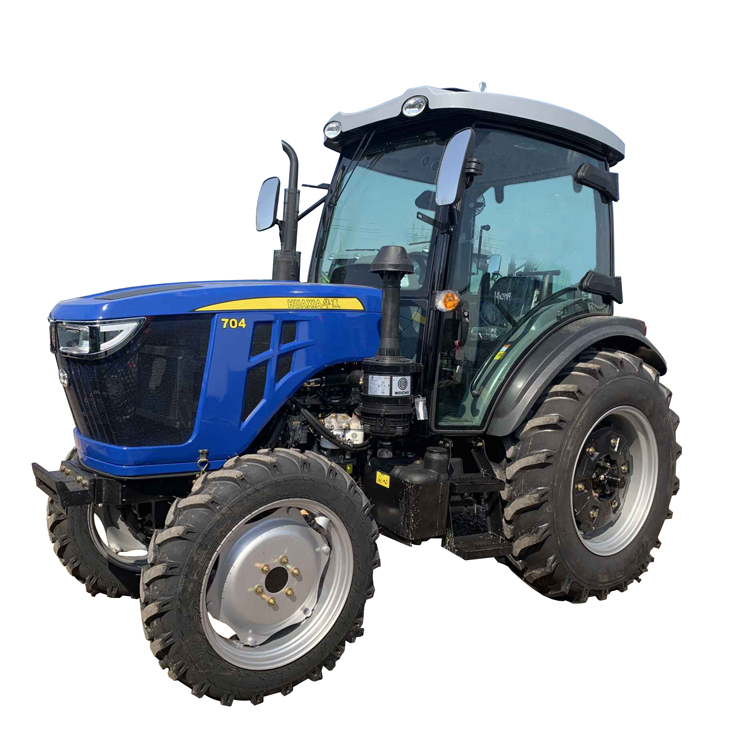

This series tractor is a versatile, high horsepower agricultural tractors. The model has compact structure, convenient operation, flexible steering, traction, versatile and easy maintenance characteristics. The series use TB chassis, four wheel drive, 12F+12R shuttle shifts gear box, hydraulic steering, double stage clutch and the 3-point linkage is adjustable by floating way. The series can choose to equip the roll bar, hydraulic multi-valves, heater cabin

TB series(70hp-80hp)

Products model

HX704

HX754

HX804

HX904

Wheel drive

4x4

Dimension(L*W*H)

3900x1700x2500mm

Weight

2700kg

Front wheel Tread

1265mm

Rear Wheel

1312,1376,1408,1496 OR 1300-1500mm limited adjustable

wheel Base

2072(2070)mm

Min Land Clearance

2072(2070)mm

Gear shifts

12F+12R

Tyre Size

8.3-20/14.9-28 or 8.3-24/11-32 water tyre

Steering gear

Hydraulic steering

Rear Suspension

Three-point Suspension

Engine Specification:

Model

QC or YTO

Type

Water cooled ,Vertical,4 stroke and Direct injection

Rated Power(kW)

51.4

55.1

58.8

66.1

Rated Revolution(r/min)

2400

Start Way

Electricity Start

Transmission

4×3×(1+1) shifts

Clutch

Single chip, Dry friction, Constant conjunction and Double clutch

PTO Speed

6 spline 540/760 or 540/1000

Company information

Weifang Huaxia Tractor Manufacturing Co.,Ltd. Is located in the world’s capital of kite and the city of green power-Weifang. It is in the Economic Development Area of Weifang and only 3 kilometers to the expressway station of Weifang West, the traffic is very convenient

The area of the company and its factory is about 200,000 square meters and is one modern private enterprise with research, production and sale. The company has pursued perfect and done things seriously. It has the courage of innovation and has insisted on the production idea of high standard and high quality so its products have been optimized and upgraded constantly. And then the enterprise has developed and grown strong steadily. The company has strong technology force and superior machine and equipments with the auto assembly line which is advanced in China. The products are in strict compliance with the international norms of quality system and have mature guarantee service system so they have adopted 2000 edition ISO9001 international quality management system certificate. Further more, HUAXIA brand products have ever been awarded national patents ten times by the State Intellectual Property Office

Package details

complete tractor package, 1 unit/20GP, 3 units/40HQ

FAQ

FAQ

(1). Manufacturer or Trading Company

We are a leading tractor manufacturer for 20 years, and specialize in 12-240Hp tractors in China.

(2). MOQ

Mini tractor: 8 units

middle tractor(25-40hp): 2 units

Above 50hp: 1 unit

(3). Spare Parts

Free toolbox and easy damaged parts.

(4). Shippment

We can help you arrange shippment.

(5). Delivery Time

Usually 25 days. In peak season,30-40 days

(6). Warranty Time

Complete service system, 12 months since arrival of destination port

(7). Payment Terms

We accept 30%T/T in advance, and 70% T/T before delivery

(8). Tractor Options

Can be equipped with ROPS, Canopy, Cabin, AC Cabin, Air Brakes, Hydraulic Valve Out, Paddy Tire or as per your requirements.

(9). Tractor Logo

We have our own logo. And we also can put your logo for free.

(10). Package and Loading

1.complete tractor package: 2 units/20GP, 4 units/40HQ

2.Iron Frame Package: 8 units/20GP, 16 units/40HQ

(11). Tractor Implements

Rotary tiller, disc plow, furrow plow, cultivator, front end Loader, backhoe, Mower, Trailer, Snow Blower or as per your requirements.

(12). Part supply

Complete Parts Workshop, and can supply all parts
