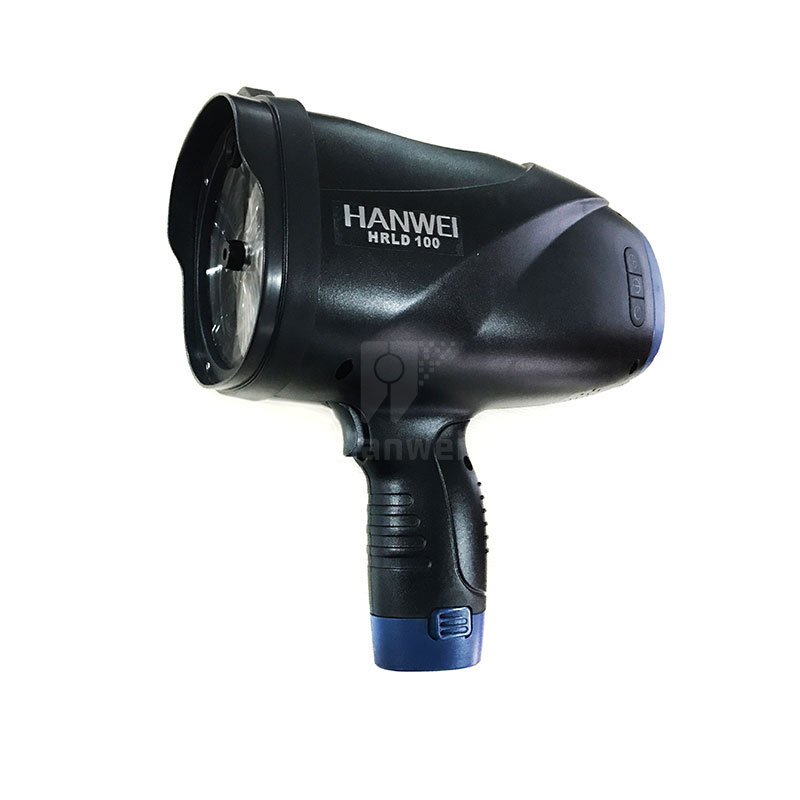

HRLD100 Hand held Laser Methane Detector
HANWEI ELECTRONICS GROUP CORPORATIONThe supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Size: 250*250*110
- Exports to: Middle East, Southeast Asia, South Asia, Latin America, Russia, EU, Other European Countries, Others
- Made in: Henan, China
About this product
- Size: 250*250*110
- Exports to: Middle East, Southeast Asia, South Asia, Latin America, Russia, EU, Other European Countries, Others
- Made in: Henan, China
Product details
| Size | 250*250*110 |
|---|
Product details
| Size | 250*250*110 |
|---|
From the supplier
HRLD100 Hand held Laser Methane Detector
This detector is specially designed, with advanced TDLAS technology, for fast and remote detection of underground pipelines, lofts, green belt, gas plant etc., giving fast response and high resolution.
Features:
- Advanced TDLAS technology
- Detection distance maximum 80 meters
- Visual and audible alarm
- GPS location function, data transmitted to monitoring platform by GPRS
- High selectivity, only response to methane
- Fast response, no alarm delay
- High sensitivity, no interference from vapor, car exhaust and other gases.
Application:
Underground pipelines, lofts, green belt, gas plant.
Specifications:
Measuring gas
Methane (CH4)
Measuring range
0-50000ppm*m
Preset alarm level
Low alarm: 20%LEL High alarm: 50%LEL
Response time
T90
Sensor type
TDLAS sensor
Sensor life
10 years
Measuring type
Laser beam
Display
Color LCD
Alarm type
Visible, Audible, vibration
Audible
85dB @1m
Warning lamp
LED light
Battery
3.7V 6600mAh
Working Temperature
-20℃～+50℃
Working Humidity
≤99%RH (no condensation)
Case
ABS+PC
Accessories
Belt, Screen cover
Option
Telescope sight
Working time
8 hours
Explosive-proof degree
Ex ib IIB T4
Ingress Protection
IP54
Dimension
25*25*11cm
Weight
1.3kg
From the supplier
HRLD100 Hand held Laser Methane Detector
This detector is specially designed, with advanced TDLAS technology, for fast and remote detection of underground pipelines, lofts, green belt, gas plant etc., giving fast response and high resolution.
Features:
- Advanced TDLAS technology
- Detection distance maximum 80 meters
- Visual and audible alarm
- GPS location function, data transmitted to monitoring platform by GPRS
- High selectivity, only response to methane
- Fast response, no alarm delay
- High sensitivity, no interference from vapor, car exhaust and other gases.
Application:
Underground pipelines, lofts, green belt, gas plant.
Specifications:
Measuring gas
Methane (CH4)
Measuring range
0-50000ppm*m
Preset alarm level
Low alarm: 20%LEL High alarm: 50%LEL
Response time
T90
Sensor type
TDLAS sensor
Sensor life
10 years
Measuring type
Laser beam
Display
Color LCD
Alarm type
Visible, Audible, vibration
Audible
85dB @1m
Warning lamp
LED light
Battery
3.7V 6600mAh
Working Temperature
-20℃～+50℃
Working Humidity
≤99%RH (no condensation)
Case
ABS+PC
Accessories
Belt, Screen cover
Option
Telescope sight
Working time
8 hours
Explosive-proof degree
Ex ib IIB T4
Ingress Protection
IP54
Dimension
25*25*11cm
Weight
1.3kg
