About this product
- Materials: Iron cast
- Size: 6800mm*4200mm*1800mm
- Color: Can be customized
- Exports to: Africa, Southeast Asia, South Asia, Central Asia
- Made in: Shandong, China
About this product
- Materials: Iron cast
- Size: 6800mm*4200mm*1800mm
- Color: Can be customized
- Exports to: Africa, Southeast Asia, South Asia, Central Asia
- Made in: Shandong, China
Product details
| Materials | Iron cast |
|---|---|
| Size | 6800mm*4200mm*1800mm |
| Color | Can be customized |
Product details
| Materials | Iron cast |
|---|---|
| Size | 6800mm*4200mm*1800mm |
| Color | Can be customized |
From the supplier

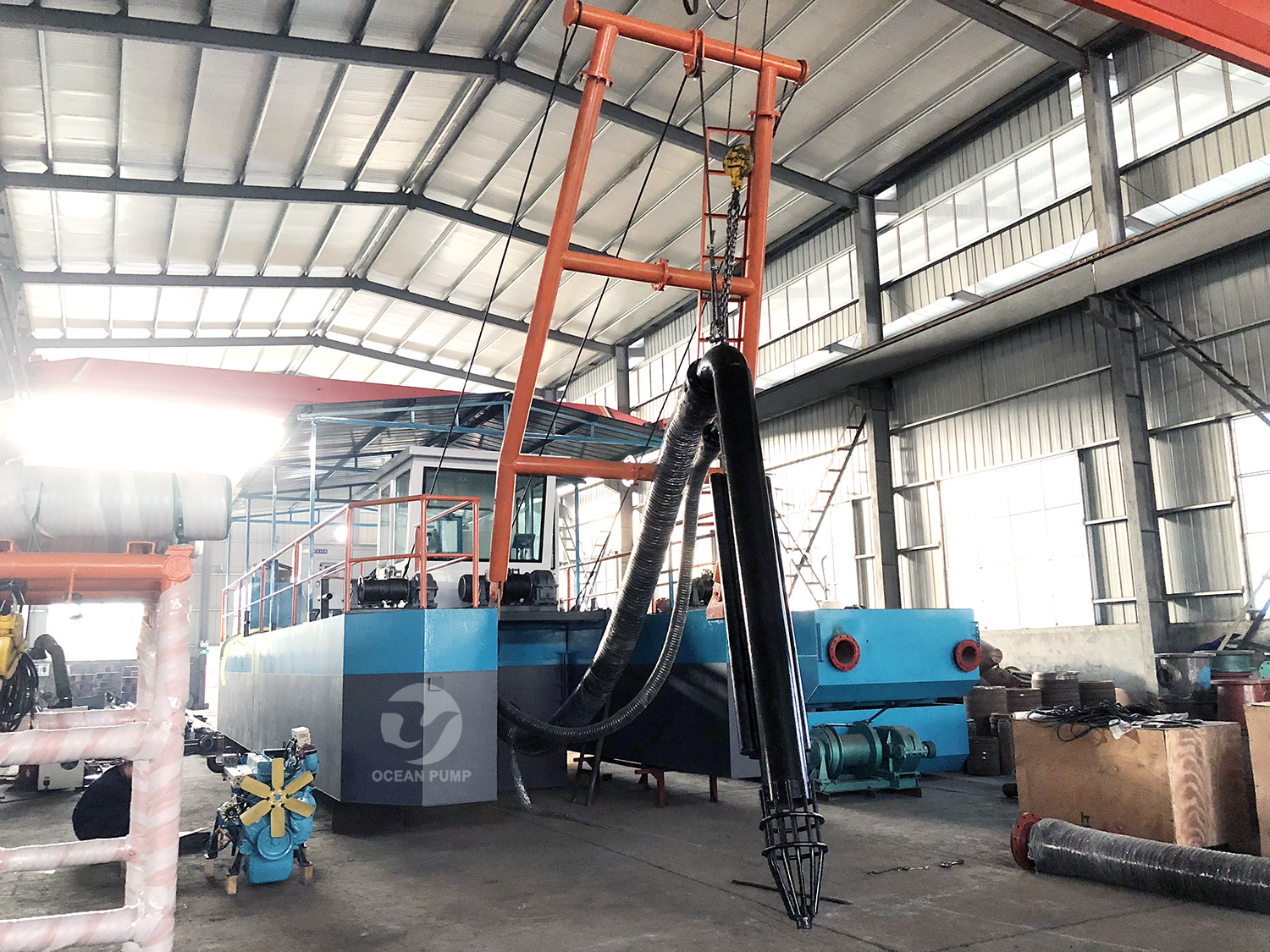

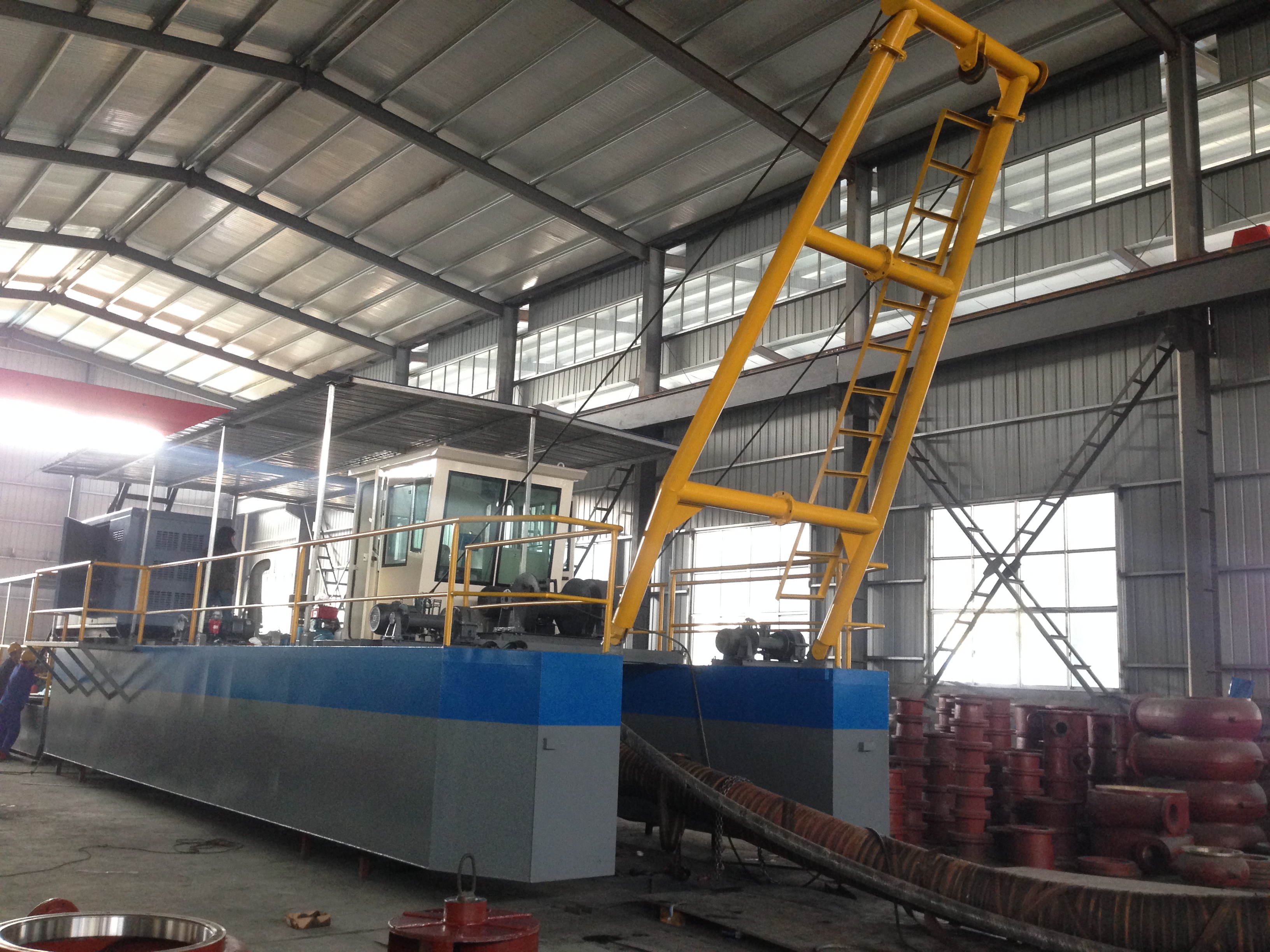

OCEAN JSD series sand dredging machine is widely used to recover underwater materials from great depths and can also extract sand from below a clay overburden. The sand dredging machine is equipped with high pressure water pump and powerful sand suction pump. The water pump can produce high pressure high speed water jet to impact the bottom of sand layer and splashing the mixed sand around the suction head, and the sand suction pump conveys the sand to the destination through the discharge pipe.
OCEAN brand sand dredging machine consists of dredger body, high efficiency wear resistant marine sand pump, high pressure water pump, famous brand diesel engine and discharge system. Our sand dredging machine feature integrated design, high efficiency, good wear resistance, flexible operation, energy saving in the delivery of solid particles. Our sand dredging machine is the most economic sand dredging equipment for loose fine sand in the water bottom. We can customize various small and medium sand dredging machine according to your requirments.
SpecificationNO.Item JSD200JSD250JSD300JSD350JSD4001Dredger performanceSand capacity(m³/hr)80-110130-260300-360360-390440-520Max.discharge distance(m)200-600200-1000200-1500200-1800200-2000Max.gravel diameter passing through(mm)50-6060-7060-7060-7060-80Max.dredging depth(m)15151520202Dredger bodySize(L*W*H)8*1*1.5,2PC
6*2.25*1.5,
1PC
8*1*1.5,2PC
6*2.25*1.5,
1PC
11.8*1.1*1.5,2PC
8*2.25*1.8,1PC
18*1.1*1.5,
2PC
18*1.1*1.5,
2PC
3Sand suction systemPump size(inch)8/610/812/1014/1216/14Pump flow(m³/hr)410-540620-14501650-18001800-19502200-2600Pump head(m)28-4821-3524-3524-3530-50Pump speed(rpm)730-980730730730550-700Main engine power(kw)132-156180-250250-300300-410410-460GearboxYesYesYesYesYesConnect metal baseIncludeIncludeIncludeIncludeIncludeHigh pressure water pumpJetting sand upJetting sand upJetting sand upJetting sand upJetting sand upThe information in the table is not complete. Please click here to get more detailed data.
Features- Novel design, High efficient, large output, long discharge distance.
- High quality wear resistance and long serve life sand pump.
- Pumping depth reaches up to 20-30m underwater.
- Dredge hull consists of multiple pontoons connected by proven coupling system.
- Highly efficient fuel consumption and minimum overall operational costs.
- Control box and instrument are mounted in ergonomic dash board.
- Low investment and good operating performance.
- Simple and fast assembly and disassembly, easy to operate.
- OEM, ODM, customization are available.
OCEAN Pump had been dedicated in designing and manufacturing sand pump, slurry pump, gravel pump and sand jet suction sand dredger for over 20 years. Our sand pump and sand dredge products had been exported to over 60 countries.

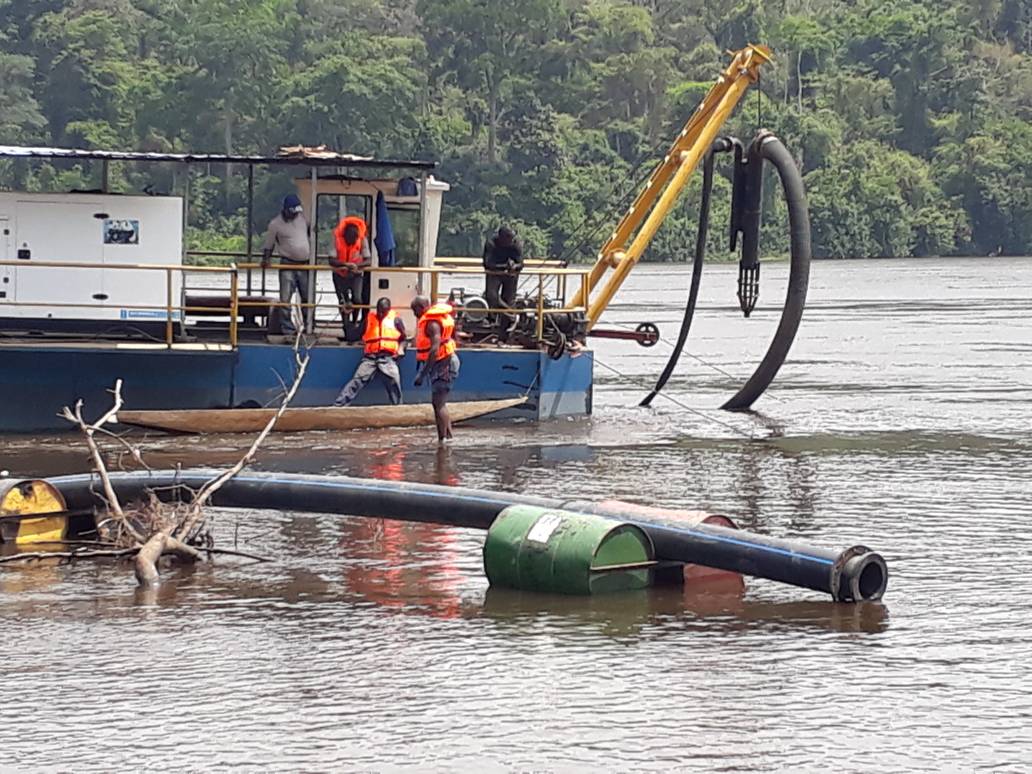

Our high efficiency jet suction sand dredger series are widely used for sand dredging in rivers, delisting lakes and ponds, reclaiming land, cleaning ports and pumping sand, it is also suitable for exploiting seashore, clearing port and pier, etc.
Dredger ProductsPortable DredgerJet jet suction sand dredgerSubmersible DredgerCutter jet suction sand dredger
