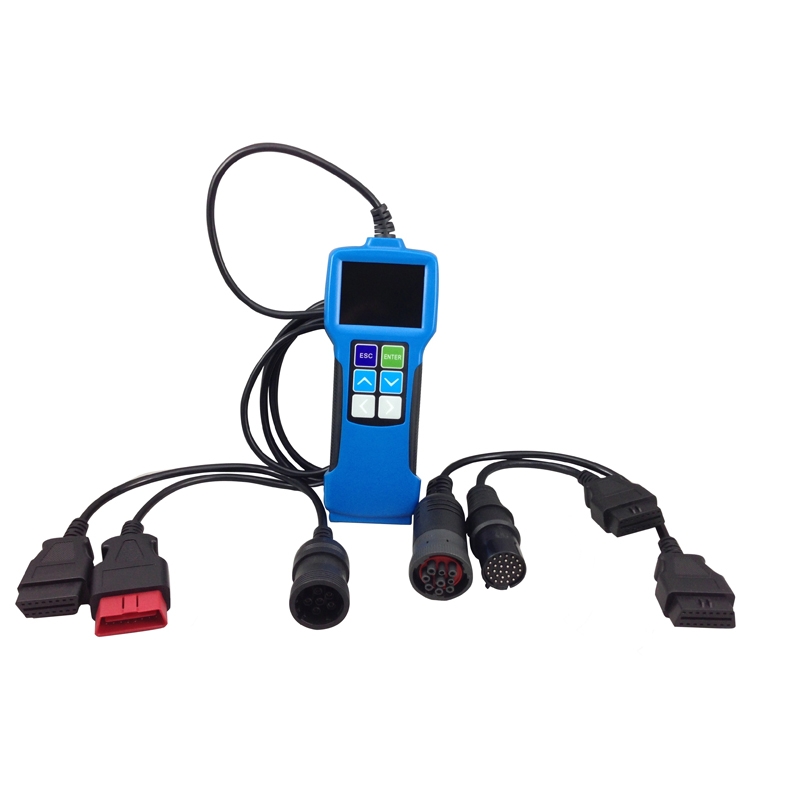

OBDII+Heavy Tuck Diagnostic Scan Tool T81

----Color-screen auto scanner

Features & Benefits:
 1. Works on OBDII cars, SUVs and light trucks after 1996 in USA and 2000 in EU
 1) Reads and erases trouble codes and resets check engine lights;
 2). Retrieves the ECU information;
 3). Displays DTC definitions on 2.8” TFT color screen;
 4). Displays monitor and I/M readiness status(emissions);
 5). Retrieves vehicle information (VIN, CIN and CVN);

2. Works on heavy trucks, buses with 6pins, 9pins,16pin, 30pins adapters
 1)  Reads and erases trouble codes for multi-systems;
 2). Reviews the definitions of the trouble codes;
 3). Turns off Malfunction Indicator Light (MIL);
 4). Complies with heavy truck with J1939/J1587/1708 protocols;

Specifications
 Display: backlight, 2.8’’ color-screen display with contrast adjustment.
 Operating temperature: 0 to 50C (32 to 122 F).
 Storage temperature: -20 to 70C (-4 to 158 F).
 Power: 8 to 16 Volts provided via vehicle battery. (we won’t provide the battery in the product)

Length Width Height
  205 mm                   78 mm                           25 mm
  Weight: 1.5kg

Vehicle Coverage

  All OBD2 & EOBD & JOBD compliant vehicles with a 16-pin interface(include all 1996 and newer cars, light trucks and SUVs sold in the United States,all 2000 and newer sold in the Europe, Japan and Asian Area) CAN, VPW, PWM, ISO9141, KW2000 protocols compliant vehicles(including those equipped with the next-generation protocol Control Area Network.)

Heavy Truck Coverage:

BENZ, CUMMINS, ISUZU, IVECO, VOLVO with 6pins, 9pins, 30pins adapter

Standard Truck Diagnostic Program(Truck OBD with 16pins adapter

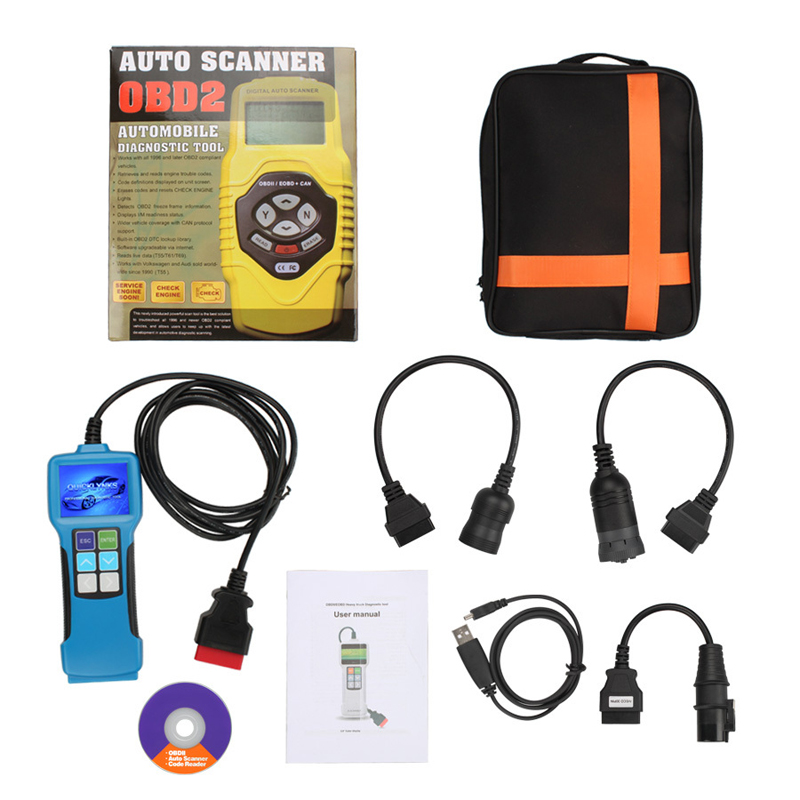

 Accessories Included
 1.  User's Manual  (Instructions on tool operations)
 2.  CD  (Includes user's manual, DTCs lookup library, etc.)

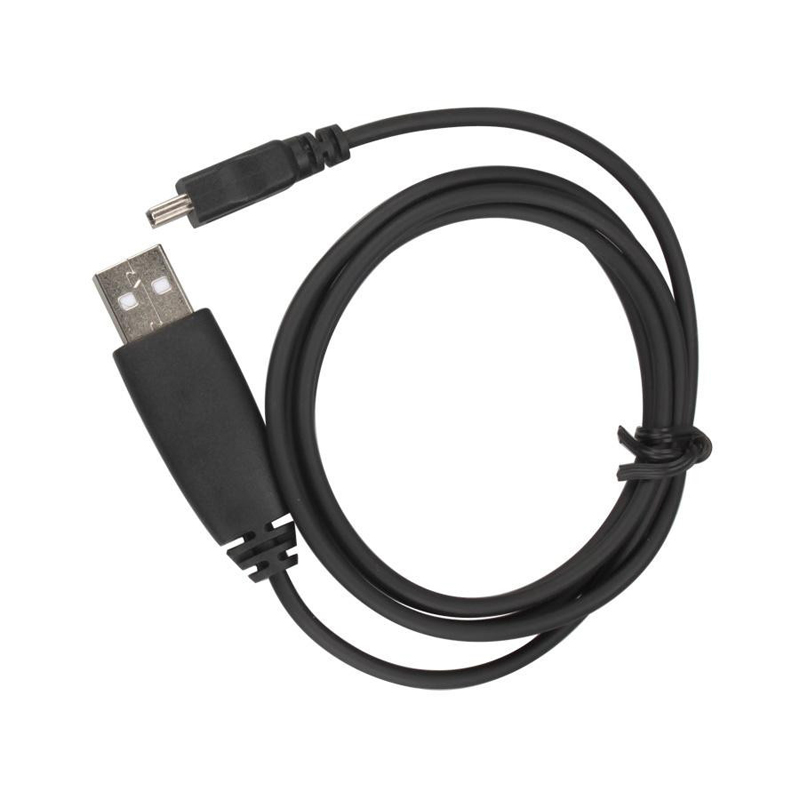

 3.   USB Cable  (Used to update the scan tool)

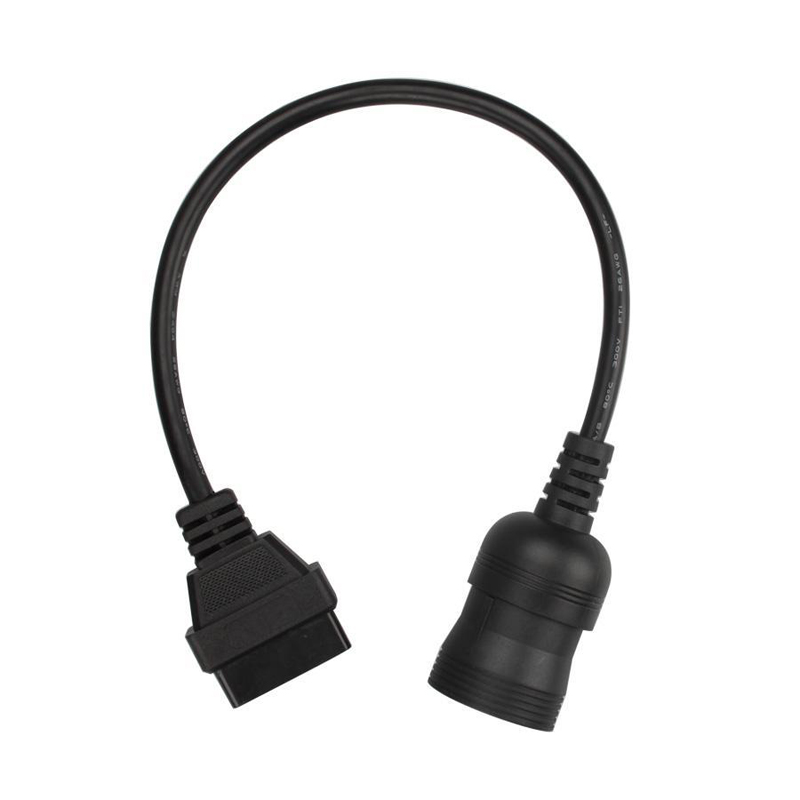

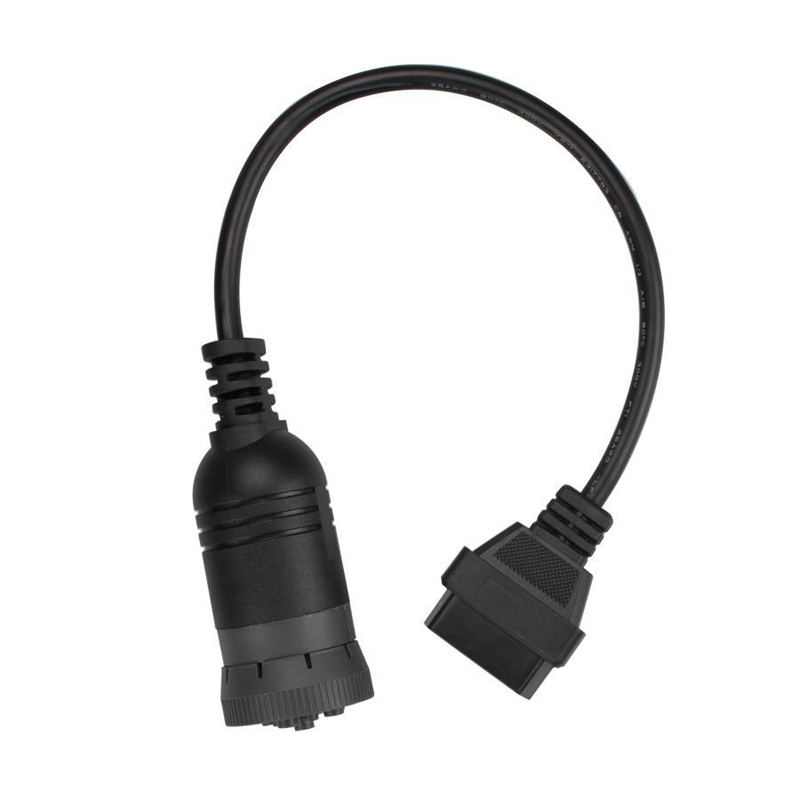

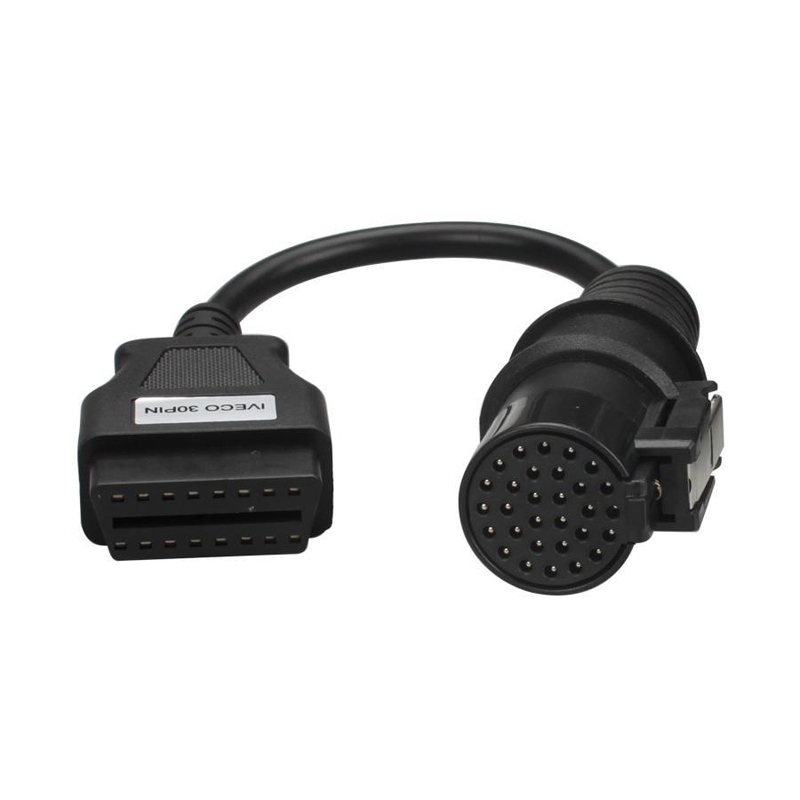

4. 6pins, 9pins, 30pins OBDII connectors

"}
