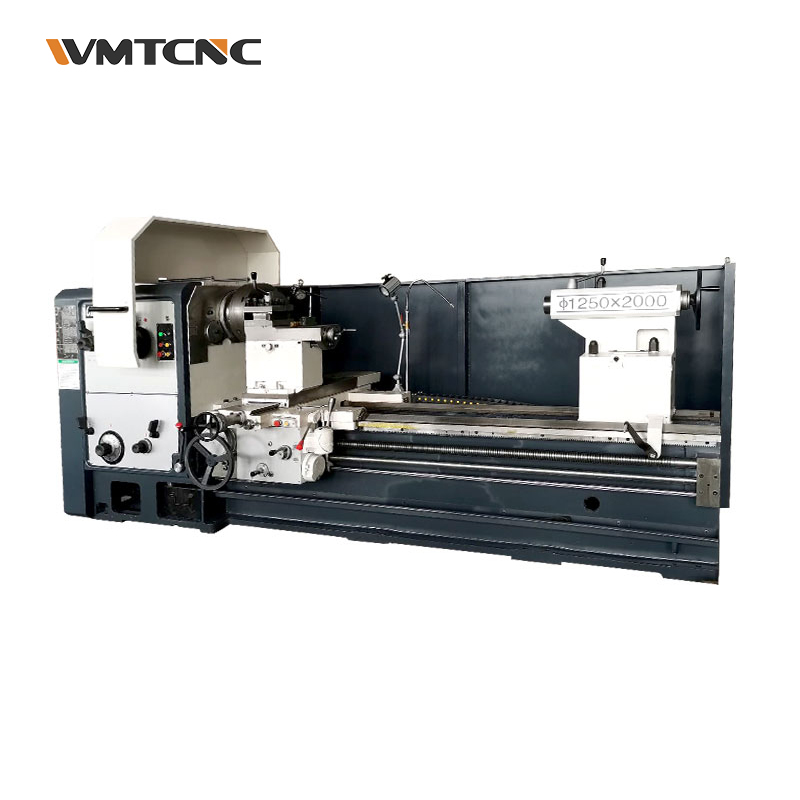

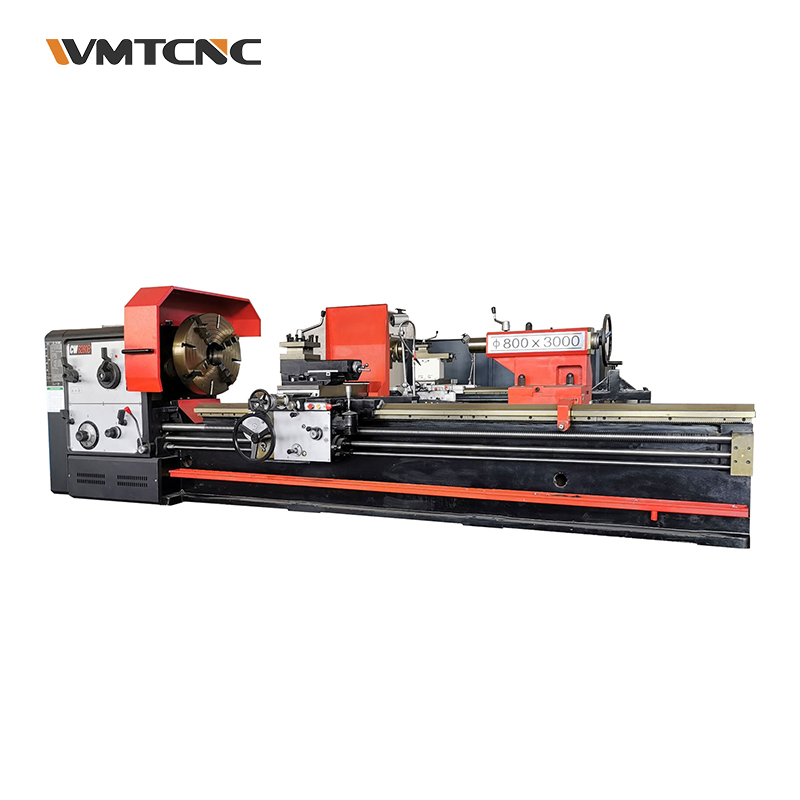

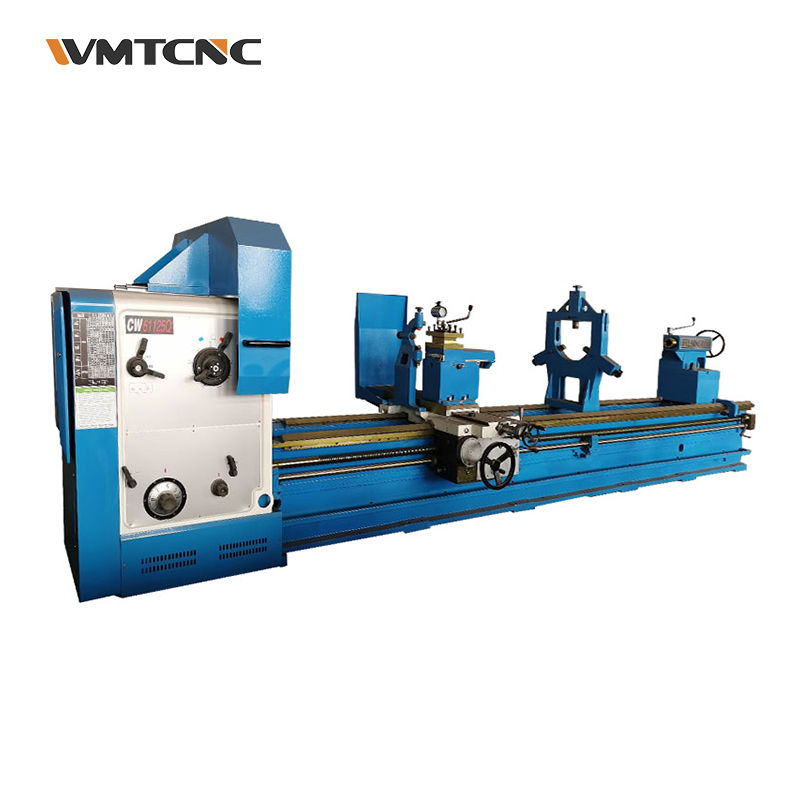

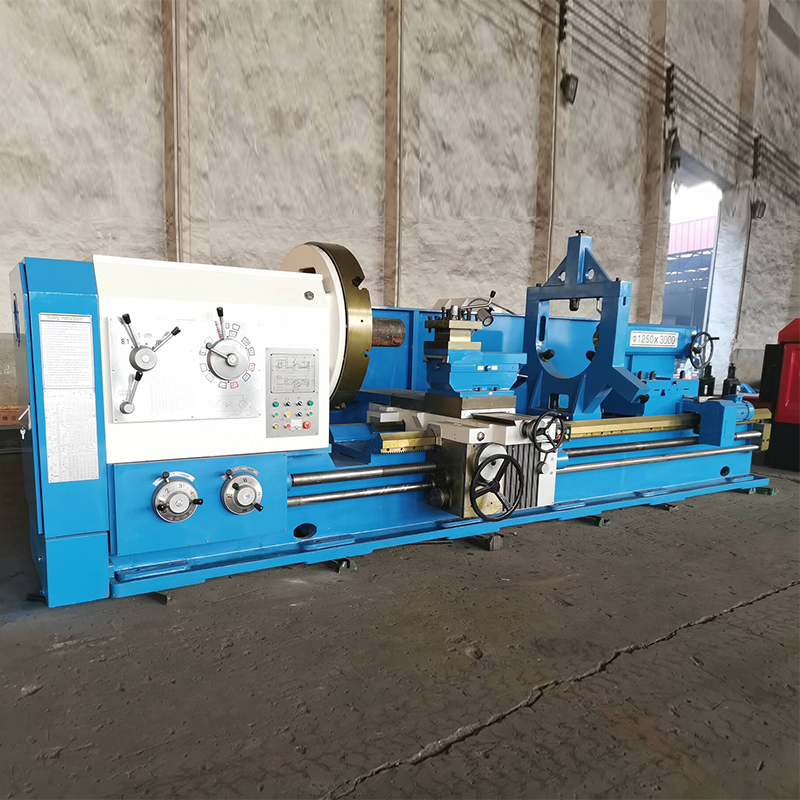

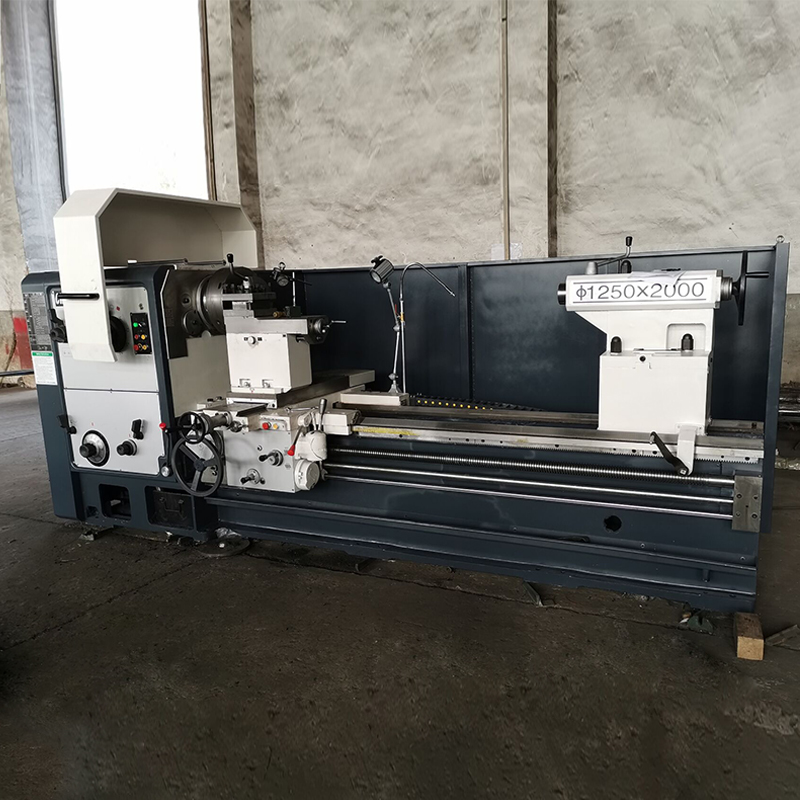

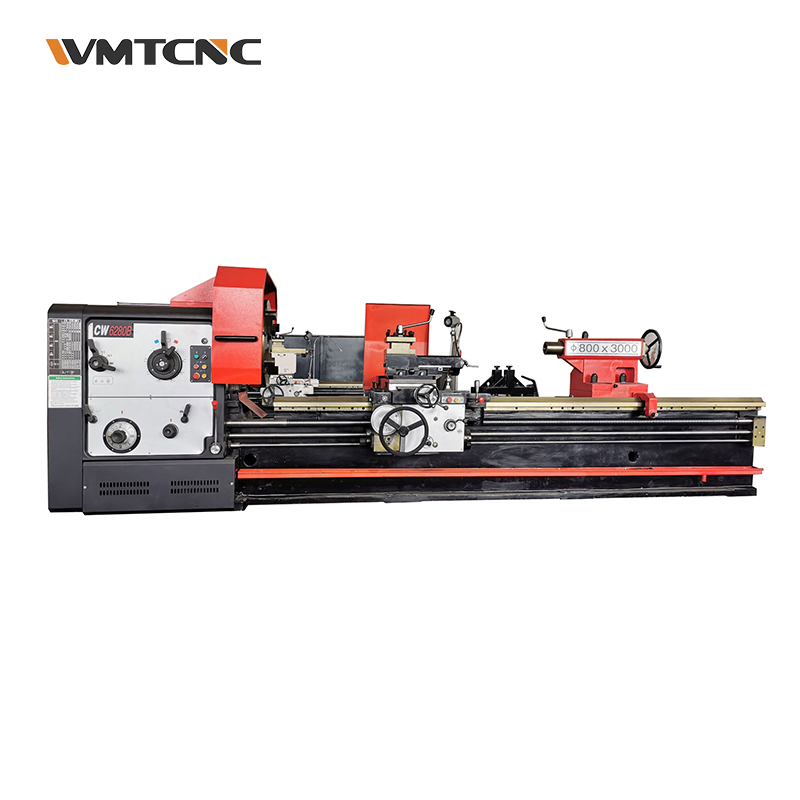

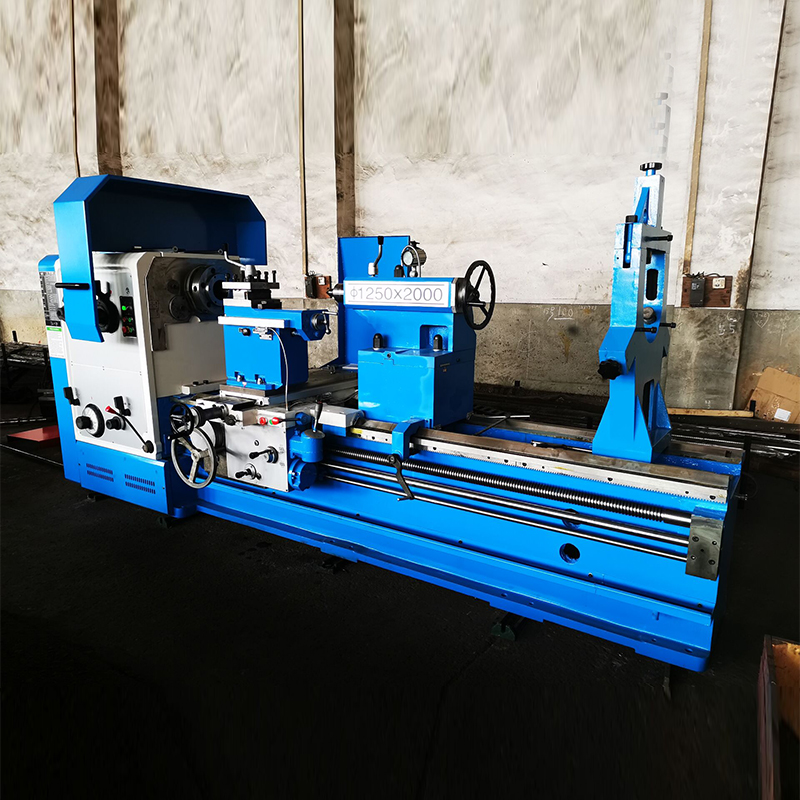

Heavy duty horizontal muanal lathe machine
WMT CNC INDUSTRIAL CO.,LTD
See what’s includedHide breakdown
- FOB goods (100)
- $2,350,000
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $82,250
- Section 301 tariff (25.0%)
- $587,500
- Customs fees (MPF/HMF)
- $3,572
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- FOB goods (100)
- $2,350,000
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $82,250
- Section 301 tariff (25.0%)
- $587,500
- Customs fees (MPF/HMF)
- $3,572
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
Heavy duty horizontal muanal lathe machine
WMT CNC INDUSTRIAL CO.,LTDSee what’s includedHide breakdown
- FOB goods (100)
- $2,350,000
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $82,250
- Section 301 tariff (25.0%)
- $587,500
- Customs fees (MPF/HMF)
- $3,572
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- FOB goods (100)
- $2,350,000
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $82,250
- Section 301 tariff (25.0%)
- $587,500
- Customs fees (MPF/HMF)
- $3,572
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
About this product
- Materials: cast iron
- Size: 4500x2200x2250mm
- Color: Grey
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Anhui, China
About this product
- Materials: cast iron
- Size: 4500x2200x2250mm
- Color: Grey
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Anhui, China
Product details
| Materials | cast iron |
|---|---|
| Size | 4500x2200x2250mm |
| Color | Grey |
Product details
| Materials | cast iron |
|---|---|
| Size | 4500x2200x2250mm |
| Color | Grey |
From the supplier
This series of lathe is mainly used to undertake many kinds of turning work, suck as turning end face, cylindrical, inner hole and metric thread, inch thread, modulus thread, diameter thread.
Turn the taper with top slide, but also can use top slide and longitudinal feed combined driven to turn long taper.
It can also be used for central hole drilling, boring and other processes.
The machine has big power, strong rigidity, and can use carbide cutting tools for thread cutting and machining variety of ferrous metals and non-ferrous metals.

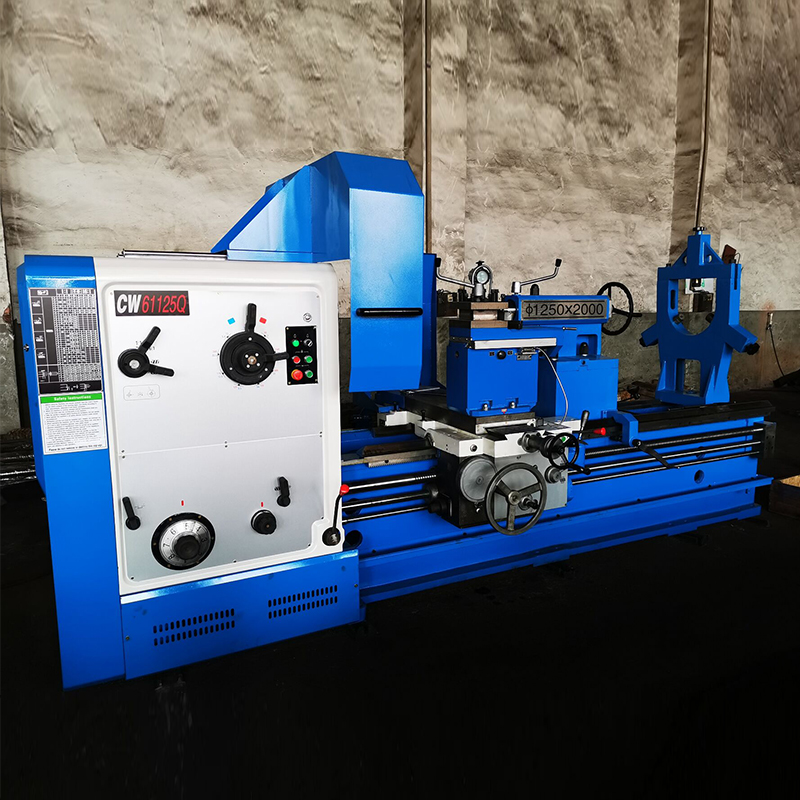

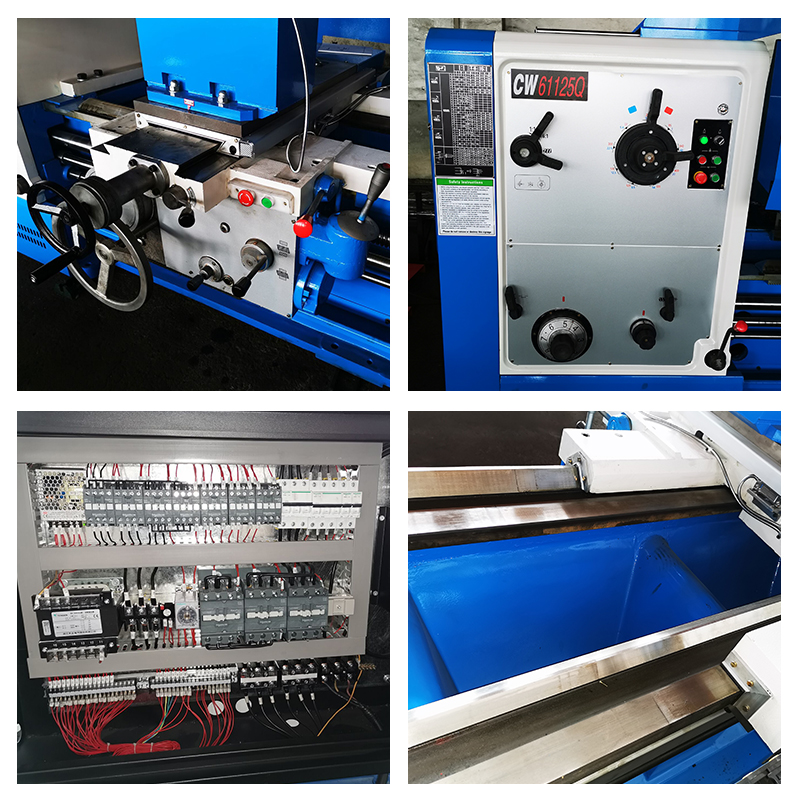

SpecificationCW61125BSwing over bed1250mmBed width755mmWorkpiece length1500/ 3000/ 5000/ 6000/ 8000/ 15000mmSwing over toolpost865mmMax. turning length1300/ 2800/ 4800/5800/7800/14800mmToolpost feed kinds each spindle rotate56 kindsToolpost cross feed range each spindle rotate0.1-12mm/rToolpost longitudinal feed range each spindle rotate0.05-6mm/rUpper toolpost0.025-3mm/rMetric thread43 kinds 1-20mmInch thread29 kinds 28-3/8 teeth / inchModule thread45kinds 0.5-60mmPitch thread25 kinds 1-56mmSpindle bore130mmSpindle front taperMetric 140Spindle speed steps and range forward21 kinds 2-200r/minReverse12 kinds 2.24-178 r/minMax.section of tool45×45mmToolpost longitudinal travel630mmUpper toolpost travel300mmToolpost rapid movement Longitudinal/Cross/Upper3470/1870/935mm/minCenter sleeve dia and travel160×300mmTailstock taperMT6Tailstock longitudinal movement±25Main motorY180L-4 22KWMain transsion V belt specification2143C 2235C 2540CCarriage rapid motorJC02-21-2-1.5KWCoolant pumpJCB-45 0.15KWCoolant pump flow45L/min4-jaw chuck1250/1400mmSteady rest50-600mmFollow rest50-220mm
From the supplier
This series of lathe is mainly used to undertake many kinds of turning work, suck as turning end face, cylindrical, inner hole and metric thread, inch thread, modulus thread, diameter thread.
Turn the taper with top slide, but also can use top slide and longitudinal feed combined driven to turn long taper.
It can also be used for central hole drilling, boring and other processes.
The machine has big power, strong rigidity, and can use carbide cutting tools for thread cutting and machining variety of ferrous metals and non-ferrous metals.
SpecificationCW61125BSwing over bed1250mmBed width755mmWorkpiece length1500/ 3000/ 5000/ 6000/ 8000/ 15000mmSwing over toolpost865mmMax. turning length1300/ 2800/ 4800/5800/7800/14800mmToolpost feed kinds each spindle rotate56 kindsToolpost cross feed range each spindle rotate0.1-12mm/rToolpost longitudinal feed range each spindle rotate0.05-6mm/rUpper toolpost0.025-3mm/rMetric thread43 kinds 1-20mmInch thread29 kinds 28-3/8 teeth / inchModule thread45kinds 0.5-60mmPitch thread25 kinds 1-56mmSpindle bore130mmSpindle front taperMetric 140Spindle speed steps and range forward21 kinds 2-200r/minReverse12 kinds 2.24-178 r/minMax.section of tool45×45mmToolpost longitudinal travel630mmUpper toolpost travel300mmToolpost rapid movement Longitudinal/Cross/Upper3470/1870/935mm/minCenter sleeve dia and travel160×300mmTailstock taperMT6Tailstock longitudinal movement±25Main motorY180L-4 22KWMain transsion V belt specification2143C 2235C 2540CCarriage rapid motorJC02-21-2-1.5KWCoolant pumpJCB-45 0.15KWCoolant pump flow45L/min4-jaw chuck1250/1400mmSteady rest50-600mmFollow rest50-220mm
About the supplier
Main products: Lathe,Miller,Press brake,Grinding machine,CNC Machining center,Drilling machine,Planing Machine/Slotting Machine,Drilling and Milling Machine,Milling Lathe
- ✓Exhibited at 10 of the last 10 Canton Fairs
- ✓Foreign Trade Company
- ✓Founded 2014
- ✓1 certificate on file
- Exhibited at 10 of the last 10 Canton Fairs
- Foreign Trade Company
- Founded 2014
- 1 certificate on file
