HDPE Geomembrane
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
HDPE Geomembrane
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
About this product
- Materials: HDPE/PVC
- Size: 25mm*25mm
- Color: Black, White
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
- Made in: Shandong, China
About this product
- Materials: HDPE/PVC
- Size: 25mm*25mm
- Color: Black, White
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
- Made in: Shandong, China
Product details
| Materials | HDPE/PVC |
|---|---|
| Size | 25mm*25mm |
| Color | Black, White |
From the supplier

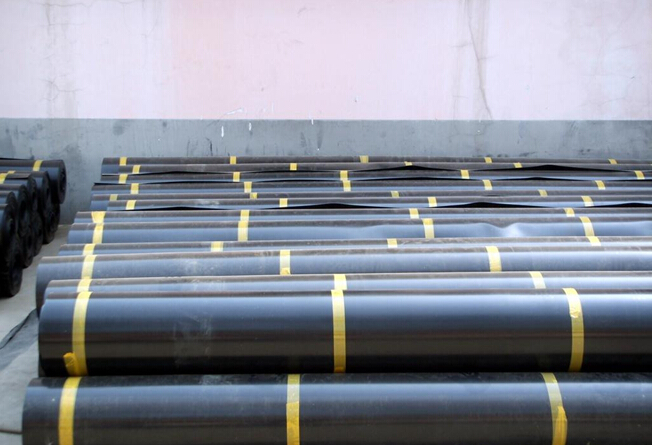

Smooth Geomembrane:
1. Description
CMAX smooth geomembrane is made from high grade polyethylene raw material, adding carbon black, antioxidant, anti-aging and UV-resistance component. It adopted the first class automatic production equipment and three-layer pressing technology. All products are in accordance with GB, GRI and ASTM test standard.
2. Specification
Thickness: 0.2mm – 3.0mm
Width: 2m – 12m
Color: Black, green, blue and white.
Material: HDPE, LDPE, LLDPE.
3. Technical Data Sheet
Item
Unit
Test Method
Index
Thickness
Mm
D5199
0.75
1.00
1.50
2.00
3.00
Density
g/cc
D1505/D792
0.94
Tensile Properties
Yield strength
KN/m
Type IV
11
15
22
29
44
Break strength
KN/m
20
27
40
53
80
Yield elongation
%
12
12
12
12
12
Break elongation
%
700
700
700
700
700
Tear Resistance
N
D1004
93
125
187
249
374
Puncture Resistance
N
D4833
240
320
480
640
960
Stress Crack Resistance
Hr.
D5397
300hr
Carbon Black Content
%
D4218
2.0~3.0%
Oxidative Induction Time
Standard OIT
Min
D3895
100min
High Pressure OIT
Min
D5885
400min
Oven aging 85℃ retained after 90 days
Standard OIT
%
D3895
50%
High Pressure OIT
%
D5885
80%
High Pressure OIT Retained after 1600hrs
%
D5885
50%
4. Property
1). Excellent environmental stress cracking resistance property.
2).Low temperature resistance, corrosion resistance, aging resistance.
3).For service temperature range: -60℃ - +60℃.
4).Service valid term: 60 years at least.
5. Application
1). Municipal environmental projects, water conservancy projects.
2).Landfill cap, mining heap leach pads.
3).Pond liner, canal linings, tank linings, raw water treatment reservoirs, retention ponds.
4).Waste water treatment lagoon, secondary containment.
Textured Geomembrane:
1.Description
CMAX single or double textured polyethylene geomembrane has a rough surface which improve the friction coefficient. It fits more suitable for steep slope and vertical engineering design work which maximize the effective volume of geomembrane. Compared with smooth liner, it has better UV and puncture resistance.
2.Specification
Thickness: 0.75mm – 3.0mm;
Width: 2m – 8m;
Color: black;
Material: HDPE, LDPE, LLDPE.
3.Technical Data Sheet
Item
Unit
Test Method
Index
Thickness
Mm
D5994
1.00
1.50
2.00
2.50
Asperity Height
Mm
D7466
0.25
Density
g/cc
D1505 D792
0.94
Tensile Properties
Yield strength
KN/m
D6693
Type IV
15
22
29
37
Break strength
KN/m
10
16
21
26
Yield elongation
%
12
12
12
12
Break elongation
%
100
100
100
100
Tear Resitance
N
D 1004
125
187
249
311
Puncture Resistance
N
D4833
267
400
534
667
Stress crack resistance
H
D5397 (App.)
300
Carbon Black Content
%
D 4218(3)
2.0 ~3.0%
Carbon black dispersion
-
D 5596
For 10 different views: 9 in categories, 1 or 2 and 1 in category 3
Oxidative induction time
Standard OIT
Min
D 3895
100
High Pressure OIT
min
D 5885
400
Oven aging 85℃ retained after 90 days
Standard OIT
%
D 3895
55%
High Pressure OIT
%
D 5885
80%
High Pressure OIT Retained after 1600hrs
-
D 5885
50%
- Property:
Anti-crack, dimensional stability, anti-aging, smooth appearance, high friction coefficient.
- Application
1).Municipal projects;
2).Landfill treatment projects;
3).Waste water treatment;
4). Mineral waterproofing.
