About this product
- Materials: METAL
- Size: 360*260*452mm
- Color: white
- Exports to: Mainland China, Africa, Southeast Asia, South Asia, USA and Canada, Latin America, Russia, EU
- Made in: Beijing, China
About this product
- Materials: METAL
- Size: 360*260*452mm
- Color: white
- Exports to: Mainland China, Africa, Southeast Asia, South Asia, USA and Canada, Latin America, Russia, EU
- Made in: Beijing, China
Product details
| Materials | METAL |
|---|---|
| Size | 360*260*452mm |
| Color | white |
Product details
| Materials | METAL |
|---|---|
| Size | 360*260*452mm |
| Color | white |
From the supplier

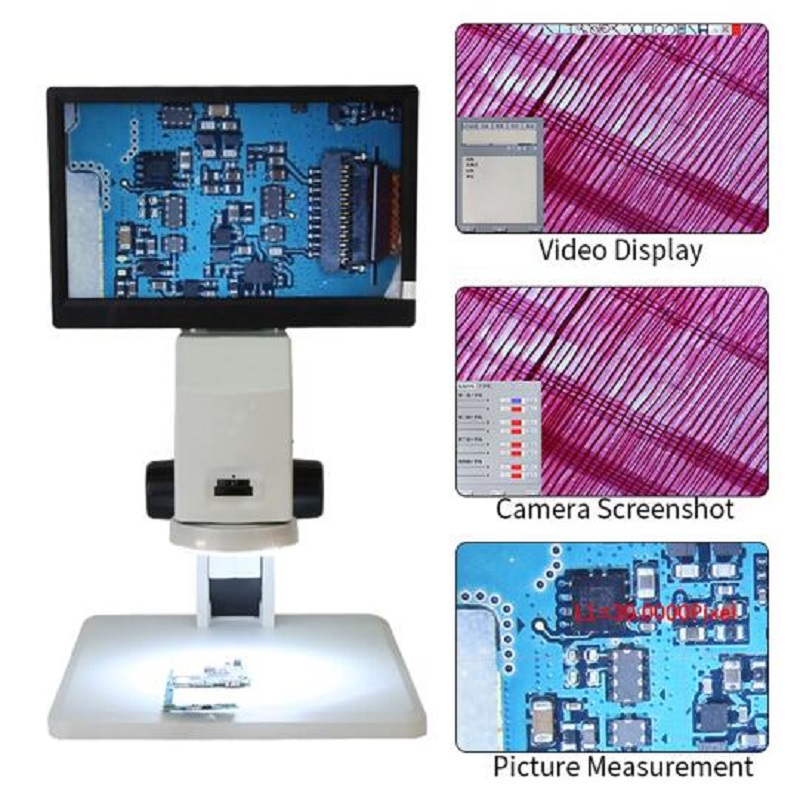

This is a new design and Exclusive digital video microscope. Its functions include Camera drawing, video display, graphic measurement, video recording, which is not only for mobile phone repair but also jewelry welding and more precision welding works. 12-78X magnification details will be display on 12 inch screen with 1080 HD resolution. Graphic measurement function of this microscope will help you solve more problems.
The HDV-10 is an intelligent digital microscope. Due to the many accessories it can be used in many areas. Among other things, it is also useful in the following fields: industry, life sciences, mineralogy, insect barn, botany, crime lab, education, etc. For its simplicity, its use is easy to learn.
Microscope:
Magnifications: 12X-78X(ZOOM) (optional magnifications: 9X-220X)
Built in 0.35X Video Coupler; 0.5X for options.
Standard 1X Objective Lens; 0.75X, 1.5X and 2X for options.
FOV: 23mm- 3mm; Max. 46mm for options
Working Distance: 100mm; Max.198 for options
Base Size: 260mm(X)*320mm(Y)
Height of the microscope: 480mm
Weight of the microscope: 5.5kgs
Camera:
2.0M HDMI, true color, no delay.
Max. Resolution: 1920*1080
Sensor: 1/2.86 inch SONY sensor
Pixel Size: 2.75*2.75μm
Frame Rate: 60fps@1920*1080
SNR: 65DB
LCD Display:
12 inch HD LCD display, 1080P, wide screen, multi angle adjustment.
Illumination:
High quality LED illumination, 144 LED bulbs.
Operation:
Wireless mouse or manual operation, image capture, U disk storage and
measurement.
From the supplier
This is a new design and Exclusive digital video microscope. Its functions include Camera drawing, video display, graphic measurement, video recording, which is not only for mobile phone repair but also jewelry welding and more precision welding works. 12-78X magnification details will be display on 12 inch screen with 1080 HD resolution. Graphic measurement function of this microscope will help you solve more problems.
The HDV-10 is an intelligent digital microscope. Due to the many accessories it can be used in many areas. Among other things, it is also useful in the following fields: industry, life sciences, mineralogy, insect barn, botany, crime lab, education, etc. For its simplicity, its use is easy to learn.
Microscope:
Magnifications: 12X-78X(ZOOM) (optional magnifications: 9X-220X)
Built in 0.35X Video Coupler; 0.5X for options.
Standard 1X Objective Lens; 0.75X, 1.5X and 2X for options.
FOV: 23mm- 3mm; Max. 46mm for options
Working Distance: 100mm; Max.198 for options
Base Size: 260mm(X)*320mm(Y)
Height of the microscope: 480mm
Weight of the microscope: 5.5kgs
Camera:
2.0M HDMI, true color, no delay.
Max. Resolution: 1920*1080
Sensor: 1/2.86 inch SONY sensor
Pixel Size: 2.75*2.75μm
Frame Rate: 60fps@1920*1080
SNR: 65DB
LCD Display:
12 inch HD LCD display, 1080P, wide screen, multi angle adjustment.
Illumination:
High quality LED illumination, 144 LED bulbs.
Operation:
Wireless mouse or manual operation, image capture, U disk storage and
measurement.
