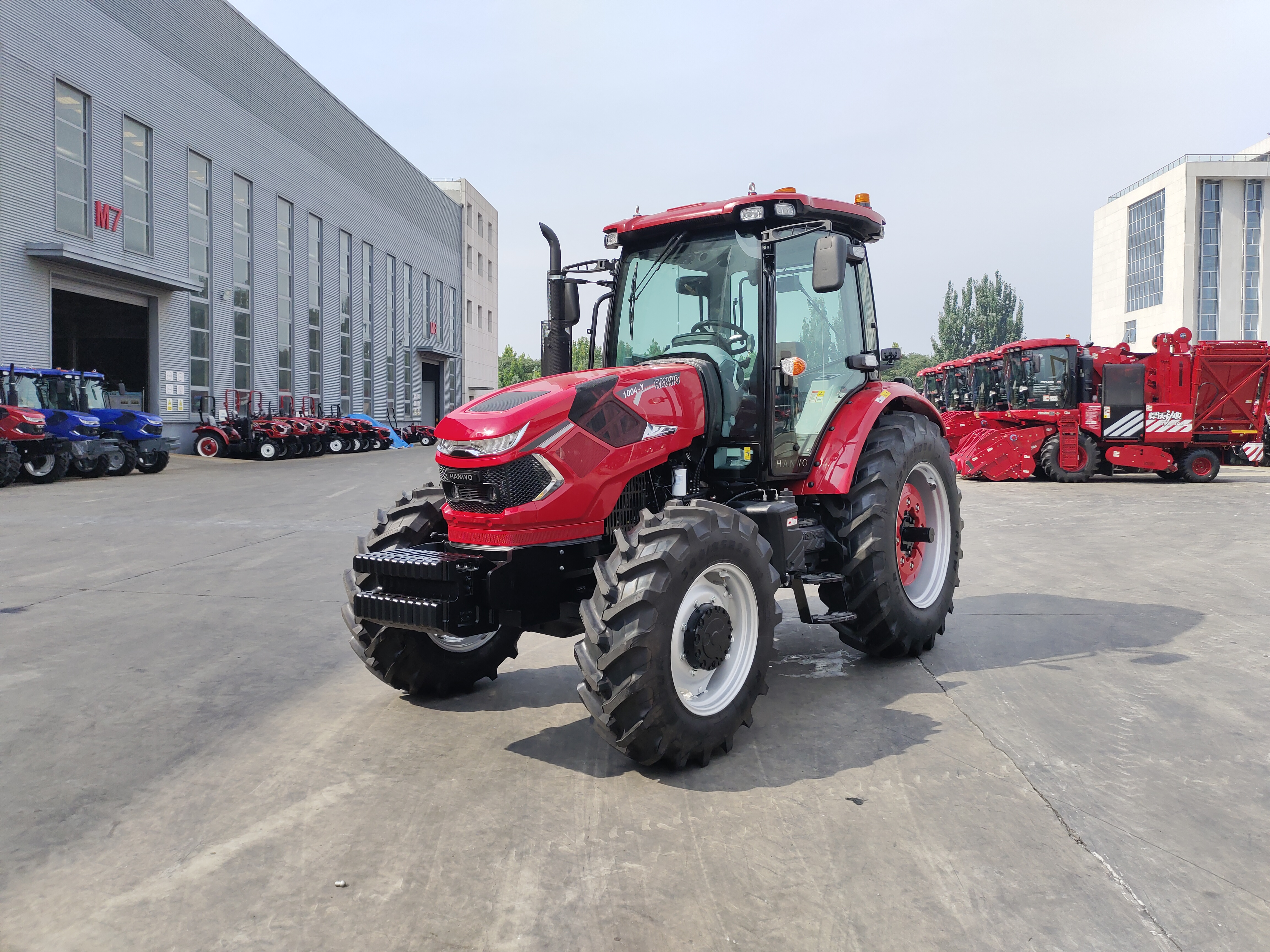

Hanwo HWY1004 Tractor
Shandong Hanwo Agricultural Equipment Co.,Ltd6/10 fairsManufacturerModel HWY1004
New for the 140th FairExhibiting on site
Price on request
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Free quotes from independent agents · supplier checks approx. $5–$100 · 100% refund if not satisfied
Hanwo HWY1004 Tractor
Shandong Hanwo Agricultural Equipment Co.,Ltd6/10 fairsManufacturerModel HWY1004
New for the 140th FairExhibiting on site
Price on request
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Free quotes from independent agents · supplier checks approx. $5–$100 · 100% refund if not satisfied
About this product
- Size: 4400*2100*2940mm
- Color: Red
- Certification: ISO
- Drive wheel: 4WD
- Usage: Farm Tractor
- Size: Medium
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, Latin America, Russia, EU, Other European Countries, Hong Kong China, Macao China and Taiwan China
- Made in: Shandong, China
About this product
- Size: 4400*2100*2940mm
- Color: Red
- Certification: ISO
- Drive wheel: 4WD
- Usage: Farm Tractor
- Size: Medium
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, Latin America, Russia, EU, Other European Countries, Hong Kong China, Macao China and Taiwan China
- Made in: Shandong, China
Product details
| Size | 4400*2100*2940mm |
|---|---|
| Color | Red |
| Certification | ISO |
| Drive wheel | 4WD |
| Usage | Farm Tractor |
| Size | Medium |
| Color | RedBlue |
| Fuel | Gas / Diesel |
| Emission standard | Other |
| Service life | 1-3 Years |
Product details
| Size | 4400*2100*2940mm |
|---|---|
| Color | Red |
| Certification | ISO |
| Drive wheel | 4WD |
| Usage | Farm Tractor |
| Size | Medium |
| Color | RedBlue |
| Fuel | Gas / Diesel |
| Emission standard | Other |
| Service life | 1-3 Years |
From the supplier
804
904
1004
Power system
Engine Model
Yuchai
Emission standard
Stage Ⅱ / Stage Ⅲ/ MAR-1
Rated power (KW)
58.8
66.2
73.5
Rated rotating speed (r/min)
2200
2400
2400
Maximum Torque (N·m)
365
380
420
Displacement (L)
3.9
3.9
3.9
Air intake way
Turbo Intercooled
Fuel tank capacity (L)
155 (Double fuel tank)
Transmission system
Drive type
4WD
Clutch type
Dry-friction, Dual stage
Gearbox shift mode/Gear quantity
Shuttle Shift, Synchronizer shift 12F+12R,Optional 16F+8R/ Power Shuttle16F+16R
Speed range
Forward (km/h)
1.95-34.13
1.95-34.13
1.95-34.13
Reverse (km/h)
1.71-29.92
1.71-29.92
1.71-29.92
Final transmission
Planetary gear
Differential lock
Mechanical
Brake type
Disc brake
Parking brake
Mechanical
Hydraulic system
Hydraulic output flow (L/min)
50
55
Number of rear control vavles
2-3 groups
Lift control mode
High pressure/Electric control
Lifting capacity（KN）
22.9
Working device
Rear hitch
Hitch category II
PTO type
540/1000
Number of PTO gears
6
Standard tires
Front tire/Rear tire
12.4-24/16.9-34
Optional tires
12.4-24/18.4-30
340/85R24 420/85R34
320/70R24 480/70R34 Machine body Safety Roll Over Protection System √ Cab Cab with heater √ Cab with A/C √ Overall dimensions Length×Width×Height (mm) 4400×2100×2845 (ROPS) 4400×2100×2940 (Cab) Wheel base 2330 Track (mm) Front wheels 1700 Rear wheels 1300-2200 Ground clearance (mm) Min. ground clearance 420 (The bottom of front axle ) Turning Radius (m) With side braking 4.5±0.3 Without side braking 5.3±0.3 Weight (kg) Structure weight 3700 / 3900(Cab) Service weight 3920 / 4220(Cab) Counterweight (kg) Front counterweight 275 Rear counterweight 120
340/85R24 420/85R34
320/70R24 480/70R34 Machine body Safety Roll Over Protection System √ Cab Cab with heater √ Cab with A/C √ Overall dimensions Length×Width×Height (mm) 4400×2100×2845 (ROPS) 4400×2100×2940 (Cab) Wheel base 2330 Track (mm) Front wheels 1700 Rear wheels 1300-2200 Ground clearance (mm) Min. ground clearance 420 (The bottom of front axle ) Turning Radius (m) With side braking 4.5±0.3 Without side braking 5.3±0.3 Weight (kg) Structure weight 3700 / 3900(Cab) Service weight 3920 / 4220(Cab) Counterweight (kg) Front counterweight 275 Rear counterweight 120
