• Feature：

•

  • Cold cutting: no spark， no big heat
  • Environmentally friendly: no debris when cutting process
  • use for the already installed pipe fittings.
  • Squeezing cutting with better working performance
  • Cutting blade is interchangeable with Reed.
•

• Perfect pipe cold cutter for machinery operations where cold cutting methods are often required
  • Improved the working efficiency of the operator
  • Quiet construction environment (below 60 db)
  • Eco-friendly, no spark and dust when cutting operation
  • Minimal cutter rotation (90-110 degree) as necessary for tight quarters.
  • Extremely low weight of the Manual pipe cutter for easy handling and lifting
  • High quality ductile iron seat frame is safe and durable
  • Quick and safe clamping and adjustment
  • Perfect pipe cold cutter for machinery operations where cold cutting methods are often required
  •


• Specification

   For Cast Iron PipeFor Cast Iron PipeFor Stainless Steel PipeCatalog
NumberSuitable Item
ModelType of
ModelPipe Size
(inch)Wall Thickness
(mm)Pipe Size
(inch)Wall Thickness
(mm)Pipe Size
(inch)Wall Thickness
(mm)311205H2SHinged1"-2 1/2"2.77—5.151"-2 1/2"2.77—5.151"-2 1/2"2.77—5.15311201H4SHinged2"-4"2.77—6.022"-4"3—62"-4"3—6311202H6SHinged4"-6"3—7.114"-6"3—64"-6"3—6311203H8SHinged6"-8"3.4—8.186"-8"3.4—66"-8"3.4—6

Ordering Information

Catalog No.Model NoDescriptioncapacityN.WG.WPacking(cm)Package311205H2SHiinged pipe cutter1"-2 1/2"3.3 kgs3.5 kgs46.5*17*7.51 pcs/carton311201H4SHinged pipe cutter2"-4"7.0 kgs6.5 kgs60.5*23*101 pcs/carton311202H6SHinged pipe cutter4"-6"9.0 kgs10.0 kgs75*32*111 pcs/carton311203H8SHinged pipe cutter6"-8"12.0 kgs12.5 kgs85*40*121 pcs/carton

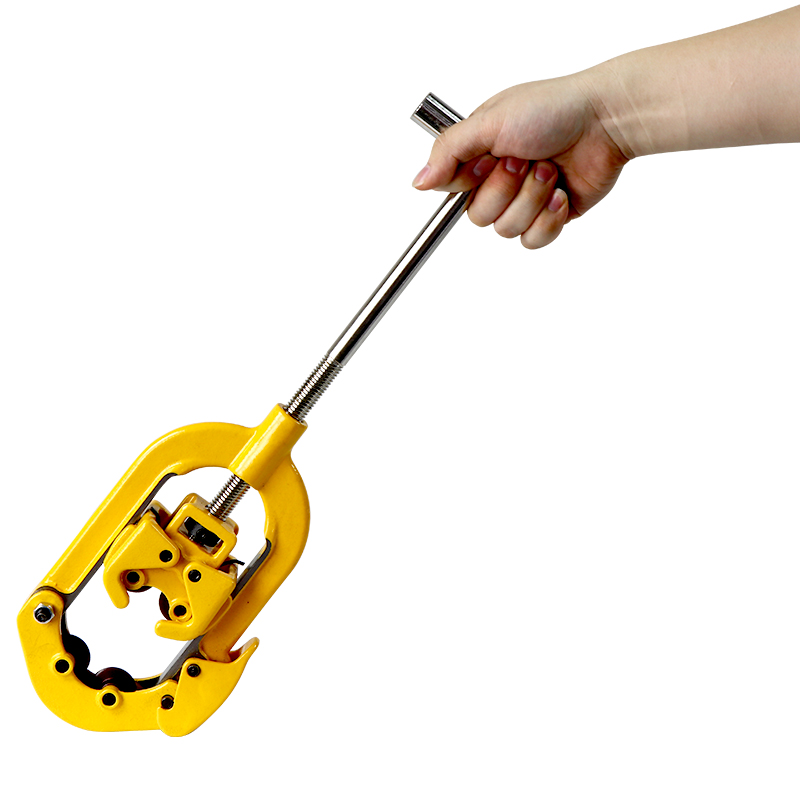

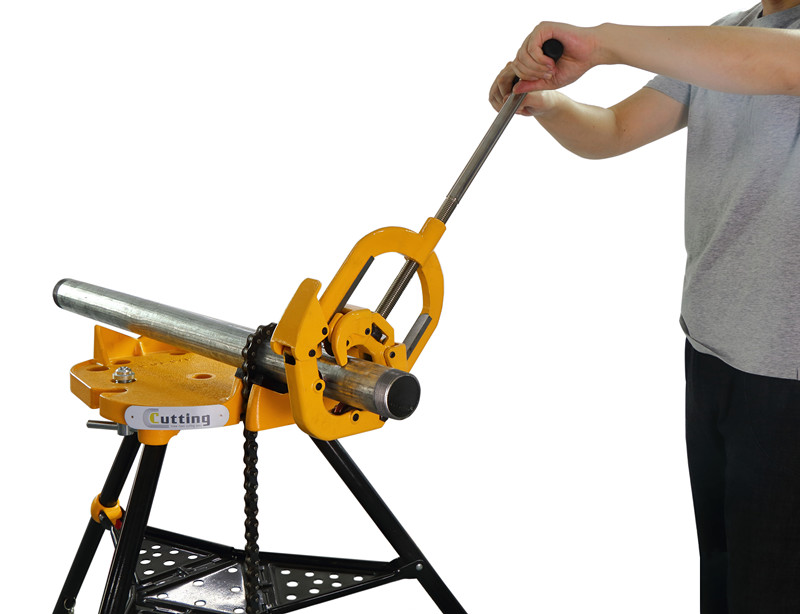

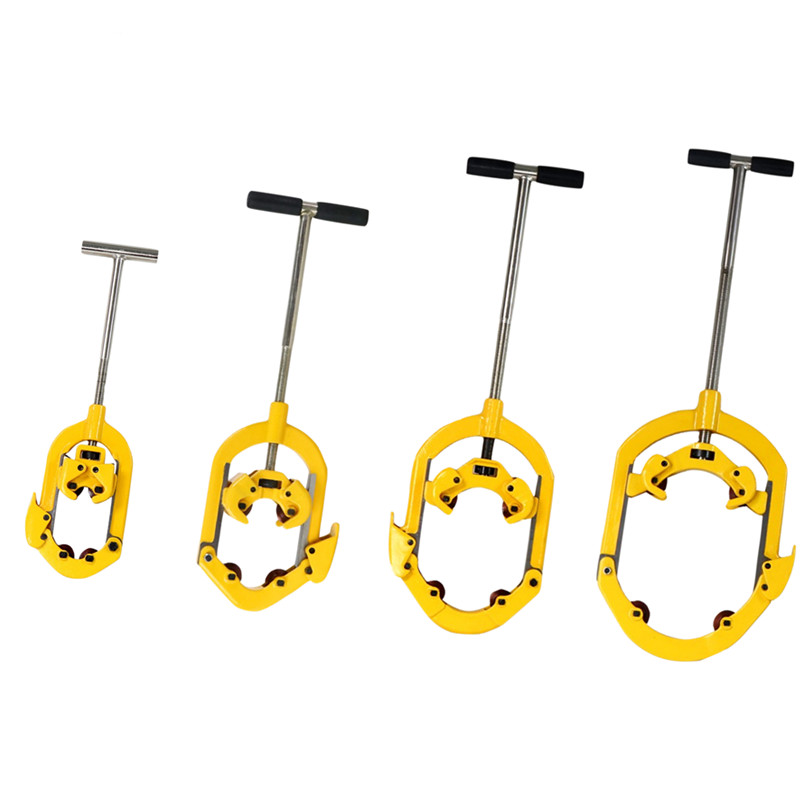

Product Display
