GT support custom NTJZ-1T three-pulley tension sensor customized non-standard Sliding wire rope tension test
SUMEC INTERNATIONAL TECHNOLOGY CO.,LTD
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
GT support custom NTJZ-1T three-pulley tension sensor customized non-standard Sliding wire rope tension test
SUMEC INTERNATIONAL TECHNOLOGY CO.,LTDThe supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
About this product
- Theory: Other
- Measured substance: Other
- Operation form: Other
- Composition: Other
- Brand: Other
- Usage: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Nanjing, Jiangsu, China
About this product
- Theory: Other
- Measured substance: Other
- Operation form: Other
- Composition: Other
- Brand: Other
- Usage: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Nanjing, Jiangsu, China
Product details
| Theory | Other |
|---|---|
| Measured substance | Other |
| Operation form | Other |
| Composition | Other |
| Brand | Other |
| Usage | Other |
| Output | Other |
| Production process | Other |
| Material | Other |
Product details
| Theory | Other |
|---|---|
| Measured substance | Other |
| Operation form | Other |
| Composition | Other |
| Brand | Other |
| Usage | Other |
| Output | Other |
| Production process | Other |
| Material | Other |
From the supplier

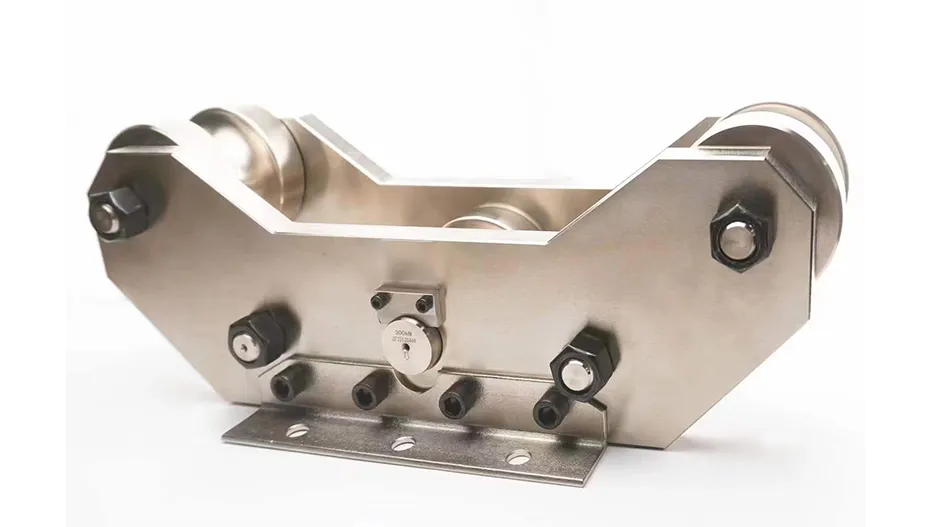

NTJZ-1T three-pulley tension sensor customized non-standard, quote according to the picture. The three-pulley tension sensor is actually an upgraded version of the pin-type sensor. The three-pulley sensor actually uses its mechanical structure to fix the axle pin sensor on the middle pulley, and uses this mechanical structure to measure the tension of the dynamic wire rope. The three-pulley tension sensor is non-standard customized. We welcome inquiry with drawings or samples for inquiry. We support personalized needs such as neutral packaging, brand labeling, and laser marking. For technical issues, please consult Wang Gong =1737-22+55-369.
technical parameters
Rated load: Support customization, such as tension of 100kN, 400kN, etc.
Comprehensive accuracy: 1% F.S. See drawings for details
Wire rope diameter: customized according to customer requirements
Sensitivity: 1.0~2.0mV/V
Operating temperature: -20℃~+65℃
Safety overload: 120% F·S
Bridge voltage: 10V DC recommended
Material: alloy steel or stainless steel, support customization
Sensor wiring method: input +: red input-: black output +: green output-: white
Our company mainly produces and sells:Load cells, weighing modules, tension sensors, pin-type sensors, oilfield load sensors, electric ice coating detection sensors, static torque sensors, side pressure type tension sensors, bearing housing type load sensors, chip type micro strain sensors. It also provides transmitters, junction boxes, weighing meters, digital modules, wireless transceivers, high-speed collectors and other supporting measurement and control instruments, as well as semiconductor strain gauges.
From the supplier
NTJZ-1T three-pulley tension sensor customized non-standard, quote according to the picture. The three-pulley tension sensor is actually an upgraded version of the pin-type sensor. The three-pulley sensor actually uses its mechanical structure to fix the axle pin sensor on the middle pulley, and uses this mechanical structure to measure the tension of the dynamic wire rope. The three-pulley tension sensor is non-standard customized. We welcome inquiry with drawings or samples for inquiry. We support personalized needs such as neutral packaging, brand labeling, and laser marking. For technical issues, please consult Wang Gong =1737-22+55-369.
technical parameters
Rated load: Support customization, such as tension of 100kN, 400kN, etc.
Comprehensive accuracy: 1% F.S. See drawings for details
Wire rope diameter: customized according to customer requirements
Sensitivity: 1.0~2.0mV/V
Operating temperature: -20℃~+65℃
Safety overload: 120% F·S
Bridge voltage: 10V DC recommended
Material: alloy steel or stainless steel, support customization
Sensor wiring method: input +: red input-: black output +: green output-: white
Our company mainly produces and sells:Load cells, weighing modules, tension sensors, pin-type sensors, oilfield load sensors, electric ice coating detection sensors, static torque sensors, side pressure type tension sensors, bearing housing type load sensors, chip type micro strain sensors. It also provides transmitters, junction boxes, weighing meters, digital modules, wireless transceivers, high-speed collectors and other supporting measurement and control instruments, as well as semiconductor strain gauges.
