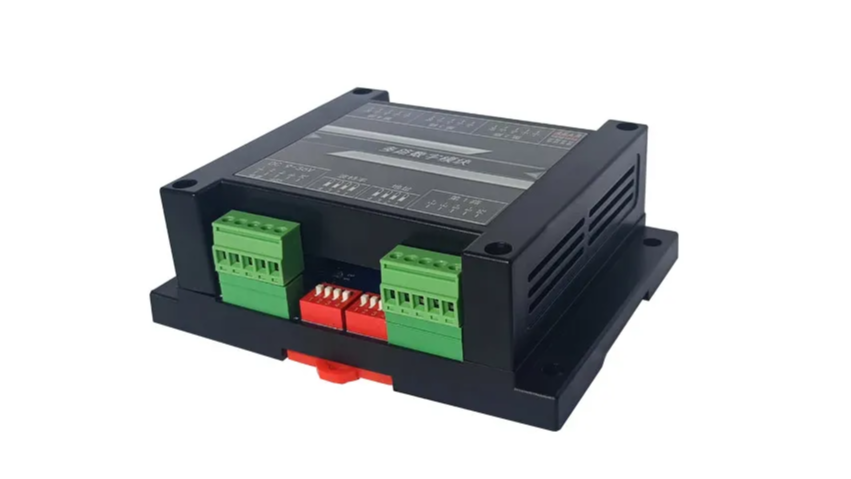

SZMK-4 Multi-channel Digital Module, the mV signal of the sensor can be converted into an RS485 signal. It can be connected to four sensors, and the four sensors can be calibrated separately, that is, it can measure the component and the combined quantity.
1. Basic technical specifications
1. Power supply: 9-36V DC
2. Accuracy level: ≤0.05%
3. Nonlinear correction: 9 nonlinear correction sections are optional
4. Communication protocol: Modbus RTU communication protocol
5. Display accuracy: 1/100,000
6. ADC sampling rate: selectable 10Hz, 40Hz, 640Hz, 1.28kHz
7. EMC performance: Pass the national standard four-level EMC pulse and surge
8. Working temperature: -10℃~50℃
9. Suitable for all resistive strain gauge sensors, 1-4 channels can be selected, * 4 multiple adaptors
350Ω sensor
10. Input signal range: 0-30mV
11. The baud rate and address can be set by dialing the code switch
2. Communication interface
1. Communication method: RS485
2. Communication protocol: standard Modbus RTU protocol
3. Baud rate: 9600bps, 19200bps, 28800bps, 38400bps, 57600bps,
115200bps
4. Verification method: even verification
5. Slave machine dialing code address: 0-15
Note: The default baud rate at the factory is 9600, even check, and address 0
III. Installation outline size
1.Outline size drawing: 115*90* 40mm
2. Installation method: fixed installation in mounting holes or rail installation
