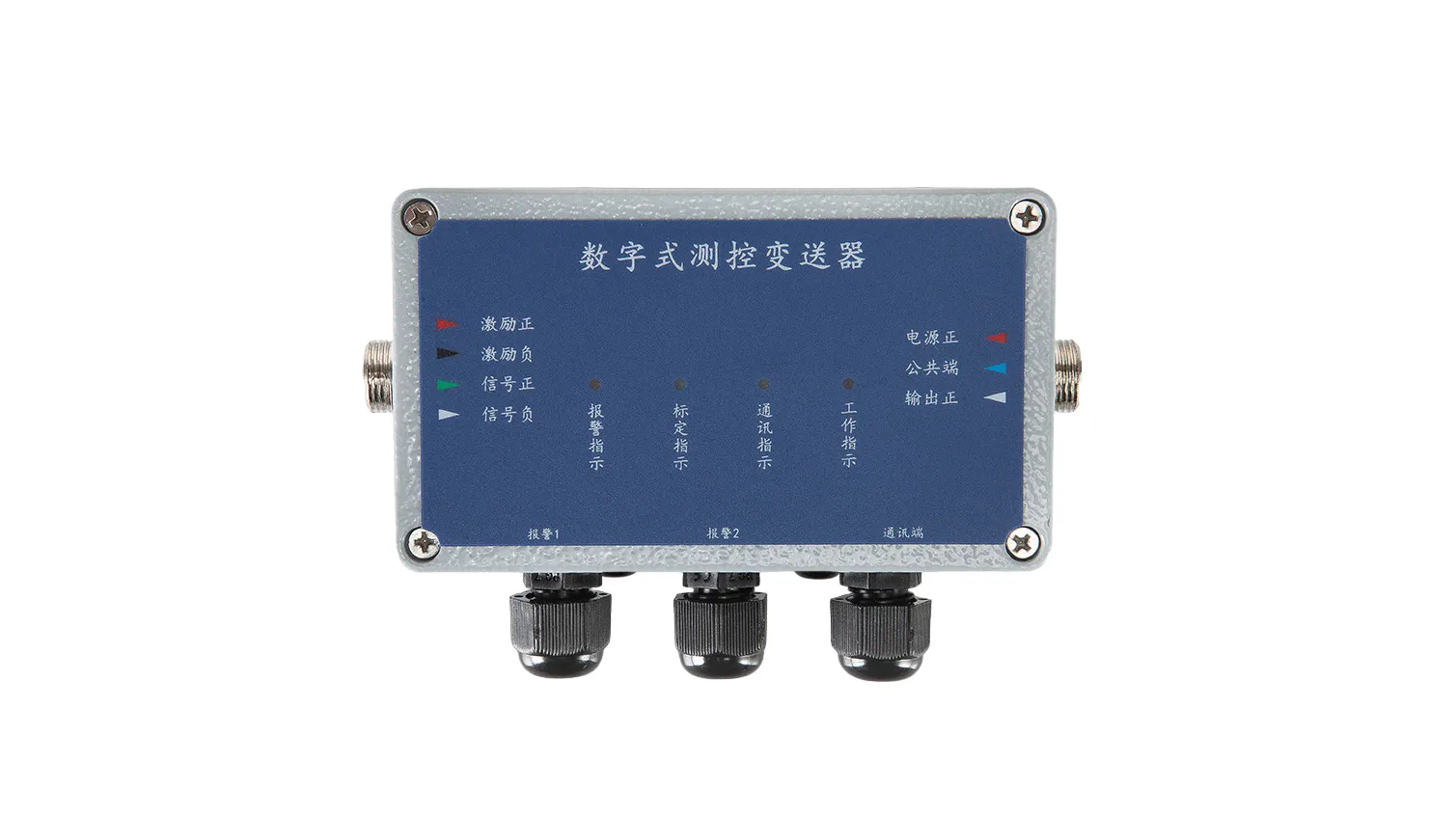

TB3S Digital Measurement and Control Transmitter , also known as sensor amplifier, sensor transmitter, weighing transmitter. The TB3S digital measurement and control transmitter is suitable for analog sensors. It is a wired single-channel transmitter. Its product characteristics are as follows:
1. Adopt precision die-cast aluminum shell and surface spray treatment
2. Suitable for use in occasions with high accuracy levels and poor environments
3. Sampling frequency: 10Hz
4. Have RS232 or RS485 communication function
5. Two relay outputs (both normally open and normally closed are provided)
6. Use buzzers and light emitting diodes to achieve audible alarms and light prompts
7. Adopt anti-interference power supply design technology
8. Voltage analog output has short circuit protection function
9. Use terminal and aviation socket for wiring, and the shell has installation holes
10. Use two buttons for output adjustment, no analog adjustment components such as potentiometers
11. Optional software for calibration and alarm setting
technical parameters
Rated input: 0~100mV
Rated output: V1: 0~5V V2: 0~ 10V (power supply 15~ 36V DC) V5: 1~5V A1: 4~ 20mA A2: 0~ 20mA A3: 4~12~ 20mA S1: RS232 S2: RS485
Accuracy: ≤±0.05%F.S
Power supply voltage: 12~36V DC
Working temperature: -20℃~70℃
Protection level: IP65
size: 110*64* 37mm
Our company mainly develops, produces and sells:Load cells, power ice coating detection sensors, torque sensors, tension sensors, axle pin sensors, pressure sensors, tension pressure sensors and supporting measurement and control instruments and other products. Sensors support non-standard customization. Welcome to inquire with drawings or send samples for inquiry. Support personalized needs such as neutral packaging, brand labeling, and laser marking.
