GT,Customization of axle pin weight sensor,Electronic equipment & Instruments
SUMEC INTERNATIONAL TECHNOLOGY CO.,LTD
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
GT,Customization of axle pin weight sensor,Electronic equipment & Instruments
SUMEC INTERNATIONAL TECHNOLOGY CO.,LTDThe supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
About this product
- Size: ·
- Color: ·
- Operation form: Other
- Brand: Other
- Output: Other
- Measured substance: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
About this product
- Size: ·
- Color: ·
- Operation form: Other
- Brand: Other
- Output: Other
- Measured substance: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
Product details
| Size | · |
|---|---|
| Color | · |
| Operation form | Other |
| Brand | Other |
| Output | Other |
| Measured substance | Other |
| Theory | Other |
| Usage | Other |
| Production process | Other |
| Material | Other |
| Composition | Other |
Product details
| Size | · |
|---|---|
| Color | · |
| Operation form | Other |
| Brand | Other |
| Output | Other |
| Measured substance | Other |
| Theory | Other |
| Usage | Other |
| Production process | Other |
| Material | Other |
| Composition | Other |
From the supplier

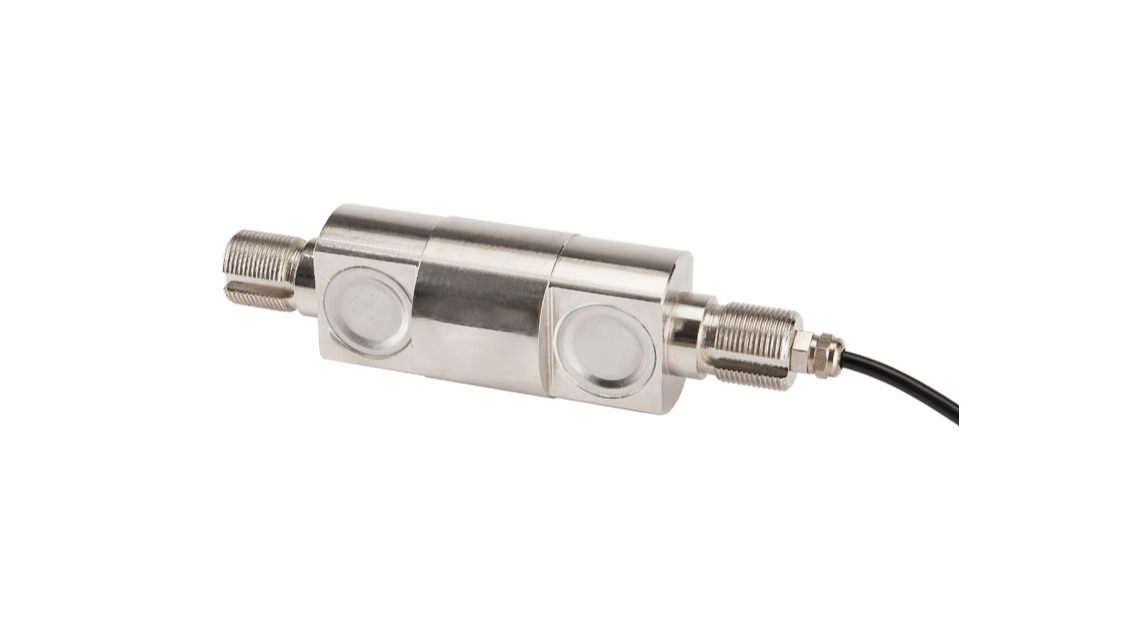

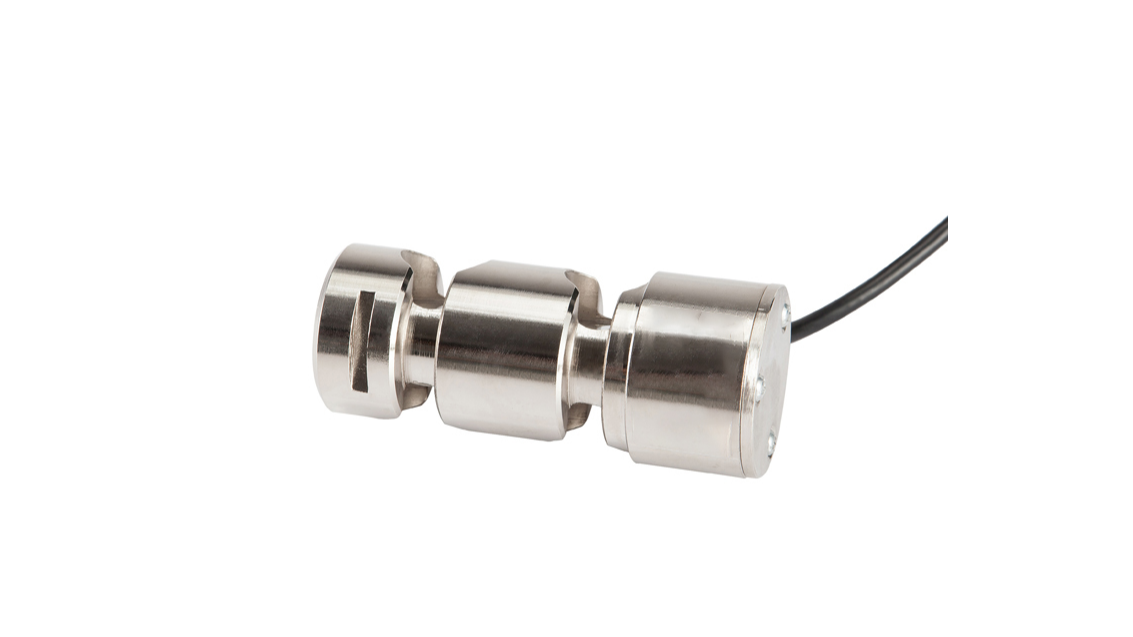

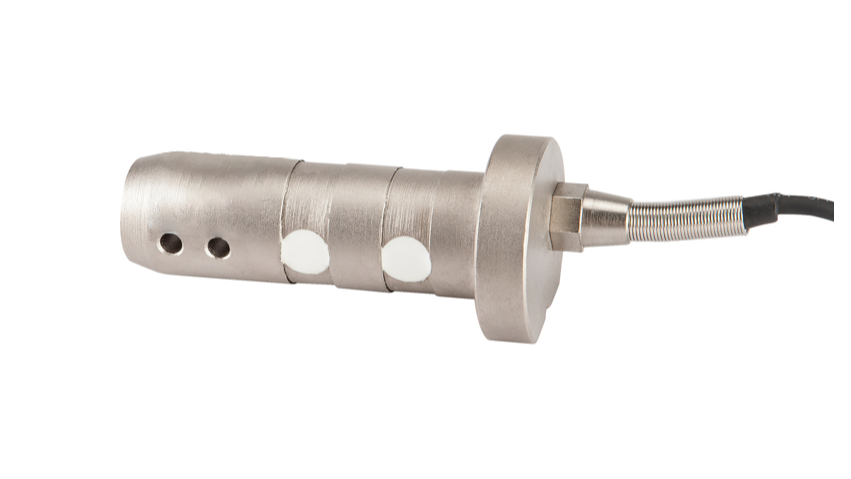

Non-standard customization of axle pin load cell, quote according to the drawings, welcome to inquire with drawings or send samples for inquiry, and support personalized needs such as neutral packaging, brand labeling, and laser marking. Axle pin sensors, also known as axle pin load sensors, axle pin weight sensors, axle pin load sensors, and axle pin tension sensors, can be designed according to user requirements. It is suitable for cargo measurement in ports and docks and safety testing of hoists and lifting equipment. You can choose from built-in amplifier with 4~20mA or 0~5V output.
technical parameters
Rated load: 5~10000(kN)
Comprehensive accuracy: 0.5~ 1% F. S
Sensitivity: 1.0~2.0mV/V
Creep: ± 0.05% F·S/30min
Zero output: ± 1% F·S
Effect of zero temperature: ± 0.05% F·S/10℃
Output temperature influence: ± 0.05% F·S/10℃
Working temperature: -20℃~+65℃
Input impedance: 380±30Ω or 750±50Ω
Output impedance: 350±3Ω or 700±5Ω
Insulation resistance: 5000 MΩ
Safety overload: 150% F·S
Bridge voltage: 10V DC recommended
Material: Alloy steel or stainless steel
Sensor wiring method: input +: red input-: black output +: green output-: white
