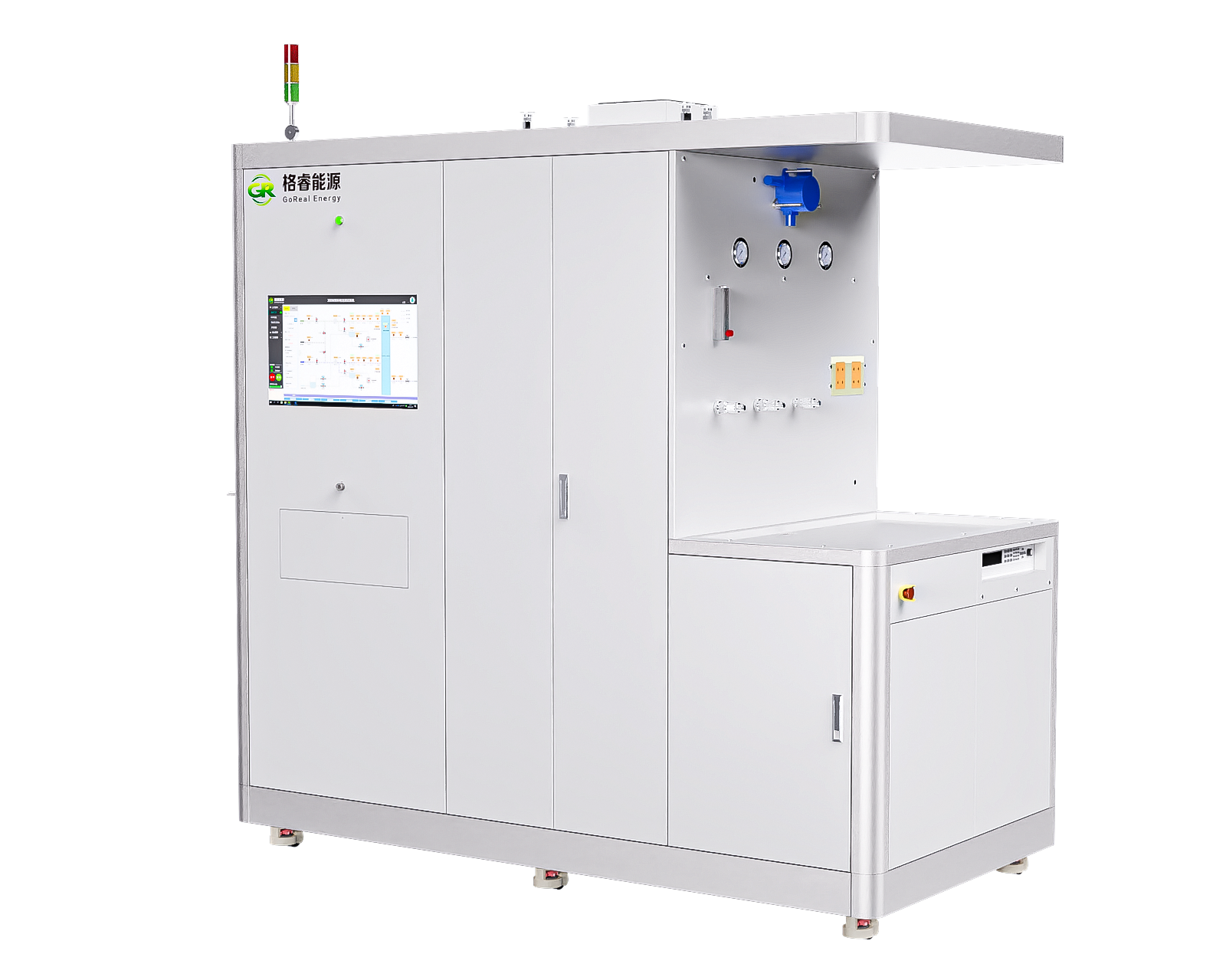

GoReal 5kW PEM electrolyzer test bench
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
GoReal 5kW PEM electrolyzer test bench
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
About this product
- Materials: See figure
- Size: See Image
- Color: See figure
- IP rating: Other
- Customized: Non-CustomizedCustomizedOther
- Material: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
About this product
- Materials: See figure
- Size: See Image
- Color: See figure
- IP rating: Other
- Customized: Non-CustomizedCustomizedOther
- Material: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
Product details
| Materials | See figure |
|---|---|
| Size | See Image |
| Color | See figure |
| IP rating | Other |
| Customized | Non-CustomizedCustomizedOther |
| Material | Other |
| Usage | OtherIndustrial |
| Display method | IndicatorDigitalOther |
| Waterproof | WaterproofOther |
| Certification | Other |
From the supplier
**Product Overview**

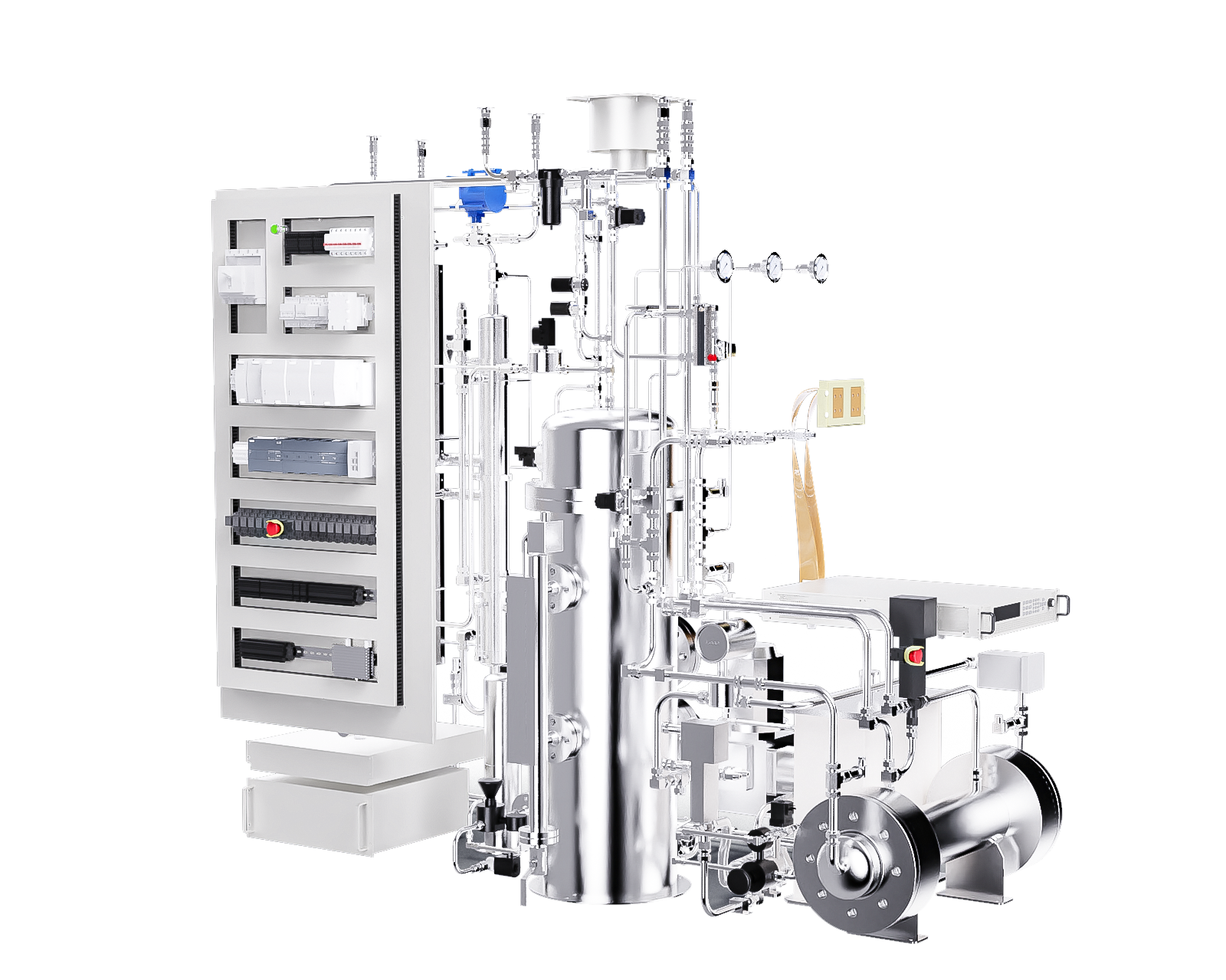

The GR-WETS-PEM-S5K series of electrolysis cell testing equipment is designed to provide a precise and reliable testing platform for electrolysis cells. Based on the performance of existing products in the industry, this testing equipment has undergone numerous upgrades, improvements, and optimized designs. The test bench consists of a deionized water circulation system, nitrogen purging unit, gas-water separation unit, gas analysis pre-treatment unit, PLC acquisition and control unit, human-machine operation unit, and safety monitoring unit. It employs the company's proprietary system testing software and can meet the testing requirements for polarization curves, single-cell consistency, hydrogen production energy efficiency, hydrogen quality, and product lifespan of electrolysis cells.
**Product Features**
- Aesthetically designed with a full range of functional interfaces for easy operation.
- Equipped with multi-stage automatic safety protection operations.
- Features an efficient gas-water separator design.
- Includes nitrogen purging for the hydrogen/oxygen sides, online monitoring of pipeline gas concentration, automatic water replenishment, and coolant flow adjustment functions, offering flexible and convenient system testing.
- The power supply has multiple operating modes such as CC, CV, and CP, as well as OCP, OVP, and OPP protection functions.
- Single-cell voltage monitoring and abnormal protection measures.
- Equipped with powerful monitoring software for convenient standardized operation and real-time monitoring, with simple and convenient operation.
- Strong data recording and analysis capabilities for easy post-processing of data.
- Automatic condition testing function allows for long-term unattended operation.
**Product Functions**
- Anode inlet water temperature control
- Anode water flow control
- Anode outlet temperature measurement
- Automatic backpressure on the cathode (hydrogen side)
- Hydrogen production measurement on the cathode side
- Online switching detection of hydrogen concentration in oxygen
- Online switching detection of hydrogen gas flow
