About this product
- Size: φ160*120.5*96φmm
- Color: golden
- Electric current type: AC
- Application: KitchenOther
- Certification: CCCCERoHSCB
- Material: Other
- Exports to: Middle East, Southeast Asia, South Asia, Central Asia, Latin America, Russia, EU, Other European Countries
About this product
- Size: φ160*120.5*96φmm
- Color: golden
- Electric current type: AC
- Application: KitchenOther
- Certification: CCCCERoHSCB
- Material: Other
- Exports to: Middle East, Southeast Asia, South Asia, Central Asia, Latin America, Russia, EU, Other European Countries
Product details
| Size | φ160*120.5*96φmm |
|---|---|
| Color | golden |
| Electric current type | AC |
| Application | KitchenOther |
| Certification | CCCCERoHSCB |
| Material | Other |
| Mounting | WallFan |
From the supplier
Product Features
- The fan is suitable for wall / window / ceiling mounting.
- Shutter, ring are optional, ring is needed for window mounting.
- Easy installation
- Shaded pole motor with thermo cut-off

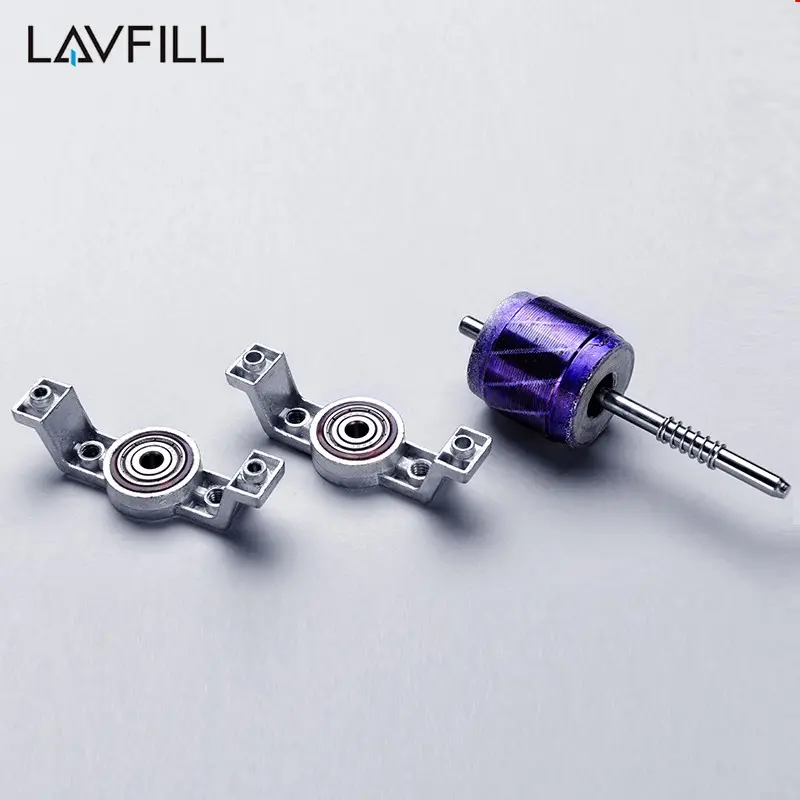

- Ball bearing motor to reduce friction for long life operation
- Modern and functional design
- Front louver for safety protection
- Safety design based on IEC requirements
- Approved by SAA TUV SASO CE RoHS
- More functions
+ With humidity sensor adjustable humidity range 60%-90%, the humidity level from 60%-90% can be shown by four LED indicators, adjustable time range 0 -30 mins, the original factory setting is 60%, 1min.
+ With timer adjustable time range 0 -30 mins, the delay time 30s-30mins can be shown by five LED indicators, the original factory setting is 1 mins.
+ With motion sensor sensing range of 0.5m ≤ D ≤8m, angle 180°*360° delay timer adjustable time range 1 -30 mins
Specification
Installation Dimension
Unit: mm
Article No. A B C DLFWW-09X-4G
φ160 32 88.5 φ96LFWW-09XT-4G
LFWW-09XH-4G
LFWW-13X-4G
φ210 32 97.5 φ145LFWW-13XT-4G
LFWW-13XH-4G
Technical Parameter
Article No. Category Rated Voltage/Frequency Power Air Volume NoiseLFWW-09X-4G
Wall/Window Type Extractor Fan110V~,/60Hz 127V~,60Hz 220V~,50Hz 220V~,60Hz 220V~,50/60Hz 220-240V~,50Hz
12W
95m³/h
34dB
LFWW-09XT-4G
LFWW-09XH-4G
LFWW-13X-4G
18W 240m³/h 35dBLFWW-13XT-4G
LFWW-13XH-4G
Note:
T - With Timer
H - With Humidity Sensor
-4G- Gold Painted Panel
Exploded View
