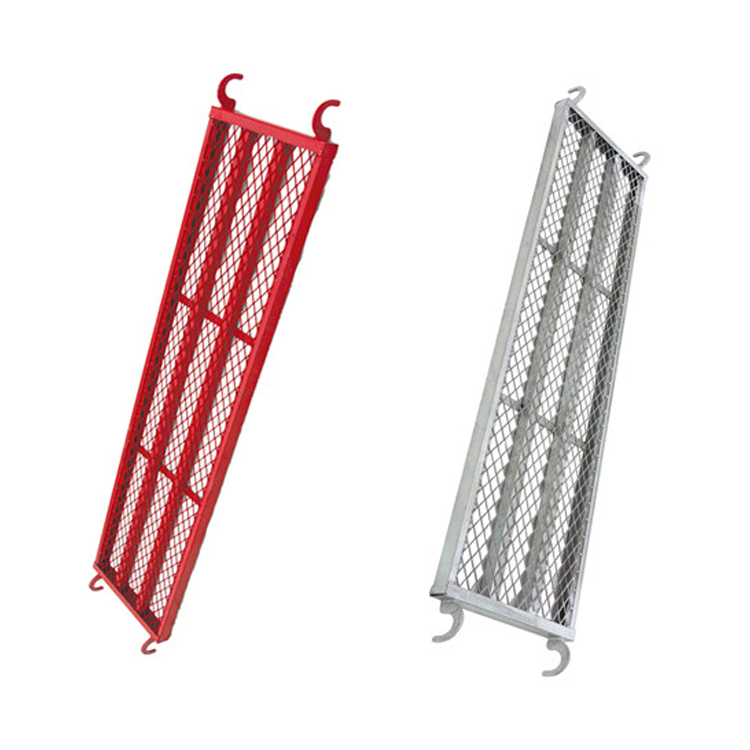

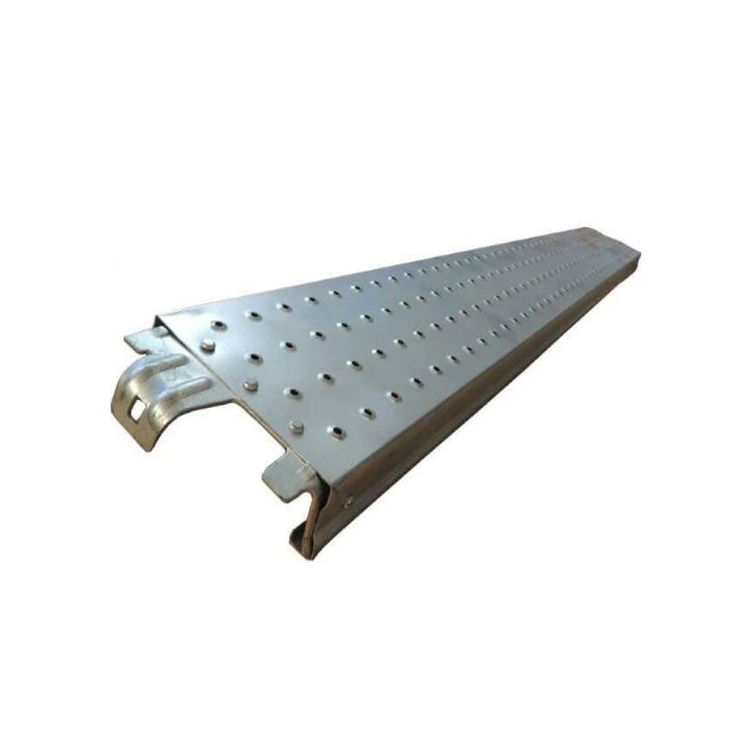

Galvanized steel plank with hook is commonly used in construction as a tool to ensure workers' safety. There are many materials for scaffolding boards, but the steel scaffold board is now used more, market acceptance, good safety tool.

Specification

Width: 210mm, 240mm, 250mm, 300mm, 400mm, 420mm, 450mm, 480mm, 500mm

Length: common is 1829mm, can be customized

Height: 45mm, 50mm

Thickness: 1.0 ~ 3.0mm

Diameter of hook: Φ43mm, Φ50mm

Grade: Q195

Material: galvanized steel sheet

Zinc coating: above 40g/m2

Type: plate rib, square rib, trapezoidal rib

Product Features

1. The special protruding hole design of galvanized steel plank with hook can not only reduce the dead weight, but also prevent slip and deformation. Both sides of the zigzag design increase fastness and strength, prevent sand accumulation, make its appearance more beautiful and durable.

2. The unique shape design of the galvanized steel plank makes it easier to tie up and lift the device, which can be stacked neatly in idle time.

3. Strong carrying capacity; The design of plate rib, square rib and trapezoidal rib improves the supporting force of scaffolding board in turn; 500mm distance between two ribs, effectively improve the deformation resistance of the scaffolding board.

4. Hole spacing neat, molding standard, elegant shape, durable.

5. The special sand-leak hole process at the bottom plays a role in preventing sand accumulation, especially suitable for the application of painting sand blasting workshop in the shipyard

Our Service

1. Get a reliable and trustworthy Chinese supplier.

2. Provide you with the most competitive factory prices to ensure your interests.

3. You will get a free guide and recommend to you the most suitable product or specifications for your project based on our experience.

4. Almost any wire mesh product needs can be met you.

5. You can also distribute any of our products, we will fully support to help you develop the local market.
