About this product
- Materials: Steel
- Size: 15500x1400x1300mm
- Color: Customized
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Liaoning, China
About this product
- Materials: Steel
- Size: 15500x1400x1300mm
- Color: Customized
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Liaoning, China
Product details
| Materials | Steel |
|---|---|
| Size | 15500x1400x1300mm |
| Color | Customized |
From the supplier

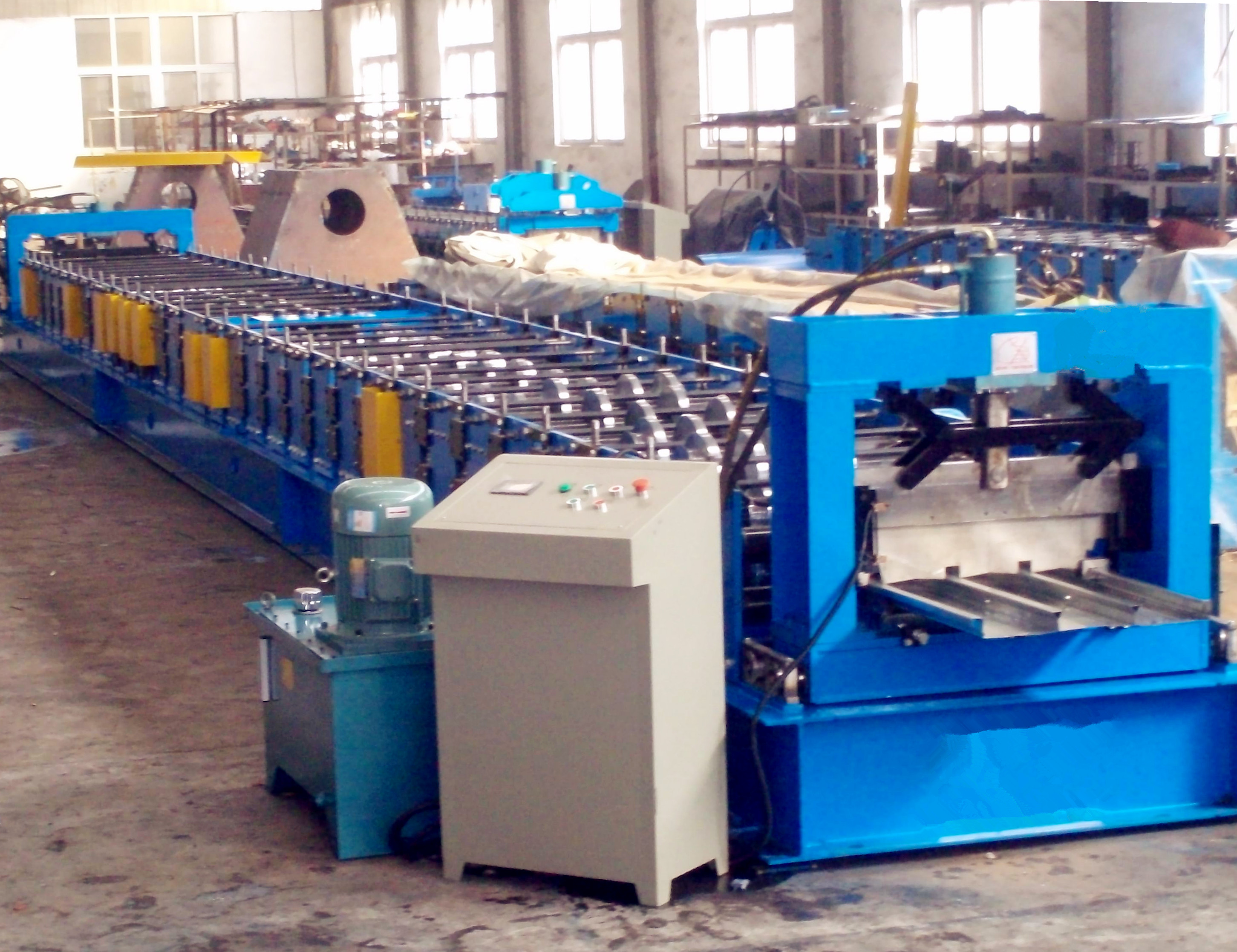

Steel Decking Roll Forming Machine:
Profile type: 1220-900
- Main parameter :
- 1. De-coiler: manual operation, passively de-coiling
- 2. Loading of de-coiler: 5T
- 3. Frame of machine: welded with 400H beam steel
- 4. Thickness of wallboard: 16 mm
- 5. Guide feeding way of forming: side direction roller type
- 6. Forming machine type: wallboard and chain drive
- 7. Diameter of shaft: ￠90mm
- 8. Chain: 2 inch drive
- 9. Motor power of forming machine: 11KWx2
- 10. Line speed of forming machine: 8-12 m/min
- 11. Steps of forming machine: 28 steps
- 12. Roller material: superior 45# steel forging
- 13. Thickness of Chrome plated on roller: 0.05mm
- 14. Hydraulic station motor: 5.5KW
- 15. Hydraulic station oil pump: gear pump
- 16. Cutting type:hydraulic guide pillar cutting
- 17. Cutting blade material: Cr12
- 18. Cutting blade heat treatment: HRC58º-60
- 19. Rolling thickness: 0.8-1.2 mm
- 20. Feeding width: 1220mm
- 21. Effective width:900mm
- 22. Precision of cut-to-length: ±2mm
- 23. Computer adopts PLC control
- 24. Computer operation panel adopts touch screen
- 25. Voltage: 380V/50Hz, 3 phase
- 26. Dimension of machine: 15500mm x 1400mm x 1300mm
- Technological process
Passively de-coiling → Guiding & Feeding material → Roll Forming → Cutting-to-length → Output panel
- Equipment configuration
No.
Item
Qty.
1
Passive de-coiler
1 piece
2
Roll forming machine
1 piece
3
Hydraulic cutting blade
1 set
4
Hydraulic station
1 piece
5
Computer control counter
1 piece
6
Run out table
1 set
Raw material
Loading pictures
Our comapny certification:
We are willing to supply goods with high quality but competive price and superior service to friends all over the world. Hope to establish business relationship with you!
