About this product
- Materials: galvanized, galfan, pvc
- Size: 2.0-4.0mm
- Color: silver, grey, green
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Hebei, China
About this product
- Materials: galvanized, galfan, pvc
- Size: 2.0-4.0mm
- Color: silver, grey, green
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Hebei, China
Product details
| Materials | galvanized, galfan, pvc |
|---|---|
| Size | 2.0-4.0mm |
| Color | silver, grey, green |
From the supplier
Gabion
1. Gabion

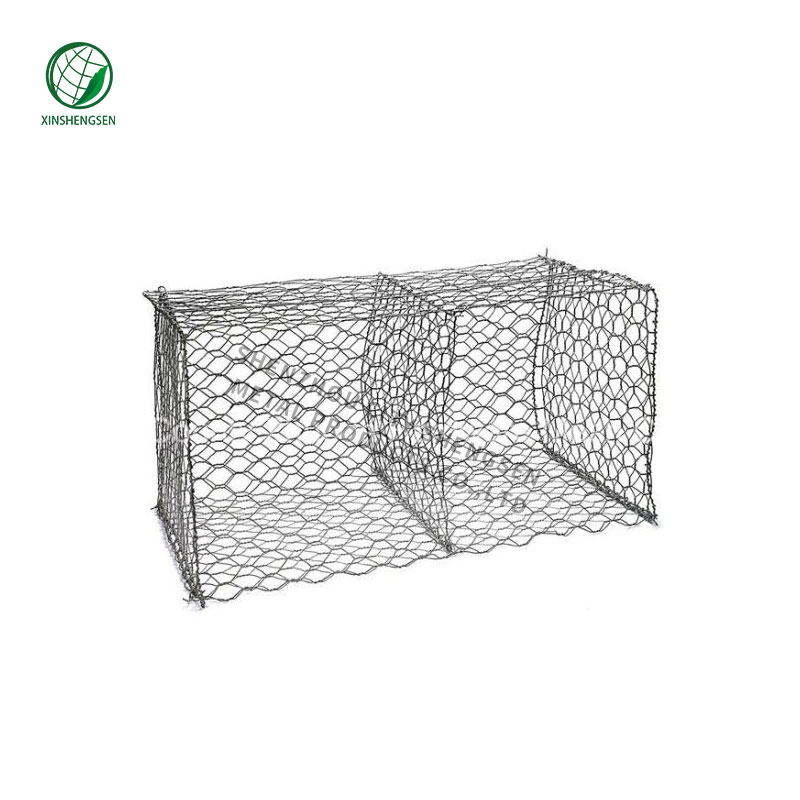

Gabion are made of low carbon steel wire with high corrosion resistance, high strength and ductility and PVC/PE wire, which are woven mechanically. It has the feature of strong structure.
2. Specification

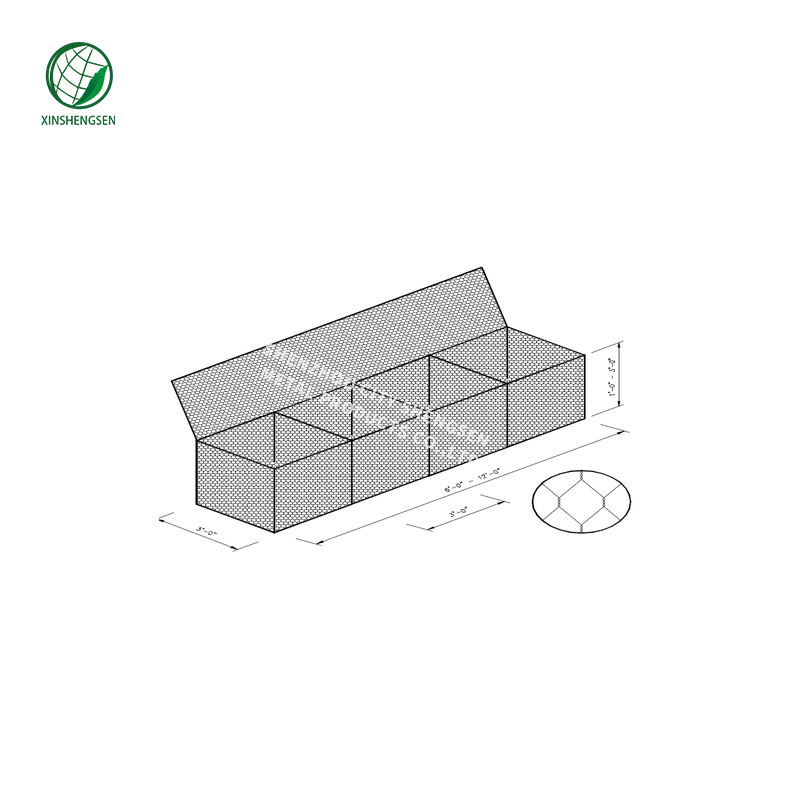

Hexagonal Gabion
Surface Treatment：Electro Galvanized,Hot Dipped Galvanized, Galfan, PVC Coated,black etc
Opening (mm)
Wire Diameter
（mm）
Wire Diameter
(PVC Coated)
Inner/Outside
(mm)
60*80
2.0-2.8
2.0/3.0 - 2.5/3.5
80*100
2.0-3.2
2.0/3.0 - 2.8/3.8
80*120
2.0-3.2
2.0/3.0 - 2.8/3.8
100*120
2.0-3.4
2.0/3.0 - 2.8/3.8
100*150
2.0-3.4
2.0/3.0 - 2.8/3.8
120*150
2.0-4.0
2.0/3.0 - 3.0/4.0

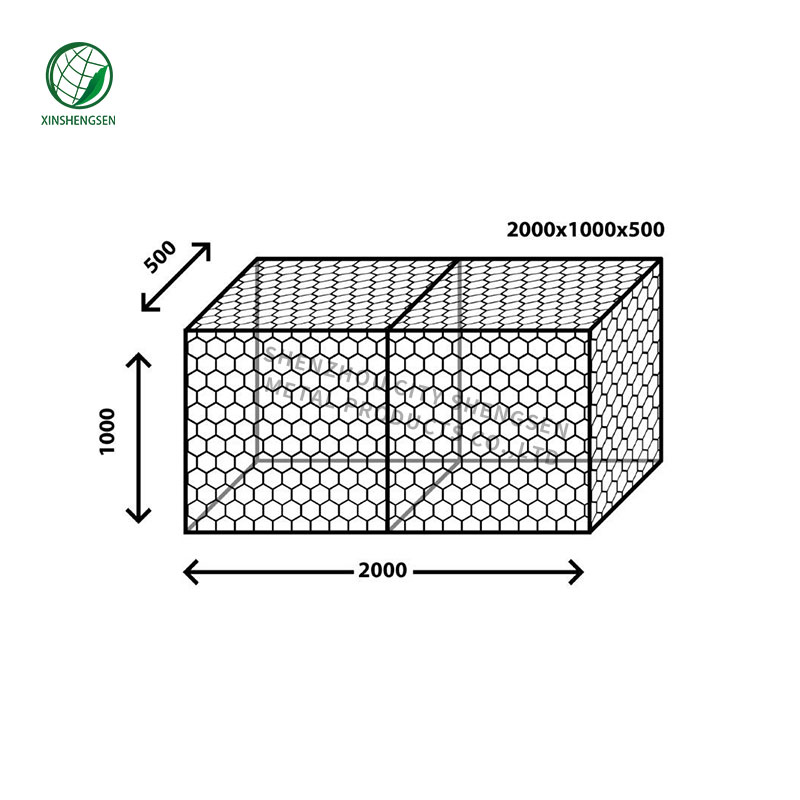

Length(M)
Width(M)
Height(M)

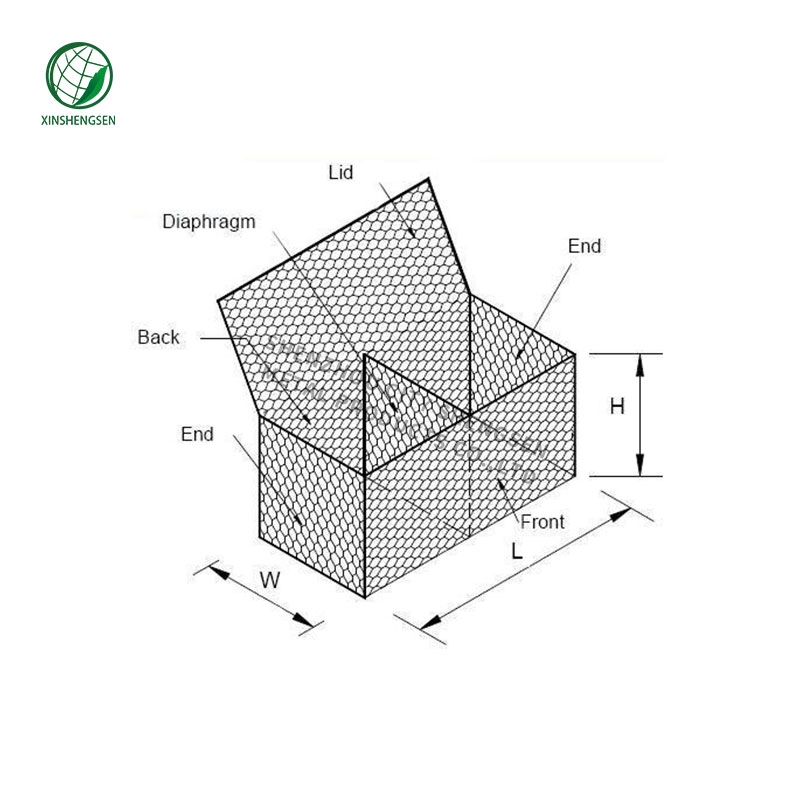

Diaphragm(Unit)
Volume(M3)
2.00
1
0.30
1
0.60
3.00
1
0.30
2
0.90
4.00
1
0.30
3
1.20
2.00
1
0.50
1
1.00
3.00
1
0.50
2
1.50
4.00
1
0.50
3
2.00
1.00
1
1.00
0
1.00
1.50
1
1.00
0
1.50
2.00
1
1.00
1
2.00
3.00
1
1.00
2
3.00
4.00
1
1.00
3
4.00
3.Application
- 1） control and guidance of rivers and floods
The most serious disaster of the river is the destruction caused by the erosion of the river bank by the current, which causes flooding, resulting in a large loss of life and property and a large amount of soil erosion. Therefore, when dealing with the above problems, the application of the gabion structure becomes one of the good solutions, which can make the river bank of the river bed be protected for a long period.
- 2） Channel Canal Riverbed
The construction of channels involves the stability of slopes and river beds. Therefore, Gabion are the main method used in many natural river reconstruction and artificial channel excavation in the past hundred years. It can effectively protect river banks or riverbeds, and it also has the function of controlling the flow of water and preventing water loss, especially in environmental protection and water quality maintenance, which has a good effect.
- 3） River bank protection
The application of Gabion and river bank protection and slope foot protection are very successful examples. It has brought into full play the advantages of gabion and made the unique effect.
4.Process
5.Package

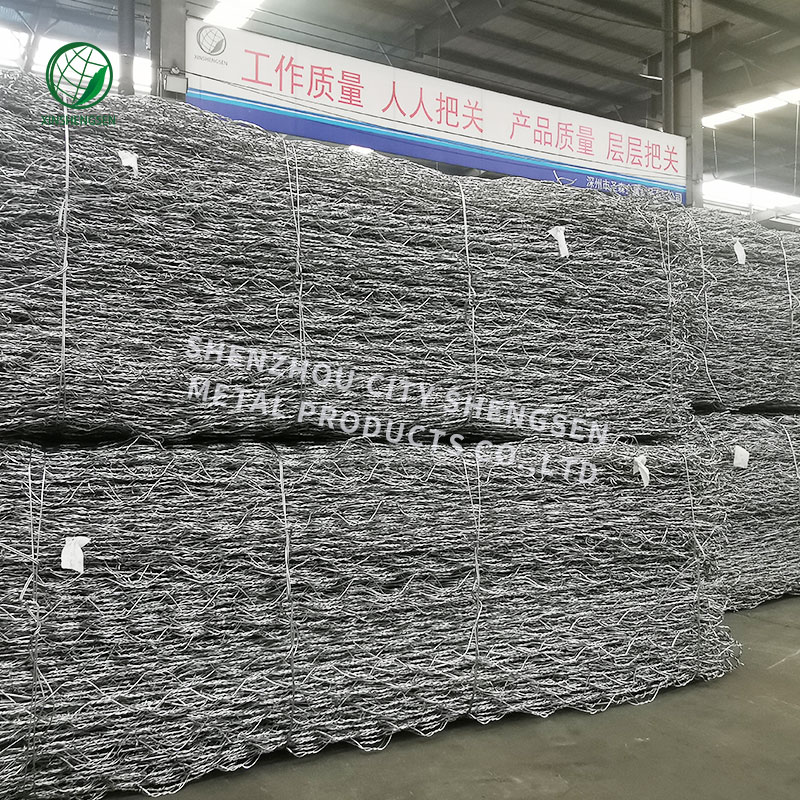

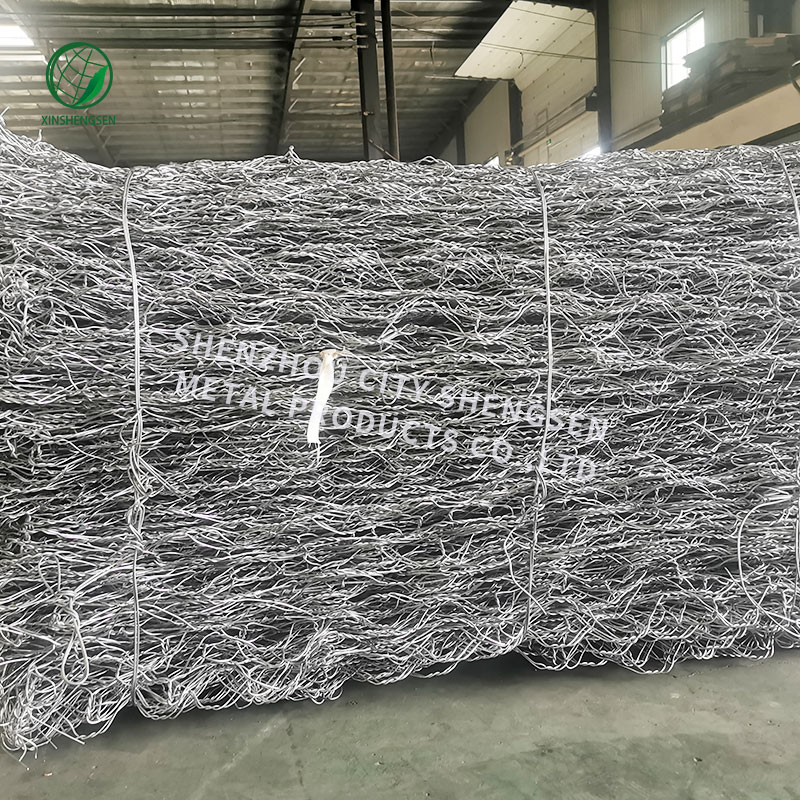

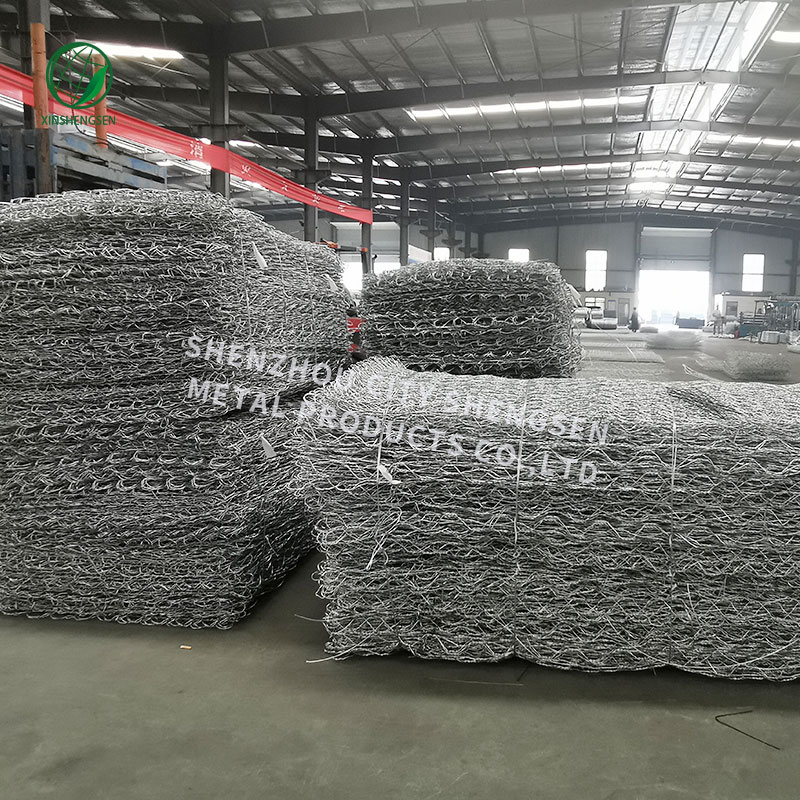

The common Package is in Bundle The outer package can be bare or used shrink film or with pallet, as the customer's requirements.
