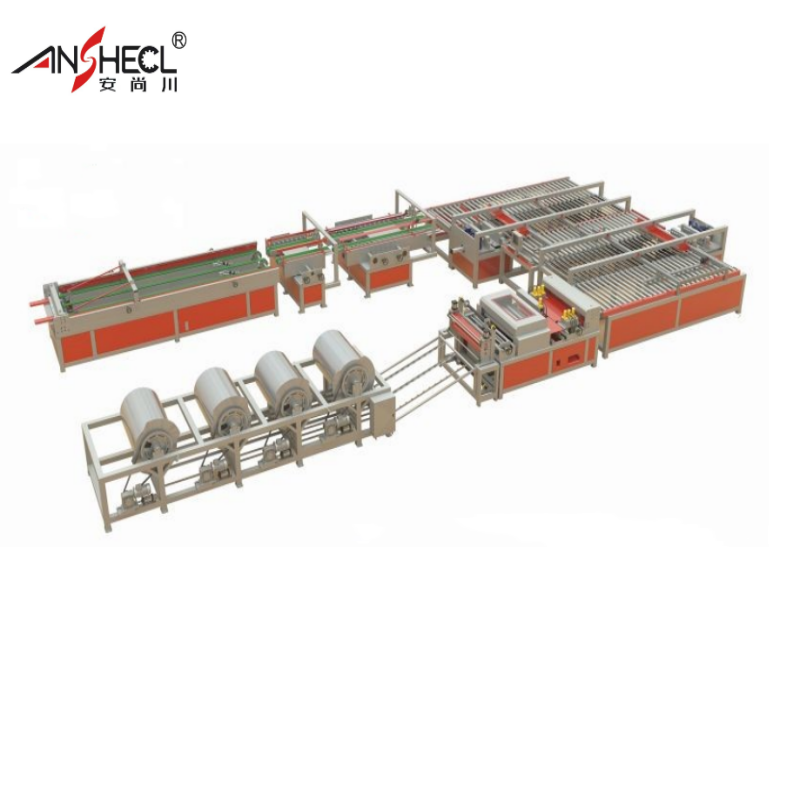

Fully automatic high-speed 2.0 air duct U-shaped 5-wire
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
Fully automatic high-speed 2.0 air duct U-shaped 5-wire
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
About this product
- Size: 20000mmx8200mmx1500mm
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
- Made in: Shandong, China
About this product
- Size: 20000mmx8200mmx1500mm
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
- Made in: Shandong, China
Product details
| Size | 20000mmx8200mmx1500mm |
|---|
From the supplier
Features:
1.The production data input mode can be MES system LAN direct connection mode (optional) or manual input mode.2. The right-angle edge is made by a seaming machine, which is more straight and solves the matter that the right angle edge is less than 90 degrees.
3. Adopt the double mode of cylinder pushing down material and servo driving up material, optimize the structure and
improve the speed.
4. With anti-slip mark structure design, effectively reduce bottom scratch.
5. Structural change improves daily production, and the minimum single chip speed is no more than 18 seconds.
6. Pneumatic pressure arm helps to prevent the loose material of plates above 1.2mm (optional).
7. The joint (Dongyang bone) is on the small side (front), which is convenient and labor-saving.
Functional process:
Uncoiling → film covering → leveling → ribbing → punching sharp mouth, square mouth, middle support hole, flange hole on both sides → length cutting→ 1 # feeding platform → 2 right-angle edge lifting seamers → 2# feeding platform →2joint lifting seamers → 3 # conveyor frame → double machine linkage angle steel flange machine, double machine linkage common plate flange (TDF)→ manipulator feeding conveyor platform→
- square bending forming → discharging
Technical indicators:
1. 0.5-2.0mm galvanized sheet, 0.5-1.5mm stainless steel(304) angle steel flange air duct; 0.5-1.5mm galvanized sheet,0.5-1.2mm stainless steel (304) flange air duct.
2. With film covering function and welding mode.
3. With middle support hole and flange hole on both sides.
4. The daily processing capacity is 2000-4000 square meters.
