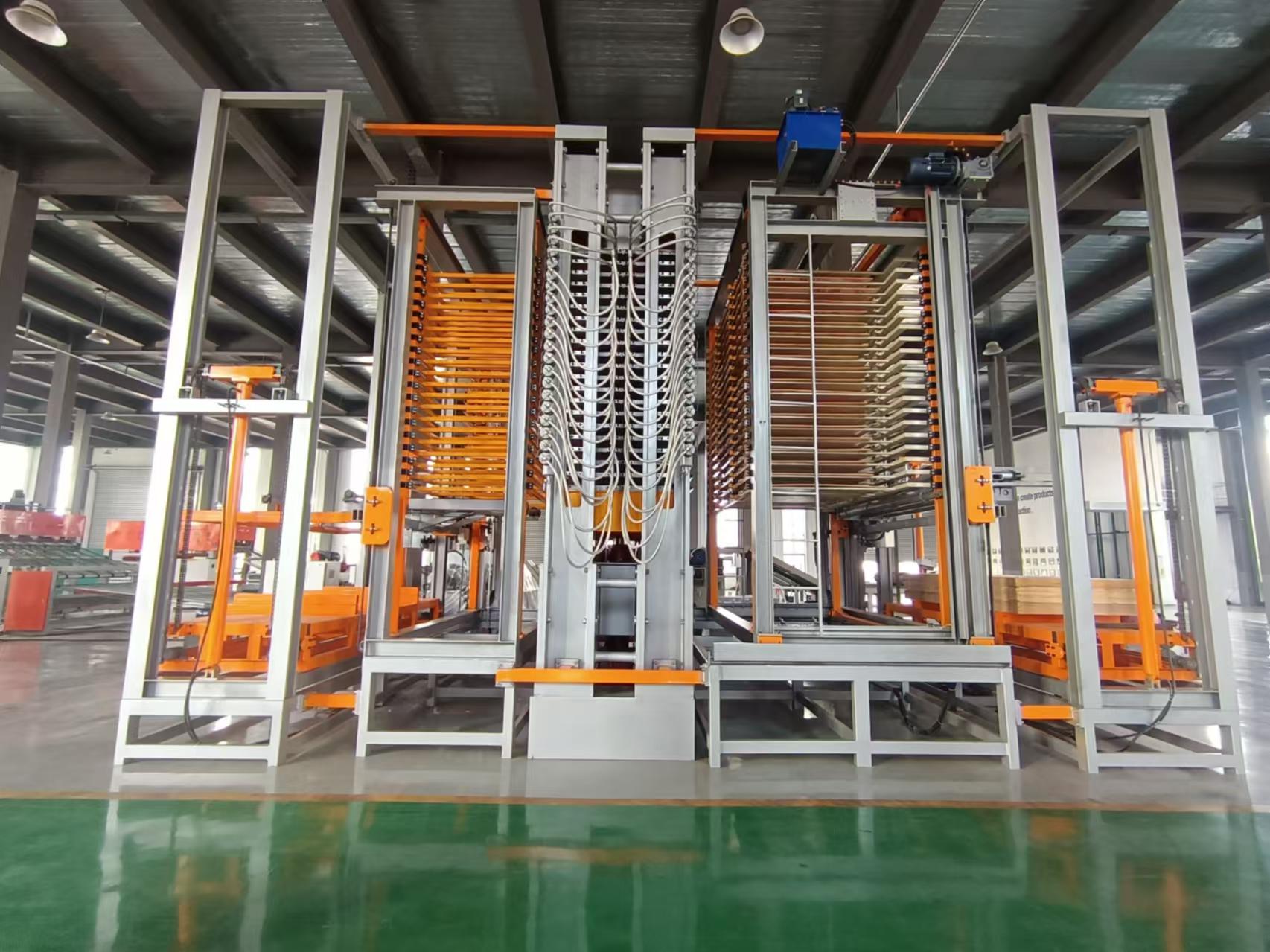

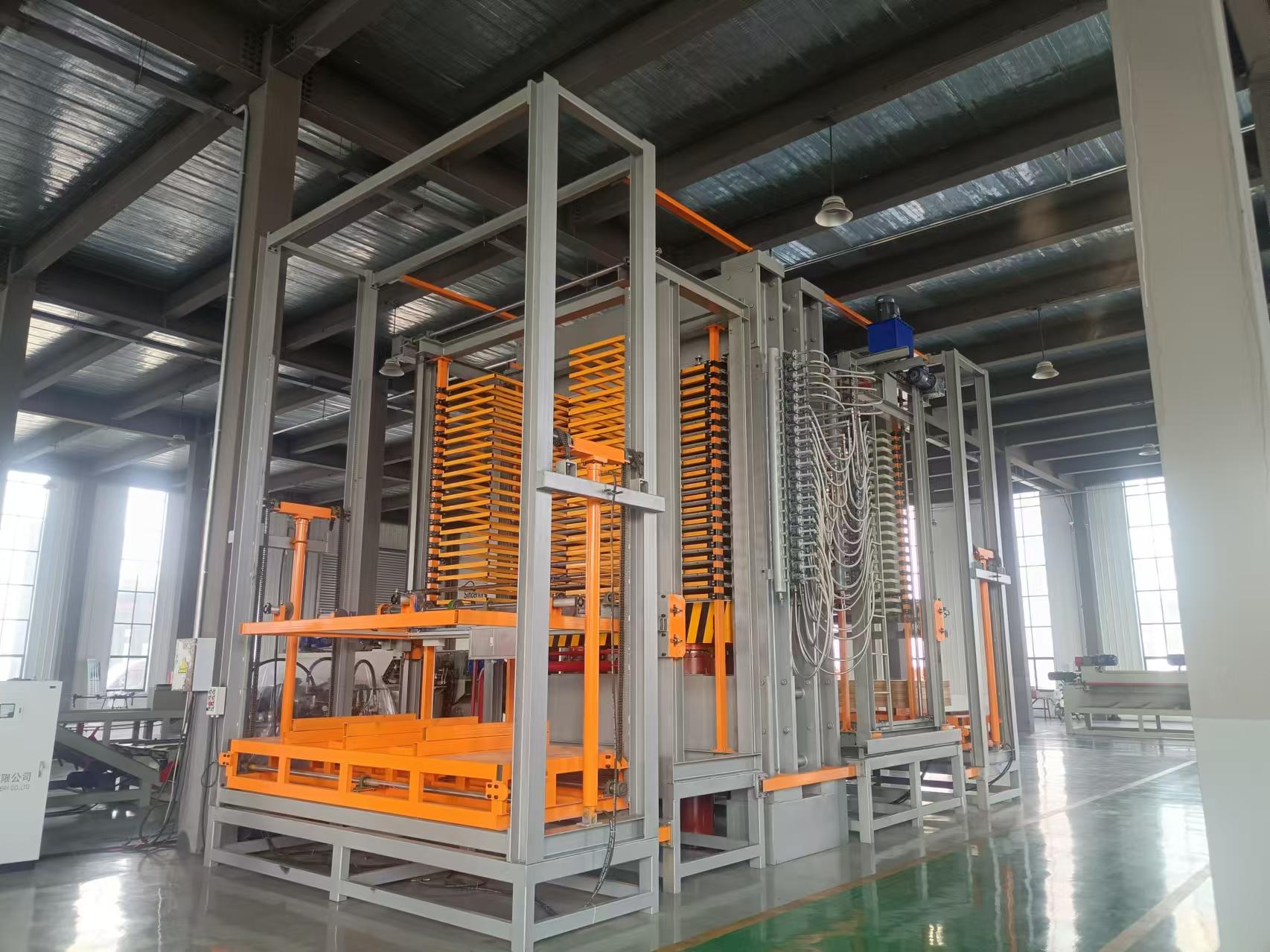

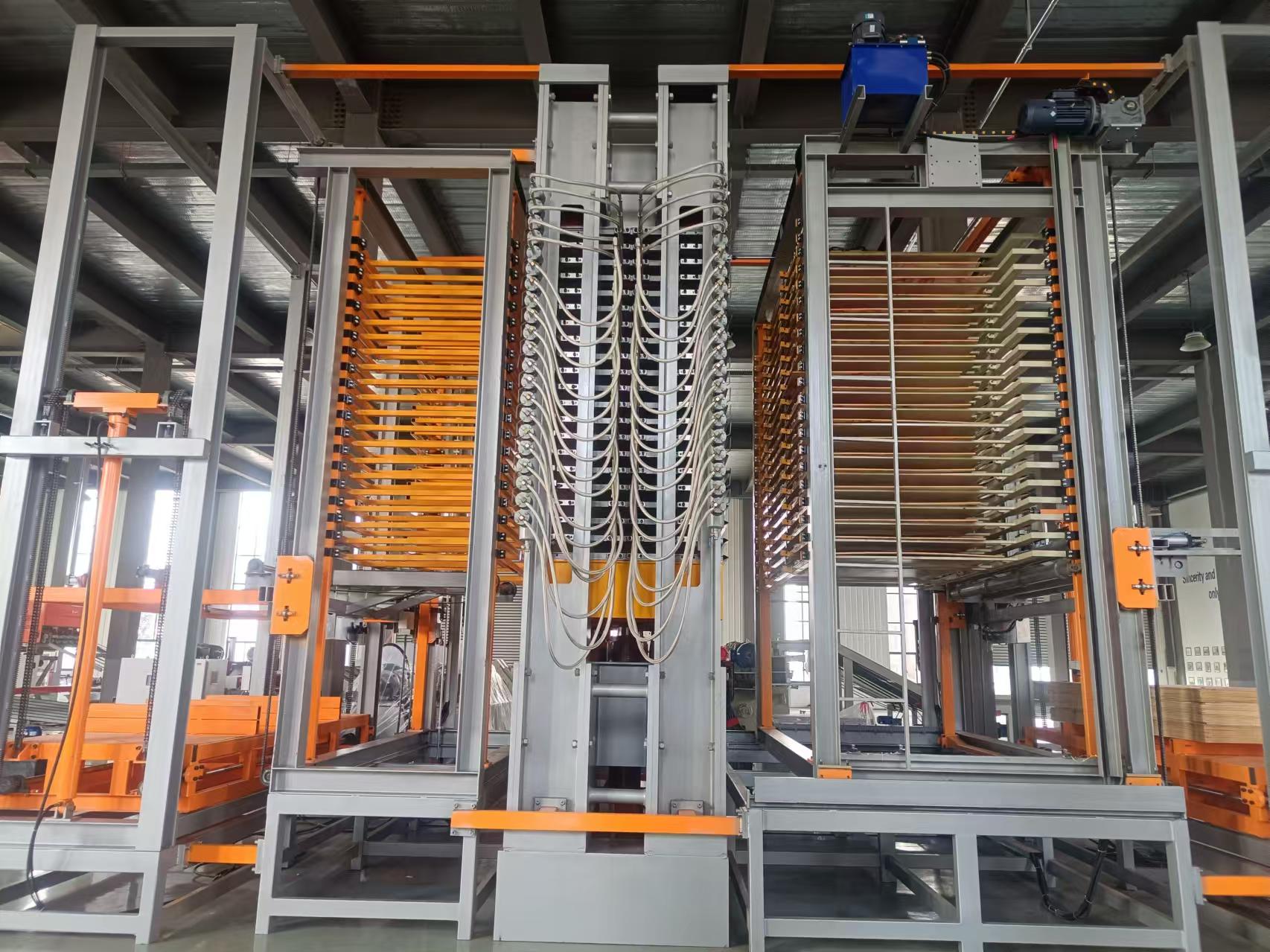

Full automatic plywood hot press production line

Shandong Yuequn Machinery Co.,Ltd
3/10 fairsIndustry and Trade Company
Full automatic plywood hot press production line
$65,00000$165,00000/ set FOB
MOQ 1 set · T/T
Estimated landed cost
$147,938 / set
range $83,626$212,251 · total ≈ $14,793,810
See what’s included
FOB goods (100)
$11,500,000
Ocean freight + handling (5.0 CBM, volume guessed from price)
$1,300
US duty (3.5%)
$402,500
Section 301 tariff (25.0%)
$2,875,000
Customs fees (MPF/HMF)
$15,010

Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.

Verify from $29 · written report in 3 business days · 100% refund if unreachable

About this product

  • Size: 9550x1600x5692mm
  • Color: customized
  • Usage: Other
  • Installation: Other
  • Nominal voltage: Other
  • Shape: Other
  • Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
Product details
Size9550x1600x5692mm
Colorcustomized
UsageOther
InstallationOther
Nominal voltageOther
ShapeOther
RechargeableOther
ElectrolyteOther
From the supplier

Model

YQHP4x8/800/20

Total pressure

800tons

Plywood feeding direction

Transverse

Layers

20layers

Layer space

90mm

Hot plate quantity

21pcs

Hot plate dimension

2700*1370*52mm Q345

Main cylinder diameter

Ø320mm * 4

Lifting cylinder diameter

Ø160mm * 2

Stroke

1800mm

Compression resistance

≤25Mpa

Hydraulic station motor

22+11kw

Low pressure pump flow

94ml/r

High pressure pump flow

17ml/r

Assembled frame

35mm Double frame Q235

Upper and bottom beam

900mm

Middle beam

400mm

Weight

53500kg

Dimension

3550x1370x5692mm
