Key Features

1.The 5X series vibrating screen is a multi-layer circular motion screen. The Circular Motion Vibrating Sieve features an integrated frame structure with excellent rigidity and is equipped with wear-resistant polyurethane materials at multiple contact points. The design incorporates a tubular vibrator and adjustable eccentric shaft (block) mechanism, supported by a four-bearing system for enhanced load capacity.

2.Circular Motion Vibrating Screen features include a robust structure, strong excitation force, high screening efficiency, low vibration noise, durability, ease of maintenance, and safe operation. Circular Shaker Screen is equipped with a variable frequency braking system to avoid resonance, ensuring smooth and stable start-up and shutdown.

3.The Circular Motion Screen can produce up to five different material outputs as required, with customizable screen deck combinations to meet various final product specifications.

Range of Configuration

1.In the mining industry, the Circular Motion Vibrating Screen is employed to separate crushed ores and minerals into different size fractions, facilitating further processing or direct use. Similarly, in construction and aggregate production, the Circular Shaker Screen efficiently sorts sand, gravel, and crushed stone, ensuring uniformity in material size for concrete and asphalt production.

2.The Circular Motion Vibrating Sieve is also integral in chemical and pharmaceutical industries, where precise separation of powders and granules is essential. Its ability to handle high feed rates and provide accurate sizing makes Circular Shaker Screen ideal for these applications.

3.Additionally, the Circular Motion Vibrating Screen is utilized in recycling operations to sort materials like plastics, metals, and paper, enhancing the efficiency of recycling processes. The robust design and reliable performance make Circular Shaker Screen a preferred choice for continuous operation in demanding environments.

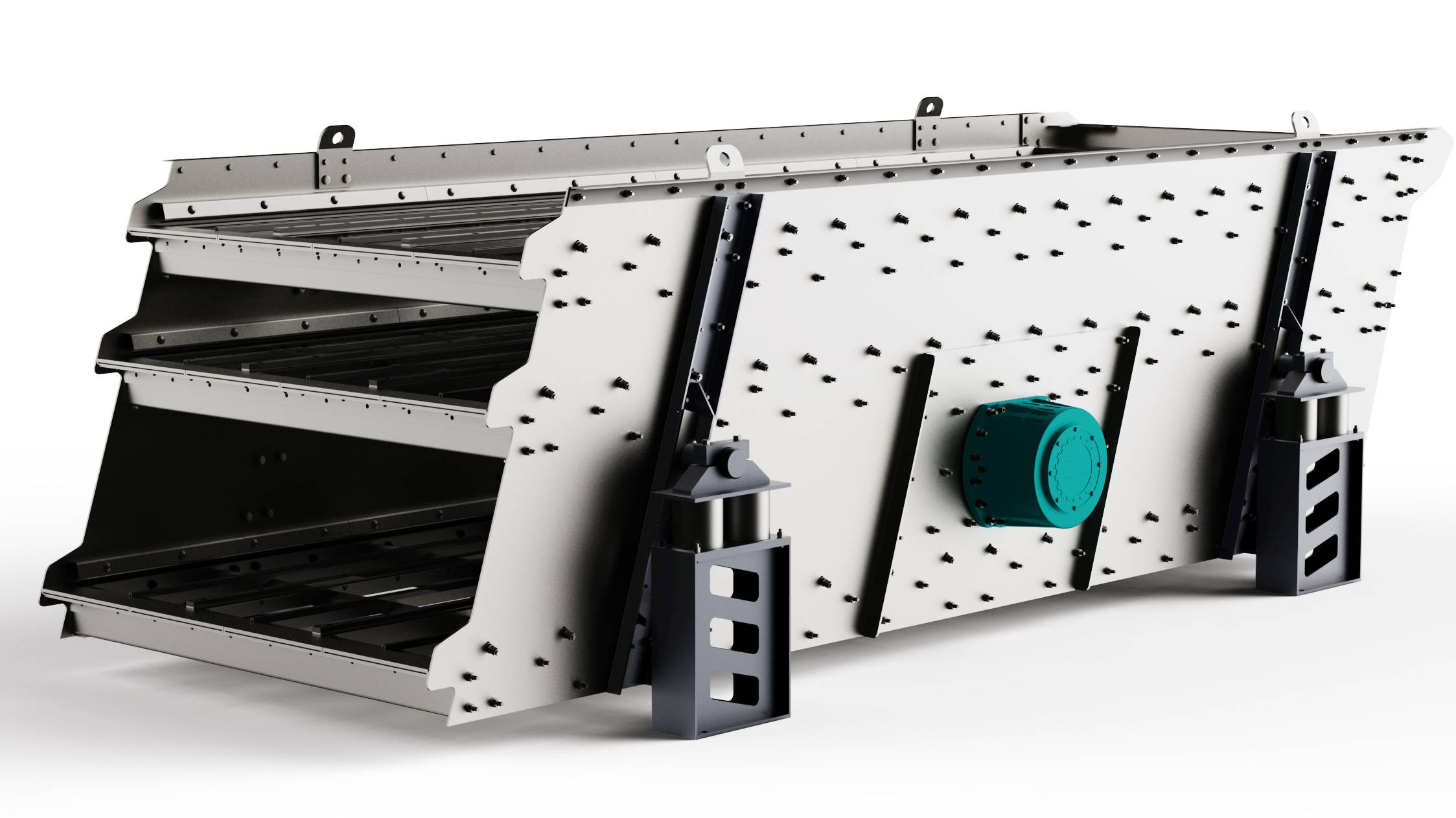

Product Details

1.Screen Box

This is the main structure that houses the Circular motion screen surfaces. It is designed to withstand the dynamic forces generated during operation.

2.Vibrator Mechanism

Typically consisting of an unbalanced motor or an eccentric shaft, this component generates the circular motion necessary for material separation.

3.Screen Mesh

Attached to the screen box, the Circular Shaker Screen mesh comes in various materials and aperture sizes, allowing for precise separation of different particle sizes.

4.Spring System

Located beneath the screen box, springs absorb vibrations, prevent structural damage, and ensure smooth operation.

5.Motor

Provides the necessary power to drive the vibrator mechanism, initiating the circular motion screen.

6.Support Frame

A robust structure that holds the entire assembly in place, ensuring stability during operation.

7.Inlet and Outlet Chutes

Guide the material onto Circular Motion Vibrating Sieve and collect the separated fractions, respectively.

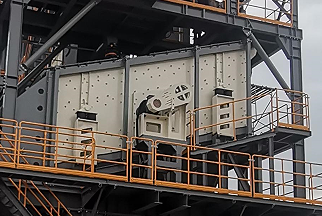

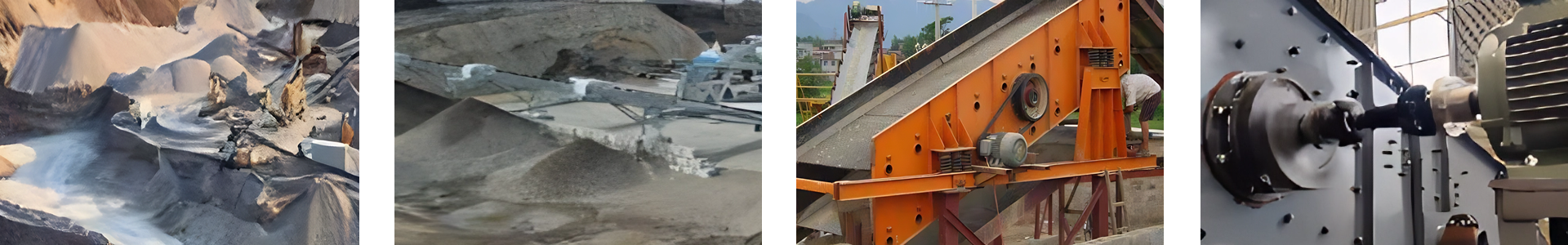

On-site View
