FTP SFTP CAT5E lan cable network
ZHUHAI SURELINK COMMUNICATION CABLE CO.,LTD.
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
FTP SFTP CAT5E lan cable network
ZHUHAI SURELINK COMMUNICATION CABLE CO.,LTD.The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Size: 10
- Color: grey,blue
- Brand: Other
- Cover material: PEOther
- Conductor material: AluminumOther
- Material shape: RoundWire
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea
About this product
- Size: 10
- Color: grey,blue
- Brand: Other
- Cover material: PEOther
- Conductor material: AluminumOther
- Material shape: RoundWire
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea
Product details
| Size | 10 |
|---|---|
| Color | grey,blue |
| Brand | Other |
| Cover material | PEOther |
| Conductor material | AluminumOther |
| Material shape | RoundWire |
| Wire core material | BareCopperWire |
| Application | LANCableLocalCommunicationCableOther |
| Conductor type | Solid |
| Model | Other |
| Certification | CE |
Product details
| Size | 10 |
|---|---|
| Color | grey,blue |
| Brand | Other |
| Cover material | PEOther |
| Conductor material | AluminumOther |
| Material shape | RoundWire |
| Wire core material | BareCopperWire |
| Application | LANCableLocalCommunicationCableOther |
| Conductor type | Solid |
| Model | Other |
| Certification | CE |
From the supplier
Product Specifications

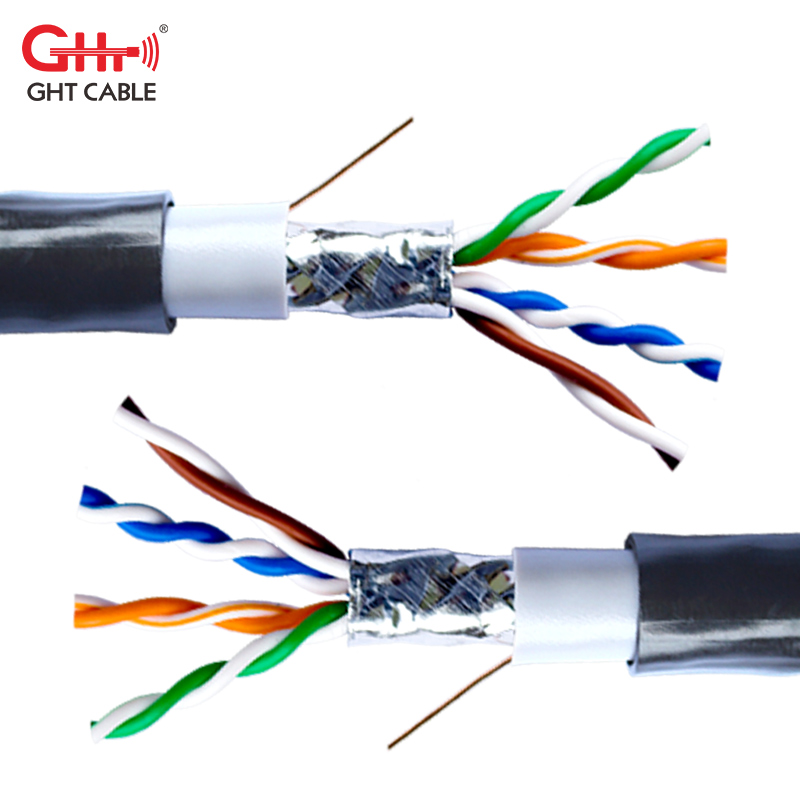

1. Product Structure
2. Technical Specification
3. Material Instruction
1.CCA or Soft Plain Copper.
2.Eco-friendly,pollution-free and new materials selected.Promise new material only.
3.Insulation: Solid HDPE.
4.Eco-friendly PVC Jacket , high-temperature resistance,long working life.
4. Physical Electrical Characteristics
Using standard twisted construction design, small crosstalk of signal transmission Upload and download in high speed transfer.
Bandwidth is standard 100 MHz.
Support 10-Gigabit Ethernet netword transmission requirements.
DC resistance (max): 4.8Ω/100m at 20°C;
Mutual capactitance (max): 5.6nF/100m;
Unbalanced capacitance (max): 330pF/100m;
Dielectric strength between conductors (min): 2.5kV/2s;
Impedance: 1-100MHz 100±15Ω;
Differential phase delay (max): 45ns/100m;
Operating temperature: -20~+60°C;
Permitted bend radius: 10 times diameter of the cable.
5. Standard / Certificate
Reference Standard:YD/T1019-2001,ISO/IEC11801,ANSI/TIA/EIA - 568B

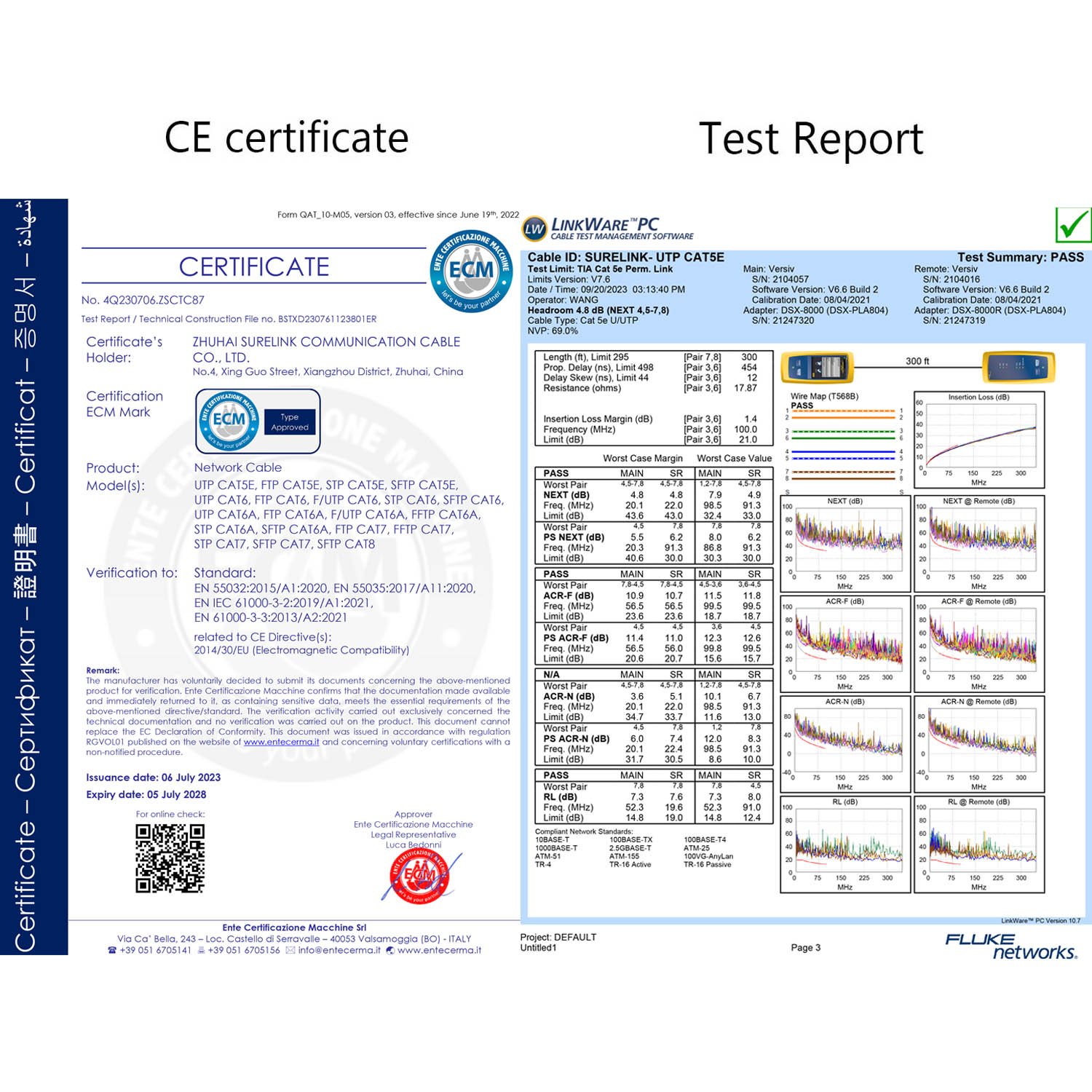

Certificates ISO9001,14000, ROHS.
Email:sales@zhsurelink.com
Wechat: surelink2008
WhatsApp: +86 13926923676
https://www.zhsurelink.com
From the supplier
Product Specifications
1. Product Structure
2. Technical Specification
3. Material Instruction
1.CCA or Soft Plain Copper.
2.Eco-friendly,pollution-free and new materials selected.Promise new material only.
3.Insulation: Solid HDPE.
4.Eco-friendly PVC Jacket , high-temperature resistance,long working life.
4. Physical Electrical Characteristics
Using standard twisted construction design, small crosstalk of signal transmission Upload and download in high speed transfer.
Bandwidth is standard 100 MHz.
Support 10-Gigabit Ethernet netword transmission requirements.
DC resistance (max): 4.8Ω/100m at 20°C;
Mutual capactitance (max): 5.6nF/100m;
Unbalanced capacitance (max): 330pF/100m;
Dielectric strength between conductors (min): 2.5kV/2s;
Impedance: 1-100MHz 100±15Ω;
Differential phase delay (max): 45ns/100m;
Operating temperature: -20~+60°C;
Permitted bend radius: 10 times diameter of the cable.
5. Standard / Certificate
Reference Standard:YD/T1019-2001,ISO/IEC11801,ANSI/TIA/EIA - 568B
Certificates ISO9001,14000, ROHS.
Email:sales@zhsurelink.com
Wechat: surelink2008
WhatsApp: +86 13926923676
https://www.zhsurelink.com
