About this product
- Materials: Electric boards, fiberglass boards, and all kinds of plastic boards
- Color: GREEN,YELLOW
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Others
- Made in: Jiangxi, China
About this product
- Materials: Electric boards, fiberglass boards, and all kinds of plastic boards
- Color: GREEN,YELLOW
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Others
- Made in: Jiangxi, China
Product details
| Materials | Electric boards, fiberglass boards, and all kinds of plastic boards |
|---|---|
| Color | GREEN,YELLOW |
Product details
| Materials | Electric boards, fiberglass boards, and all kinds of plastic boards |
|---|---|
| Color | GREEN,YELLOW |
From the supplier
RSTGND-SWM5V
Freezer computer controller
Electric parameter
input voltage：AC220V/50HZ
ambient temperature：-40℃～+85℃
ambient humidity：20%～80%
stand-by power consumption：0.5W

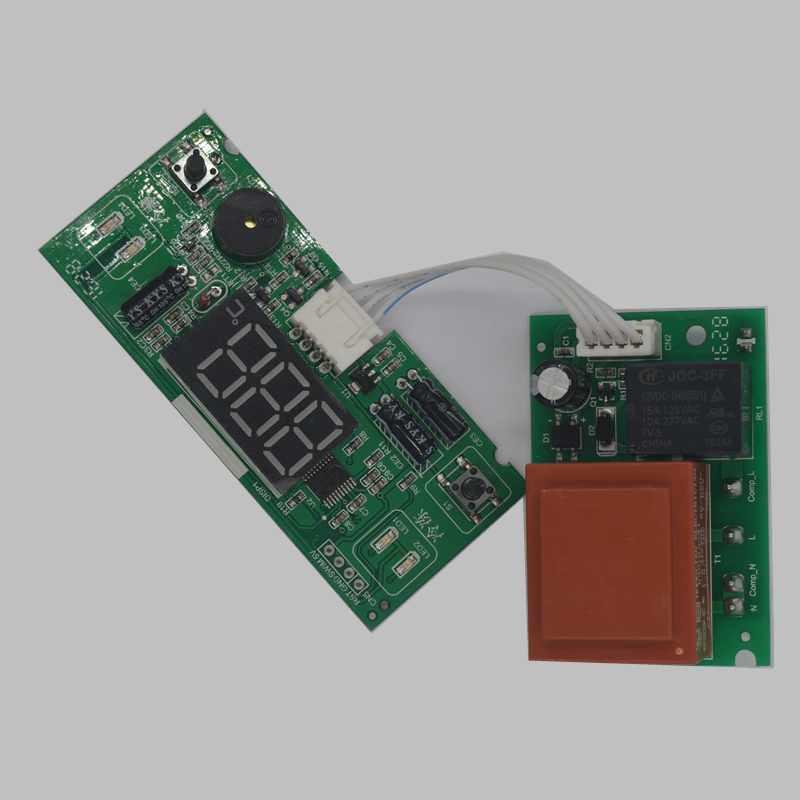

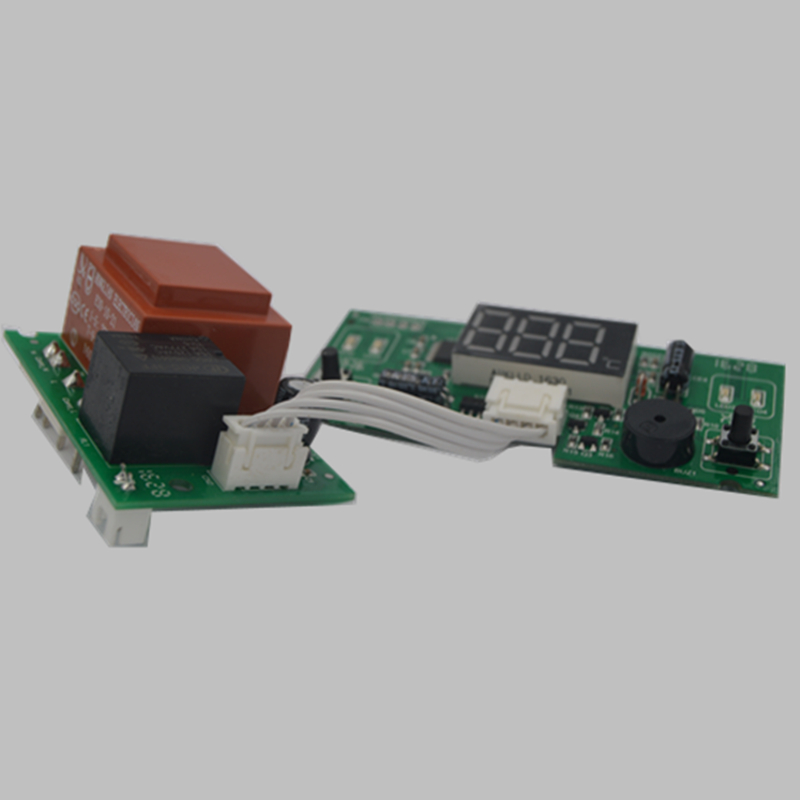

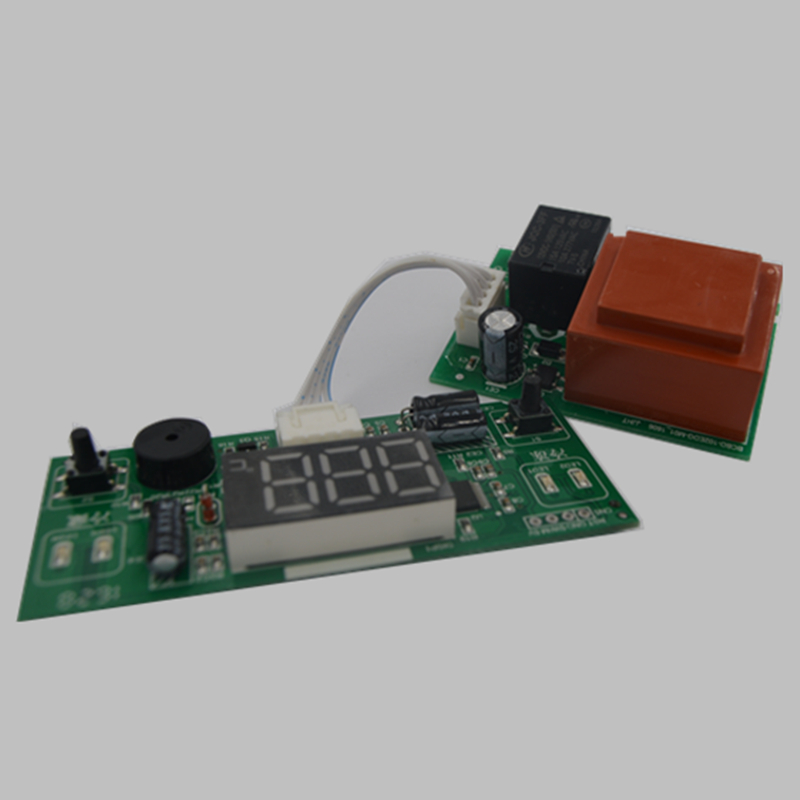

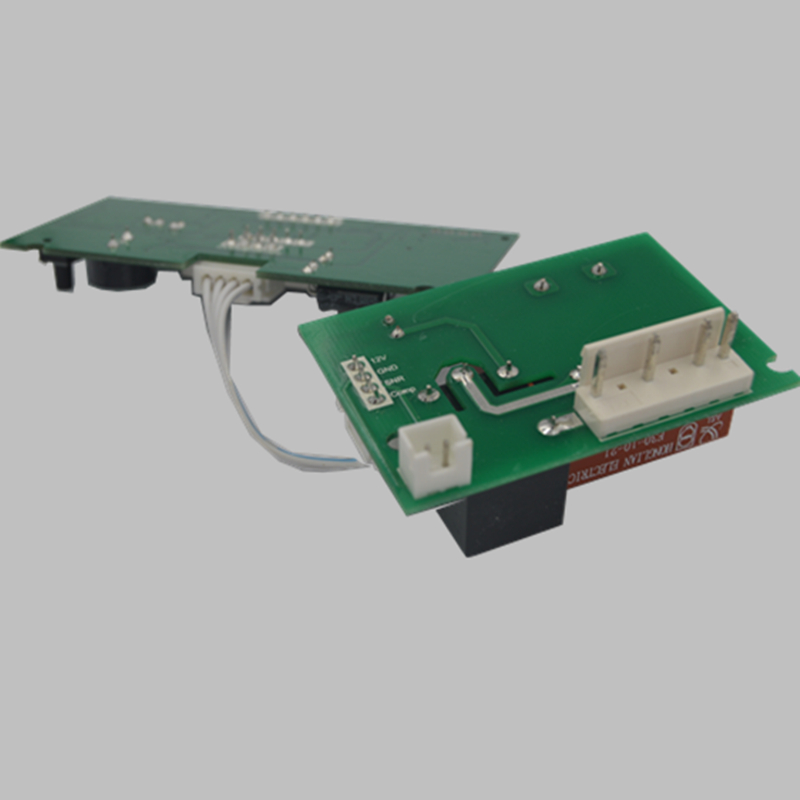

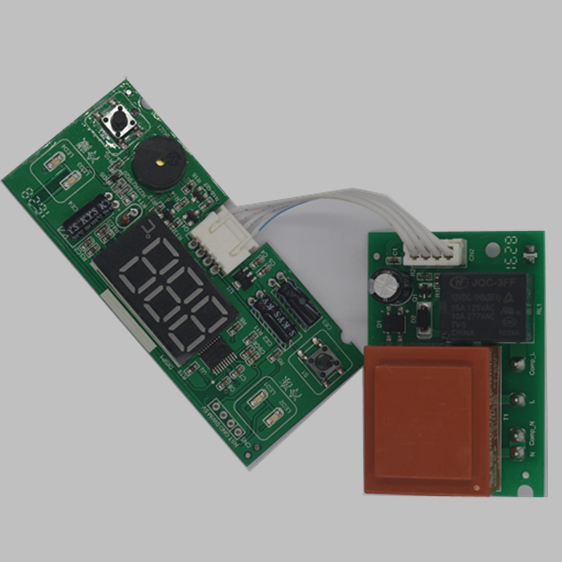

Component of Controller
Consists of the power supply board and display board, power frequency transformer produce power on the power supply board, display board consist of microcomputer control chip, LED display(include driver),buzzer(include driver) and press button.
Safe performance
Pass the safe performance inspection standard of home appliance EMC
Main component request
MCU use high cost performance famous semiconductor company STM8 series. conversion accuracy is 10 units.
Relay
Relay use the products from Xiamen Hongfa, the rating current, voltage is 10A/277VAC, compared with the control of load has a sufficient remain.
PCB
The main control board and display board use FR-4, thickness: 1.2mm±0.15mm; brush moisture proof paint on the back.
Press button
Use mechanical buttons, cooperate with panel button after installation button rapid response, stability is good.
Product function
Temperature accuracy 0.5°C, temperature range -50°C-63°C
Temperature setting of refrigeration and freezer and LED display program
Refrigeration temperature loop setting：8℃～7℃～6℃～5℃～4℃～3℃～2℃～8℃
Freezer temperature loop setting：-12℃～-14℃～-16℃～-18℃～-20℃～-22℃～-24℃～-26℃～-30℃～-12℃
Parameter setting, power cut memory
Sensor fault alarm
Alarm elimination program
Operated in fault program
Button lock function
Digital display on-off function
Compressor delay start protect function
Compressor long time operation protect function
From the supplier
RSTGND-SWM5V
Freezer computer controller
Electric parameter
input voltage：AC220V/50HZ
ambient temperature：-40℃～+85℃
ambient humidity：20%～80%
stand-by power consumption：0.5W
Component of Controller
Consists of the power supply board and display board, power frequency transformer produce power on the power supply board, display board consist of microcomputer control chip, LED display(include driver),buzzer(include driver) and press button.
Safe performance
Pass the safe performance inspection standard of home appliance EMC
Main component request
MCU use high cost performance famous semiconductor company STM8 series. conversion accuracy is 10 units.
Relay
Relay use the products from Xiamen Hongfa, the rating current, voltage is 10A/277VAC, compared with the control of load has a sufficient remain.
PCB
The main control board and display board use FR-4, thickness: 1.2mm±0.15mm; brush moisture proof paint on the back.
Press button
Use mechanical buttons, cooperate with panel button after installation button rapid response, stability is good.
Product function
Temperature accuracy 0.5°C, temperature range -50°C-63°C
Temperature setting of refrigeration and freezer and LED display program
Refrigeration temperature loop setting：8℃～7℃～6℃～5℃～4℃～3℃～2℃～8℃
Freezer temperature loop setting：-12℃～-14℃～-16℃～-18℃～-20℃～-22℃～-24℃～-26℃～-30℃～-12℃
Parameter setting, power cut memory
Sensor fault alarm
Alarm elimination program
Operated in fault program
Button lock function
Digital display on-off function
Compressor delay start protect function
Compressor long time operation protect function
