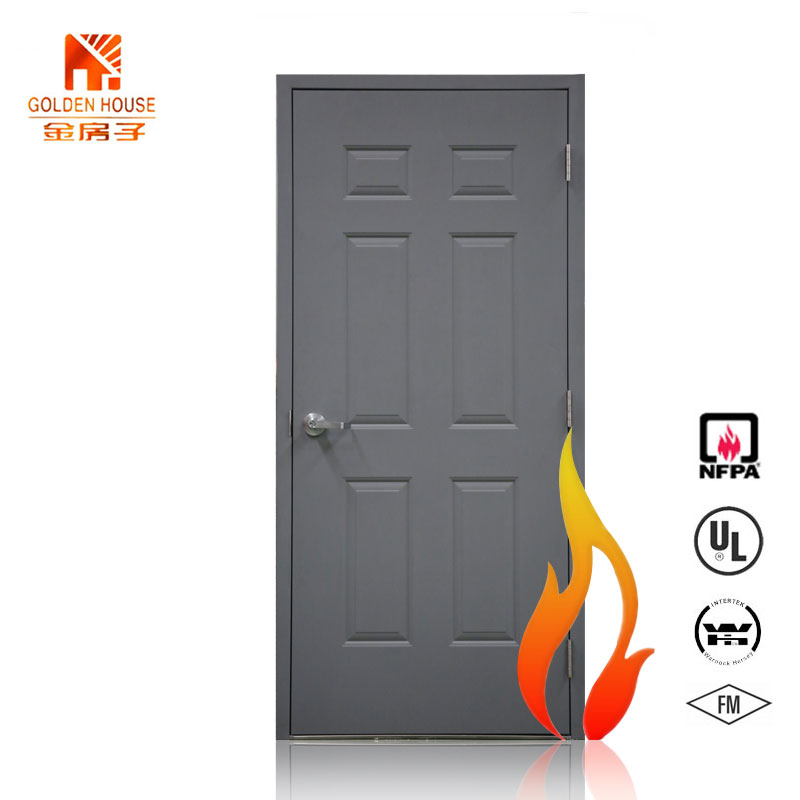

Flush &6- panel six panel type 3 hours certificate steel fire rated door hollow metal door steel fire door





GH Steel Fire Door Features :

fire rated up to 3 hours with WHI  UL  FM label applied .

all of doors are designed and fabricated under SDI requirements.

1 3/4" thickness (44.5mm),non-handed assemble with reversible hinge shim parts.



fire rated wire glass or louver option for vision lites .

all materials is  approved  in accordance with NFPA  ASTM and other standards .

steel stiffener, hardware preparations and reinforcement are conformed with ANSI standards .



GH Steel Fire Door Technical Data :

Brand

Golden House (GH)

Standard

UL 10(b),UL 10(c) /NFPA/ASTM /UBC7-2

Certifications

INTERTEK(WHI),FM,UL

Fire rated time

45min,90min,up to 180 min

Door Size (single)

 standard width up to 4'0"(1200mm ) Height  up to 8'0"(2440mm);

customized size is available .

Leaf thickness:1 3/4" standard ( 44.5mm )

Frame jamb depth:100-300mm

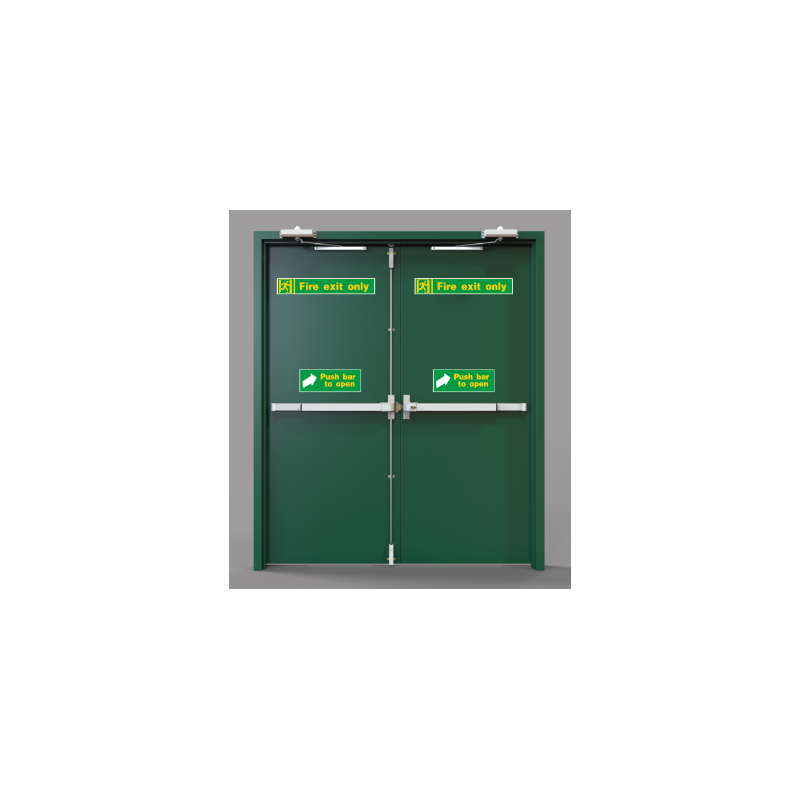

Door size (Double)

Maximum size is 8'x8'(2440x2440mm)

Door leaf sheet

20Ga-18Ga (1.0/1.2mm).customized level is available

Door frame sheet

16Ga.(1.5mm) ,customized level is available

Opening

swing /inward or outward

Type

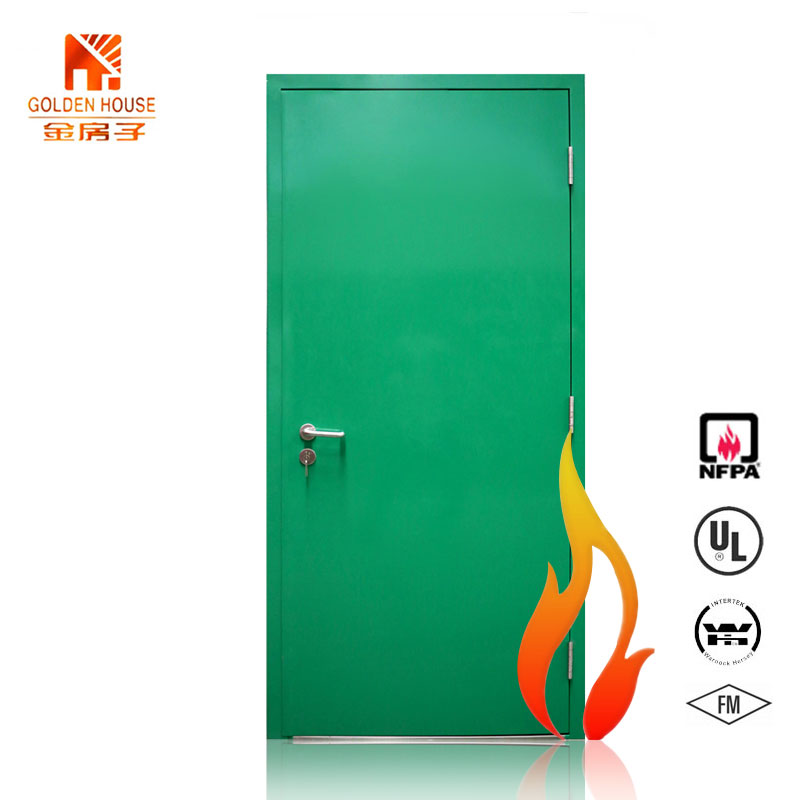

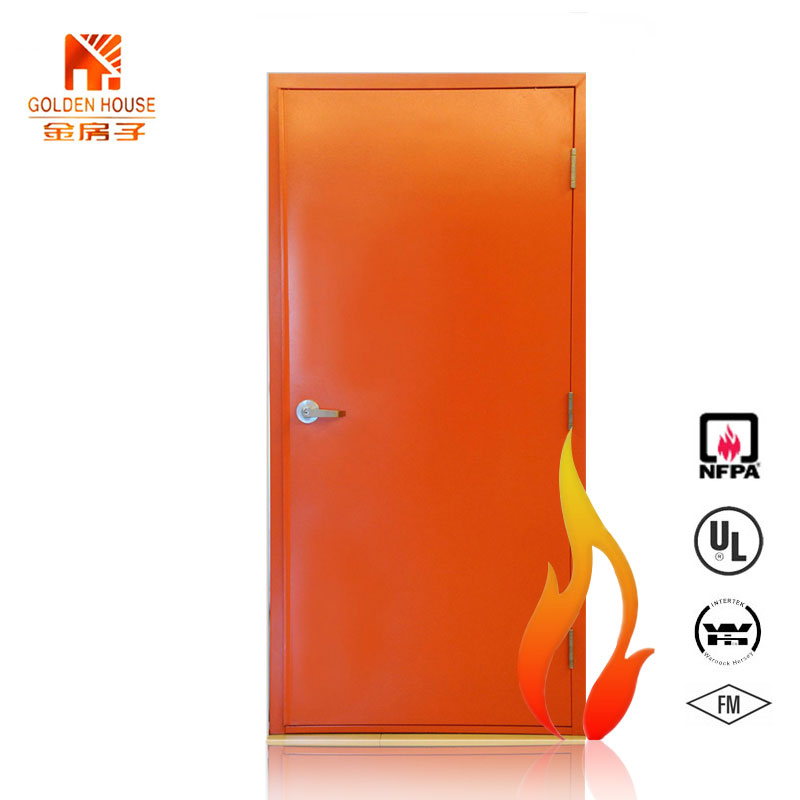

2 panel/6 panel/flush panel/vision lite /louver

Material of leaf and frame

cold roll steel or Galvanized Steel or Galvannealed Steel

Filling material

Honeycomb,Polystyrene,Mineral Fire Board

Surface finish

factory Primer /finsih paint/power coated/wood grain finished

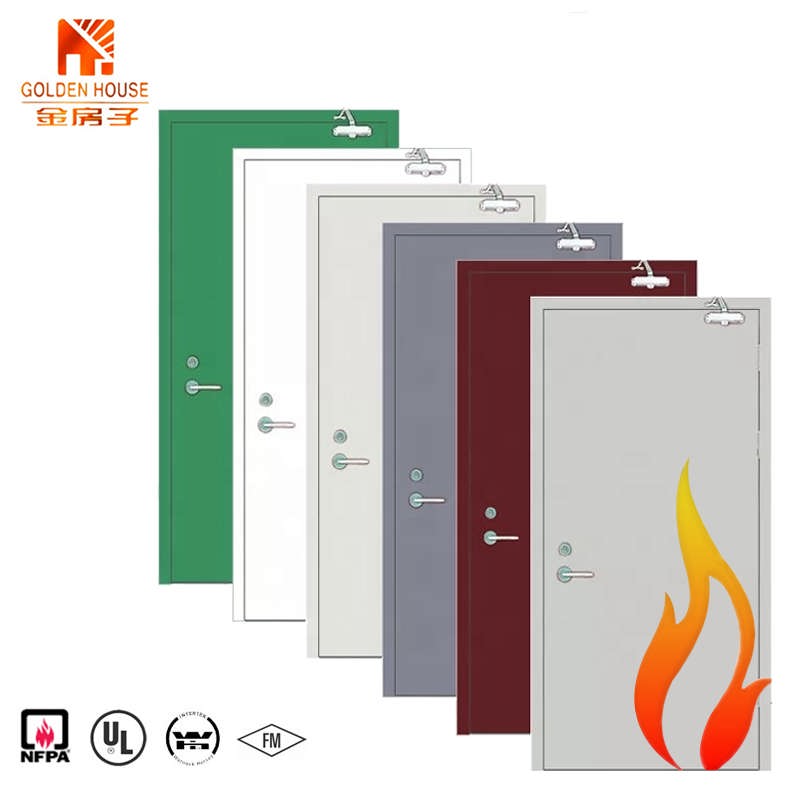

Color

RAL color system or be customized as well

Application

Suitable for building project,business,home decoration

(Office,hotle,church,home and so on )

Packing

in wooden case or steel pallet package











Fire-Rated doors are required to be suited for the various type of walls as below :

Frame and Hardware must also carry the appropriate fire label



Door fire RatingWall RatingDescription and Use3 Hour 4 HourThe openings are in wall that separating buildings or dividing a single building into designated fire areas.doors for this openning are required at 3 hours fire rating.1-1/2 Hour 2 HourOpenings  are used in enclosures of vertical communication or egress through buildings. theste could be stairwells or elevator shafts. They also are in boiler rooms and in exterior walls that have the potential for severe fire exposure from the outside of the building.

3/4 Hour

 (45 Minutes)

1 HourFor use on the  openings are in corridors and room partitions. A door with this rating may also be used in the exterior wall which are subject to moderate fire exposure from the outside of the building.

1/3 Hour

 (20 Minutes)

1 HourThese openings are in corridors or interior partitions where this fire rating is required .







    FIRE DOOR FRAMES

      Frame used in masonry walls maybe used with a maximum 3-hour fire door while frame used in drywall stud walls are intended to be used with a maximum 1-1/2-hour fire door. consulting with your door frame manufacturers listings for fire door frames than can be used in drywall stud walls with a maximum 3-hour ratings.







Dalian Golden House Door & Window Mag Co. .Ltd was established in 1991. We are authorized and assigned corporate for producing fire doors by Liaoning Province Government, company headquarter is located in the beauteous sea shore city Dalian-northeast of China. The factory is located in the Wa fang dian West suburbs industry park-the heavy industry base of dalian city with occupying total area over 100.000 square meters and including two sub-factories.
The company registration capital is 50 million RMB. and total capital exceeds 80 million RMB with over 400 employees. The factory annual production capability of fire proof door (steel, wood) is 100,000 m2....







FAQ

Q1:Can be mixed different colors and models together in one order?
A3:Surely yes. Mixed colors and models are acceptable in One 20GP or in one 40HQ we suggested 3-6 models.

Q2:Can you make the door according to our drawing?
A4:Yes,we can.But customer should send us drawing to check firstly,then we shall reponse you the correct drawing for production .


Q3: What’s your policy for samples?
A6:For small sample,we can offer for free.For completely doors ,we have to charge some cost on actual situation. But we will refund the sample charge to you if you place bulk order next time.

Q4: What’s your special service?
A7:Overseas installation service.

Q5: How to order Delivery time?
A8: Delivery time: About 20-35days.
First we need know your specific door request and specs, then we issue the related solutions to meet your requirements. After that, we make the invoice and drawings for your approval. Once you approve the both, 50% deposit will be arranged and the production is started; after the order is finished, we take video or pictures to you, or you dispatch inspector here, then collect the balance before shipping.

Q6:Do you have stock?
A9:we stock American standard hollow metal door & frames as procedure in factory. When your order is special and need customerized , we need arrange that specially, just like project schedule, most of them need customerized by specific size, color, lock type, materials, etc. So, we can pick up wholesaler order or end user project order both.
