30-60 ton per day flour mill low prices set up complete wheat flour milling plant

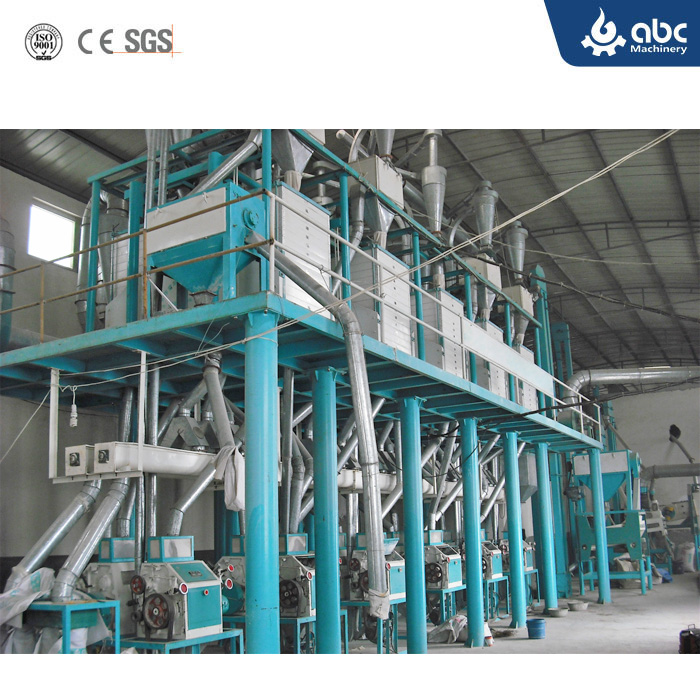

The 30-60ton/d wheat flour machine is steel structure, which means the plansifter is placed on the platform, and the sieved material does not need to be delivered into the mill by elevator but by gravity. This flour mill project design can greatly save fan power, simplify fan net to make it easy to control; the classifying outside sifter can save bolting area. Besides, the steel structure flour mill project also has compact structure, good appearance and easy to install and operate.



30t per day wheat flour milling plant

Raw MaterialCapacity(T/D)Finished Products and by productsWorkshop dimension(m)Power(kw)wheat30F1 flour: 60-63%
F2 flour: 70-73%
F3 flour:75-78%30×7×7.5(L×W×H)85

40t per day wheat flour mill plant

Capacity(t/d)Raw materialFinal flourPower(kw)The size of workshop(m)process 40 ton wheatEthiopia wheatFor pasta making8024*7*7

60t per day wheat flour mill plant

CapacityPowerMaterialFlour extraction rateFinal FlourThe size of the workshopProcess 60 T wheat per day130kwhard wheat75-80 %For making french bread25m*10m*7 m

Wheat Cleaning part:

This part adopts the cleaning technology of 2 times of sieving, 2 times of threshing, 2 times of destoning, one time of wheat brushing, 2 times of magnetic separation and one time of wind suction. It is mainly composed by raw wheat cleaning process and net grain cleaning process, which can fully guarantee the quality of wheat when feeding into the flour mill and also the working environment.

Wheat flour milling part:

This section adopts the milling technology of 4 bran milling, 3 core milling and 1 slag milling. Especially the using of classifying screen can efficiently increase sieving area, which fully assures flour quality, productivity and output rate.

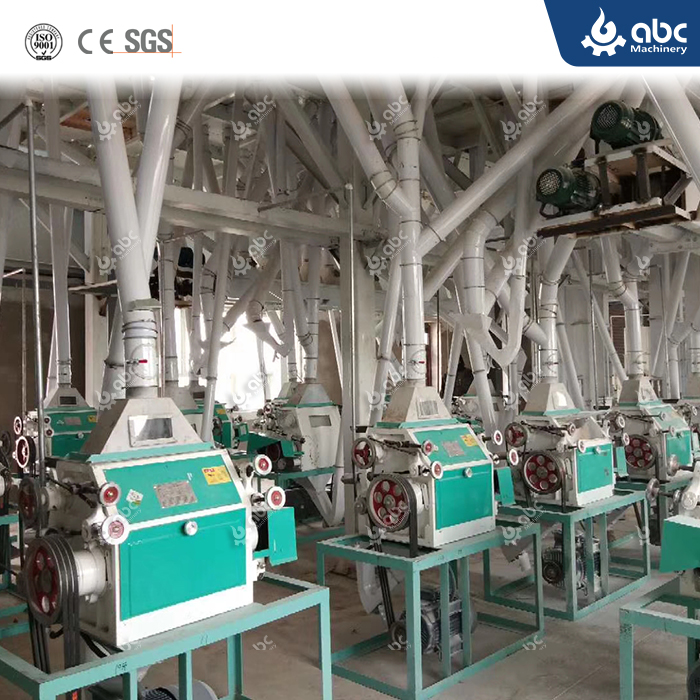

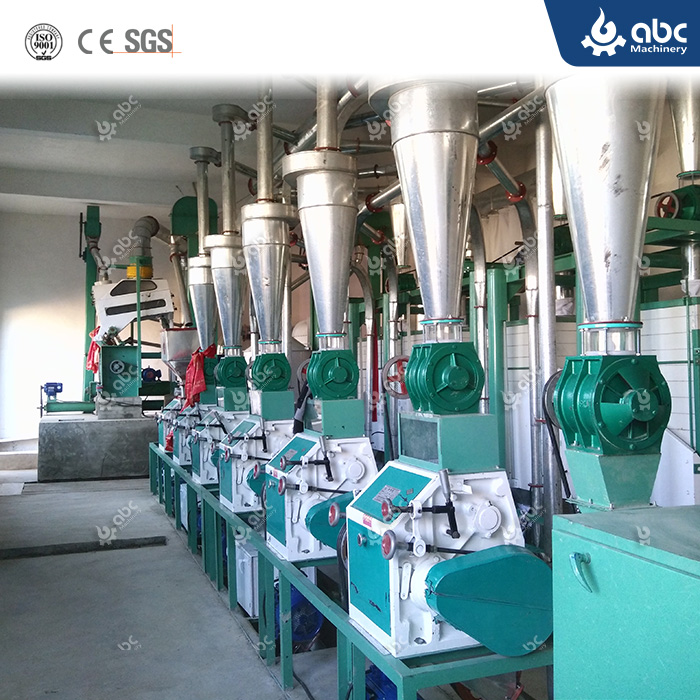

Flour milling project case we had build 10-500T/D
